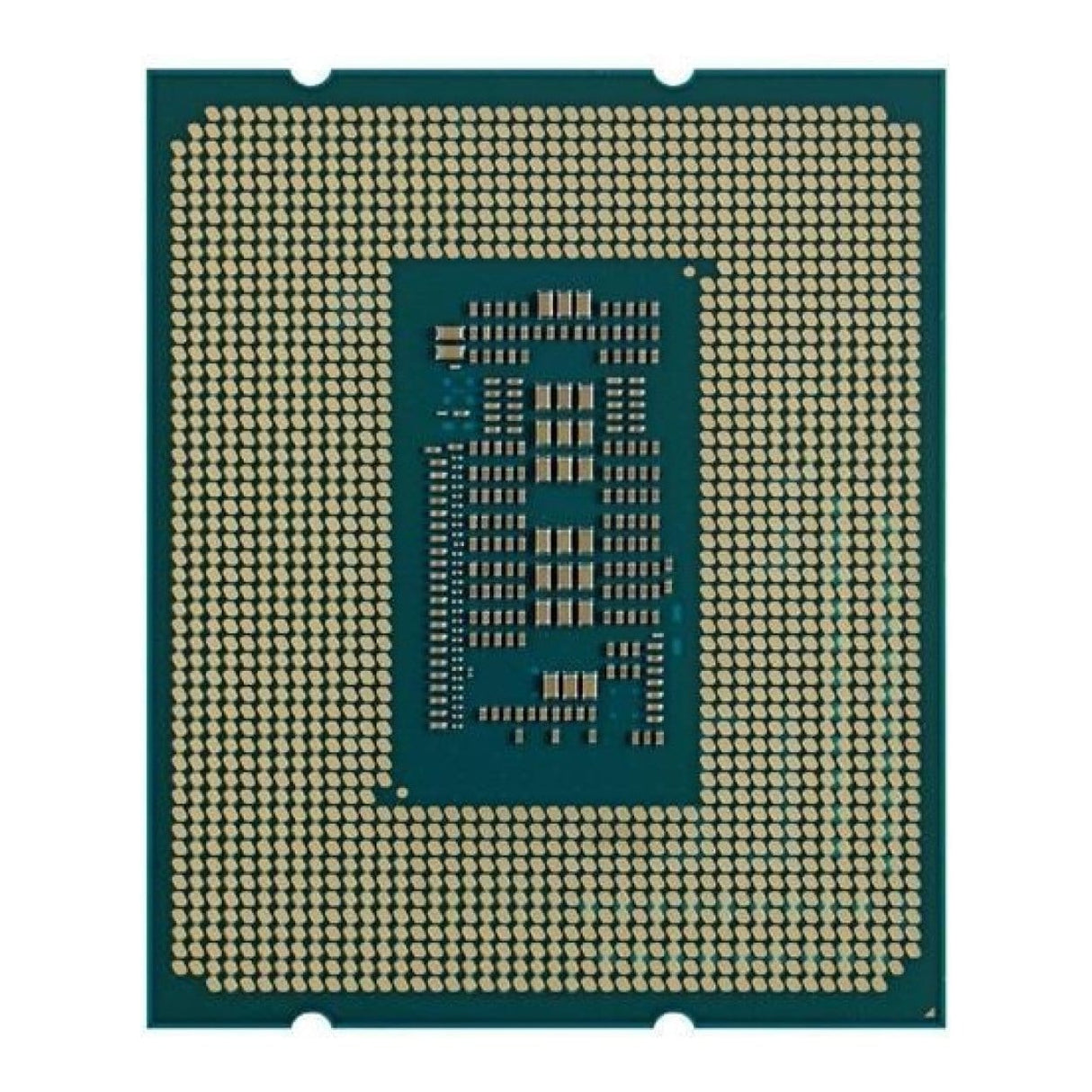

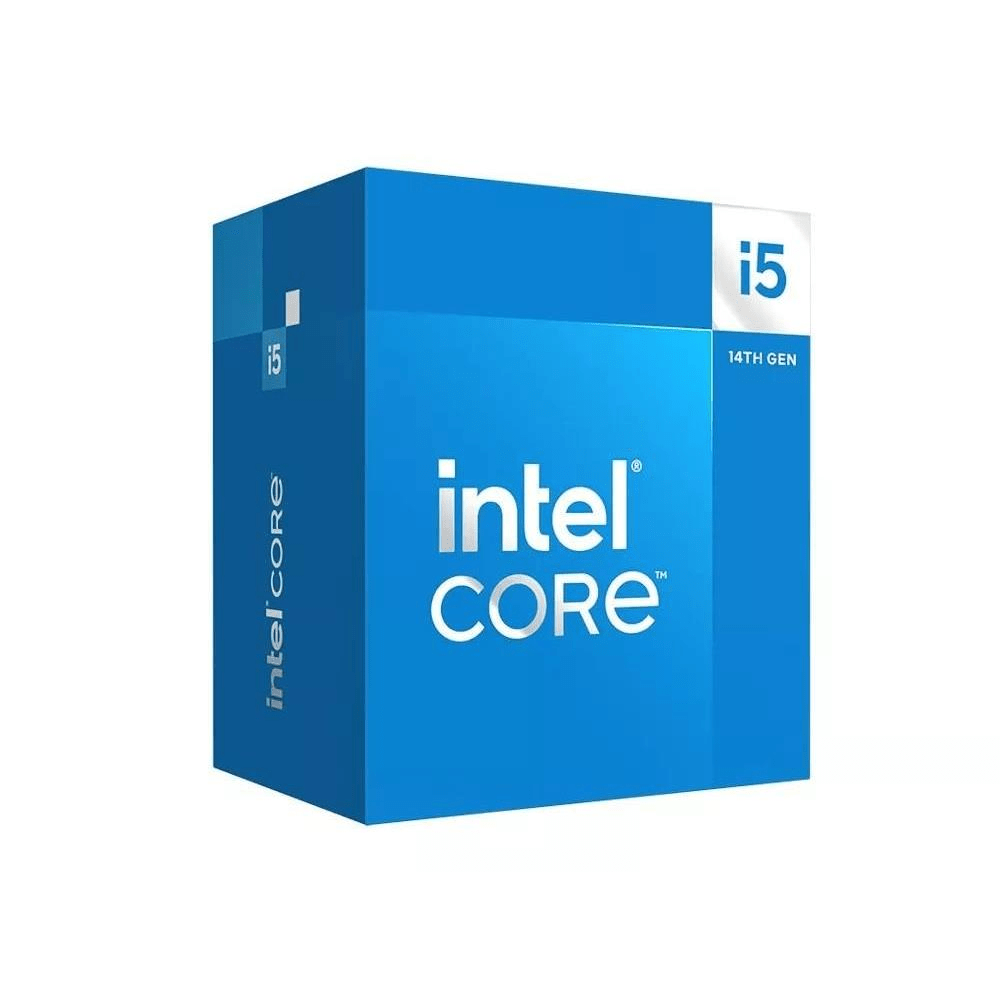

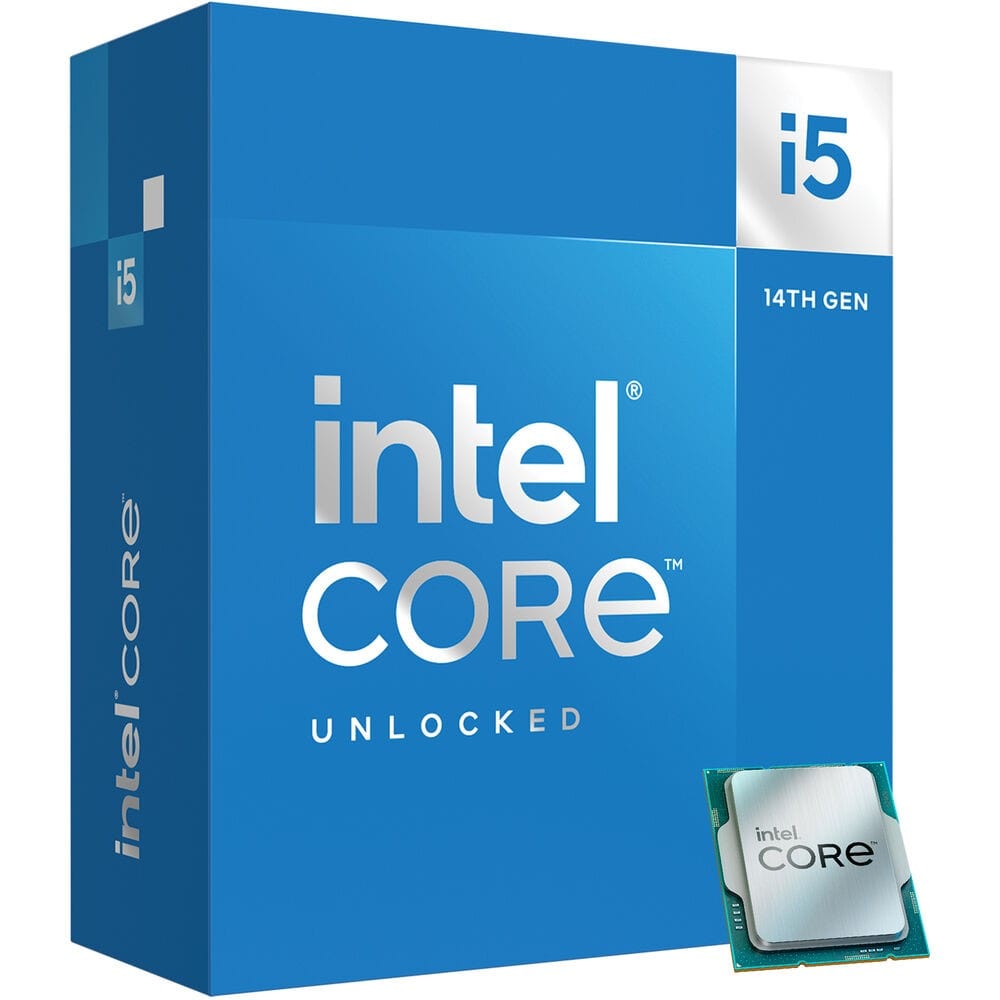

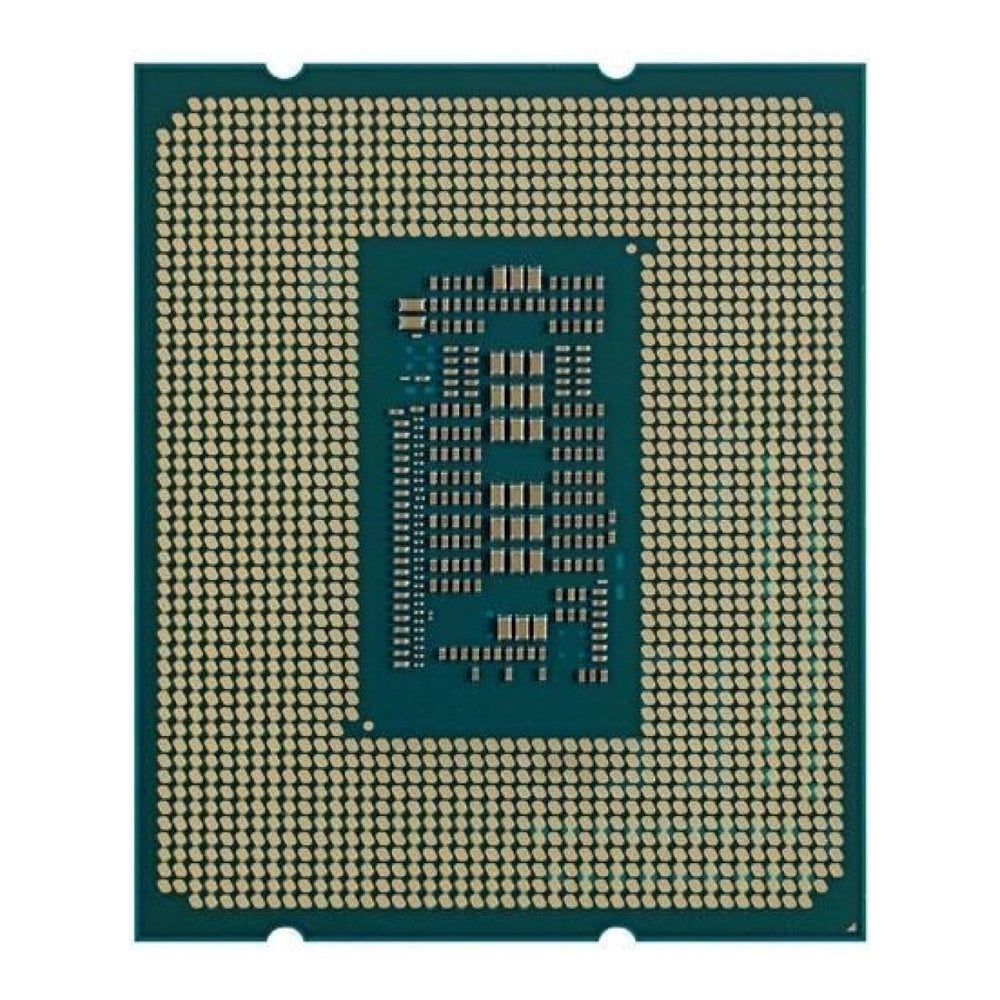

Intel Core i5-14400 CPU - 10-Core LGA 1700 2.5GHz Processor BX8071514400

Intel Core i5-14400 CPU - 10-Core LGA 1700 2.5GHz Processor BX8071514400

Power up your productivity, gaming, and content creation with the Intel Core i5-14400 2.5 GHz 10-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14400 powers applications and games with six 2.5 GHz Performance-cores while the four low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 20MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. The Core i5-14400 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz.

The Core i5-14400 features integrated Intel UHD 730 Graphics. A Laminar RM1 cooler is included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics

The integrated Intel UHD 730 Graphics delivers rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Technical Specifications:

CPU Specifications
Total Cores: 10 (6 Performance-cores, 4 Efficient-cores)
Total Threads: 16
Max Turbo Frequency: 4.7 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.8 GHz
Cache: 20 MB Intel® Smart Cache
Total L2 Cache: 9.5 MB
Processor Base Power: 65 W
Maximum Turbo Power: 148 W
Marketing Status: Launched
Launch Date: Q1’24
Embedded Options Available: Yes
Use Conditions: PC / Client / Tablet

Memory Specifications
Max Memory Size: 192 GB (dependent on memory type)
Memory Types: Up to DDR5 4800 MT/s; Up to DDR4 3200 MT/s
Max Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s

GPU Specifications
GPU Name: Intel® UHD Graphics 730
Graphics Max Dynamic Frequency: 1.55 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 24
Max Resolution (HDMI): 4096 × 2160 @ 60 Hz
Max Resolution (DP): 7680 × 4320 @ 60 Hz
Max Resolution (eDP): 5120 × 3200 @ 120 Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3.0
Multi-Format Codec Engines: 1
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
Displays Supported: Up to 4
Device ID: 0x4682 / 0xA782

Expansion Options
DMI Revision: 4.0
Max DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1×16+4 or 2×8+4
Max PCI Express Lanes: 20

Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
Tjunction: 100°C
Package Size: 45.0 × 37.5 mm
Max Operating Temperature: 100°C

Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (DL Boost): Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, SSE4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes

Security & Reliability
Intel® Standard Manageability (ISM): Yes
Intel® Secure Key: Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Intel® OS Guard: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
