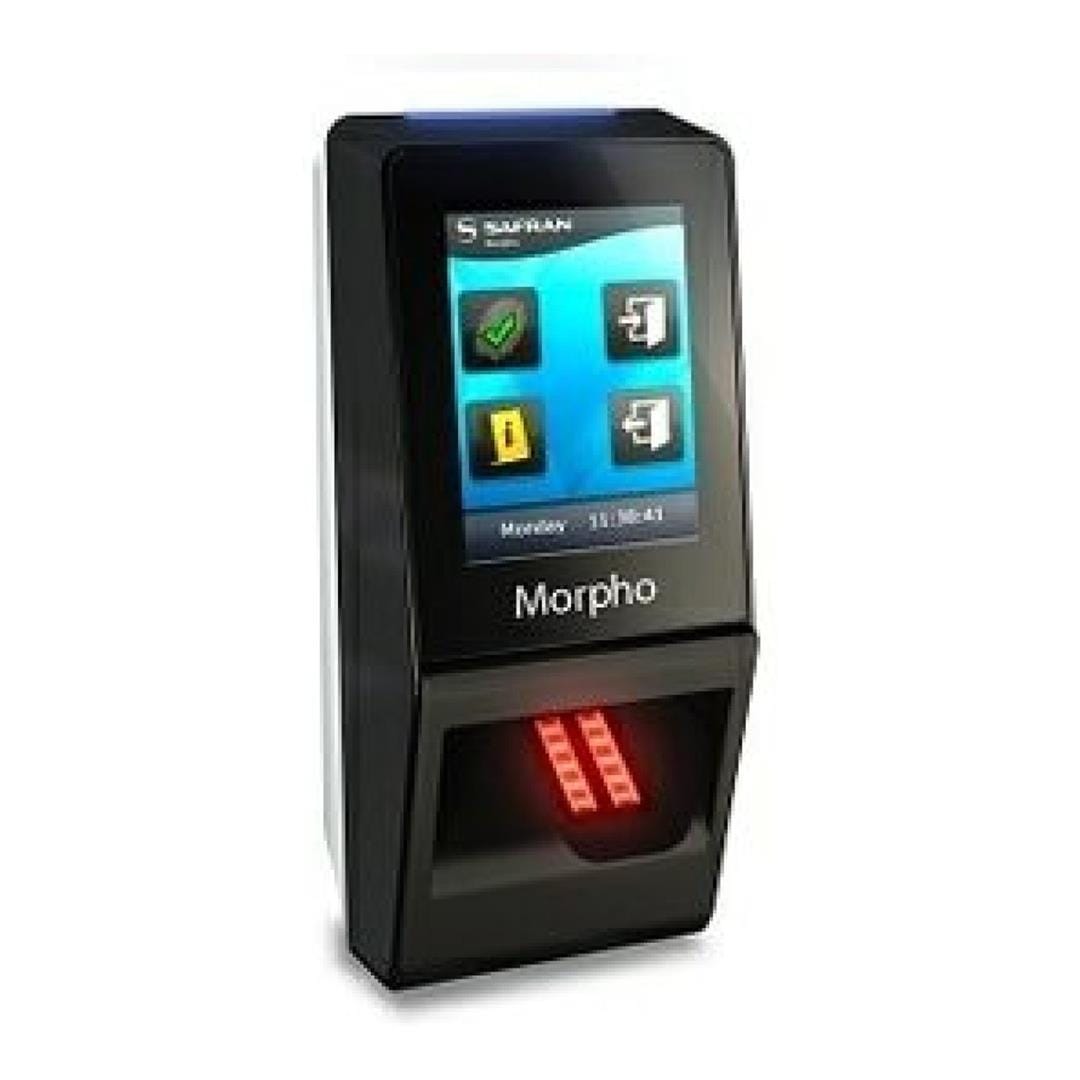

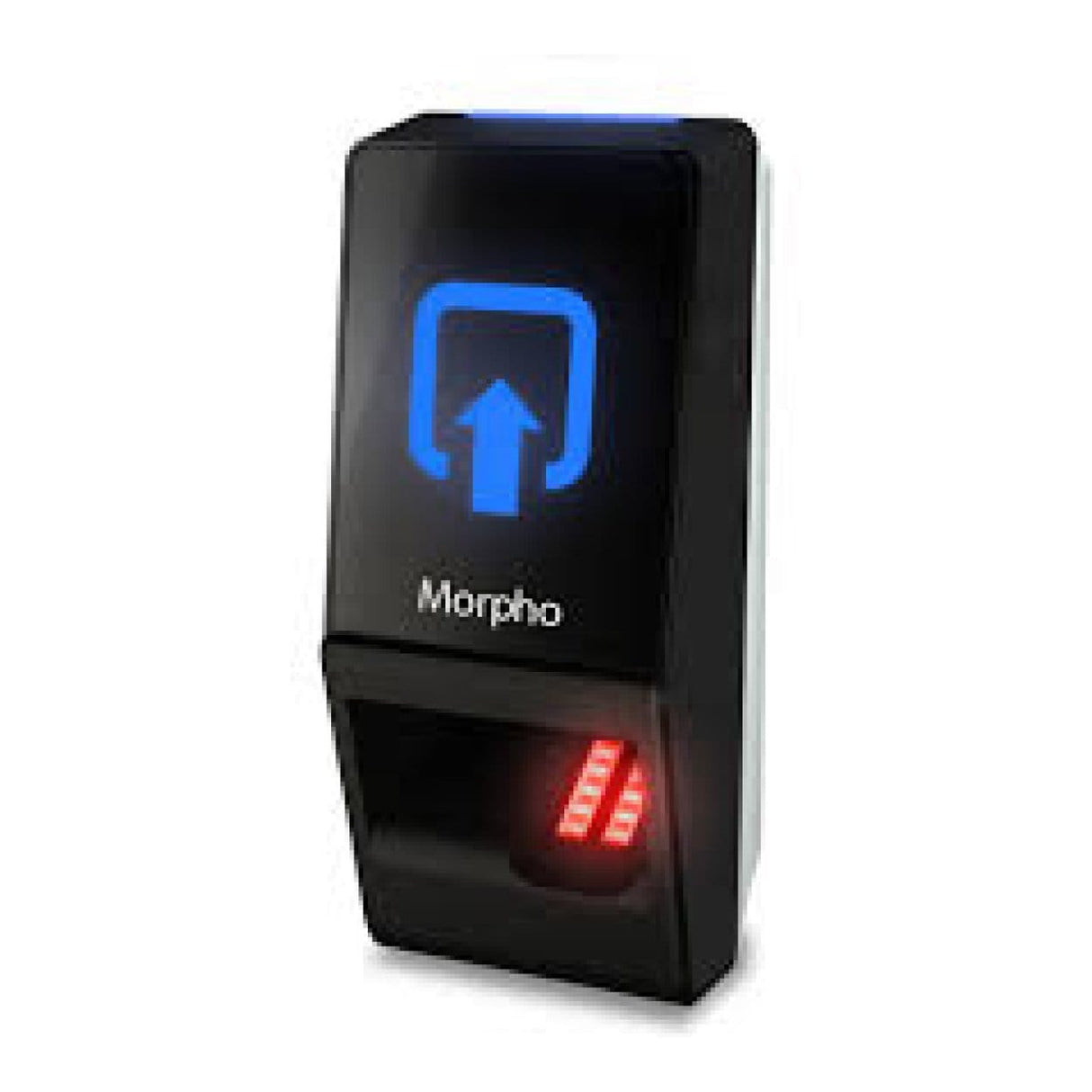

Impro Morpho Access Sigma Lite Multi IP65 Fingerprint Access Terminal MRB921-0-0-GB

Impro Morpho Access Sigma Lite Multi IP65 Fingerprint Access Terminal MRB921-0-0-GB

Engineered with the same attention to detail and performance as their predecessor, the MorphoAccess® SIGMA Lite terminals by IDEMIA are specifically designed to equip narrow mounting surfaces, such as glass/ aluminum door mullions, turnstiles, or server rack doors.

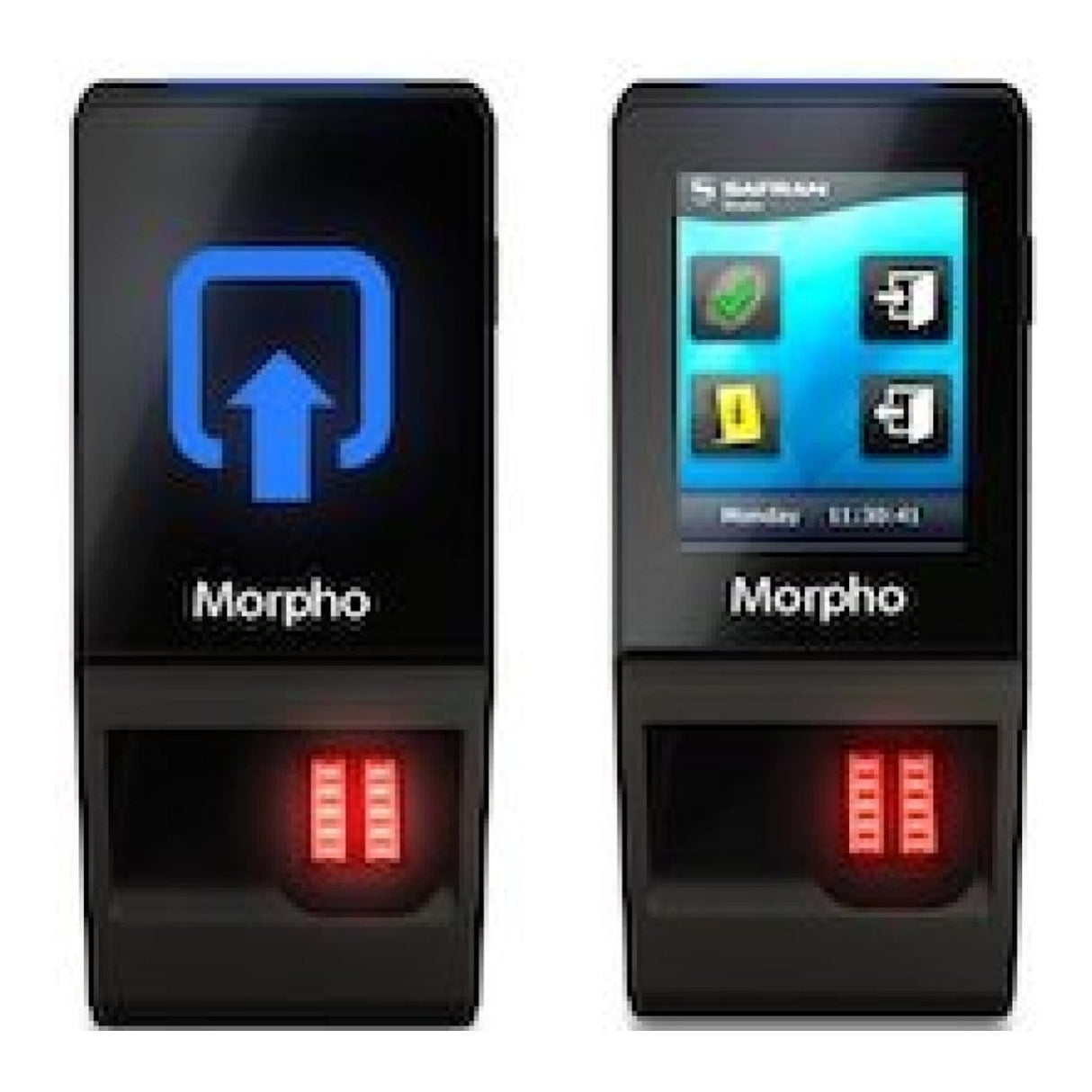

With two designs and multiple card reader options, there are a variety of models to address the widest range of deployment scenarios, both indoors and outdoors.

Enhanced interactivity on MA SIGMA Lite+ touchscreen

• Time & Attendance In & Out function keys
• User ID, PIN and BioPIN(3) management
• Intuitive icons and live messages

Anti-fraud features

• Fake finger detection
• Duress finger
• Timed anti-pass back function(4)
• Banned/authorized user lists

Technical Specifications:

CPU: ARM® Cortex™-A9, 1 GHz
Operating System: Linux
Fingerprint Sensor: FBI PIV IQS certified optical
Contactless Reader Options: Prox®, iClass®, MIFARE®/MIFARE® Plus/DESFire®/NFC(1)
Network/Communication: Ethernet, RS485, USB; Wi-Fi option
Power Supply: 12V–24V DC; Power over Ethernet (PoE), compatible with PoE+ switches
Internal Storage Capacity: 512 MB Flash, 512 MB RAM; 500 user records (extendable to 3,000 or 10,000 with license, 3 templates each including 1 duress); 250,000 IDs in authorized user list; 1 million transaction logs
Inputs/Outputs: Wiegand In & Out (customizable up to 512 bits), OSDP, Door Relay, 2 General Purpose Inputs (including Door monitoring), 2 General Purpose Outputs
Tamper Switches: Yes
Operating Conditions: Temperature: -20°C to 55°C (-4°F to 131°F); Humidity: 10% to 80% (non-condensing)
Ingress Protection: IP65
Mechanical Impact Protection: IK08(2)
Dimensions (HxWxD): 156 × 68 × 62 mm (6.14 × 2.68 × 2.44 inches)
Weight: 280 g
EMC/Safety Standards: CE, CB, FCC, BIS; UL294 (for indoor use only)
Compliance: RoHS, REACh, WEEE
