iiyama ProLite TF3215MC-B2AG 32-inch P-CAP Touch Display Panel

iiyama ProLite TF3215MC-B2AG 32-inch P-CAP Touch Display Panel

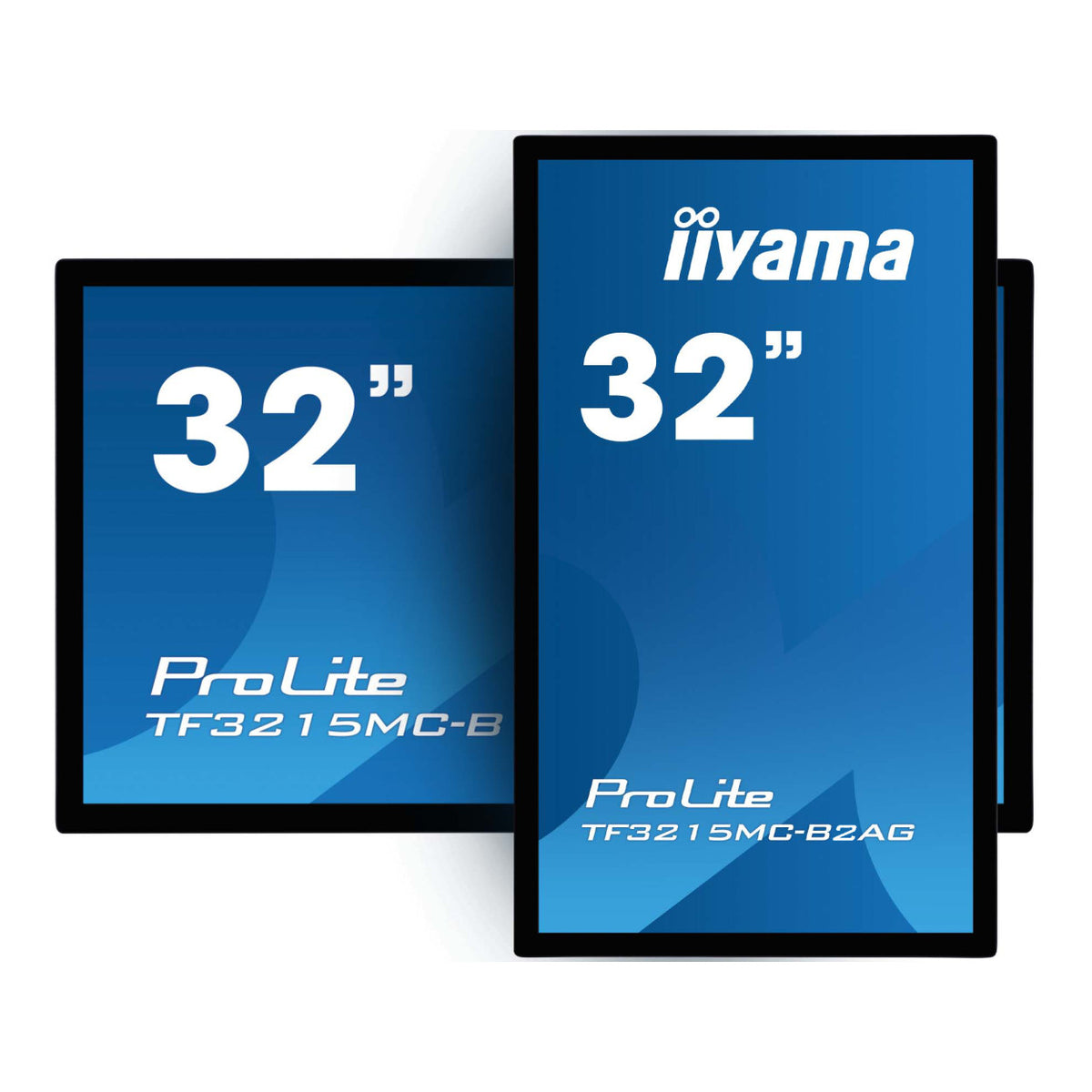

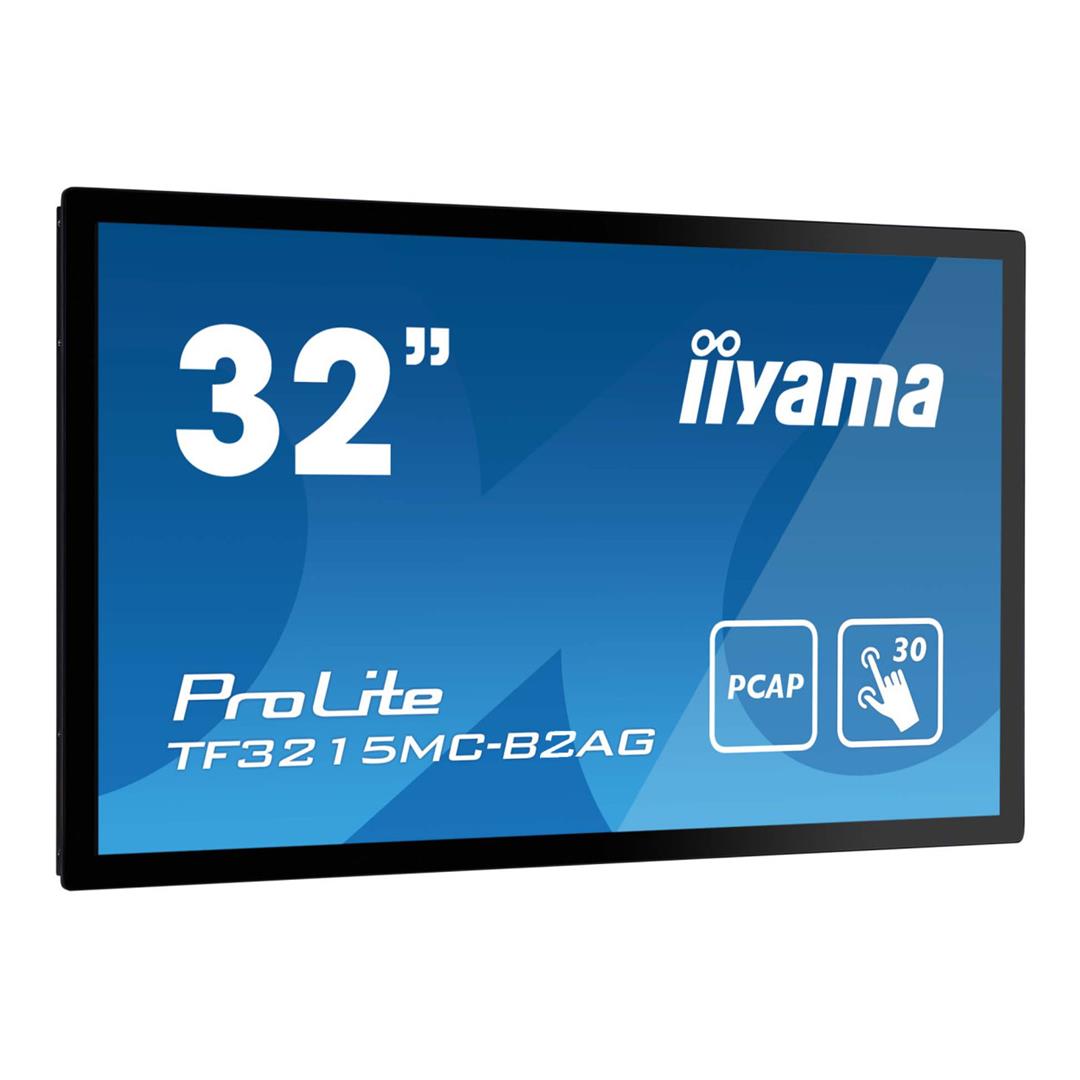

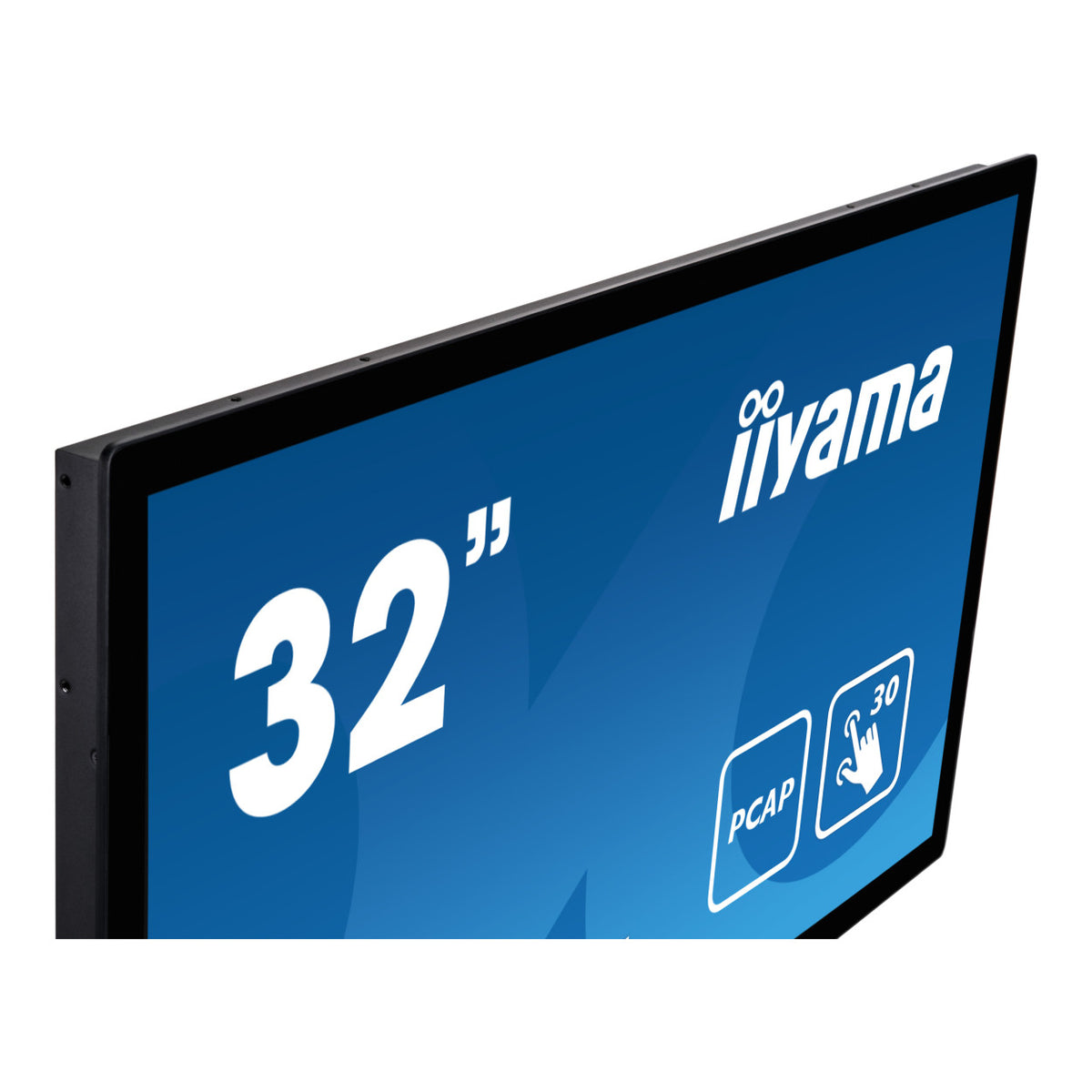

The iiyama ProLite TF3215MC-B2AG 32-inch P-CAP Touch Display Panel delivers reliable interactive performance for retail, kiosks and industrial applications. Featuring a 31.5-inch Full HD VA panel, 1920 x 1080 resolution, 30-point Projective Capacitive touch technology and anti-glare glass, this open-frame display provides detailed visuals and responsive interaction. With IP65-rated front protection, Touch Through-Glass functionality, HDMI, DisplayPort and VGA connectivity, the TF3215MC-B2AG supports seamless integration and continuous 24/7 operation.

Key Features:

• 32-inch professional open-frame touch display
• Model: TF3215MC-B2AG
• 31.5-inch VA LED panel
• 1920 x 1080 Full HD resolution
• 16:9 widescreen aspect ratio
• 30-point Projective Capacitive touchscreen
• Edge-to-edge anti-glare glass
• 500 cd/m² panel brightness
• 425 cd/m² brightness with touch
• 3000:1 static contrast ratio
• 8ms grey-to-grey response time
• 178° horizontal and vertical viewing angles
• 16.7 million display colours
• IP65-rated dust and water protection at the front
• IK07 impact resistance
• 6H glass hardness
• Touch Through-Glass support up to 6mm
• Finger, latex glove and stylus input
• 8mm foam seal for kiosk integration
• HDMI, DisplayPort and VGA inputs
• USB touchscreen connectivity
• 24/7 continuous operating capability
• Landscape and portrait orientation
• 200 x 200mm VESA mounting
• Durable black metal housing

Features

Full HD VA Display

The 31.5-inch VA LED panel delivers 1920 x 1080 Full HD resolution with detailed images and natural colours. Its 3000:1 static contrast ratio provides strong image depth for digital content, interactive applications and information displays.

30-Point PCAP Touch Technology

Projective Capacitive technology supports up to 30 simultaneous touch points on compatible operating systems. The display enables precise interaction using fingers, latex gloves or compatible capacitive stylus pens.

Anti-Glare Glass Surface

The edge-to-edge anti-glare glass reduces distracting reflections in brightly illuminated environments while maintaining image clarity and touchscreen responsiveness.

IP65 Front Protection

The front surface features an IP65 rating, providing protection against dust and water jets under specified conditions. This makes the display suitable for demanding public-facing applications. The rating applies to the front only.

Durable Impact-Resistant Design

Featuring 6H glass hardness and IK07 impact resistance, the touchscreen is designed for frequent interaction. Its robust metal construction supports reliable use in commercial and industrial installations.

Touch Through-Glass Technology

Touch Through-Glass functionality allows compatible touch interaction through an additional glass surface up to 6mm thick. This supports integration into interactive shop windows, kiosks and enclosed installations.

Seamless Open-Frame Integration

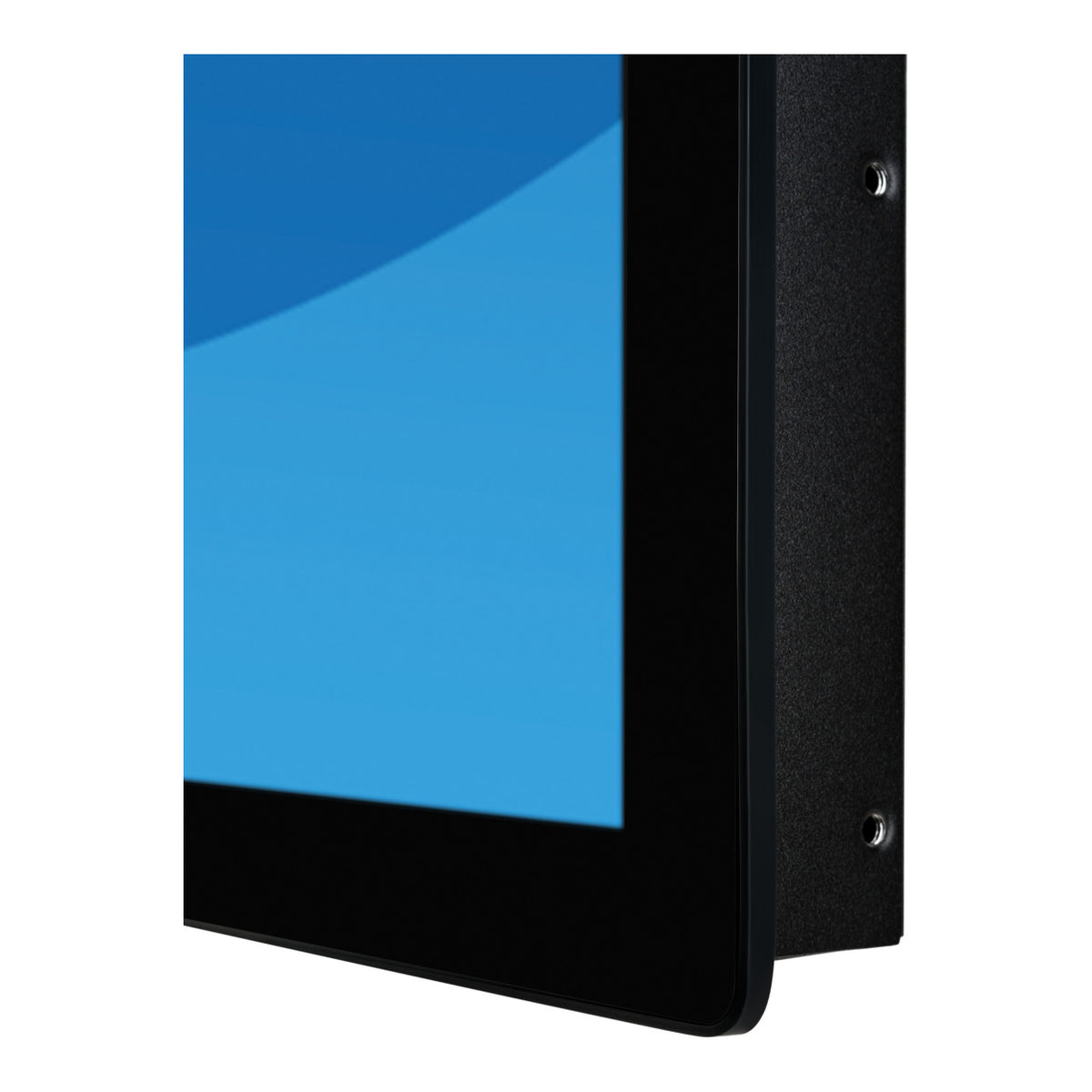

The open-frame design features an 8mm foam seal around the monitor, supporting installation into kiosks and custom enclosures while helping prevent dust entering around the display edges.

Wide Viewing Angles

The VA panel provides 178-degree horizontal and vertical viewing angles, maintaining consistent visibility when viewed from different positions.

Flexible Video Connectivity

HDMI, DisplayPort and VGA interfaces provide compatibility with a range of computers and audiovisual equipment. A separate USB connection enables touchscreen functionality with supported host systems.

24/7 Continuous Operation

Designed for commercial environments, the display supports continuous 24/7 operation. Its fanless design enables quiet performance in kiosks, control rooms and interactive installations.

Flexible Installation

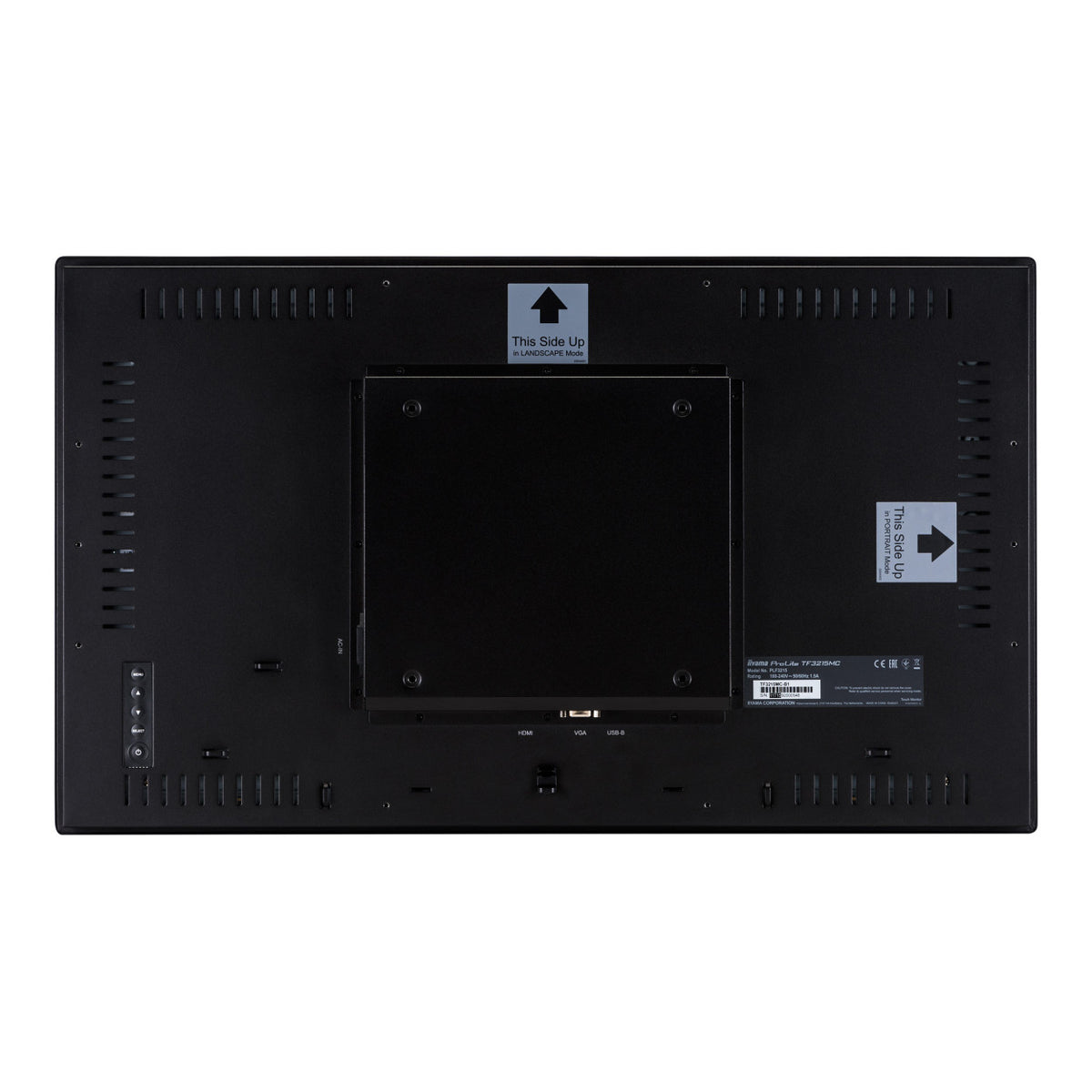

Landscape and portrait orientation support allows flexible installation. The 200 x 200mm VESA mounting interface provides compatibility with suitable mounting systems.

Technical Specifications:

What's in the Box:

• 1 x iiyama ProLite TF3215MC-B2AG Display
• 1 x Power Cable
• 1 x USB Cable
• 1 x HDMI Cable
• 1 x Cable Cover
• 1 x Quick Start Guide
• 1 x Safety Guide

The iiyama ProLite TF3215MC-B2AG combines Full HD VA imaging, 30-point PCAP touch technology and durable open-frame construction in a professional interactive display. With IP65 front protection, anti-glare glass, Touch Through-Glass functionality and 24/7 operation, it provides reliable performance for retail kiosks, industrial environments and interactive multimedia installations.
