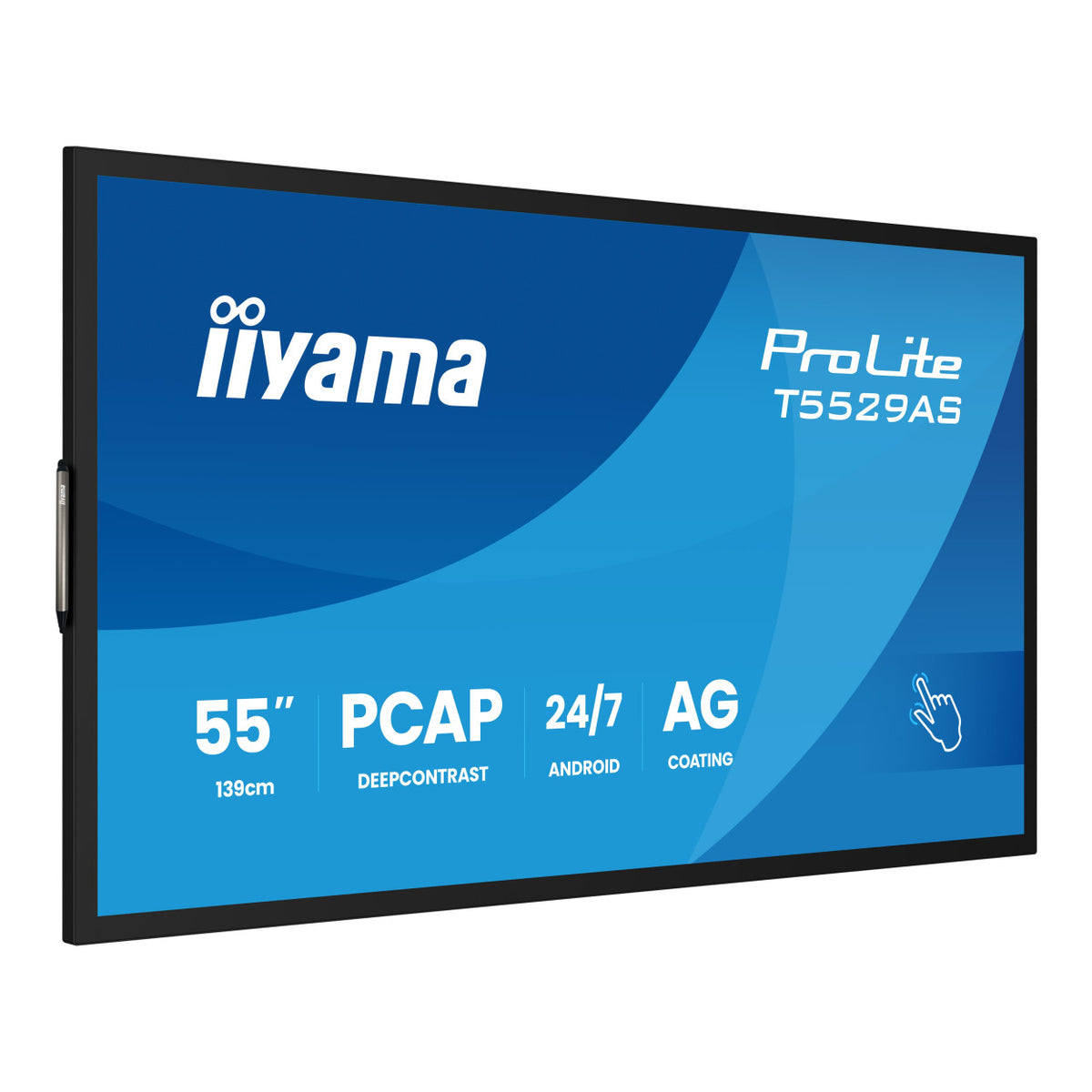

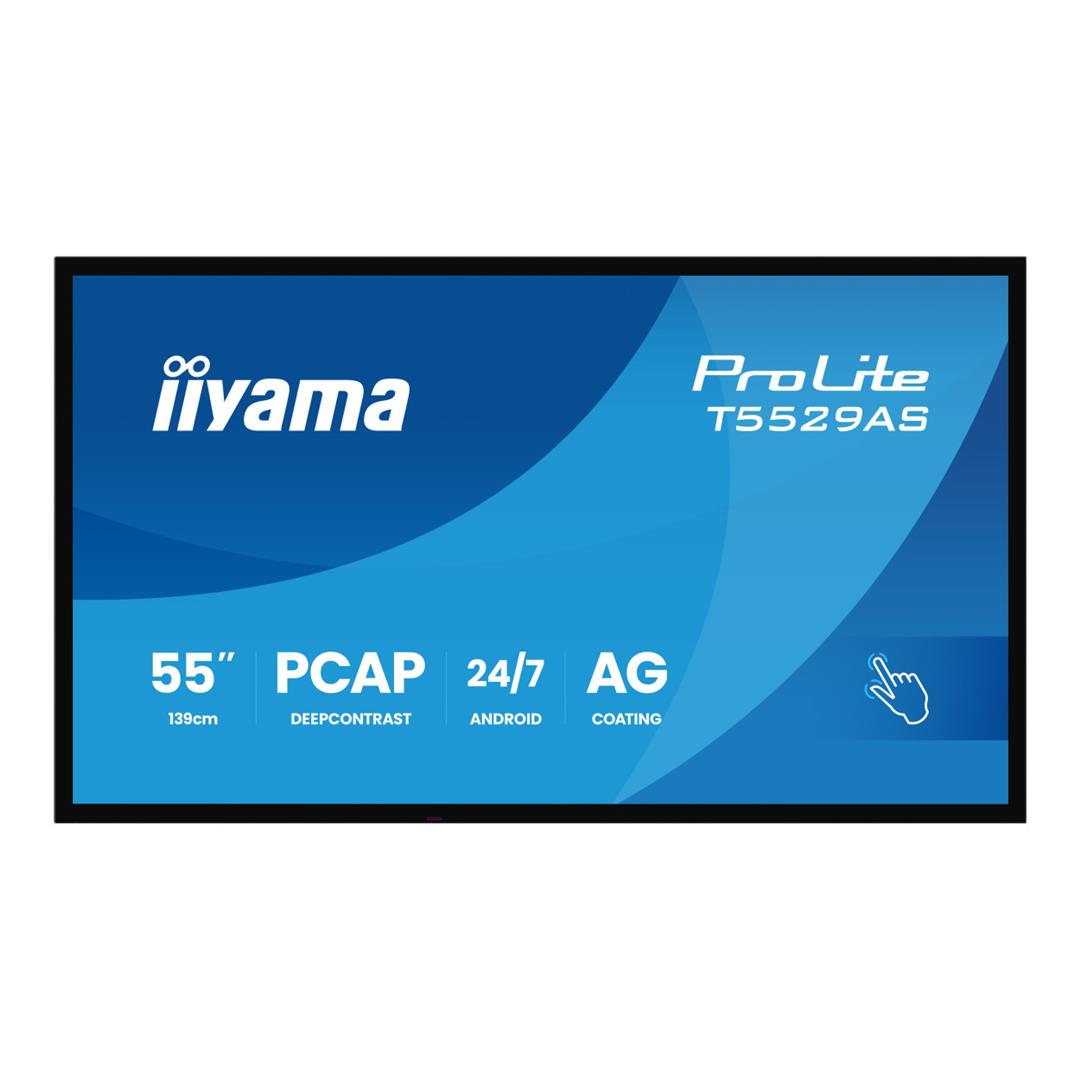

iiyama ProLite T5529AS-B1AG 55-inch 4K All-in-One P-CAP Interactive Display Panel

iiyama ProLite T5529AS-B1AG 55-inch 4K All-in-One P-CAP Interactive Display Panel

The iiyama ProLite T5529AS-B1AG 55-inch 4K Interactive Display delivers professional touchscreen functionality for meeting rooms, education and digital signage. Featuring a 54.6-inch VA DLED panel, 3840 x 2160 Ultra HD resolution, 20-point DeepContrast PCAP touch technology and anti-glare glass, it provides detailed visuals and responsive interaction. With Android 14, 4GB RAM, 32GB storage, wireless screen sharing, USB-C connectivity and integrated speakers, this all-in-one display supports modern collaboration and 24/7 commercial operation.

Key Features:

• 55-inch professional 4K interactive touch display
• Model: T5529AS-B1AG
• 54.6-inch VA Direct LED panel
• 3840 x 2160 Ultra HD resolution at 60Hz
• 16:9 widescreen aspect ratio
• 20-point DeepContrast PCAP touchscreen
• Anti-glare, zero-gap bonded glass
• 8H glass hardness and palm rejection
• 450 cd/m² brightness with touch glass
• 4000:1 static contrast ratio
• 6.5ms grey-to-grey response time
• 178° horizontal and vertical viewing angles
• 1.07 billion display colours
• Android 14 operating system
• MediaTek quad-core processor
• 4GB RAM and 32GB internal storage
• Integrated digital whiteboard software
• iiSignage², iiControl and iiShare applications
• Wireless screen sharing through EShare
• 2 x HDMI and USB-C video inputs
• Wi-Fi 5 and RJ45 LAN connectivity
• USB-C with 15W Power Delivery
• Integrated dual 10W stereo speakers
• 24/7 continuous operation

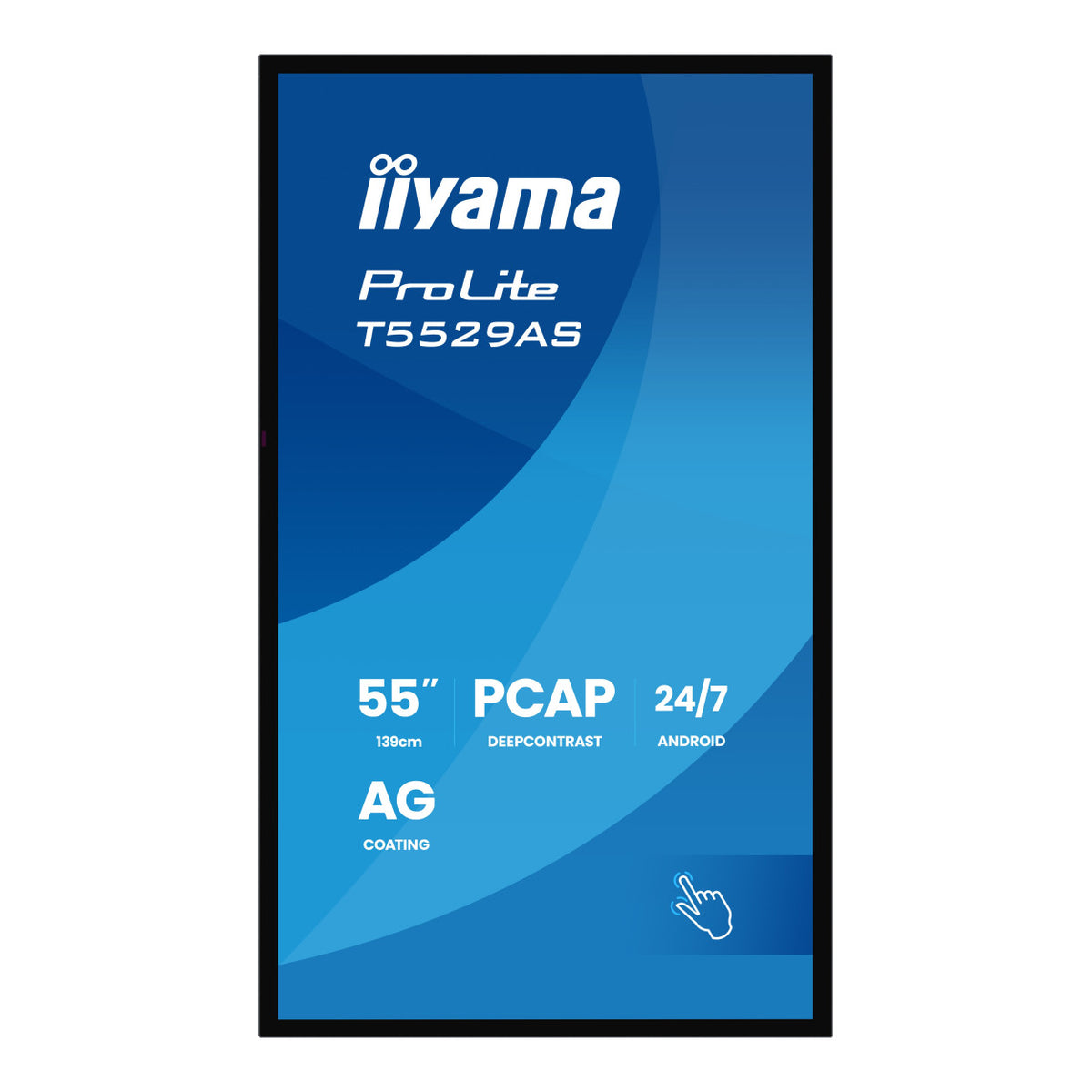

• Landscape and portrait orientation
• 300 x 400mm VESA mounting
• Wall bracket and two touch pens included

Features

4K Ultra HD Visual Performance

The 54.6-inch VA Direct LED panel delivers 3840 x 2160 resolution with sharp details and natural colours. A 4000:1 contrast ratio and 178-degree viewing angles provide clear visuals for presentations, collaboration and digital signage.

20-Point PCAP Touch Technology

DeepContrast Projective Capacitive technology supports up to 20 simultaneous touch points on compatible systems. Users can interact using fingers or stylus pens, while palm rejection supports natural writing and drawing.

Anti-Glare Bonded Glass

The edge-to-edge glass features anti-glare treatment and zero-gap air-bonded construction. Its 8H hardness and smooth writing surface provide durability and responsive touch interaction.

Android 14 Operating System

Integrated Android 14 enables standalone operation without requiring an external computer. The display features a MediaTek MTK9679 quad-core processor, Mali G51 graphics, 4GB RAM and 32GB storage.

Interactive Digital Whiteboard

The integrated whiteboard application supports writing, drawing, annotation and collaborative discussions. Two dual-tip touch pens are included for convenient interaction.

Wireless Screen Sharing

Built-in iiShare and EShare applications allow compatible devices to share content wirelessly. This simplifies presentations, classroom activities and collaborative meetings.

Integrated Content Management

iiSignage² supports digital signage content management, while iiControl enables remote display administration. Additional applications include TeamViewer, iiBrowser and multimedia playback tools.

Flexible USB-C Connectivity

The USB-C interface supports video through DisplayPort 1.2 Alt Mode, data connectivity and up to 15W Power Delivery. Two HDMI inputs and USB ports provide flexible connectivity for compatible equipment.

Integrated Stereo Speakers

Two built-in 10W speakers deliver audio playback for presentations, multimedia and interactive applications without requiring separate external speakers.

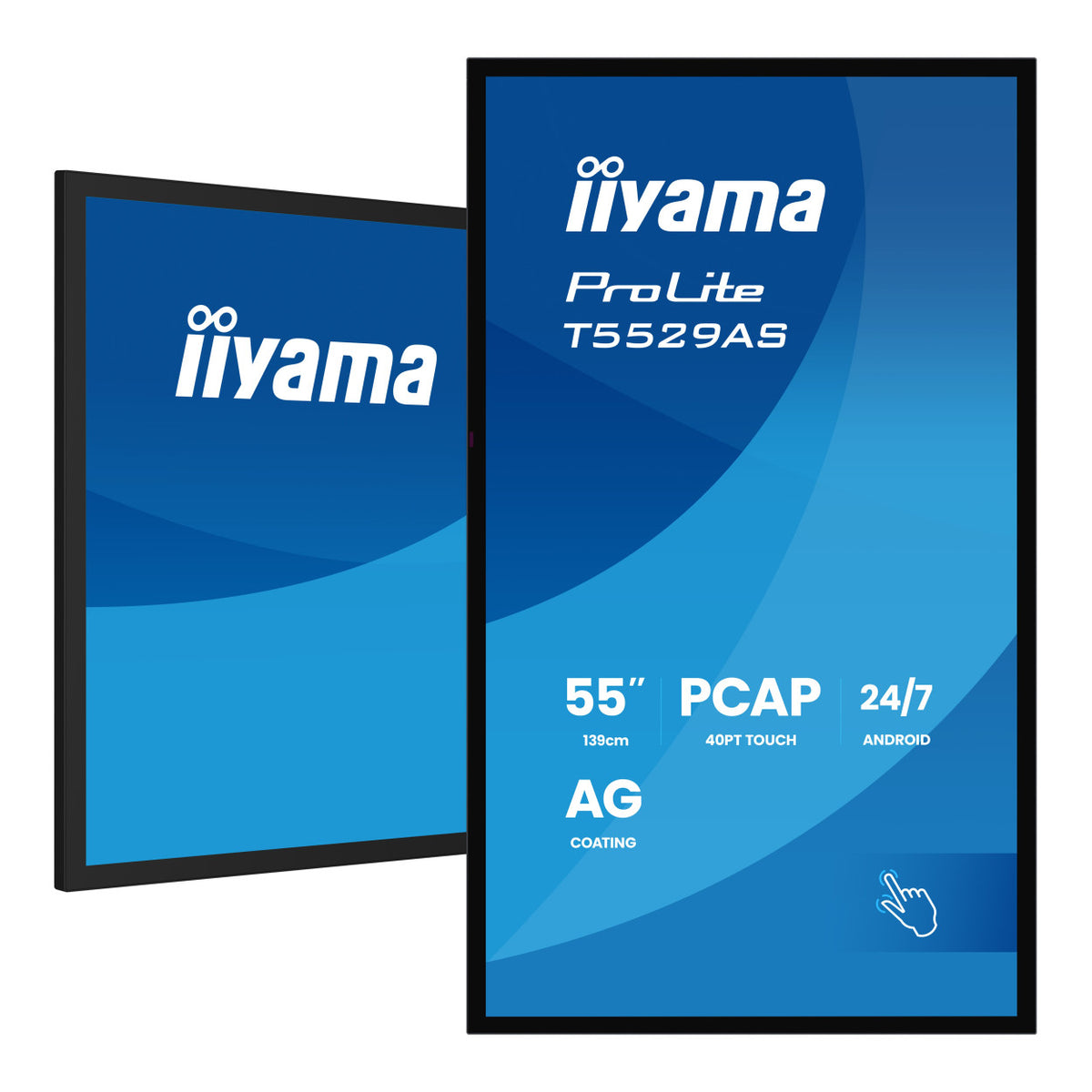

24/7 Professional Operation

Designed for continuous commercial use, the display supports 24/7 operation with anti-image-retention technology. Landscape and portrait orientations provide flexibility for business and signage installations.

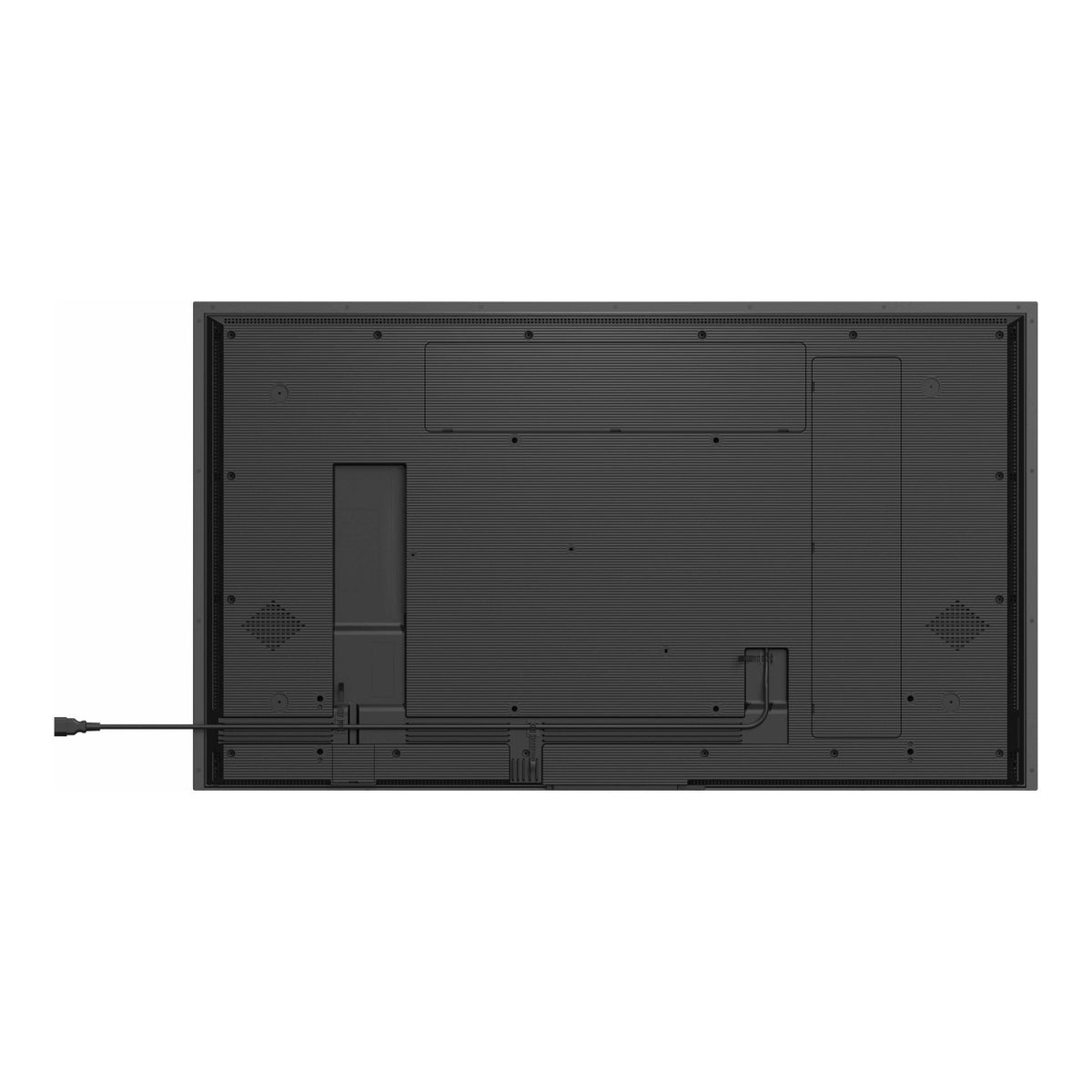

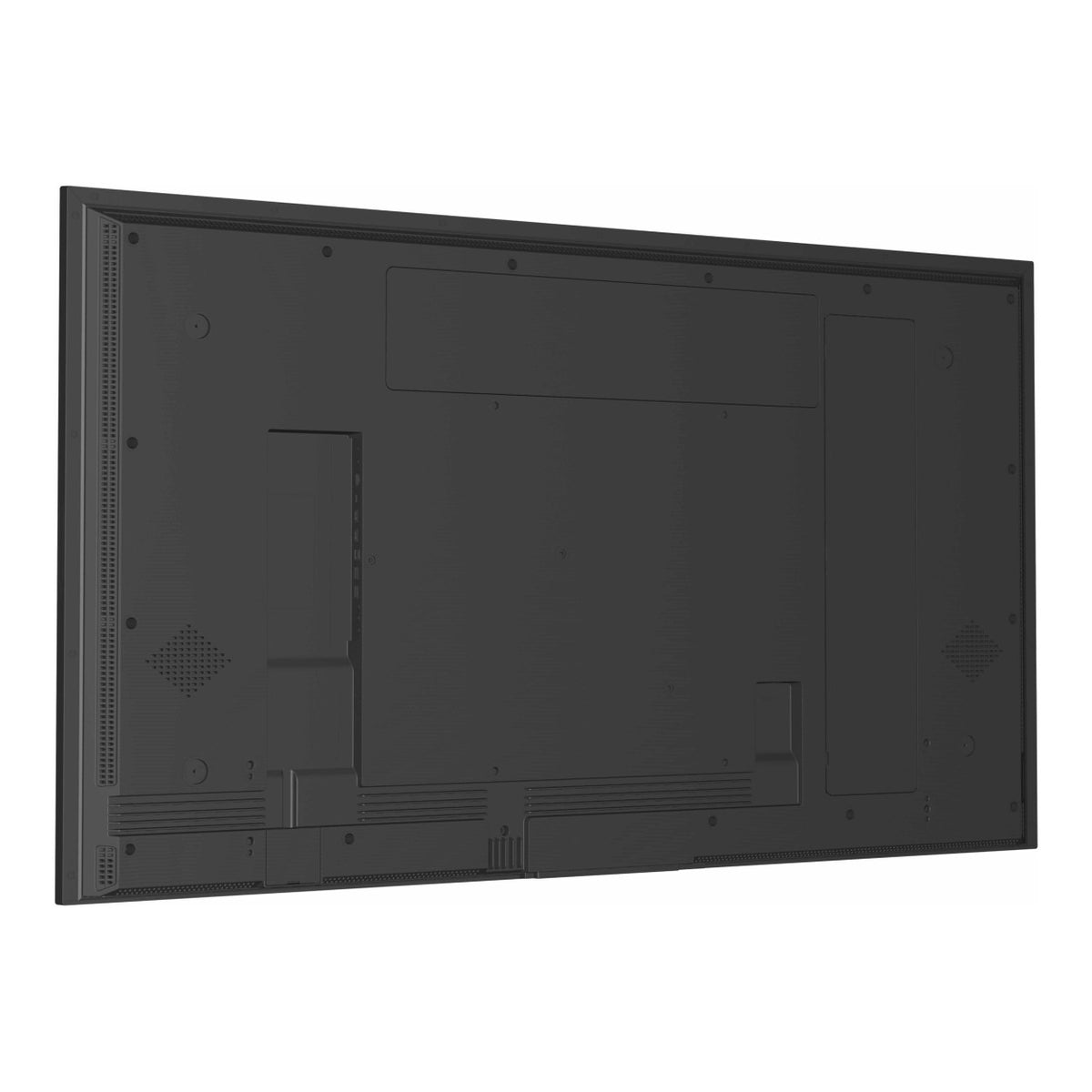

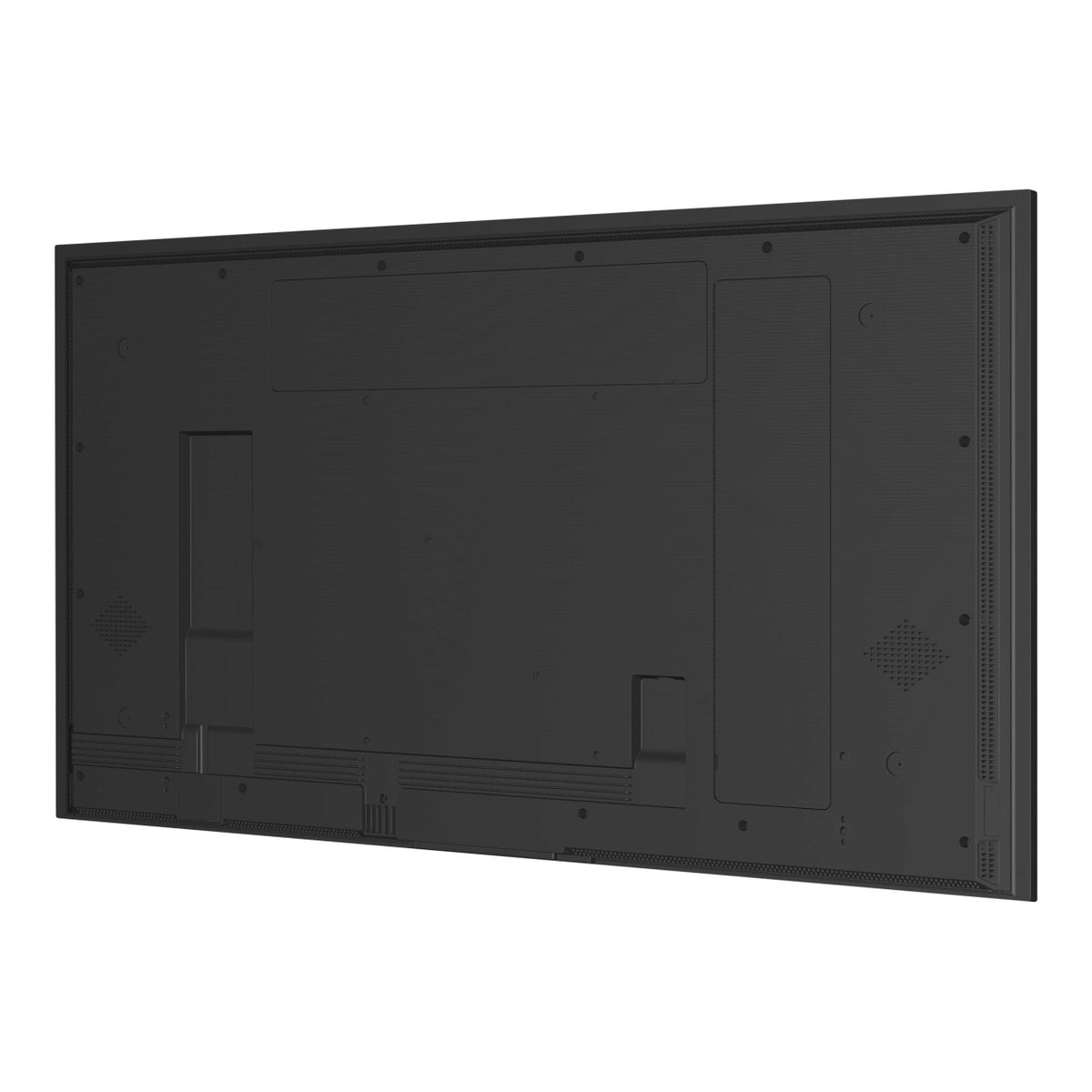

Flexible Wall Installation

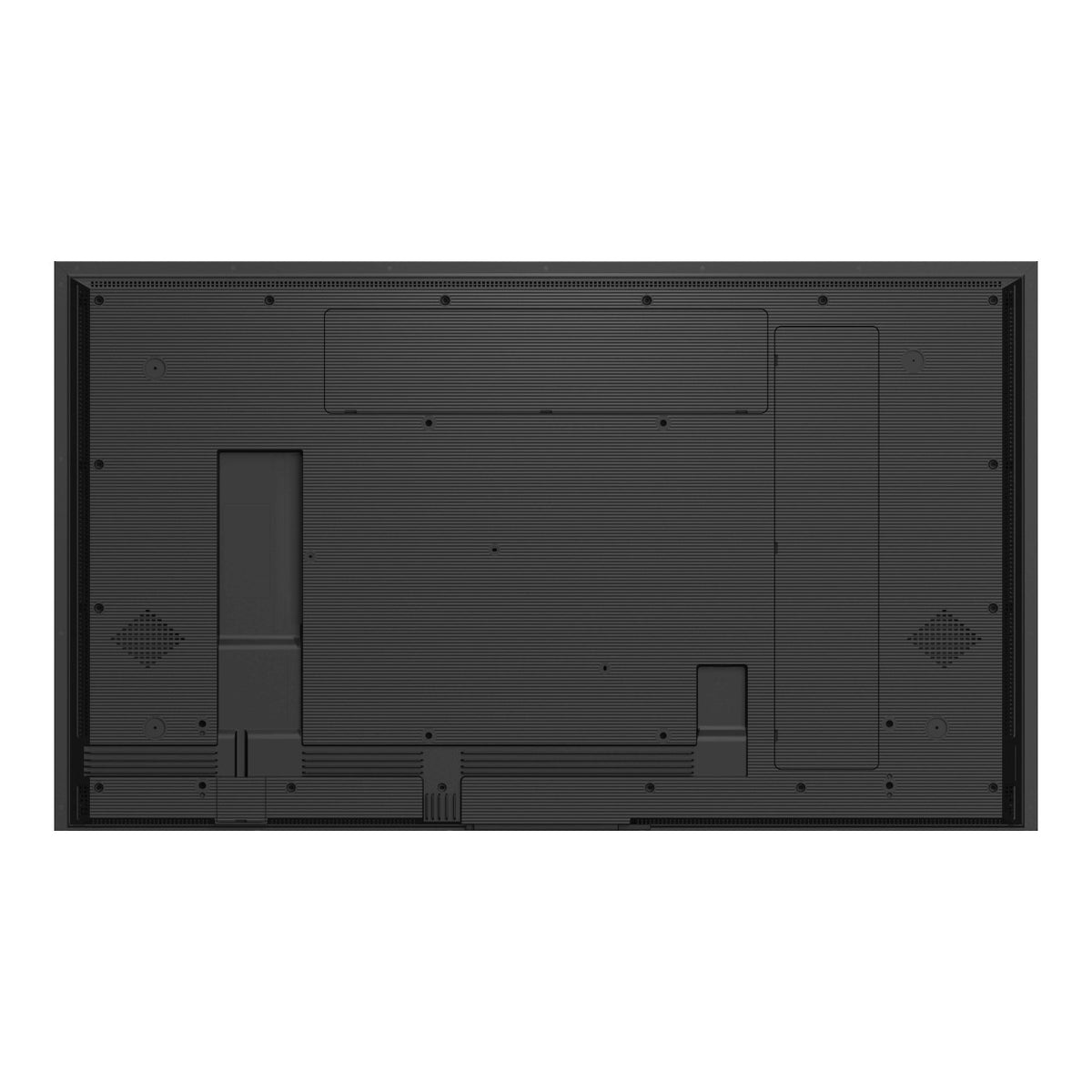

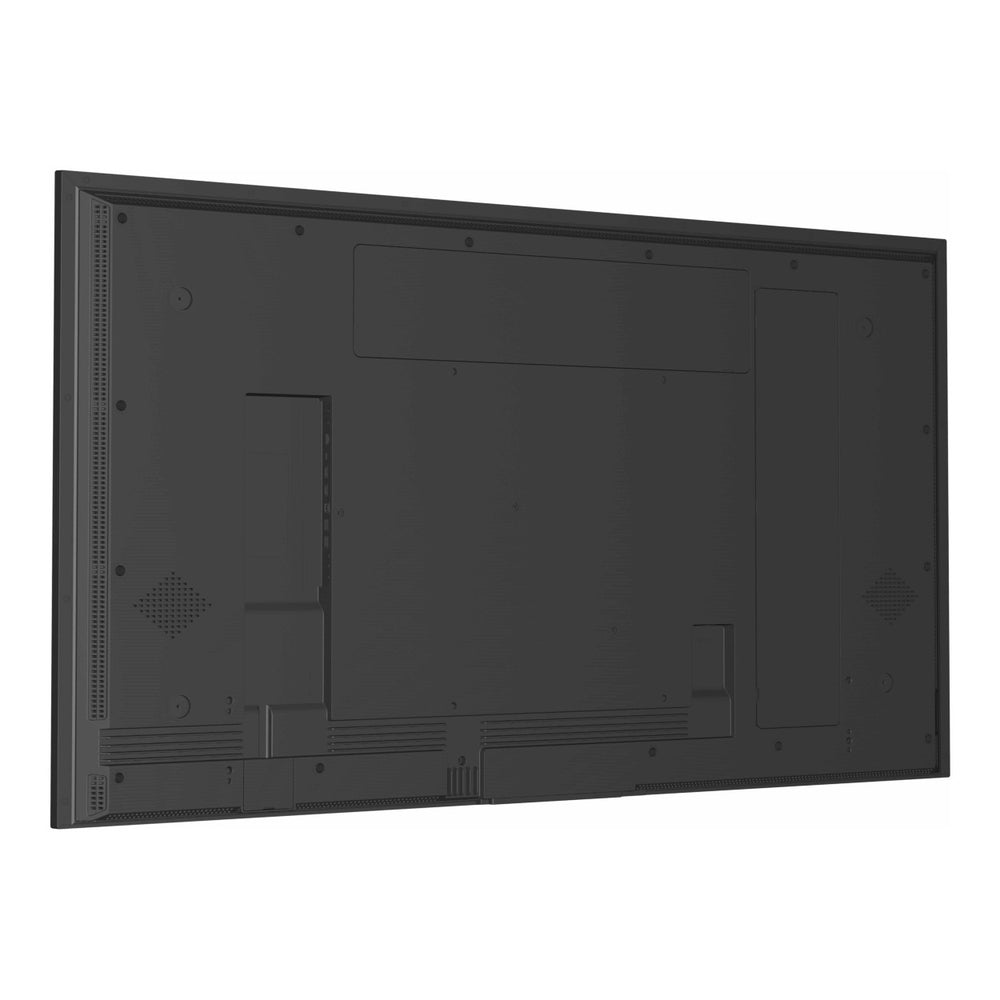

The display supports 300 x 400mm VESA mounting and includes a compatible wall bracket. Its fanless design provides quiet operation in professional environments.

Technical Specifications:

What's in the Box:

• 1 x iiyama ProLite T5529AS-B1AG Display
• 1 x Wall Mounting Bracket
• 2 x Dual-Tip Touch Pens
• 1 x Power Cable
• 1 x HDMI Cable
• 1 x RS232 Cable
• 1 x Remote Control with Batteries
• 1 x Quick Start Guide
• 1 x Safety Guide

The iiyama ProLite T5529AS-B1AG combines 4K Ultra HD imaging, 20-point PCAP touch technology, Android 14 and integrated collaboration software in a professional 55-inch display. With wireless screen sharing, flexible connectivity, dual speakers and 24/7 operation, it delivers interactive functionality for business, education and digital signage environments.
