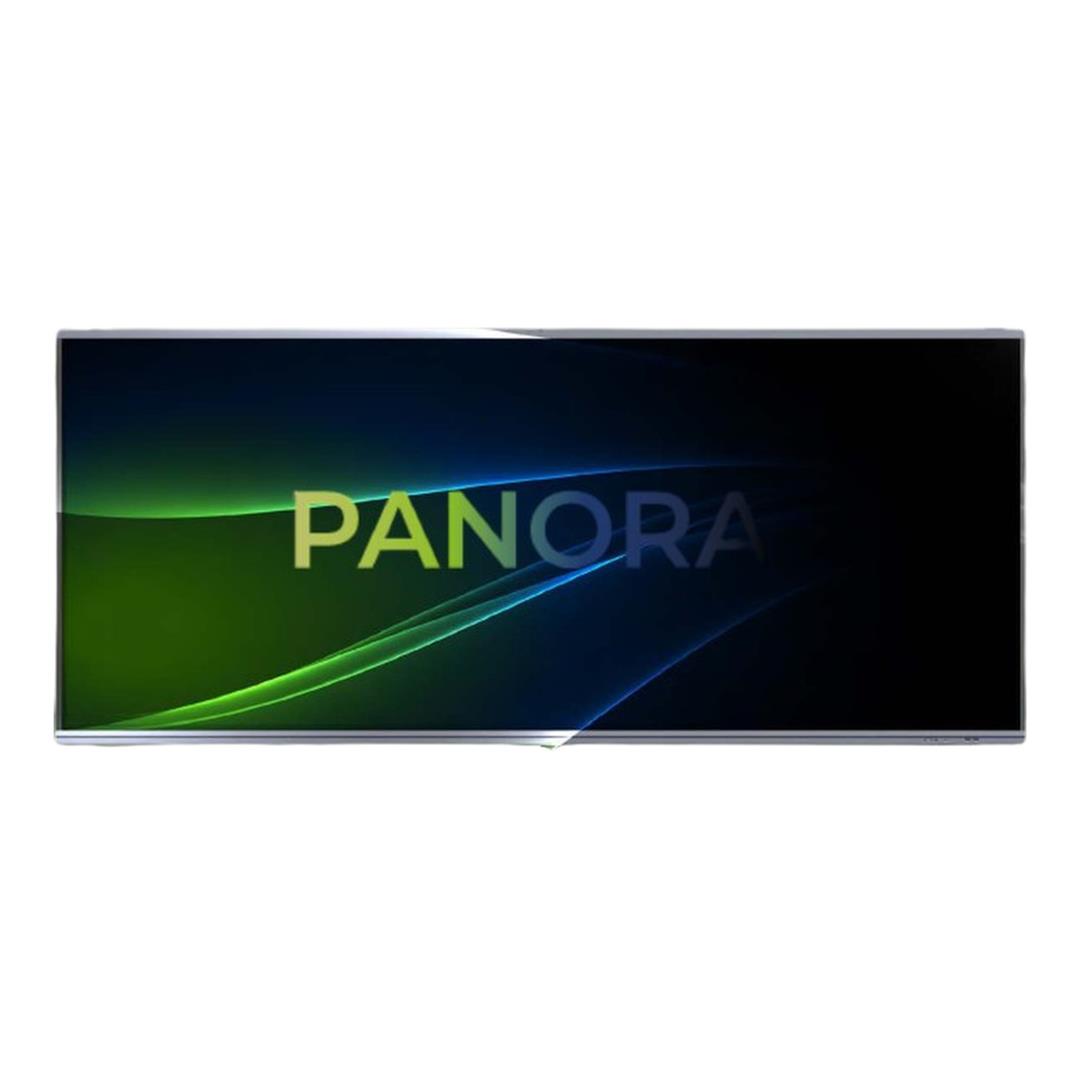

IAVS Panora Touch 92-inch 5K Ultra-Wide Interactive Display Panel IAS92PT

IAVS Panora Touch 92-inch 5K Ultra-Wide Interactive Display Panel IAS92PT

Transform collaborative spaces with the IAVS Panora Touch 92-inch Interactive Display. Featuring an ultra-wide 21:9 VA screen with 5120 x 2160 5K resolution, 450-nit brightness and 50-point infrared touch, it provides an expansive platform for presentations, digital whiteboarding and hybrid meetings. Powered by Android 13 with 8GB RAM and 64GB storage, the Panora supports interactive applications and compatible wireless presentations. Four HDMI inputs, USB-C connectivity, integrated 60W audio and an eight-microphone array complete this professional collaboration display.

Key Features:

• 92-inch ultra-wide 5K interactive display
• 5120 x 2160 resolution at 60Hz
• 21:9 panoramic aspect ratio
• VA LCD panel with Direct LED backlighting
• 450-nit typical brightness
• 5000:1 native contrast ratio
• 178-degree viewing angles
• 50-point infrared multi-touch
• 4mm protective glass
• Android 13 operating system
• Octa-core processor, 8GB RAM and 64GB storage
• Compatible with Microsoft Teams Front Row layouts
• Suitable for supported Zoom Rooms systems
• Interactive writing and annotation
• Four HDMI inputs, including 5K support
• DisplayPort input and HDMI output
• Two USB-C inputs with charging
• Six USB 3.0 ports
• Gigabit Ethernet and RS-232 control
• 2 x 20W speakers and 20W subwoofer
• Integrated eight-microphone array
• Optional OPS computer expansion
• 16/7 commercial operation
• VESA 800 x 600mm mounting

Features

92-inch 5K Ultra-Wide Display

The expansive 92-inch display features 5120 x 2160 resolution, offering detailed visuals and additional horizontal workspace for presentations, meetings and collaborative activities.

21:9 Panoramic Format

The ultra-wide aspect ratio provides space to display meeting participants, shared content and collaboration tools side by side on a single screen.

Bright VA Display

The Direct LED VA panel offers 450-nit typical brightness, a 5000:1 contrast ratio and 178-degree viewing angles for clear indoor presentation content.

50-Point Infrared Touch

Infrared touch technology supports up to 50 simultaneous touch points, allowing multiple users to write, navigate and interact with supported applications.

Responsive Interactive Writing

Touch accuracy of ±1mm and response times of 5ms or less provide responsive writing using fingers or compatible passive infrared pens.

Android 13 Platform

The integrated Android 13 system features four Cortex-A76 and four Cortex-A55 CPU cores, Mali-G610 MP4 graphics, 8GB RAM and 64GB internal storage.

Microsoft Teams Front Row

The 21:9 format is suited to Microsoft Teams Front Row meeting layouts, enabling shared content and remote participants to be displayed together using a compatible Teams Rooms system.

Hybrid Collaboration

The display integrates with supported Microsoft Teams Rooms and Zoom Rooms configurations through compatible computers and conferencing equipment.

Four HDMI Inputs

Four HDMI inputs support external presentation sources, including one connection capable of receiving 5K at 60Hz. Additional HDMI output and DisplayPort connectivity support professional AV integration.

USB-C Connectivity

Two USB-C inputs support compatible video, audio, touch and network functions. The rear connection provides up to 100W Power Delivery, while the front provides up to 15W.

Integrated 60W Audio

Dual 20W speakers and an integrated 20W subwoofer provide a combined 60W audio output for presentations and multimedia playback.

Eight-Microphone Array

The built-in microphone array supports voice pickup at distances up to 8m under suitable conditions for compatible conferencing applications.

Optional OPS Computing

The display supports a compatible optional OPS computer, providing additional processing and Windows-based conferencing functionality where required.

Important Information:

• Model: IAS92PT.
• Resolution is 5120 x 2160 with a 21:9 aspect ratio.
• Manufacturer specifies Android 13, 8GB RAM and 64GB storage.
• Rated for 16/7 operation, not continuous 24/7 use.
• Teams Rooms and Zoom Rooms require compatible equipment.
• OPS computer and conferencing camera are not included as standard.
• Wireless capabilities depend on installed modules.
• Professional mounting is required for the 67.6kg panel.

Technical Specifications:

What's in the Box:

• 1 x IAVS Panora Touch 92-inch Display
• 1 x Power Cord
• 1 x HDMI Cable
• 1 x USB-A to USB-B Touch Cable
• 1 x Remote Control
• 2 x Writing Pens
