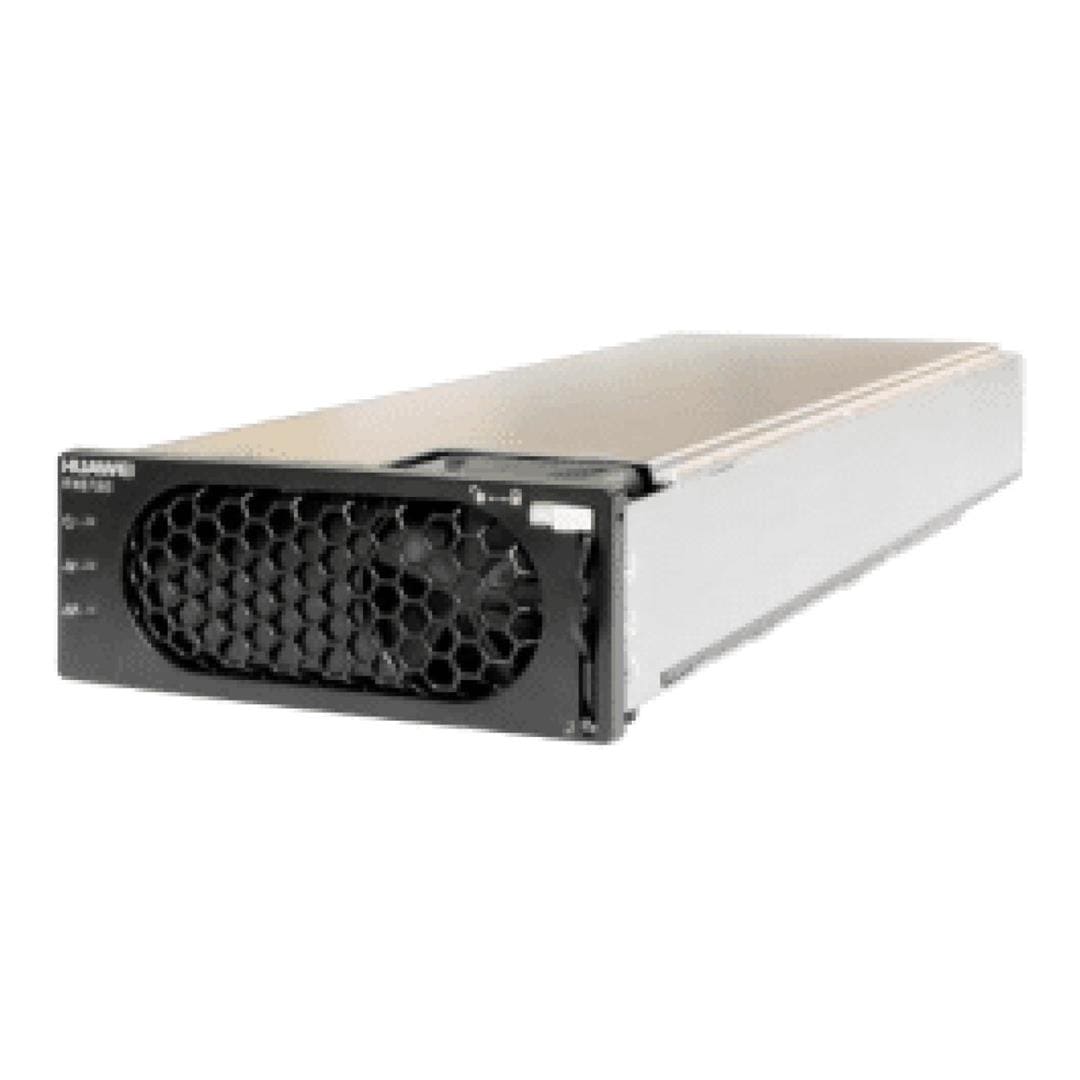

Huawei R4875 4000W 1U Rectifier Module 02312NFE-002
The Huawei R4875G5 is a high-efficiency 4000 W rectifier module designed to convert AC input power into regulated DC power for compatible telecommunications and network power systems. Its compact 1U format, wide input-voltage range and hot-swappable construction make it suitable for maintaining or expanding supported Huawei DC power installations.
Reliable Power Conversion
The module provides an adjustable 42–58 V DC output, with rated output-voltage options of 53.5 V DC and 57 V DC. It delivers up to 4000 W when operated from a 176–300 V AC supply, while supporting linear power derating at lower input voltages.
High-Efficiency Operation
With peak conversion efficiency of approximately 97%, the R4875G5 helps reduce conversion losses and unwanted heat in continuously operating power systems. A power factor of at least 0.97 under specified load conditions supports efficient use of the incoming AC supply.
Designed for Managed Power Systems
Digital control supports accurate voltage regulation, current adjustment and current sharing when the module is installed in a compatible managed power system. CAN bus communication enables operating information and alarms to be communicated to the supporting monitoring module.
Service-Friendly 1U Design

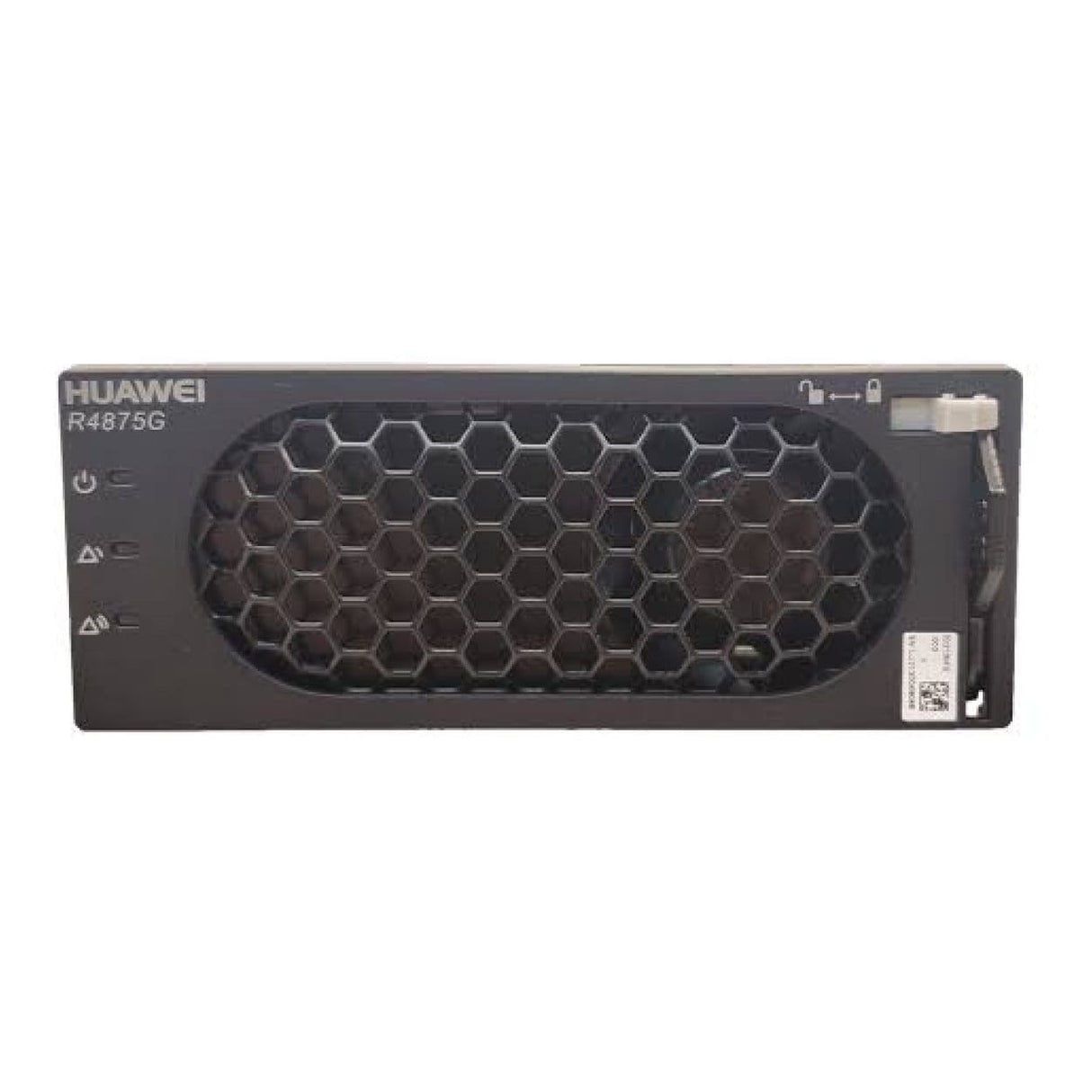

The hot-swappable format allows an installed module to be removed or replaced without shutting down a correctly configured redundant power system. Front-panel LED indicators provide a clear view of power, alarm and fault conditions for easier system inspection and maintenance.
Key Features:
- Provides up to 4000 W of regulated DC power from a compact 1U rectifier module.
- Wide 85–300 V AC operating input range supports different power environments.
- Adjustable 42–58 V DC output accommodates compatible -48 V telecommunications power systems.
- Peak efficiency of approximately 97% helps limit power losses and heat generation.
- Hot-swappable construction supports easier servicing in suitably configured redundant systems.
- Digital control enables voltage adjustment, current adjustment and current sharing.
- CAN bus communication and LED status indicators support monitoring and fault identification.
Power Output and Derating:
| Input Voltage | Available Output Power |
|---|---|
| 176–300 V AC | Up to 4000 W |
| 85–175 V AC | Linear power derating, down to approximately 1740 W at 85 V AC |
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Huawei |
| Model | R4875G5 |
| Manufacturer Part Number | 02312NFE-002 |
| Product Type | High-efficiency rectifier module |
| Module Format | 1U |
| AC Input Voltage | 85–300 V AC |
| Input Frequency | 45–66 Hz; rated at 50/60 Hz |
| Rated Input Current | Less than 21 A |
| Output Voltage Range | 42–58 V DC, adjustable |
| Rated Output Voltage | 53.5 V DC or 57 V DC |
| Maximum Output Power | 4000 W at 176–300 V AC input |
| Peak Efficiency | 97% ±0.2% |
| Power Factor | At least 0.97 at 50–100% load |
| Total Harmonic Distortion | 5% or less at 50–100% load |
| Output Regulation Precision | Within ±0.6% of the output voltage |
| Ripple and Noise | 200 mVp-p or less, measured with a bandwidth of 20 MHz or less |
| Standby Power Consumption | 5 W or less |
| Start-up Time | 3–10 seconds |
| Output Hold-up Time | More than 10 ms |
| Cooling | Forced-air cooling with an integrated fan |
| Communication | CAN bus |
| Status Indication | Power, alarm and fault LEDs |
| Maintenance | Hot-swappable in a compatible power system |
| Operating Temperature | -40°C to +75°C, subject to output derating above the specified full-power temperature |
| Relative Humidity | 5–95% RH, non-condensing |
| Operating Altitude | Up to 5000 m, with temperature derating above 2000 m |
Compatibility and Installation:
This is a system rectifier module rather than a standalone consumer power supply. Confirm the part number, connector arrangement, monitoring requirements and power-shelf compatibility before ordering. Installation and servicing should be performed by suitably qualified personnel in accordance with Huawei system documentation and applicable electrical safety requirements.
Maintain or expand a compatible Huawei telecommunications power system with the R4875G5 rectifier module, and add it to your cart today.
