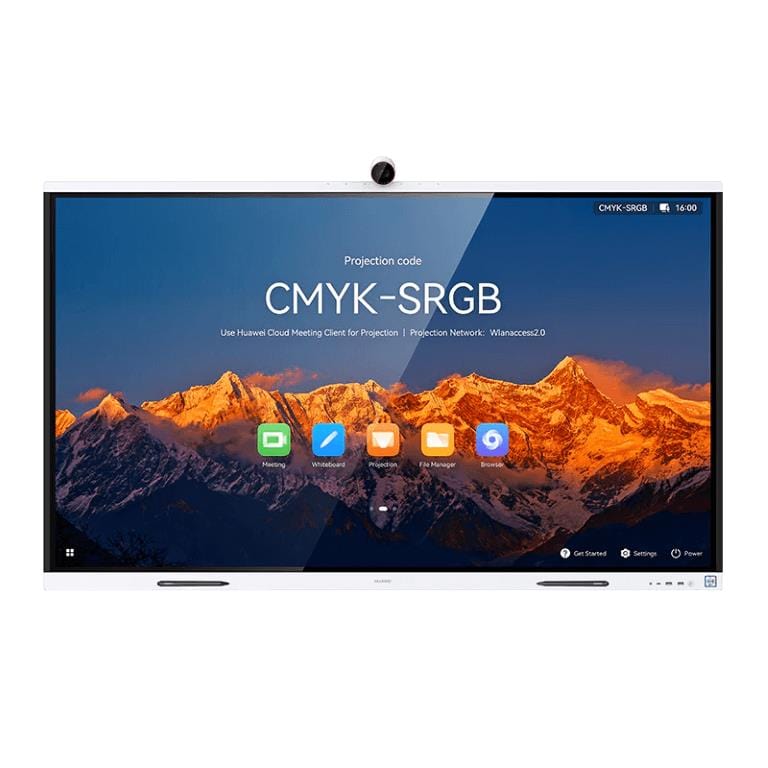

Huawei IdeaHub S2 86-inch 4K UHD Interactive Flat Panel Display 55150652

Huawei IdeaHub S2 86-inch 4K UHD Interactive Flat Panel Display 55150652

Built on the next-gen hardware platform architecture, HUAWEI IdeaHub S2 is equipped with Bring Your Own Meeting (BYOM), HD immersive meeting quality, Wi-Fi 6 for direct projection, and ultra-low writing latency, easily adapting to mainstream cloud meeting apps. It is a perfect solution for boundless collaboration and communication to fit in any room, such as regular meeting rooms, executive offices, and open office areas.

Features:

• Display: 86 inches, 4K resolution for crystal-clear visuals
• Touch Technology: Multi-touch screen with ultra-low latency
• Operating System: HarmonyOS 2.0, friendly and intuitive interface
• AI Camera: 1080p HD camera with auto-framing and voice tracking
• Audio: Built-in 12-microphone array and stereo speakers
• Connectivity: Wi-Fi 6, Bluetooth 5.0, HDMI ports
• Dimensions: Sleek design, fits seamlessly into any meeting room
• Whiteboard Feature: Enhanced digital whiteboard with handwriting recognition

Professional 4K Video Camera
Vivid Restoration and Consistent Image

The camera pairs with a 4K image sensor with a 2 μm² ultra-large photosite size to create low-noise, true-to-life clarity. Its circulation heat dissipation technology reassures consistent resolution even after long meetings. The Huawei-developed imaging algorithm corrects the TV distortion to less than 2%, ensuring natural images.

Clarity Is Key

Clarity is assured through a beamforming microphone array with DNN¹ dereverberation and AEC algorithm for 12-meter ultra-long-distance sound pickup.

Powerful AI Capabilities for Smarter Meetings

Voice tracking ensures that the speaker is always in the center. Auto–Framing provides an optimal angle for multiple participants. Acoustic baffle shields external noise to make communications crystal clear.

HD Video Meetings

Features H.264 + SIP dual protocols, HD hardware codec, and fully upgraded on-premises meetings.

BYOM

Use personal devices to invoke the display, camera, microphone, and speaker of HUAWEI IdeaHub S2,connecting all of them together for a smooth and HD meeting experience.

Start Projection Without Network

Based on the innovative Wi-Fi 6 for direct projection technology, you only need to enable Wi-Fi on the IdeaHub and your PC/mobile phone without connecting to the network. The IdeaShare app automatically discovers the nearby IdeaHub to set up connections,⁵ and it autocompletes the projection code after the first letter.⁶ You can also use this function on your Huawei phone⁷ through NFC or projection option in the drop-down menu.

Intelligent Whiteboard As Easy As Pen On Paper

16 ms ultra-low latency allows intuitive writing on screen. Intelligent writing recognition automatically identifies words and figures.
Whiteboard content can be taken away by scanning the QR code via a browser.

Technical Specifications:

Product Name: HUAWEI IdeaHub S2
Product Model:
86": IHS2-86SA

Product Dimensions (H x W x D):
86": 1212.0 mm x 1953.0 mm x 91.8 mm

Net Weight:
86": 62.0 kg

Gross Weight (including the package):
86": 73.5 kg

The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (55 mm).

Component:
Device: 1
Stylus Pens: 2
Cable: Power cable x 1
Wall-Mounted Bracket: Optional (65", 75", and 86")
Rolling Stand: Optional (65", 75", and 86")
IdeaShare Key: Optional (Type-A port)
OPS: Optional

Screen:
Resolution: 4K (3840 x 2160 pixels)
Backlight Type: D-LED
Screen Lamination: Zero-gap bonding

Writing:
Latency: 16 ms
Touch Sensing Distance: ≤ 1.5 mm
Intelligent Writing Recognition: Supports recognition of Chinese, English, and 11 types of graphics

Camera:
Resolution: 4K
Sharpness: 1800 lines
Lens Cap for Privacy Protection: Yes
Horizontal FoV: 80°
TV Distortion: ＜2%

Speaker:
Frequency Domain: 100 Hz to 20 kHz
Number of Speaker Units: 4
Total Power: 40 W

Microphone:
Sound Pickup Angle: 180°
Sound Pickup Distance: 12 m
Frequency Domain: 80 Hz to 20 kHz
Optimized Sound Pickup: Sound location, echo cancellation, and automatic gain control

Meeting:
Native Meeting Apps: Huawei Cloud Meeting and WeLink
Dual Streams (Audio/Video + Data Sharing): 1080p30fps + 1080p30fps / 4K8fps
BYOM: Yes

AI Function:
Auto-Framing: Yes
Intelligent Tracking: Yes
Acoustic Baffle: Yes
DNN-Based Dereverberation: Yes

System:
RAM: 8 GB
Flash: 64 GB
OS: HarmonyOS, Windows (OPS required)

Security:
Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE

Language:
Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, Italian

Wireless Connection:
Wi-Fi Module: Wi-Fi 6
Wi-Fi Frequency: 2.4 GHz + 5 GHz
NFC: Yes

Port:
Video Input: HDMI cable x 1
Video Output: HDMI cable x 1
Audio Input: 3.5 mm (line-in) x 1, HD-AI x 1
Audio Output: 3.5 mm (line-out) x 1
Other Ports: USB Type-A 3.0 x 3, USB Type-C x 1, RJ45 (10/100/1000 Mbit/s LAN) x 1
