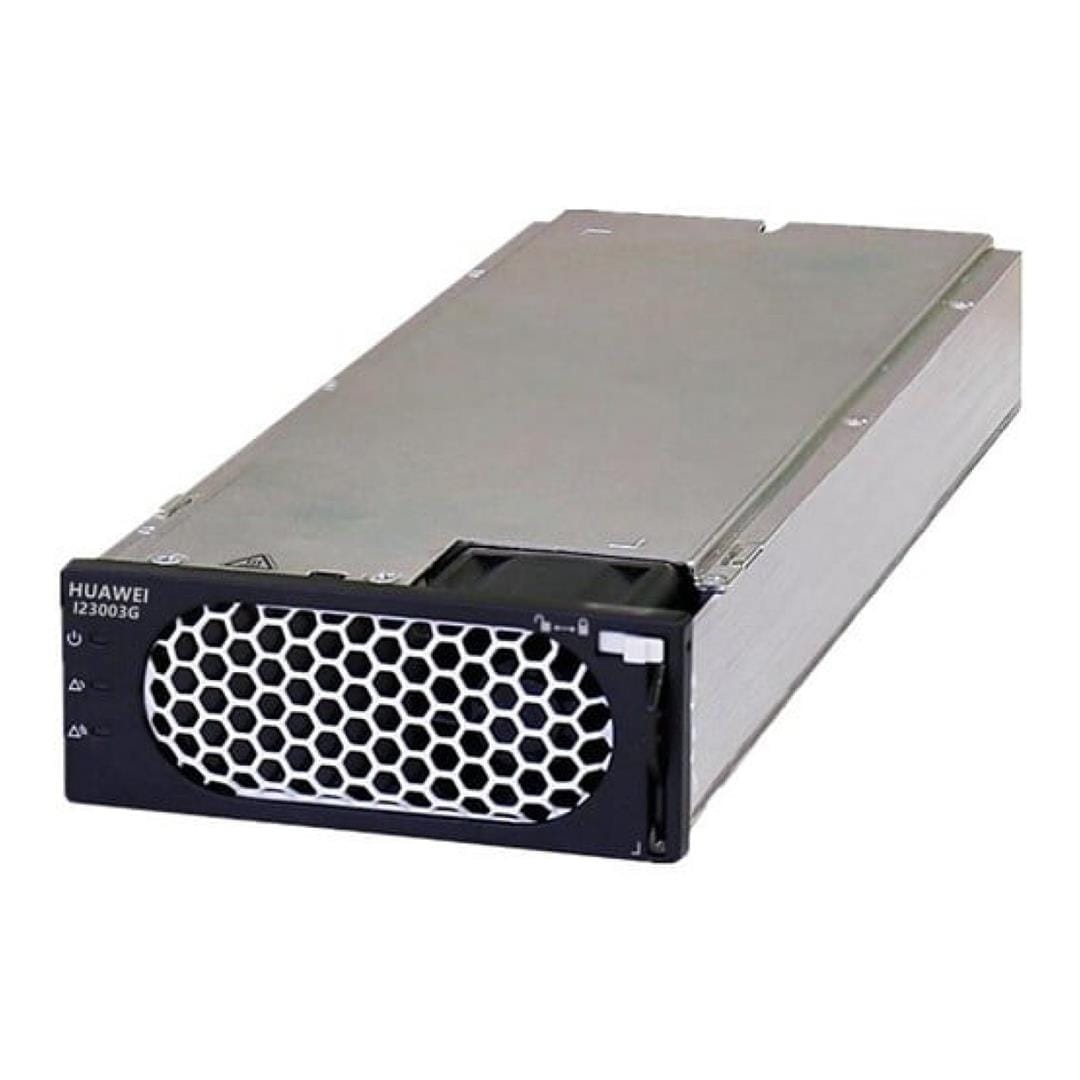

Huawei I23003 2400W 1U Inverter Module 02313GUV
The Huawei I23003G1 is a compact 1U inverter module designed to convert 42–58 V DC power into a stable AC supply for compatible telecommunications and power systems. It delivers up to 3000 VA/2400 W when operating from a 52–58 V DC input, helping communication sites power essential AC equipment from their DC power infrastructure.
Reliable DC-to-AC Power Conversion
Designed for communication sites with AC-powered equipment, the I23003G1 combines a compact modular format with a peak efficiency of at least 94%. Its configurable AC output supports a range of equipment and regional power requirements when correctly installed in a compatible Huawei inverter system.
Modular and Serviceable Design
The hot-swappable design supports online module replacement, helping technicians maintain compatible systems without unnecessarily interrupting the wider power installation. Parallel operation and N+1 redundancy are supported when the module is deployed in a suitably configured inverter subrack.
Built-in Protection
Integrated protection functions help safeguard the module and connected equipment against abnormal operating conditions. These include DC input overvoltage and undervoltage protection, together with AC output overvoltage, undervoltage, overcurrent, overpower and short-circuit protection.
Intelligent System Integration
When installed in a compatible managed Huawei power system, the module supports remote management for easier system monitoring and maintenance. An adjustable-speed internal fan provides forced-air cooling during operation.
Key Features:
- Converts 42–58 V DC input power into a configurable AC output.
- Delivers up to 3000 VA/2400 W with a 52–58 V DC input.
- Provides 2500 VA/2000 W when operating from 42 V DC to below 52 V DC.
- Supports hot swapping and online replacement in compatible systems.
- Supports parallel operation and N+1 redundancy with a suitable inverter subrack.
- Peak efficiency of at least 94% helps reduce conversion losses.
- Integrated electrical and overtemperature protection supports reliable operation.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Huawei |
| Model | I23003G1 |
| Manufacturer Part Number | 02313GUV |
| Product Type | DC-to-AC inverter module |
| Module Format | 1U |
| Application | Communication sites and compatible Huawei power systems with AC-powered equipment |
| DC Input Voltage | 42–58 V DC |
| Maximum DC Input Current | 75 A |
| Maximum Output Capacity | 3000 VA/2400 W at 52–58 V DC input |
| Derated Output Capacity | 2500 VA/2000 W at 42 V DC to below 52 V DC input |
| Default AC Output Voltage | 230 V AC |
| Configurable AC Output Voltage | 200, 208, 220, 230 or 240 V AC |
| Output Frequency | 50 or 60 Hz |
| Output Power Factor | 0.8 |
| Peak Efficiency | At least 94% |
| Parallel Operation | Supported in a compatible inverter system |
| Redundancy | Supports N+1 redundancy in a suitably configured system |
| Maintenance | Hot-swappable with support for online replacement |
| Cooling | Forced-air cooling with a built-in adjustable-speed fan |
| Protection Functions | Input overvoltage and undervoltage; output overvoltage, undervoltage, overcurrent, overpower and short-circuit; overtemperature protection |
| Protection Level | IP20 |
| Acoustic Noise | Up to 55 dB sound pressure level |
| Dimensions | 40.8 × 105 × 269 mm (H × W × D) |
| Weight | Approximately 2 kg |
Equip a compatible Huawei power system with efficient, modular DC-to-AC conversion by adding the I23003G1 inverter module to your cart today.
