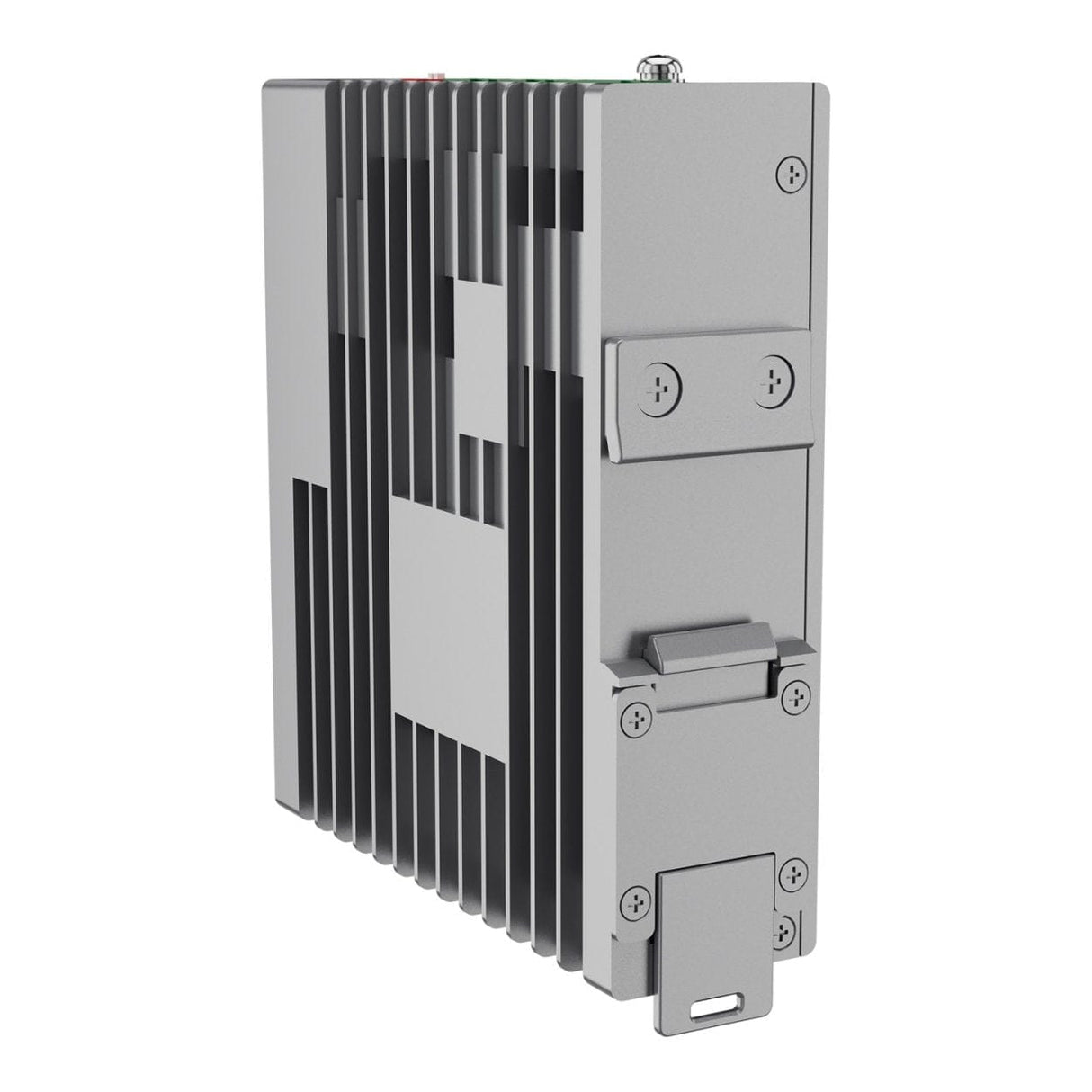

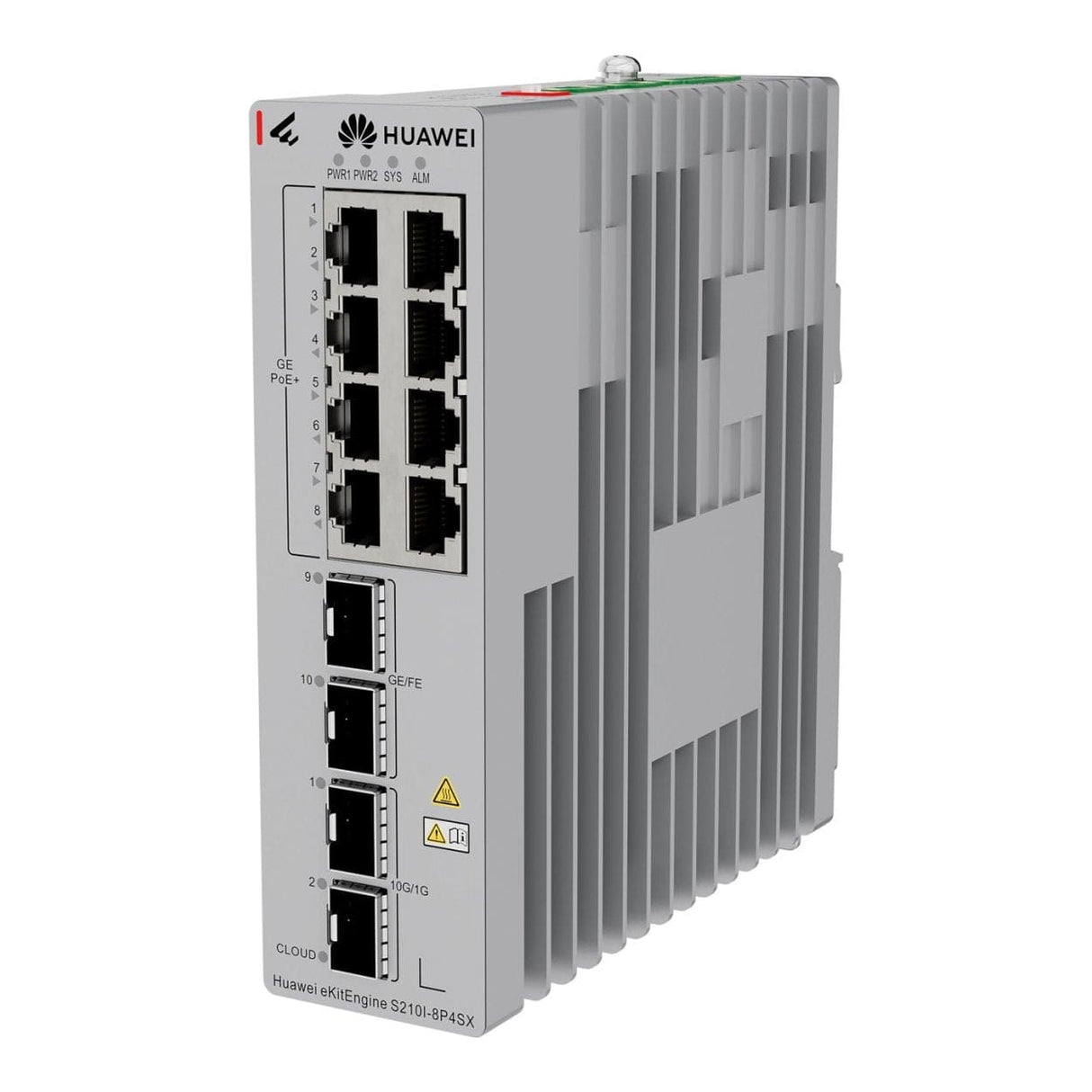

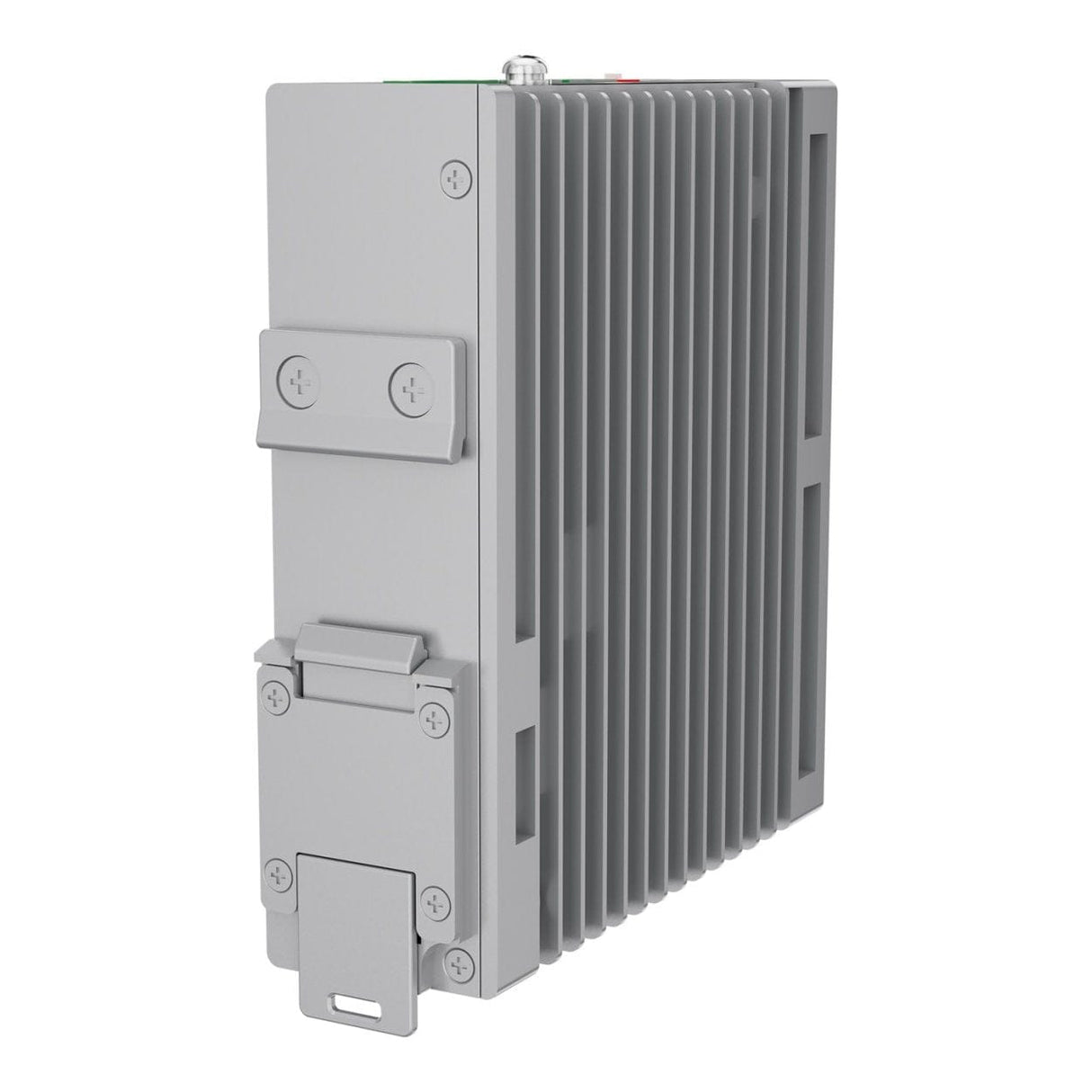

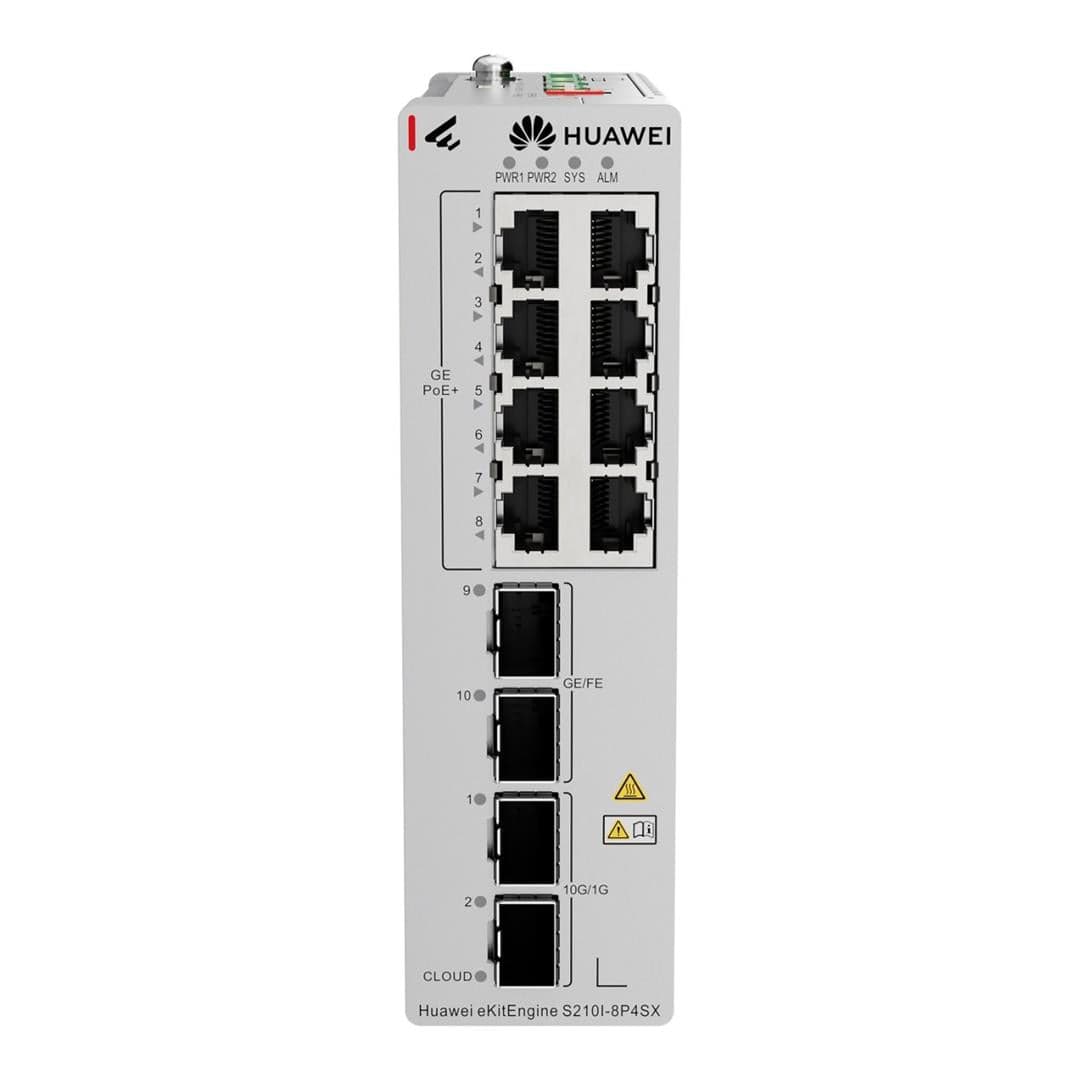

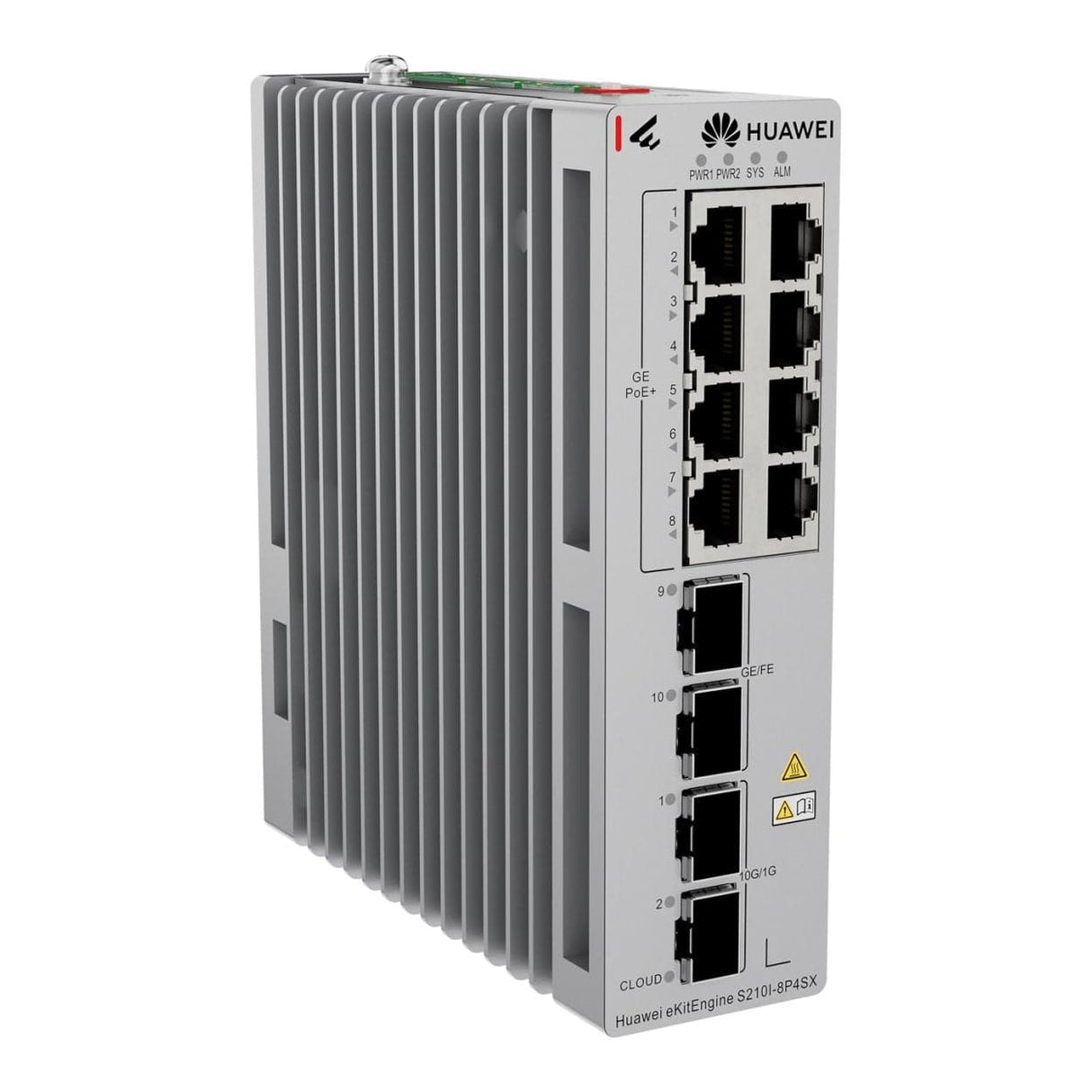

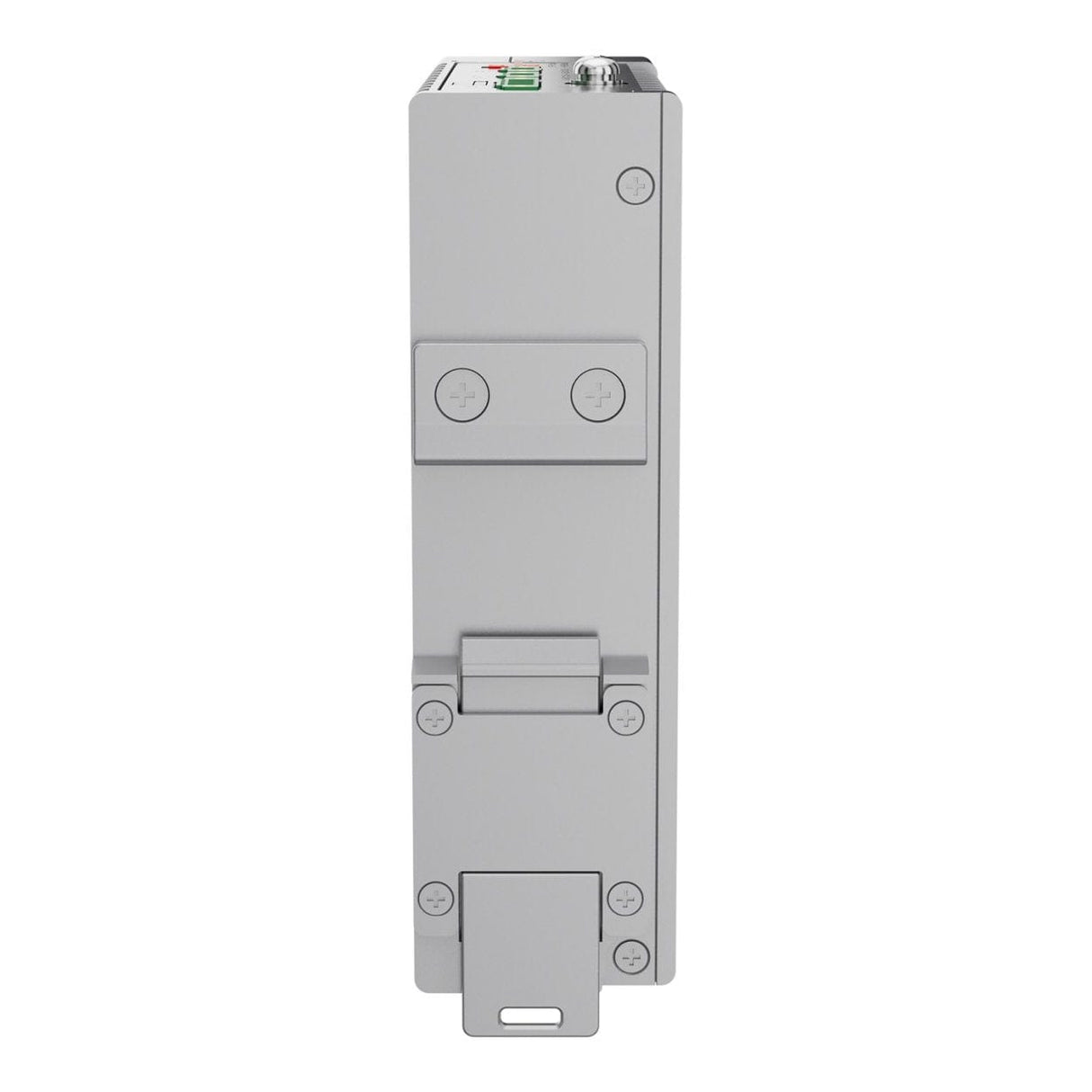

Huawei eKitEngine S210I-8P4SX 8-port Industrial Switch with 4x SFP Ports 98012933

Huawei eKitEngine S210I-8P4SX 8-port Industrial Switch with 4x SFP Ports 98012933

Huawei eKitEngine S210I-8P4SX is an industrial L2 switch with an extended temperature range, designed for demanding environments and installation in outdoor or industrial enclosures. It offers 8x 10/100/1000BASE-T PoE+ ports for powering connected devices, 2x GE SFP and 2x 10GE SFP+ uplink ports, and 1x DI/DO interface. It supports both local web interface and cloud management (SNC / eKit App). Thanks to its passive cooling, IP40 protection, and wide input voltage range of 9.6 - 60V DC, it is suitable for long-term operation in temperatures from -40°C to +75°C.

Huawei S210I-8P4SX Gigabit PoE smart industrial switch, 2x SFP, 2x SFP+, redundant power.

• 8x GLAN with PoE+ support with a total power budget of up to 240 W
• 2x GE SFP + 2x 10GE SFP+ uplink ports
• 1x DI/DO interface for integration into industrial solutions
• Passive cooling – silent operation, no fans
• Industrial design: IP40 protection, surge, reverse polarity, and overheating protection
• Redundant power supply: supports 1+1 hot backup
• Advanced features: STP/PSTP, ERPS, link aggregation, industrial protocol prioritization (PROFINET, GOOSE)
• Perpetual PoE – ensures uninterrupted power supply to connected devices (PD) even during switch reboot or upgrade

Specifications:

LAN speed: (8) 10/100/1000Mbps

Optical interfaces: (2) 1000Mbps + (2) 10Gbps

Power type: DC terminal

PoE-Out standards: 802.3af, 802.3at

Redundant power supply: Yes

PoE Out ports: 8

PoE budget: 240W

Max. power consumption: 16W

Power via connector/terminal: (2) 9,6 .. 60V DC

Design: DIN rail, Industry

Fans: No

Chassis design: Metal

Buttons: Reset

Operating temperature [°C]: -40 up to 75

Width: 44 mm

Height: 150 mm

Depth: 133 mm

Switchning capacity: 60 Gbps

Packet forwarding rate: 44 Mpps

Web management: Yes

Management: Web management, eKit cloud / eKit app

Features: VLAN, QoS, L2

Default IP address: 192.168.1.253
