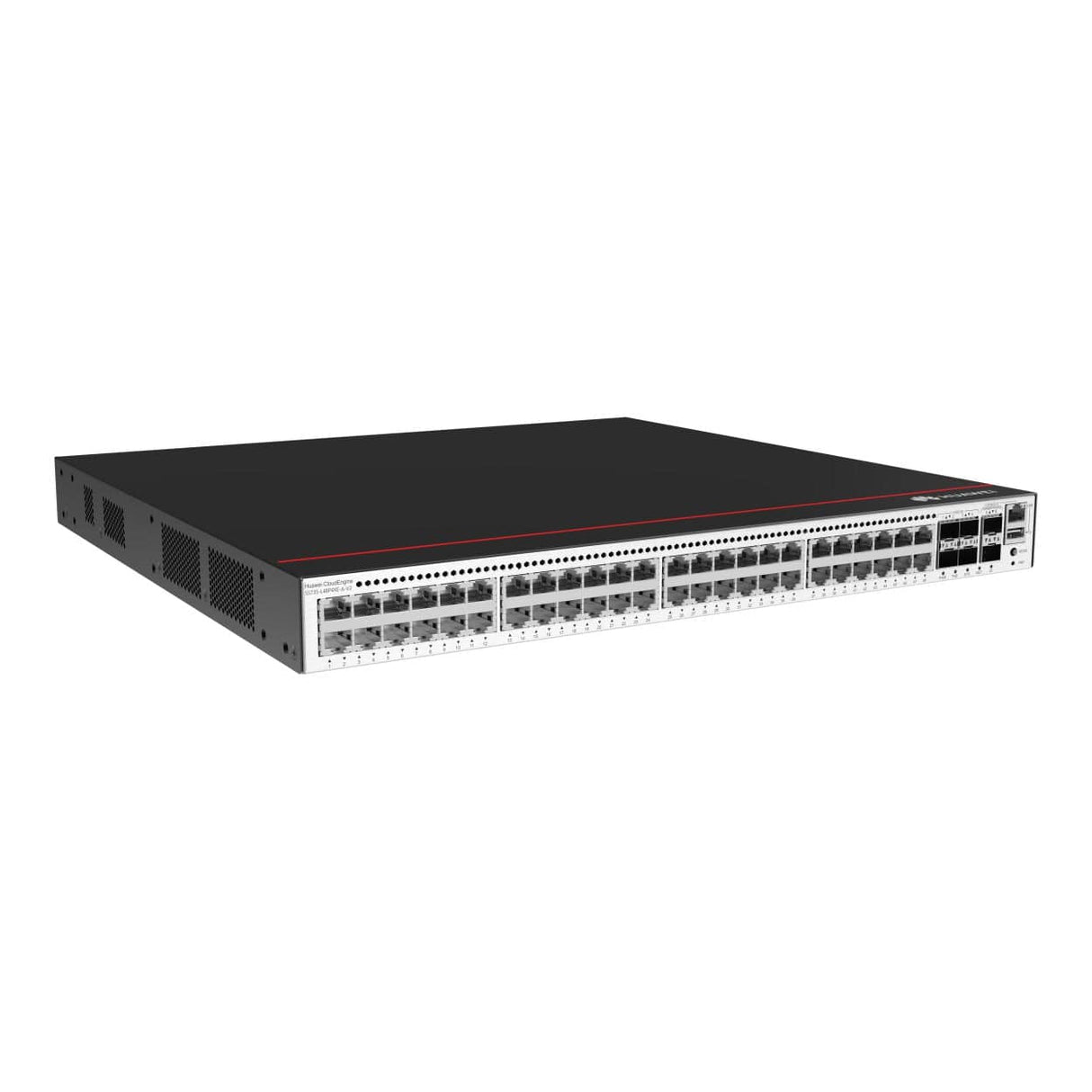

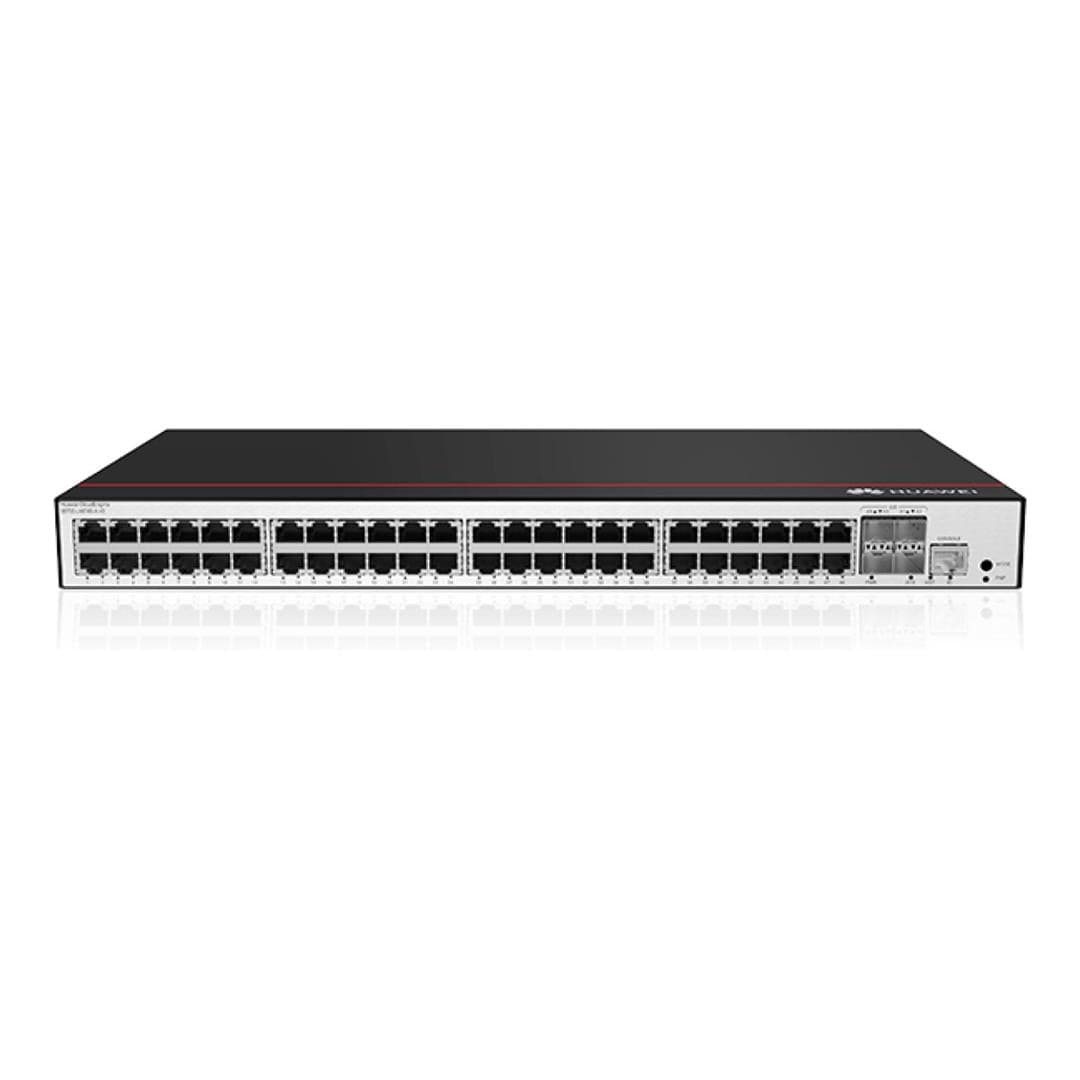

Huawei CloudEngine S5700 48-port 4x10GE SFP+ ports 2x12GE stack ports Gigabit Ethernet 1U Rack Switch 98012120

Huawei CloudEngine S5700 48-port 4x10GE SFP+ ports 2x12GE stack ports Gigabit Ethernet 1U Rack Switch 98012120

The S5700 series Ethernet switches are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack.

The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.

Technical Specifications:

S5735-L48P4XE-A-V2 (48 × 10/100/1000BASE-T ports, 4 × 10GE SFP+ ports, 2 × 12GE stack ports, PoE+, 1 × AC power)

Part Number
98012120

Model
S5735-L48P4XE-A-V2

First Supported Version
V600R022C01

Dimensions
Without packaging (H × W × D): Basic: 43.6 × 442.0 × 420.0 mm (1.72 × 17.40 × 16.54 in), Maximum: 43.6 × 442.0 × 446.0 mm (1.72 × 17.40 × 17.56 in)
With packaging (H × W × D): 185 × 650 × 550 mm (7.28 × 25.59 × 21.65 in)
Chassis height: 1U

Weight
Without packaging: 6.10 kg (13.45 lb)
With packaging: 8.90 kg (19.62 lb)

Power & Heat
Typical power consumption: 54.78 W
Typical heat dissipation: 186.91 BTU/hour
Maximum power consumption: Without PoE: 76.66 W; Full PoE load: 993.74 W (PoE: 846 W)
Maximum heat dissipation: Without PoE: 261.57 BTU/hour; Full PoE load: 3390.74 BTU/hour
Static power consumption: 36.75 W

MTBF / MTTR / Availability
MTBF: 46.89 years
MTTR: 2 hours
Availability: >0.99999

Noise
Acoustic power: 67 dB(A)
Acoustic pressure: 55 dB(A)

Hardware
Number of card slots: 0
Number of power slots: 1
Number of fan modules: 2

Operating Environment
Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at 0–1800 m (0–5905 ft)
Temperature restriction at 1800–5000 m (5906–16404 ft): Max temperature reduces by 1°C (1.8°F) per 220 m (722 ft) increase; devices cannot start below 0°C (32°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity: 5%–95% RH (non-condensing)
Operating altitude: 0–5000 m (0–16404 ft)
Storage altitude: 0–5000 m (0–16404 ft)

Power Supply
Mode: Pluggable
Rated input voltage: 100–240 V AC, 50/60 Hz
Input voltage range: 90–290 V AC, 45–65 Hz

Memory & Storage
Memory: 2 GB
Flash: 1 GB (total; available size via display version command)

Ports & Interfaces
Console port: RJ45
USB: Supported

Surge Protection
Service port: Common mode ±6 kV
Power supply: Differential ±6 kV, Common ±6 kV

Cooling & Airflow
Fans: Built-in
Heat dissipation mode: Air cooling, intelligent fan speed adjustment
Airflow direction: Intake from left, front, and right; exhaust from rear

PoE
Supported

Certifications
EMC certification
Safety certification
Manufacturing certification
