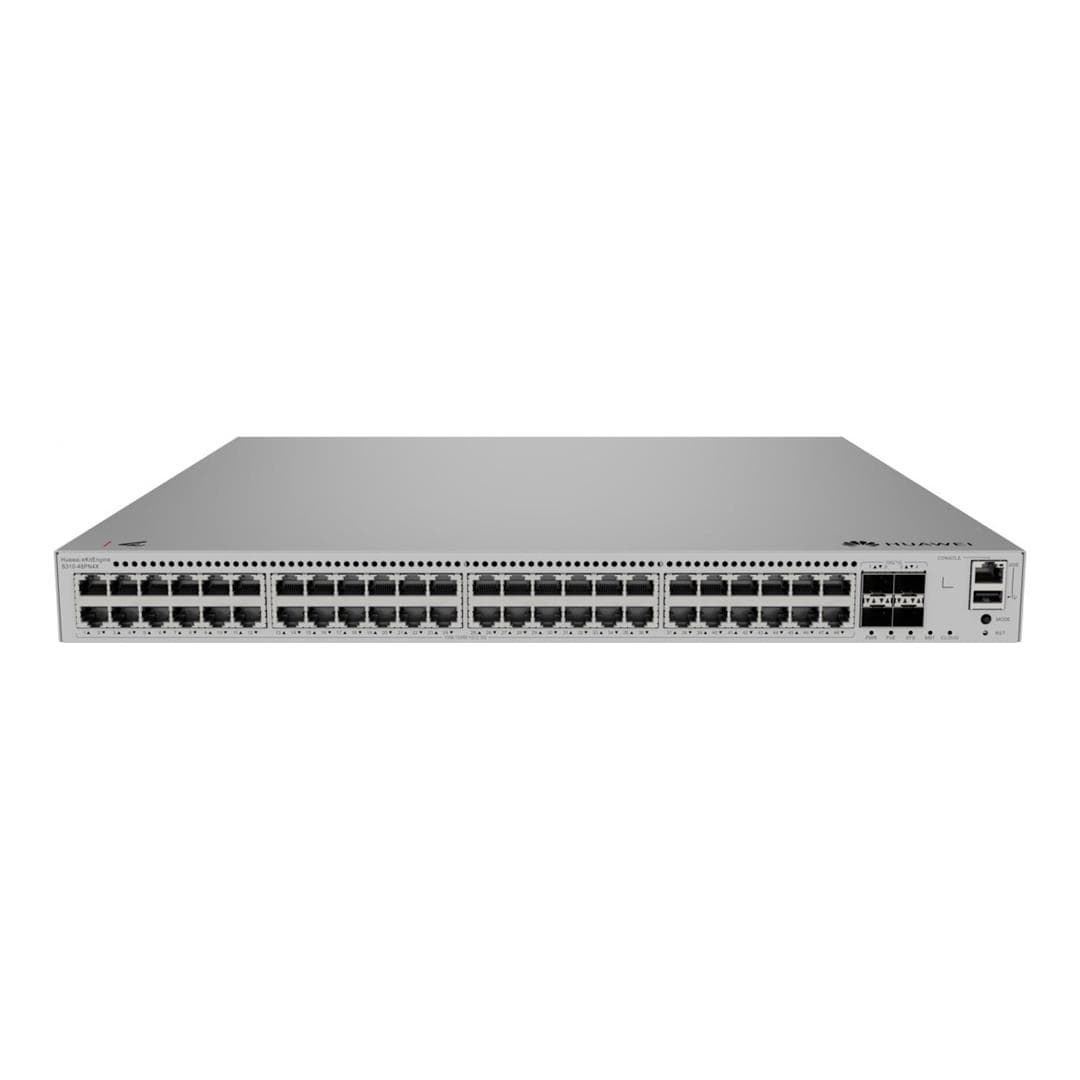

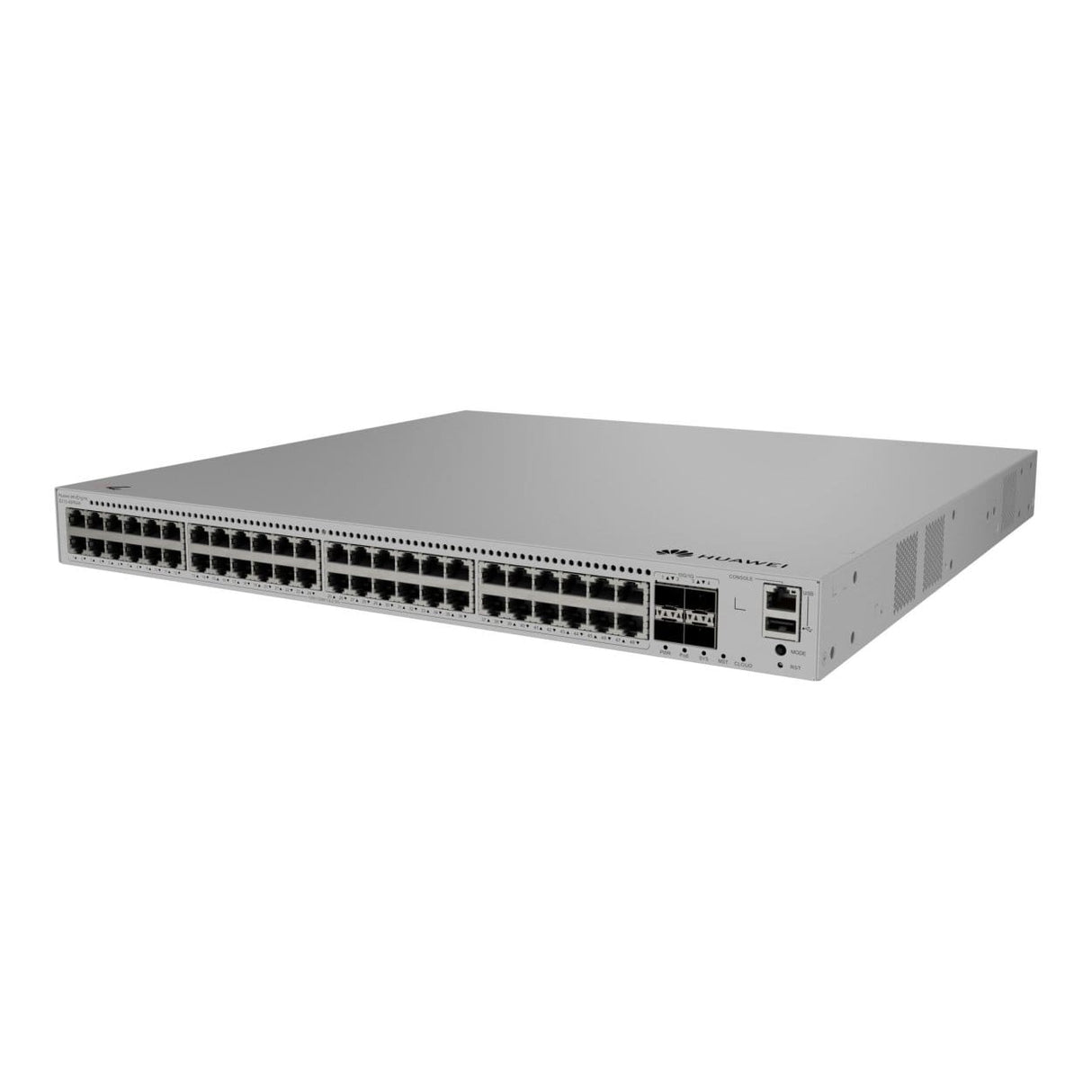

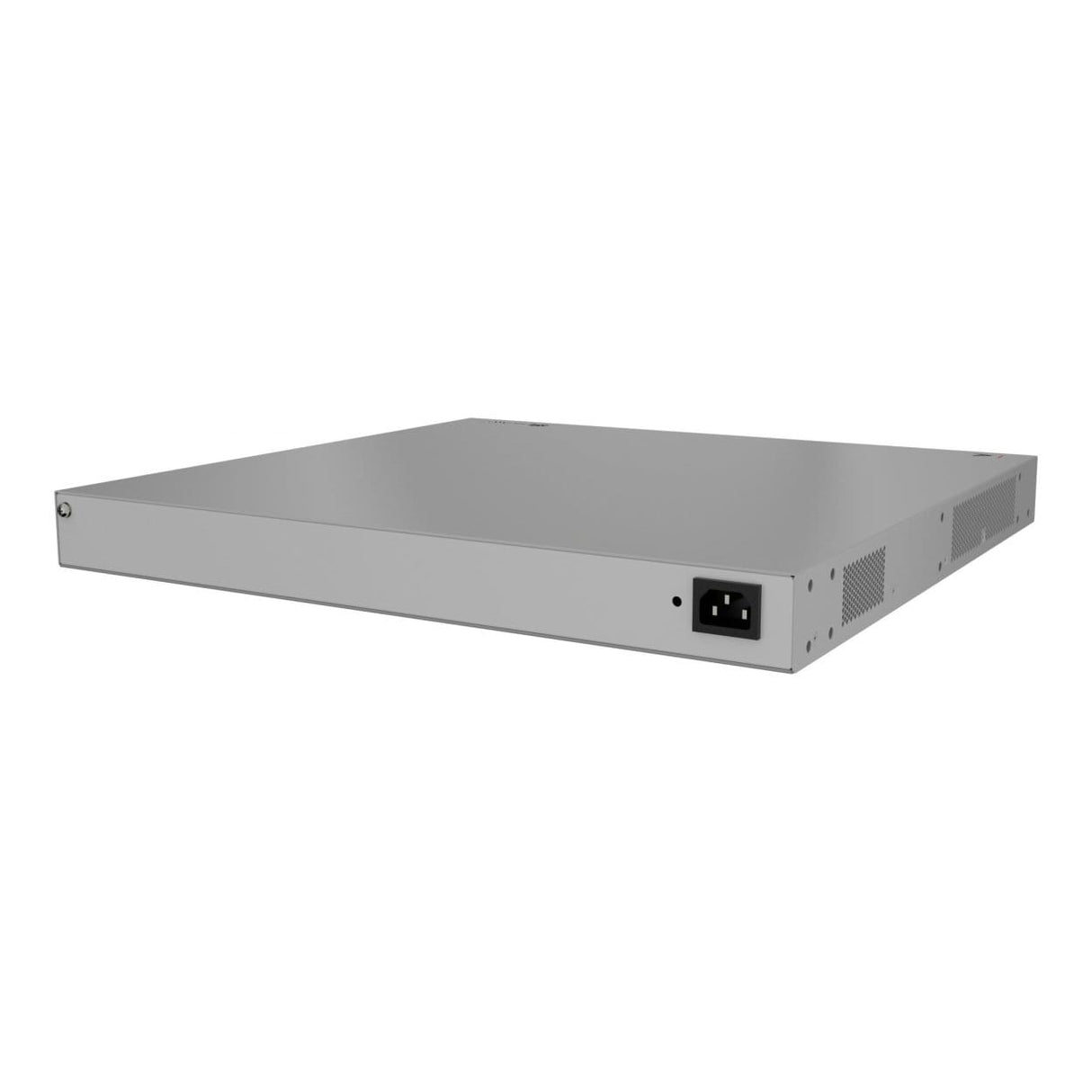

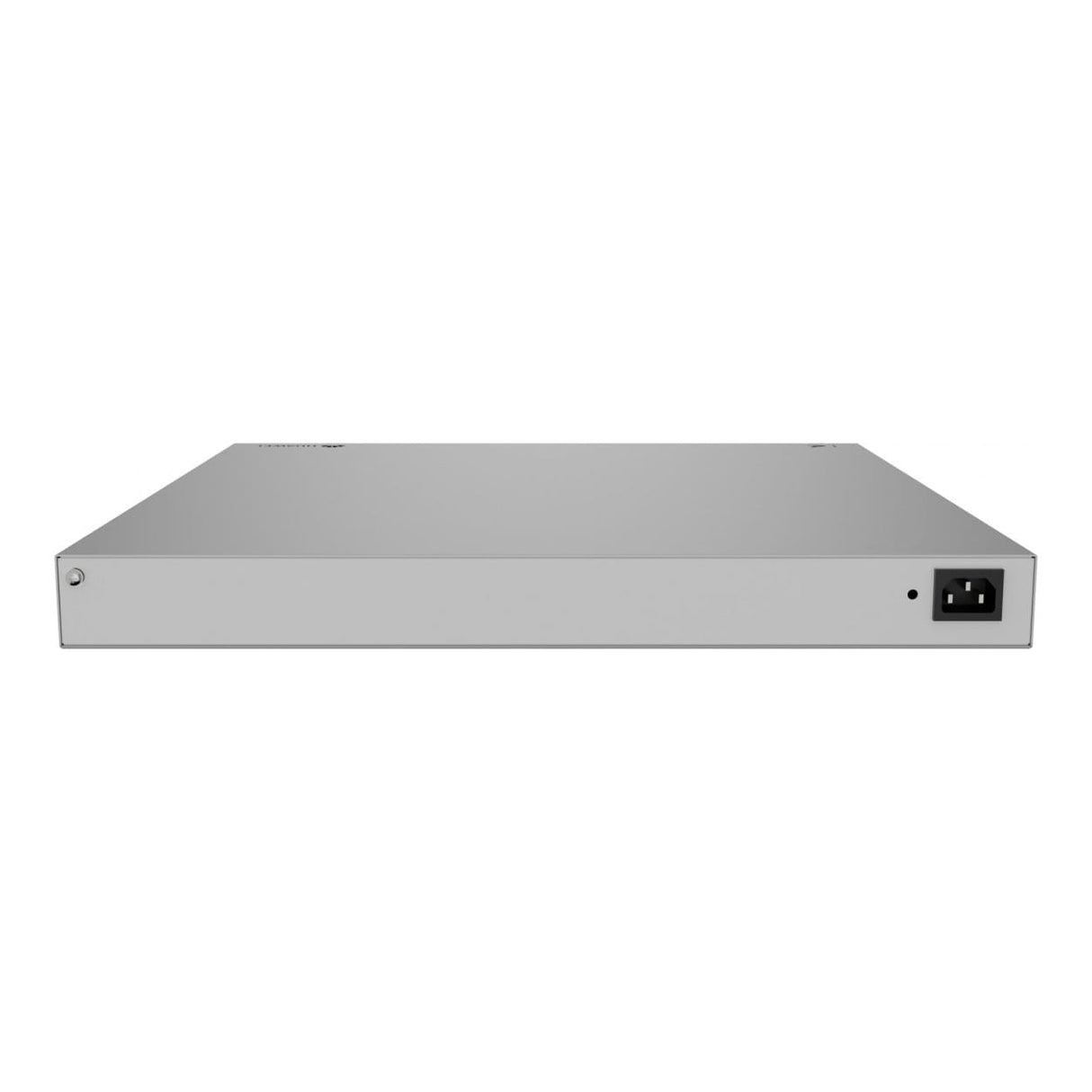

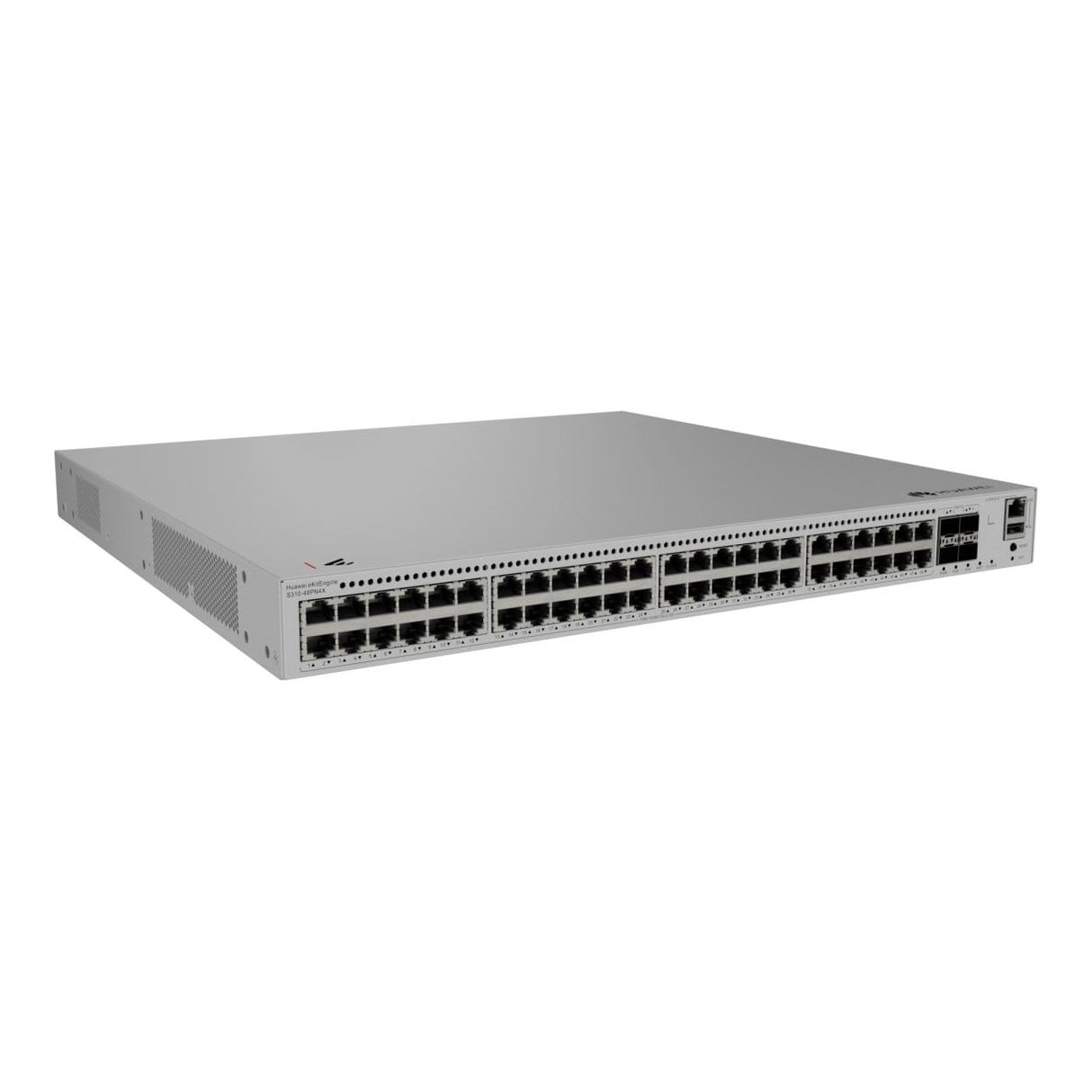

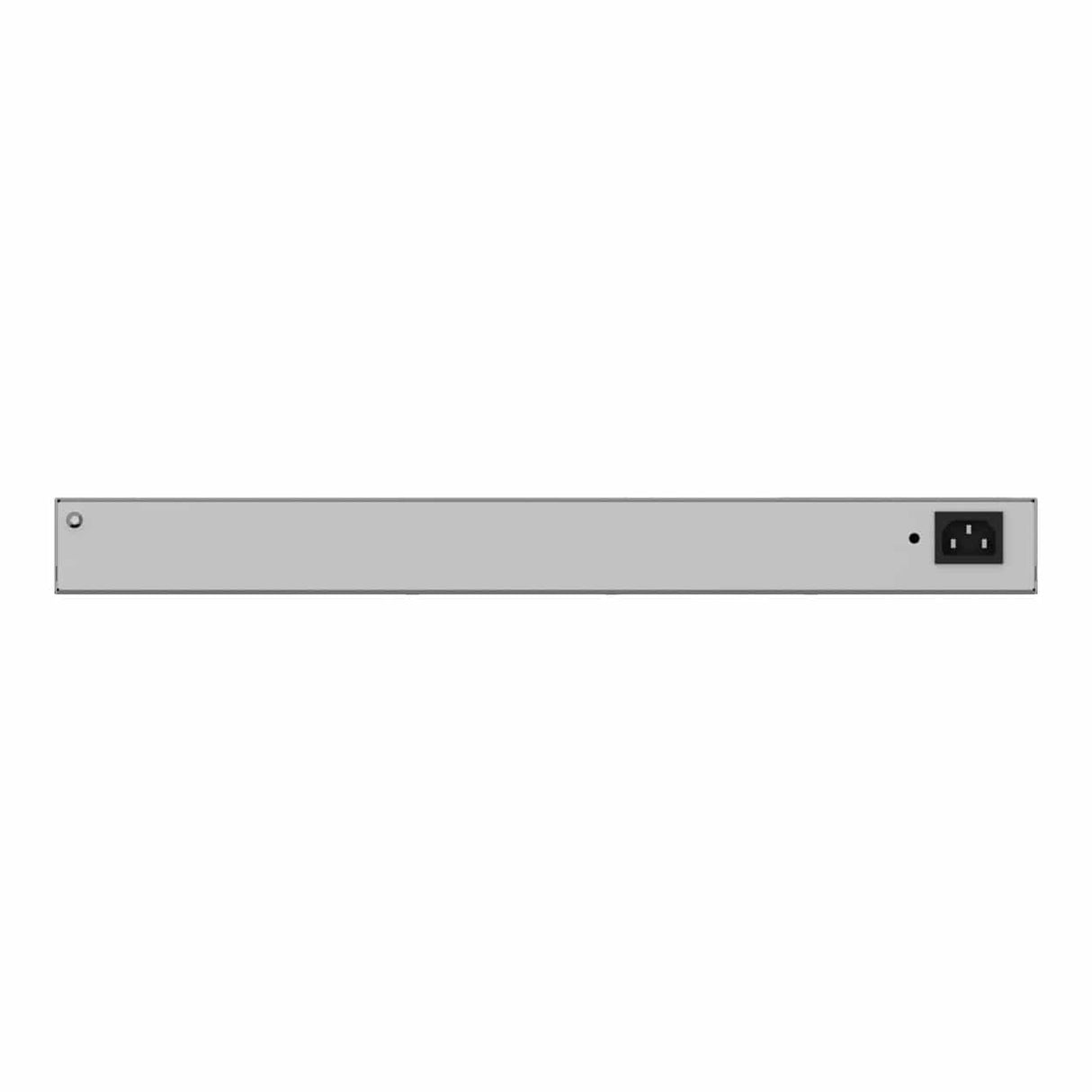

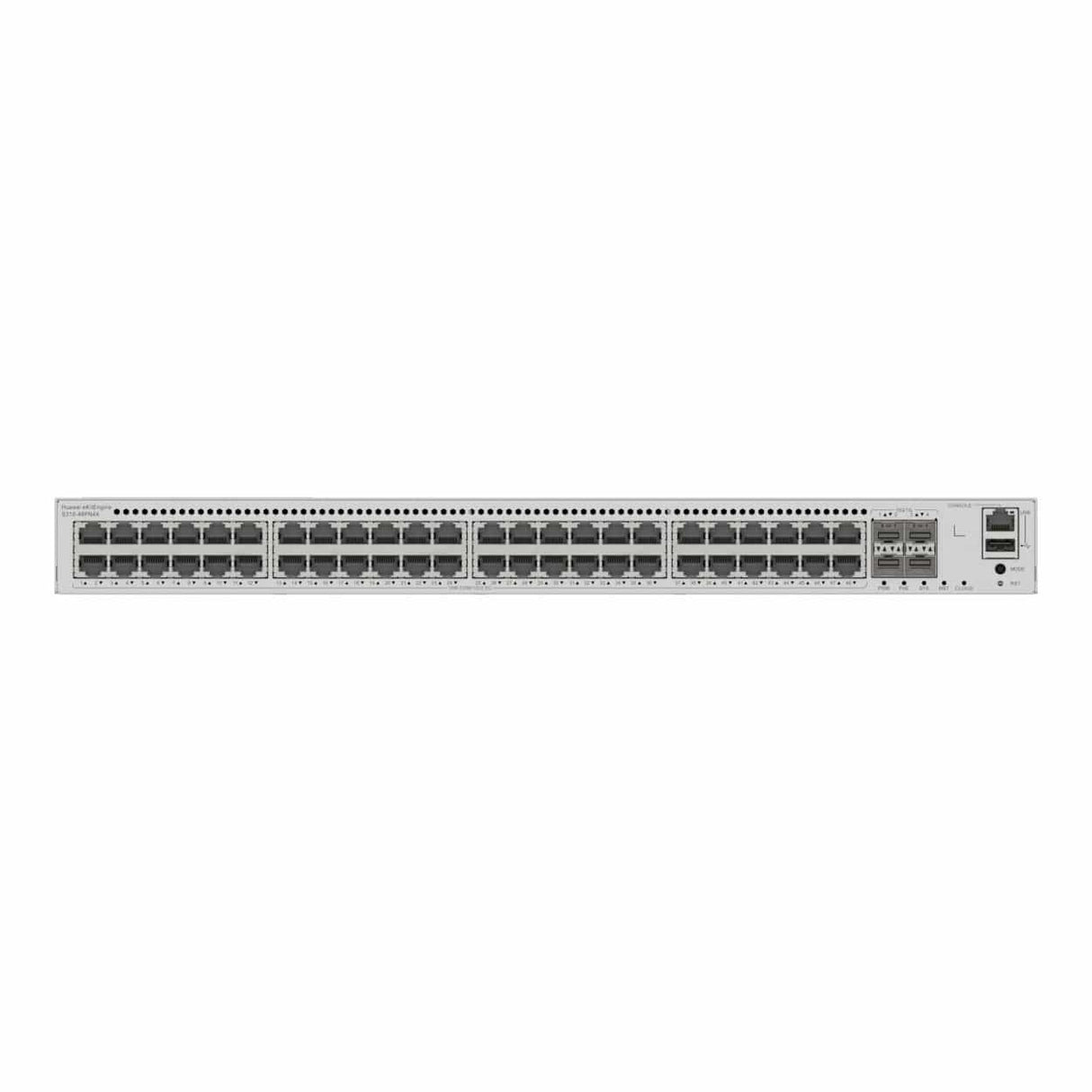

Huawei 48-port Managed L3 Network Switch with 4x 10GE SFP+ Ports 98012568

Huawei 48-port Managed L3 Network Switch with 4x 10GE SFP+ Ports 98012568

The Huawei eKitEngine S310-48PN4X is a managed Layer 3 network switch designed for business campus access and high-density device connectivity. Its 48 multi-gigabit PoE+ ports support connection speeds up to 2.5 Gbps, while four 10GE SFP+ ports provide high-speed optical uplinks to servers, aggregation switches and other network infrastructure.

A shared 360 W PoE budget allows the switch to deliver network connectivity and electrical power to compatible access points, IP cameras, VoIP phones and other powered devices. Layer 3 routing, intelligent stacking, comprehensive security controls and cloud or local management help simplify the operation of a growing business network.

Multi-Gigabit Access for Connected Devices

Each of the 48 RJ45 access ports supports 10 Mbps, 100 Mbps, 1 Gbps and 2.5 Gbps connections. This makes the switch suitable for a mixture of existing Gigabit Ethernet equipment and newer multi-gigabit devices, including compatible high-performance wireless access points.

Integrated PoE+ Power

PoE+ support is available across all 48 RJ45 ports, with a maximum shared power budget of 360 W. Compatible powered devices can receive their network connection and electrical power through the same Ethernet cable, helping reduce the need for separate power adaptors and nearby electrical sockets.

Fast PoE helps connected devices receive power shortly after the switch starts, while Perpetual PoE is designed to maintain power to connected devices during supported switch restart and software-upgrade scenarios.

High-Speed Optical Uplinks

Four SFP+ ports support 10GE and 1GE optical connections. These interfaces provide flexible uplink options for connecting the switch to aggregation infrastructure, servers or other switches without using the RJ45 access ports.

Layer 3 Network Control

The S310-48PN4X supports static routing, policy-based routing, OSPFv2 and OSPFv3. These Layer 3 capabilities allow traffic to be routed between network segments and support more structured business network designs without depending entirely on a separate router for internal routing.

Intelligent Stacking and Resilient Networking

Huawei iStack allows up to four compatible switches from the same series to operate as one logical switch. This simplifies configuration and management while providing a practical way to expand port capacity and switching performance as the network grows.

Support for STP, RSTP, MSTP, Smart Link and G.8032 ERPS provides several options for building resilient network paths. LACP, VRRP and BFD further support link aggregation, gateway redundancy and network-failure detection.

Flexible Management and Security

The switch can be managed through Huawei cloud services or using local management tools. Supported options include the Huawei eKit App, a web management interface, CLI, SSH, HTTPS, SNMP and RMON.

Security capabilities include 802.1X authentication, AAA, RADIUS, HWTACACS, NAC, DHCP snooping, port security and protection against selected DoS, ARP and ICMP attacks. VLAN, QoS and access-control capabilities help administrators organise traffic and apply appropriate network policies.

Key Features:

• 48 PoE+ RJ45 ports support 10 Mbps, 100 Mbps, 1 Gbps and 2.5 Gbps connections.
• A shared 360 W PoE budget powers compatible network devices through their Ethernet connections.
• Four 10GE SFP+ ports provide flexible 10GE or 1GE optical uplinks.
• 320 Gbps switching capacity and a 238 Mpps packet-forwarding rate support high-density network traffic.
• Layer 3 features include static routing, policy-based routing, OSPFv2 and OSPFv3.
• Huawei iStack supports a stack of up to four compatible switches from the same series.
• Cloud and local management options support different deployment and administration requirements.

Network and Performance Specifications:

PoE and Power Specifications:

Physical and Environmental Specifications:

Support a growing multi-gigabit network while powering compatible connected devices with the Huawei eKitEngine S310-48PN4X, and add it to your cart today.
