HPE Networking Instant On AP25 (US) 4x4 Wi-Fi 6 Indoor Access Point R9B27A

HPE Networking Instant On AP25 (US) 4x4 Wi-Fi 6 Indoor Access Point R9B27A

PoE Powered with the choice to select an optional power adapter.

Key Features

Incredible Efficiency with Wi-Fi 6

• The Aruba Instant On AP25 Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
• Aruba Instant On AP25 Access Points support features Target Wake Time (TWT) that helps establish a schedule when clients need to communicate with an access point – improving efficiency for longer battery life.
• The Aruba Instant On AP25 Access Points are 100% backward compatible, allowing businesses to support multiple clients (Wi-Fi 6) and legacy (11a/b/g/n/ac) at the same time.

Higher Performance and Superior Coverage

• The Aruba Instant On AP25 Access Points deliver higher capacity, efficiency, and performance to small and growing businesses with device-dense environments.
• High-performance Aruba Instant On AP25 Access Points bring powerful 4 spatial streams for superior Wi-Fi coverage.
• Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are improved, meaning increased network performance and network capacity.
• 160 MHz channel bandwidth delivers increased mesh throughput and Wi-Fi speed ideal for high-def video streaming and virtual reality devices.
• 2.5G Ethernet uplink port enhances wireless connectivity.

Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open

• Aruba Instant On AP25 Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
• Aruba Instant On AP25 Access Points feature integrated router, gateway, and firewall functionality.
• Aruba Instant On supports Two-Factor Authentication (2FA) for additional layer of authentication, preventing attackers from remotely accessing your networks.
• Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.

Technical Specification

• Power over Ethernet (POE): 802.3at (class 4)
• Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) DC power (12V)
• (Note: Power sources are sold separately unless you purchase the bundle SKU)

• 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
• 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

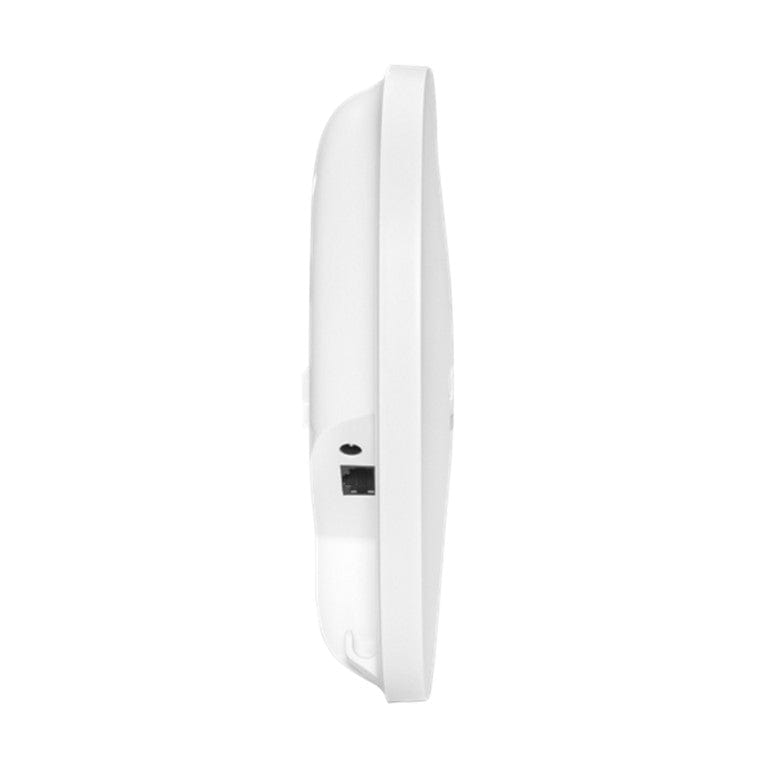

• Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at)
• DC power connector (12V) Bluetooth
• Low Energy (BLE) radio LED status indicators
• Reset/LED control button
• Kensington security slot
