HPE Networking CW 2150 24-port Gbe PoE+ 4-port SFP 1G Combo 4-port SFP+ 1G/10G 405W Switch S6X51A
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more about FirstShop delivery
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

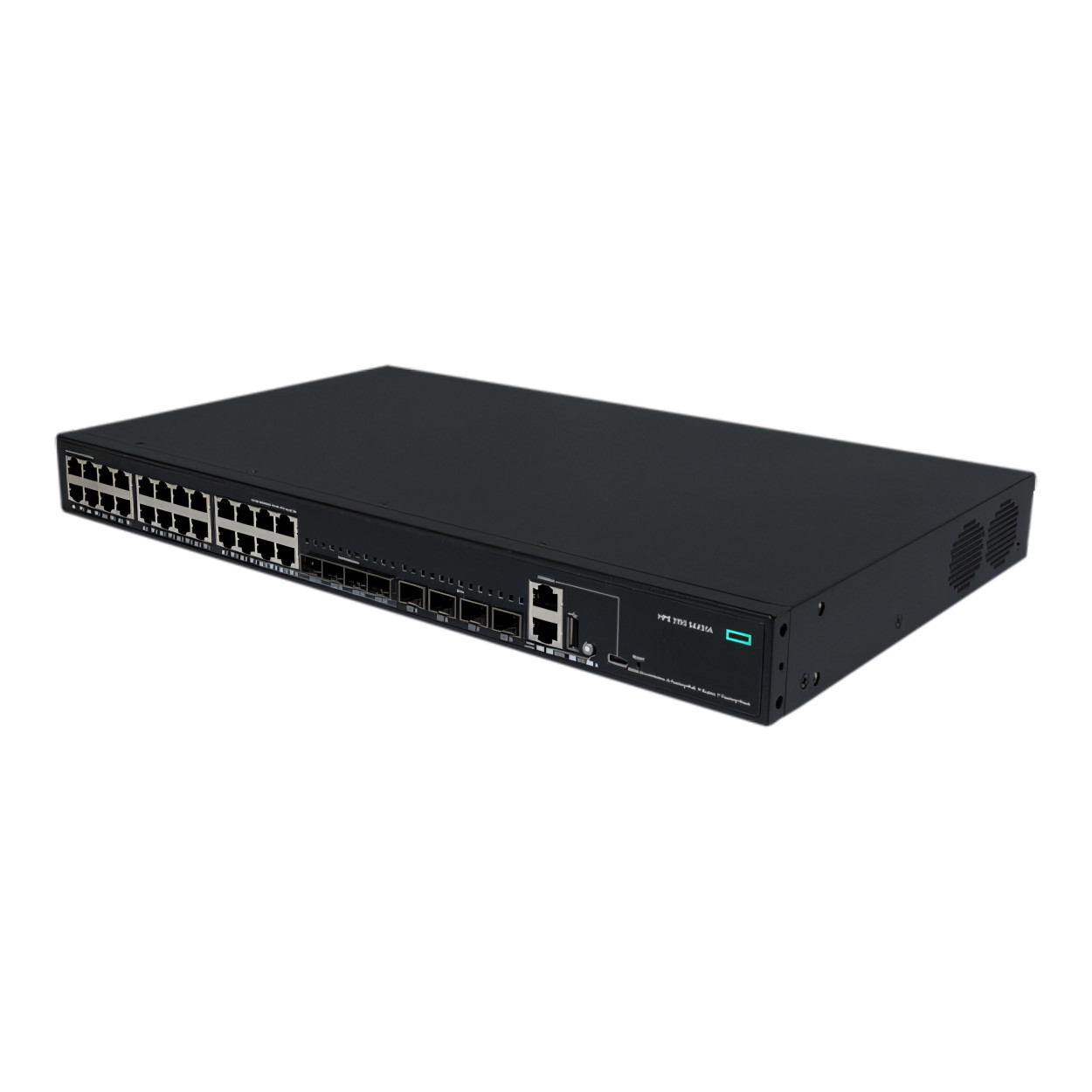

HPE Networking CW 2150 24-port Gbe PoE+ 4-port SFP 1G Combo 4-port SFP+ 1G/10G 405W Switch S6X51A
The HPE Networking CW 2150 S6X51A is a fully managed, stackable Layer 3 switch designed to provide secure and scalable connectivity for small and midsize businesses and branch offices. It combines 24 Gigabit Ethernet PoE+ ports with a 405W PoE budget, four SFP combo ports and four 1G/10G SFP+ ports for flexible device and uplink connectivity. With 128Gbps forwarding capacity, advanced Layer 3 functionality, comprehensive security and flexible management options, it provides a capable foundation for growing business networks.
Key Features
- 24 × 10/100/1000BASE-T PoE+ ports with a 405W PoE power budget.
- 4 × 100/1000BASE-X SFP combo ports for flexible fibre connectivity.
- 4 × 1G/10GBASE-X SFP+ ports for high-speed uplinks and stacking.
- 128Gbps forwarding capacity with throughput of up to 95.2Mpps.
- Stackable design supporting up to 9 members.
- Layer 3 switching with IPv4/IPv6 routing and up to 32 VRFs.
- Web GUI, CLI, HPE IMC, AirWave, SNMP and REST API management options.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE Networking |
| Series | CW 2150 |
| Manufacturer Part Number | S6X51A |
| Product Type | Managed Layer 3 PoE+ Ethernet Switch |
| Form Factor | Rack-Mountable |
| Ethernet Ports | 24 × 10/100/1000BASE-T PoE+ |
| SFP Combo Ports | 4 × 100/1000BASE-X SFP Combo |
| SFP+ Ports | 4 × 1G/10GBASE-X SFP+ |
| PoE Standard | PoE+ |
| PoE Power Budget | 405W |
| PoE Watchdog | Supported |
| Switching / Forwarding Capacity | 128Gbps |
| Throughput | 95.2Mpps |
| Gigabit Ethernet Latency | <5µs |
| 10 Gigabit Ethernet Latency | <3µs |
| Packet Buffer | 1.5MB |
| MAC Address Table | 16K Entries |
| Stacking | Up to 9 Members |
| Switched Virtual Interfaces | 32 |
| IPv4 Routes | 1,500 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Routes | 512 |
| IPv6 Host Table (ND) | 512 |
| VRF | 32 |
| IGMP Groups | 500 |
| MLD Groups | 500 |
| ACL Entries | 1,024 Ingress/Egress |
| Processor | Dual-Core Arm 1.2GHz |
| Memory | 1GB SDRAM |
| Flash Memory | 512MB |
| Console Interfaces | 1 × RJ45 Console / 1 × USB Type-C Console |
| Out-of-Band Management | 1 × OOBM Port |
| Management | Web GUI / CLI / HPE IMC / AirWave / SNMP / REST API |
| Authentication | 802.1X / MAC / Web / RADIUS / TACACS+ |
| Secure Management | SSHv2 / SSL / SNMPv3 / TLS |
| Secure Boot | Supported |
| Power Supply | Fixed |
| Cooling | 2 × Fans |
| Dimensions | 440 × 260 × 44mm |
| Weight | ≤3.6kg |
Build a scalable business network with high-capacity PoE+, 10GbE uplinks, Layer 3 functionality and flexible centralised management from the HPE Networking CW 2150 S6X51A.
