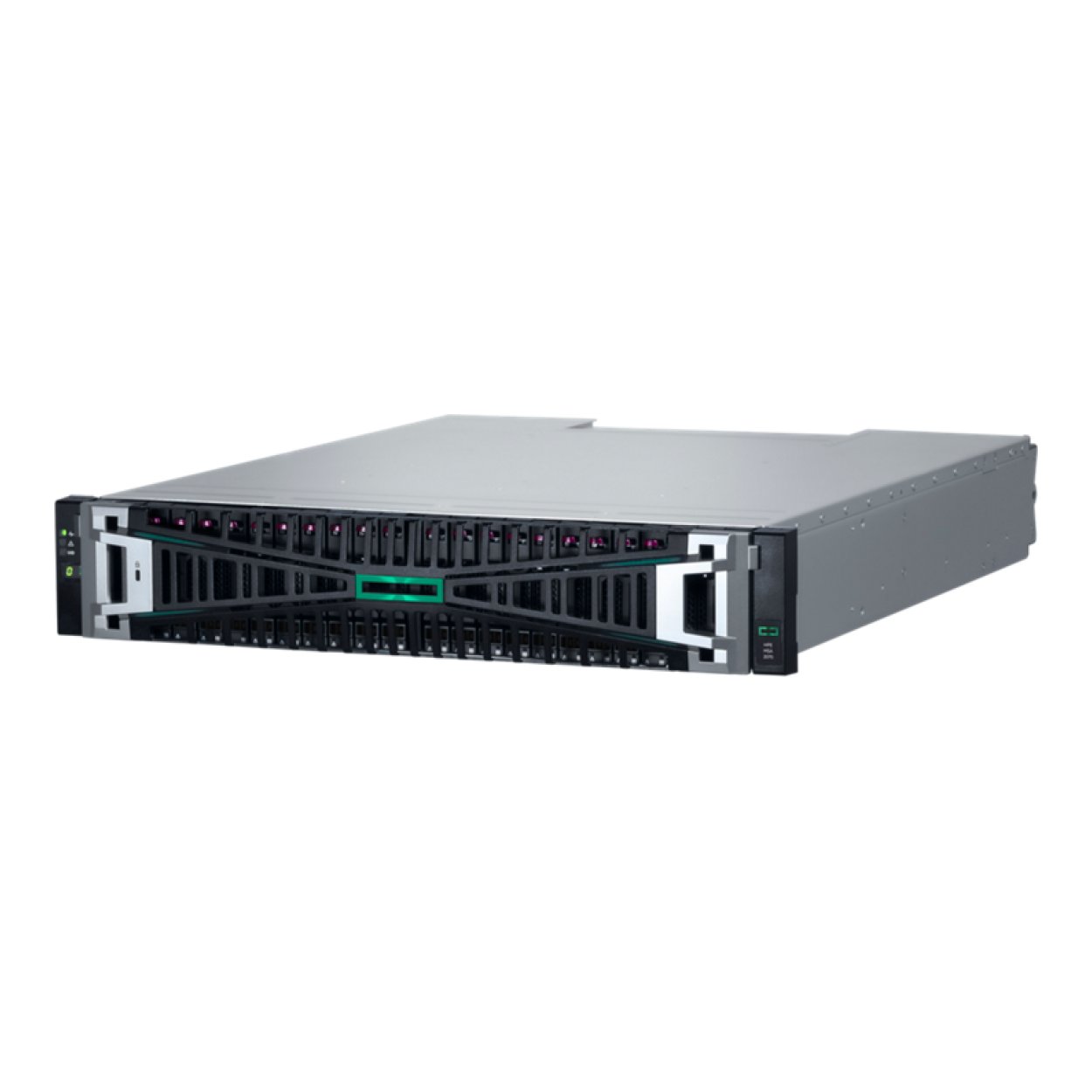

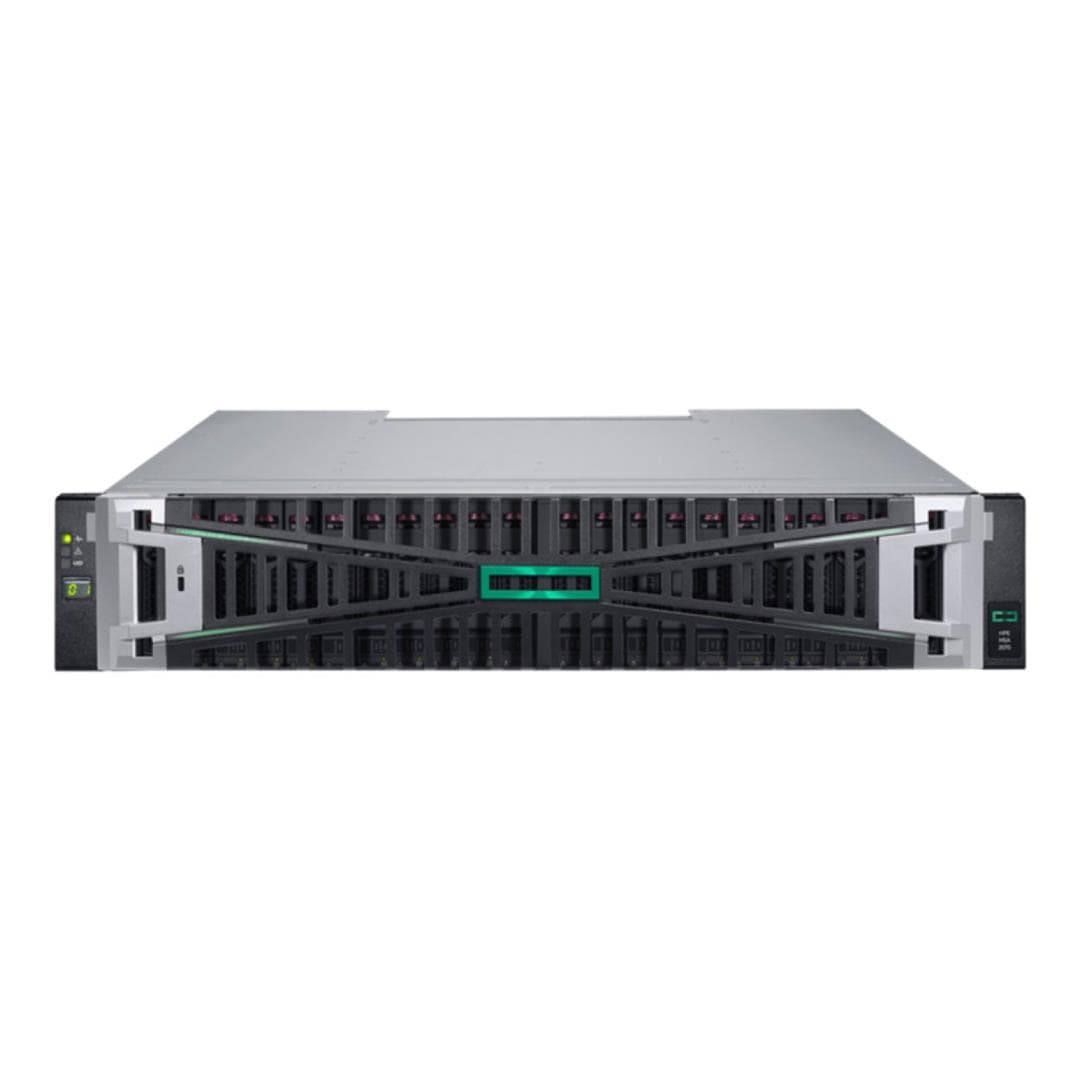

HPE MSA 2070 SFF 2x12Gb SAS 4-Port Controller 12x1.92TB SSD 23TB Storage Array P84178-B25

HPE MSA 2070 SFF 2x12Gb SAS 4-Port Controller 12x1.92TB SSD 23TB Storage Array P84178-B25

Simple - The Shared Storage System Anyone Can Use

Start with the unique and intuitive graphical user interface of HPE MSA Storage Management Utility (SMU) that provides step-by-step instructions and guided workflows to set up the array within minutes.

System monitoring and maintenance available through a simplified dashboard offers "at-a-glance" views of system alerts, performance, and capacity usage. New HPE MSA Gen7 innovations include support for online controller/media firmware updates as well as simpler and faster access to MSA Health Check.

System architecture supporting hot-swap controllers, drives, and power supplies, enabling users to quickly complete upgrades and maintenance with minimal downtime.

Features:

• Customer configurable HPE MSA Gen7 storage array models and storage media options available through the HPE Smart Choice program.
• HPE Smart Choice MSA Gen7 all-flash storage array bundles with up to 92 TB of raw storage capacity included, supporting 16/32 Gb Fibre Channel, 10/25 GbE iSCSI, and 12 Gb SAS host connectivity.
• All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
• MSA HDD and SSD media options supporting an increase in MSA Gen7 raw capacity of up to a maximum of 7.37 PB.

Fast - Real Performance You Can See and Feel

Next generation system architecture supporting incredibly fast performance for an entry-level storage solution. HPE MSA Gen7 Storage delivers up to 2x more IOPS (random) performance with up to 30% more system bandwidth (sequential) as compared to HPE MSA Gen6 Storage.

Real-time, automated data tiering for hybrid configurations, optimizing the use of high-performance SSD media as well as lower-cost HDD storage within the same array. With minimal investment in SSDs, users can increase system IOPS by up to 4x versus HDD-only configurations.

HPE MSA-DP+ advanced RAID technology eliminates the use of idle spare drives by distributing spare capacity across all drives in the disk group and enabling drive rebuild times that are up to 25x faster than traditional RAID.

Affordable - Great Value Across All MSA Configurations

Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs. "Grow as you go" upgrades are available through low-cost HPE MSA SSD and HDD media 6-packs.

A wide range of HPE MSA Gen7 Storage array models, including value-driven solution bundles for hybrid-flash and all-flash configurations, provide a cost-effective path to high-performance storage on Day 1.

Minimize resources dedicated to daily maintenance and focus on business outcomes with HPE MSA Health Check. A cloud-based tool available to all MSA users at no additional charge, MSA Health Check uses MSA system logs to assess performance and configurations against HPE MSA best practice guidelines.

Technical Specifications:

General

Form Factor
2U Rack Mount

Drive Form Factor
SFF (2.5")

Energy Efficiency
Energy Star Compliant

Storage

Drive Bays

• 12 × 1.92 TB Read Intensive SSDs Included
• Supports Up To 12 Additional SFF HDD And/Or SSD Per Base Array

Included Drives

• 12 × HPE MSA 1.92 TB SAS 12G Read Intensive SFF (2.5") M2 3-Year Warranty SSD

Maximum Capacity
Up To 1.77 PB With Maximum Capacity Expansion

SED Drive Support
Not Supported

Storage Expansion

Expansion Options

• 2U 24-Drive SFF Drive Enclosure
• 2U 12-Drive LFF Drive Enclosure
  Supports Up To 9 Expansion Enclosures In Any Combination

Controllers And Connectivity

Storage Controller
2 × 12 Gb SAS 4-Port Controllers

Host Connectivity
12 Gb SAS

Included Transceivers
Not Required

Compatibility

Supported Operating Systems

• Windows Server
• VMware vSphere
• Red Hat Linux
• SUSE SLES
• Refer To HPE SPOCK For Additional Compatibility Details

Warranty

Warranty Coverage
3-Year Limited Warranty With Next Business Day Parts Exchange On Base Arrays And Drive Enclosures

Additional Warranty Notes
MSA Drives And Other Options Carry A Separate Warranty
