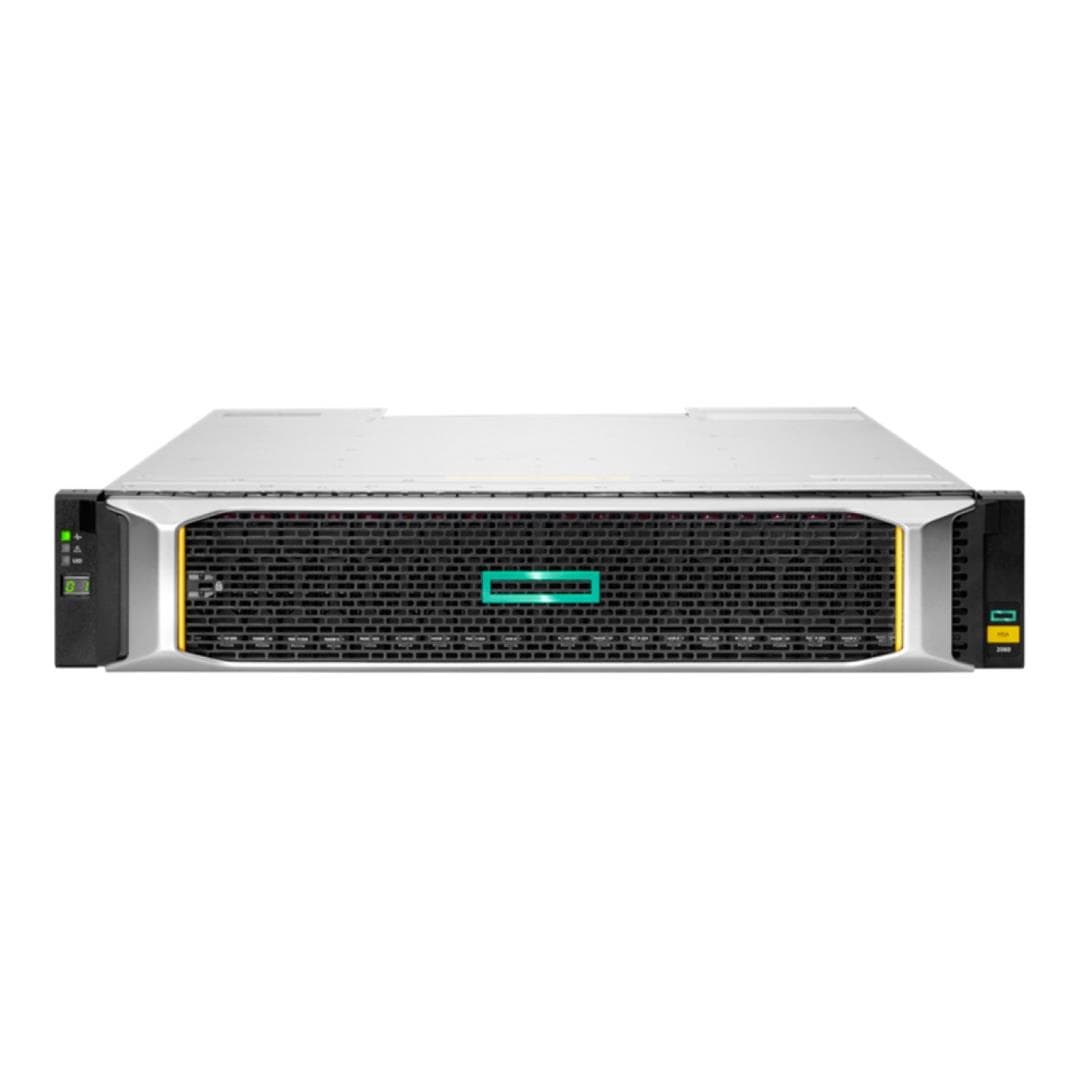

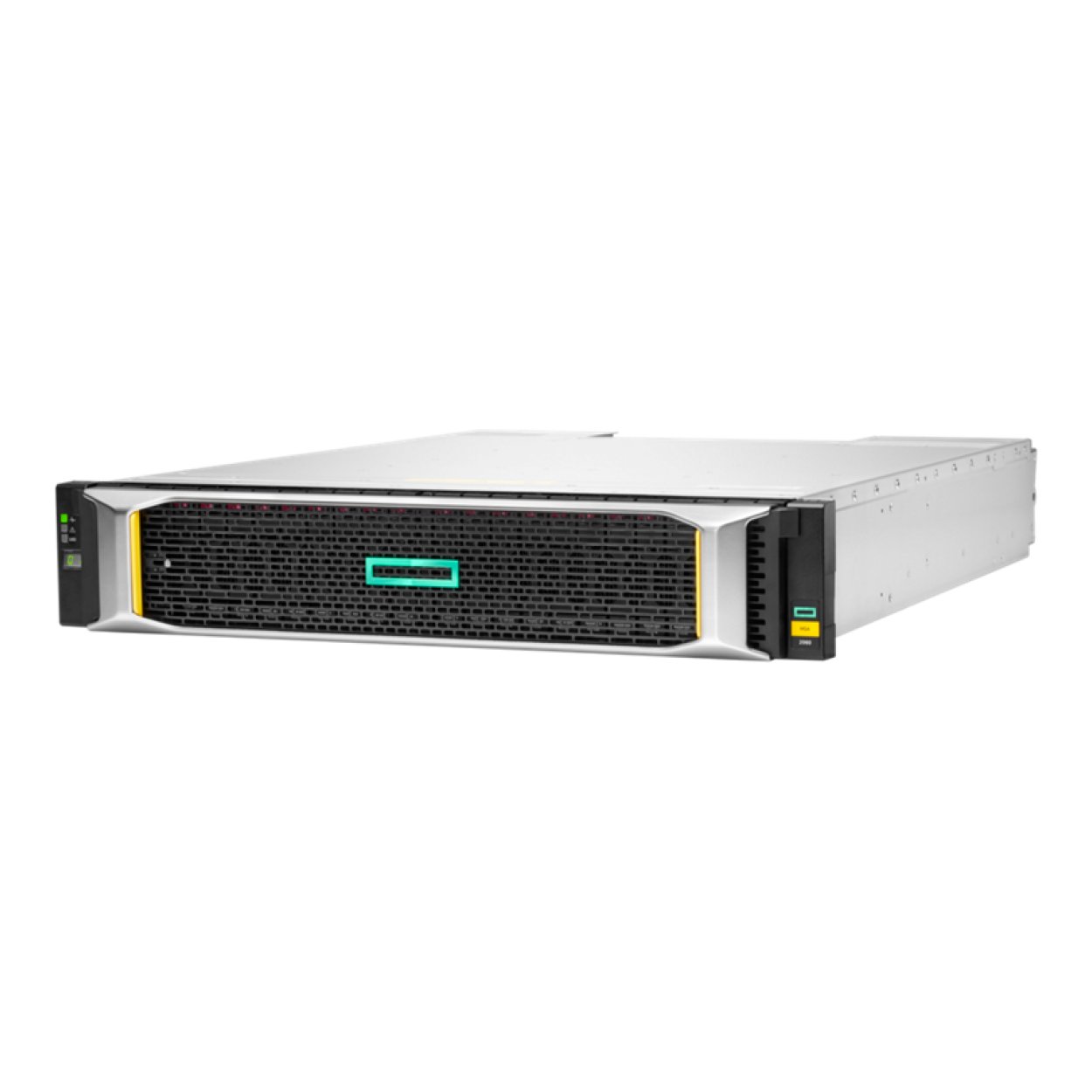

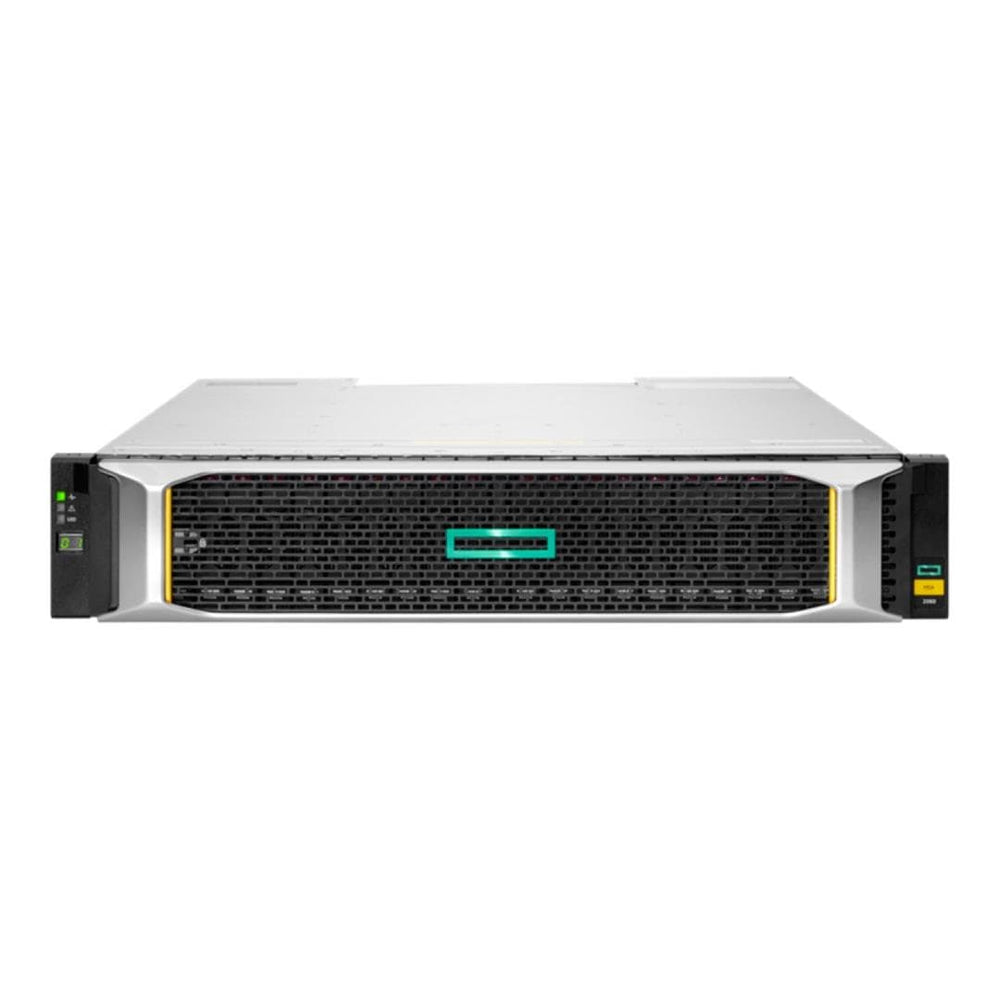

HPE MSA 2062 SFF 2x12Gb SAS 4-Port Controller 12x2.4TB HDD 32TB Storage Array P84172-B25

HPE MSA 2062 SFF 2x12Gb SAS 4-Port Controller 12x2.4TB HDD 32TB Storage Array P84172-B25

Accelerate Applications Affordably

The HPE MSA 2062 Storage is capable of delivering over 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.

Save with additional discounts on MSA 2062 bundled with all-inclusive software and 3.84 TB of solid state drive (SSD) capacity included.

Features:

• HPE Smart Choice MSA Gen6 hybrid-flash storage array bundles with 32 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
• All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

HPE MSA’s "Set It and Forget IT" Data Services Do not Require a Dedicated Storage Administrator

The HPE MSA 2062 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2062’s new Storage Management Utility intuitive and easy to navigate.

HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster

The HPE MSA 2062 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution.

Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Technical Specifications:

General

Form Factor
2U Rack Mount

Drive Form Factor
SFF (2.5")

Energy Efficiency
Energy Star Compliant

Dimensions
8.9 × 44.5 × 50.8 cm (3.5 × 17.5 × 20.0 in)

Weight
5.0 kg (11.0 lb)

Storage

Drive Bays
Up To 24 × SFF HDD And/Or SSD Per Base Array

Included Drives

• 12 × HPE MSA 2.4 TB SAS 12G Enterprise 10K SFF (2.5") M2 3-Year Warranty HDD
• 2 × HPE MSA 1.92 TB SAS 12G Read Intensive SFF (2.5") M2 3-Year Warranty SSD

Maximum Raw Capacity

• Up To 1.77 PB (All SFF)
• Up To 2.7 PB (Mixed SFF And LFF), Depending On Drive Mix

SED Drive Support
Not Supported

Storage Expansion

Expansion Options

• 24-Drive Bay 2060 SFF Drive Enclosure
• 12-Drive Bay 2060 LFF Drive Enclosure
  Supports Up To 9 Expansion Enclosures (Any Combination)

Controllers And Connectivity

Storage Controller
2 × 12 Gb SAS 4-Port Controllers

Host Connectivity
12 Gb SAS

Included Transceivers
Not Required

Compatibility

Supported Operating Systems

• Windows Server 2022
• Windows Server 2019
• Windows Server 2016
• VMware vSphere 6.7
• Red Hat Linux 8
• SUSE SLES 15
• Refer To HPE SPOCK For Additional Compatibility Details

Warranty

Warranty Coverage
3-Year Limited Warranty With Next Business Day Parts Exchange

Additional Warranty Notes
Disk Enclosures, Hard Drives, And Options Carry Their Own Warranty
