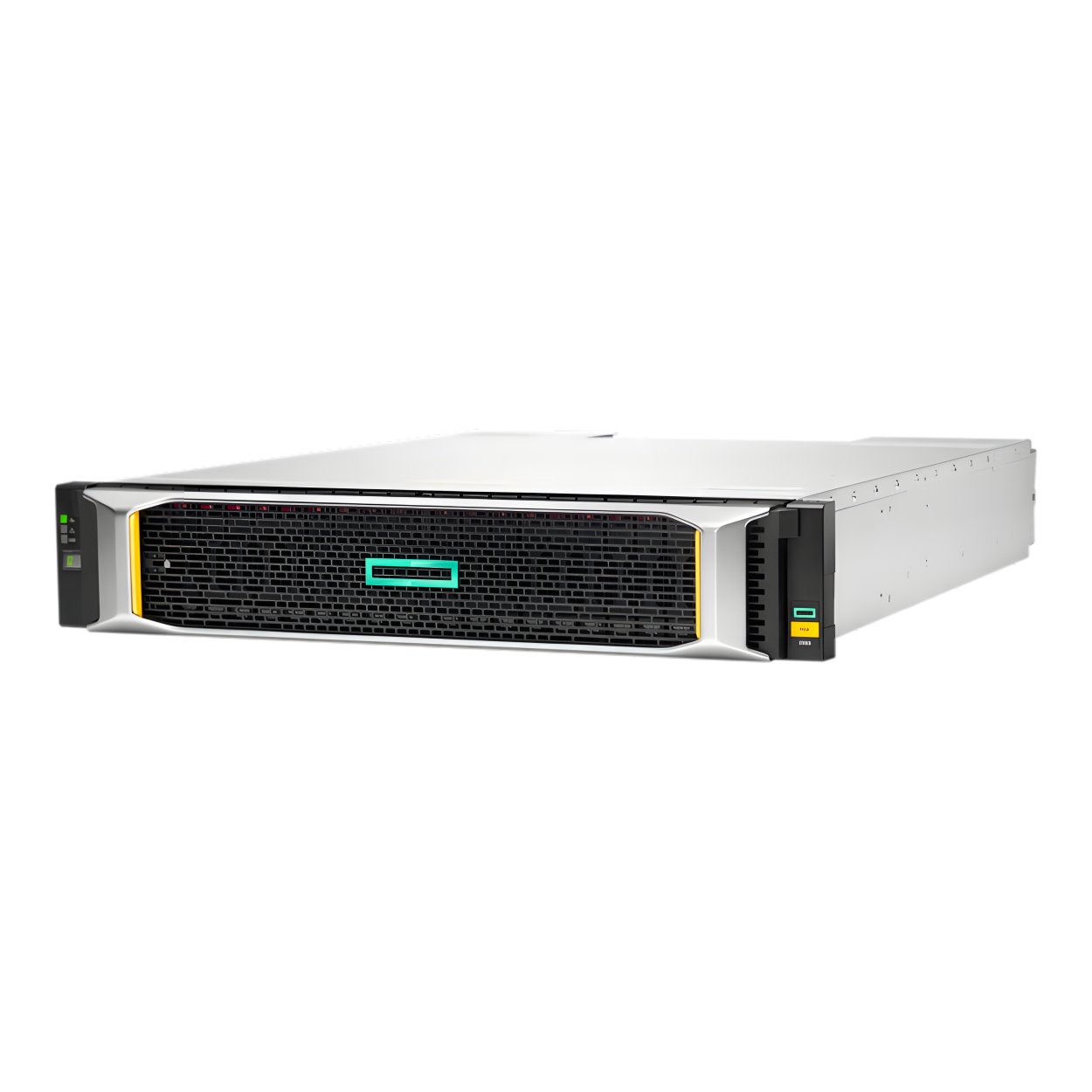

HPE MSA 2060 SFF 2x10/25GbE iSCSI 4-Port Controller 12x2.4TB HDD 4x10Gb SFP 29TB Array P79248-B25

HPE MSA 2060 SFF 2x10/25GbE iSCSI 4-Port Controller 12x2.4TB HDD 4x10Gb SFP 29TB Array P79248-B25

Accelerate Applications Affordably

The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.

The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.

Features:

• Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
• HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
• MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
• All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator

The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.

HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.

Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster

The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.

Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Technical Specifications:

General

Form Factor
2U Rack Mount

Energy Efficiency
Energy Star Compliant

Host Connectivity
10/25 GbE iSCSI

Drive Form Factor
SFF

Dimensions (H × W × D)
8.9 × 44.5 × 50.8 cm (3.5 × 17.5 × 20.0 Inch)

Weight
5 kg (11 lb)

Storage

Included Drives

• 12 × HPE MSA 2.4 TB SAS 12G Enterprise 10K SFF (2.5-Inch) M2 HDD

Drive Description
Supports Up To 24 SFF HDD And/Or SSD Per Base Array

Maximum Capacity

• Maximum Array Raw Capacity Of 1.78 PB (All SFF)
• Maximum Array Raw Capacity Of 2.71 PB (SFF And LFF), Depending On Drive Mix

SED Drives Supported
No

Storage Expansion

Expansion Options

• 24-Drive Bay 2060 SFF Drive Enclosure
• 12-Drive Bay 2060 LFF Drive Enclosure
• Supports Up To 9 Additional Enclosures In Any Combination

Controllers

Storage Controller
2 × 10/25 GbE iSCSI 4-Port Controllers

Transceivers

Included Transceivers

• HPE MSA 10 Gb Short Range iSCSI SFP+ Transceivers (4-Pack)

Compatibility

Supported Operating Systems

• Windows Server 2022
• Windows Server 2019
• Windows Server 2016
• VMware vSphere 6.7
• Red Hat Linux 8
• SUSE SLES 15

Power

Power Supplies
2 × 580 W Redundant Power Supplies

Warranty

Warranty
Three-Year Limited Warranty
Parts Exchange Next Business Day Delivery
Disk Enclosures, Hard Drives, And Options Carry Separate Warranty
