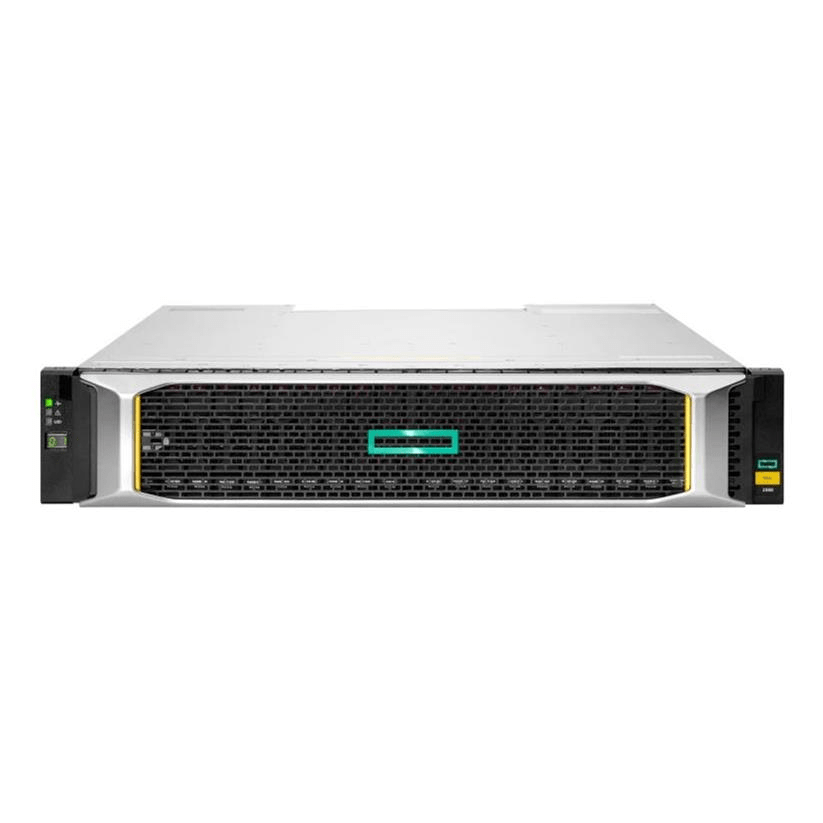

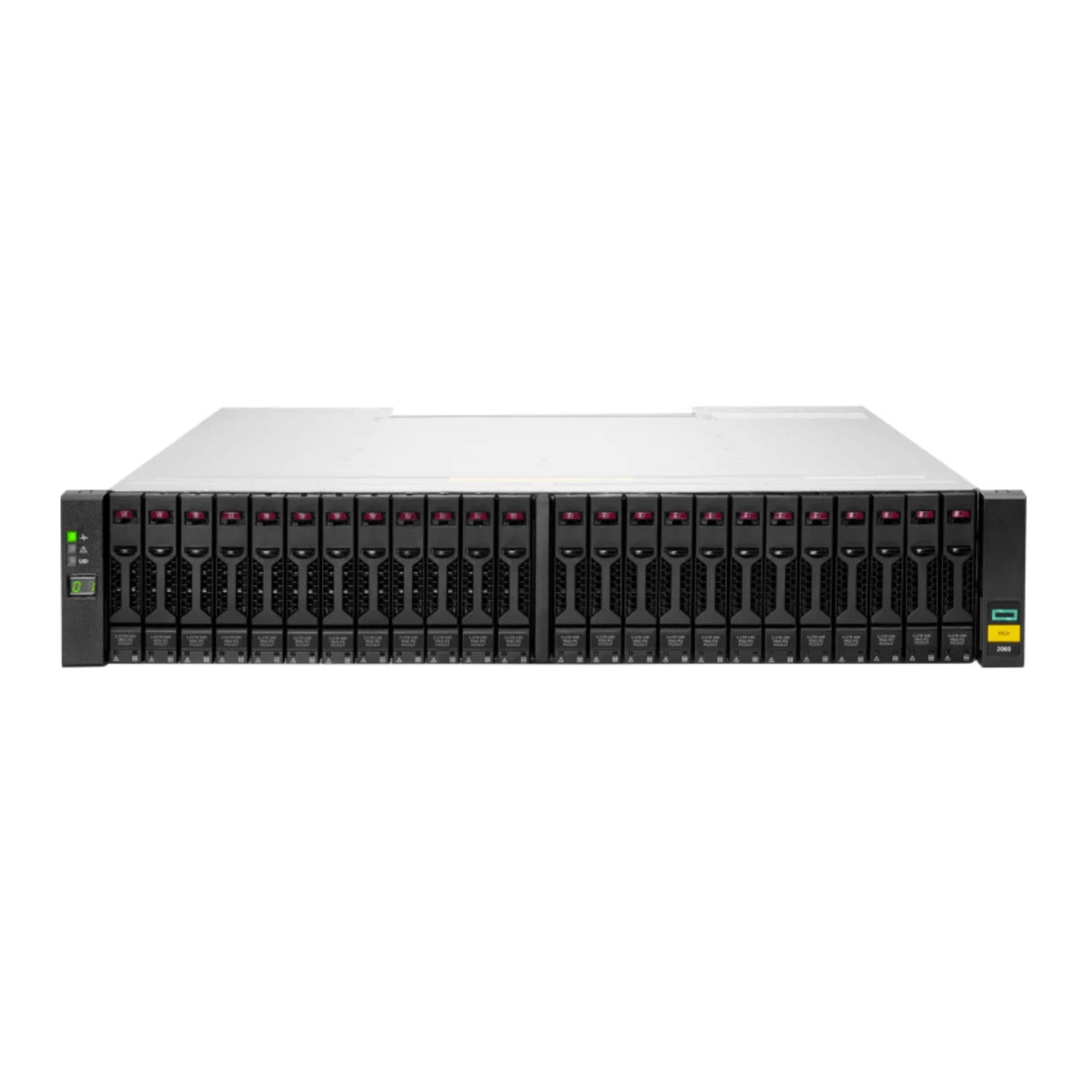

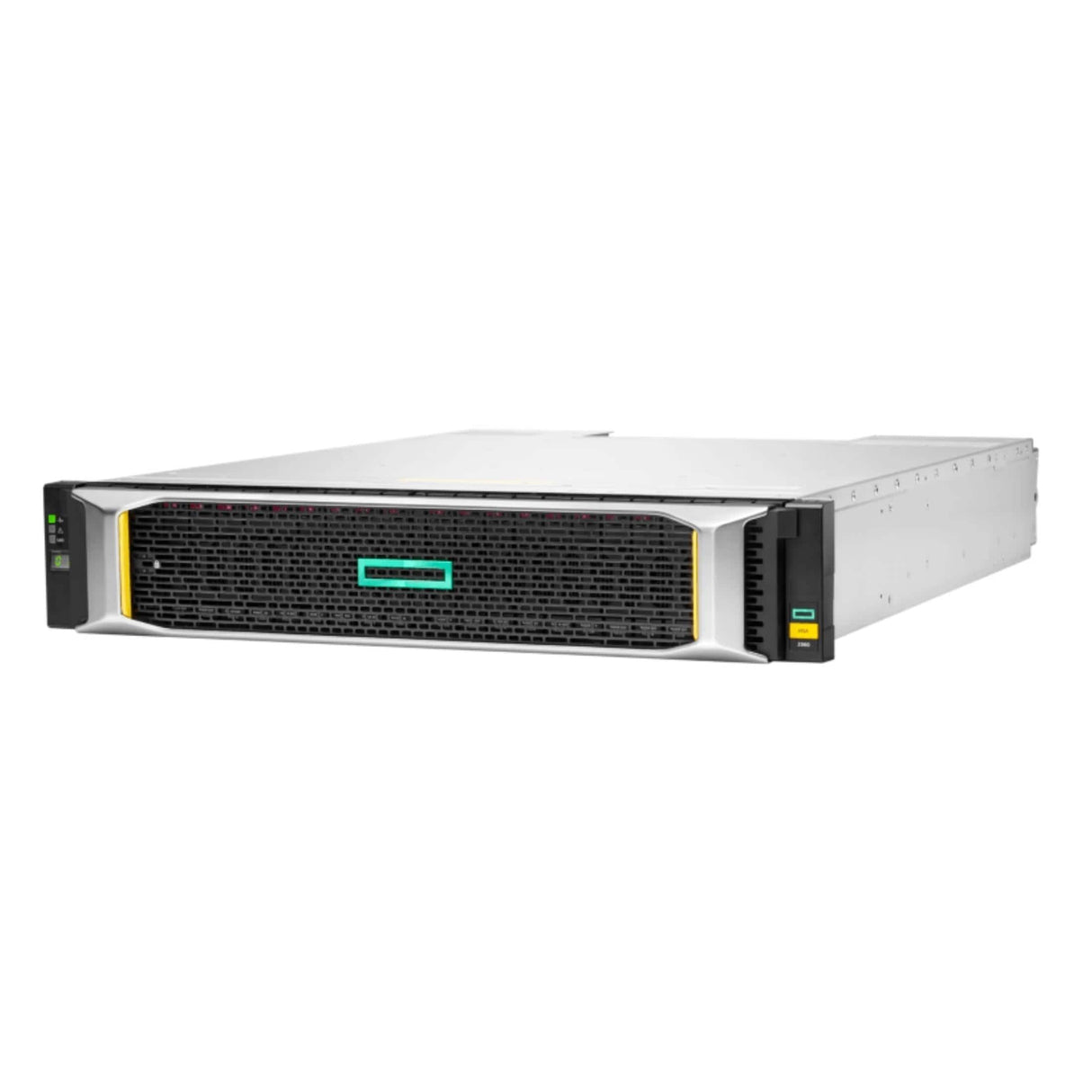

HPE MSA 2060 16GB Fibre Channel SFF Storage R0Q74B

HPE MSA 2060 16GB Fibre Channel SFF Storage R0Q74B

What's New

• Maximize the performance and value of entry-level, flash-based SAN storage solutions with new HPE MSA Gen6 Flash Bundle storage arrays.

• Add cost-effective flash storage capacity expansion to MSA Gen6 Flash Bundle storage arrays with new HPE MSA Gen6 SSD 6-Pack drive options.

Key Features

Accelerate Applications Affordably

The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.

The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.

HPE MSA’s 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator

The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060’s new Storage Management Utility intuitive and easy to navigate.

HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster

The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.

Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Flexible, Modular Architecture That Facilitates Growth Into the Future

The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).

Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.

Drive description Up to 24 SFF HDD and/or SSD per array model

Capacity 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion)

Storage expansion options 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)

Host interface 8-ports 16 Gb FC, 4 ports per controller

Storage controller 2 per array, 4-ports each (8-ports total)

SAN backup support Yes

Storage mirroring support No

Systems Insight Manager support No

Compatible operating systems

Windows Server 2022
Windows Server 2019
Windows Server 2016
VMWare vSphere 6.7
Red Hat Linux 8
SuSE SLES 15

Clustering support Yes

Form factor 2U

Warranty Three-year limited warranty, parts exchange next business day delivery.

Disk enclosures, hard drives and options for the HPE MSA 2060 carry their own warranty.

Energy efficiency Energy Star Compliant

Detailed product description HPE MSA 2060 Small Form Factor chassis with (2) 4-port 16 Gb Fibre Channel Controllers

Weight 5 kg (11 lb)

Dimensions 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
