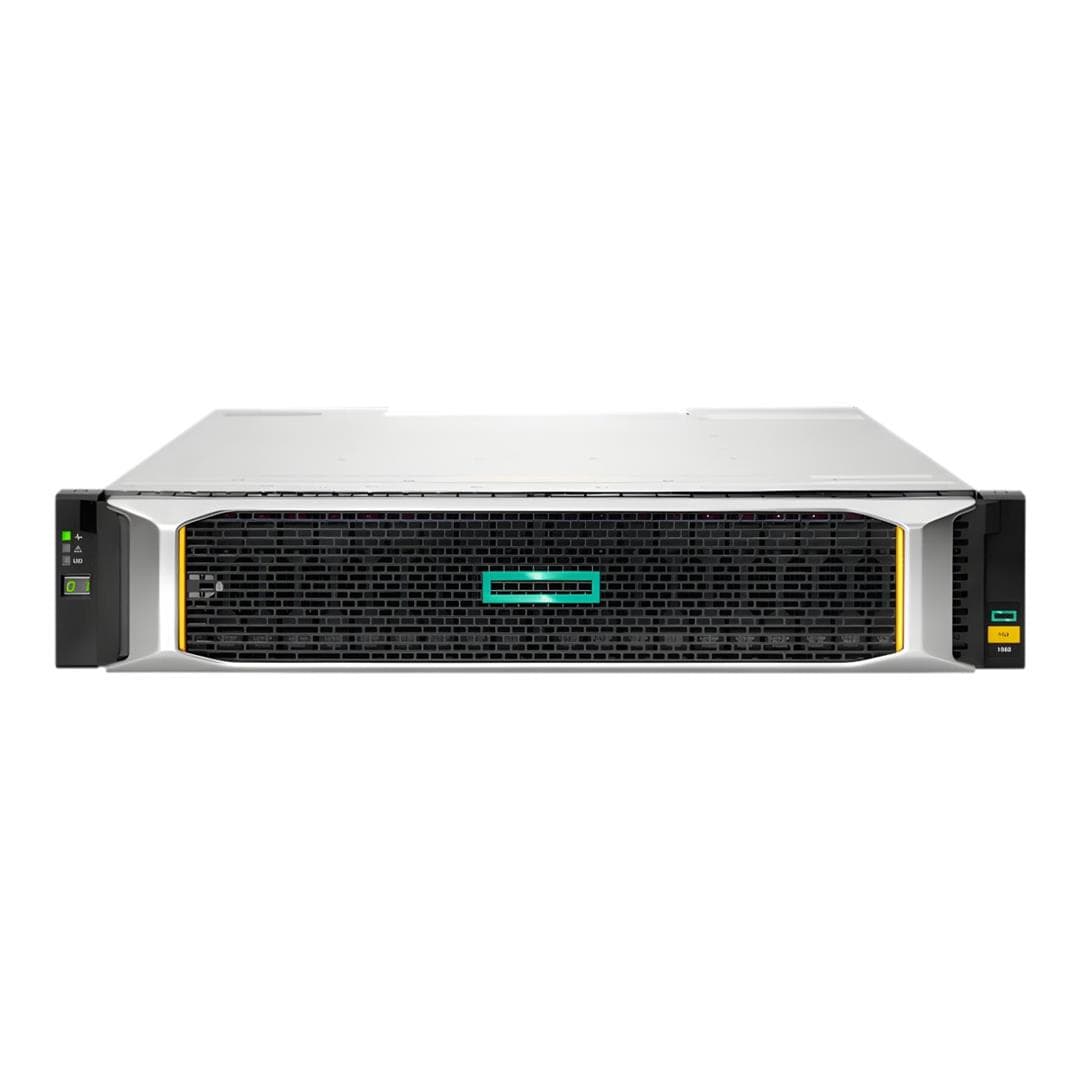

HPE MSA 1060 SFF 2x12Gb SAS 2-Port Controller 12x1.2TB HDD 14TB Array P79251-B25

HPE MSA 1060 SFF 2x12Gb SAS 2-Port Controller 12x1.2TB HDD 14TB Array P79251-B25

Accelerate Applications Affordably

The HPE MSA 1060 Storage is capable of delivering over 154,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments.

The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change.

Features:

• Customer configurable HPE MSA 1060 storage array models and storage media options available through the HPE Smart Choice program.
• MSA Gen6 HDD and SSD media options supporting an increase in MSA 1060 raw capacity of up to a maximum of 2.95 PB.
• All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.

MSA’s "Set and Forget" Data Services Do Not Require a Dedicated Storage Administrator to Manage

The HPE MSA 1060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 1060’s new Storage Management Utility intuitive and easy to navigate.

HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster

The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.

Technical Specifications:

General

Form Factor
2U Rack Mount

Energy Efficiency
ENERGY STAR™ Compliant

Host Connectivity
12 Gb SAS

Drive Form Factor
SFF

Dimensions (H × W × D)
8.9 × 44.5 × 50.8 cm (3.5 × 17.5 × 20.0 Inch)

Weight
5 kg (11 lb)

Storage

Included Drives

• 12 × HPE MSA 1.2 TB SAS 12G Enterprise 10K SFF (2.5-Inch) M2 HDD

Drive Description

• 12 × 1.2 TB 10K SFF Hard Disk Drives Included
• Supports Up To 12 Additional SFF HDD And/Or SSD Per Base Array

Maximum Capacity

• Up To 383 TB (Base Array)
• Up To 2.6 PB With Maximum Expansion

SED Drives Supported
No

Storage Expansion

Expansion Options

• 24-Drive Bay SFF 2060 Drive Enclosure
• 12-Drive Bay LFF 2060 Drive Enclosure
• Supports Up To 3 Additional Enclosures

Controllers

Storage Controller
2 × 12 Gb SAS 2-Port Controllers

Transceivers

Included Transceivers
Not Required

Compatibility

Supported Operating Systems

• Windows Server 2022
• Windows Server 2019
• Windows Server 2016
• VMware vSphere 6.7
• Red Hat Linux 8
• SUSE SLES 15

Power

Power Supplies
2 × 580 W Redundant Power Supplies

Warranty

Warranty
Three-Year Limited Warranty
Parts Exchange Next Business Day Delivery
Disk Enclosures, Hard Drives, And Options Carry Separate Warranty
