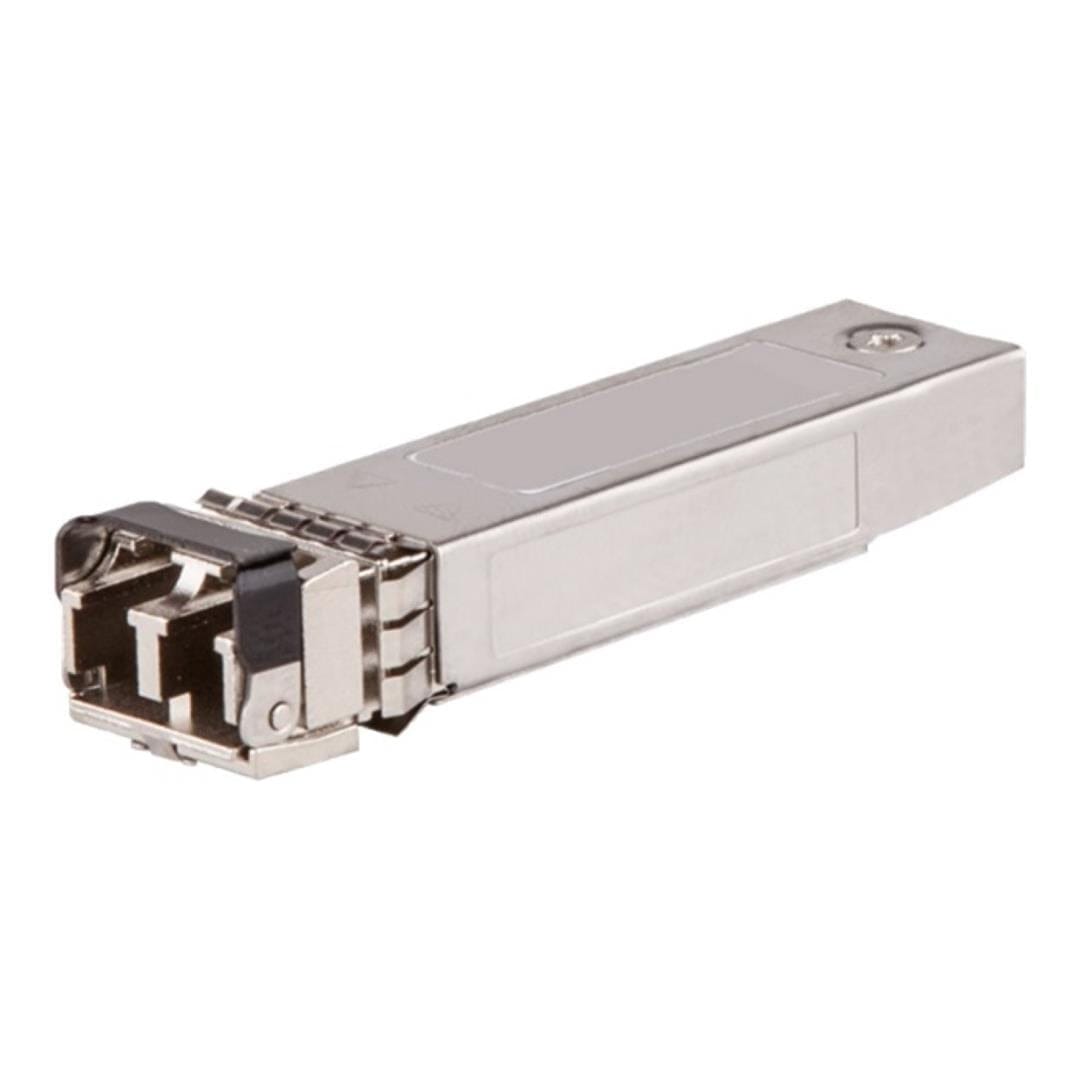

HPE Aruba 1.25G SFP 1310nm SM 10Km LC Transceiver Module 1PJ4859C

HPE Aruba 1.25G SFP 1310nm SM 10Km LC Transceiver Module 1PJ4859C

J4859C HPE ProCurve compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fibre. Each SFP transceiver module is individually tested to be used on a series of HPE switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features:

• Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
• Max. Power Consumption 1W Allowing for Prolonged Service Life
• Commercial Temperature Range 0 to 70°C (32 to 158°F)
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• FS BOX - Support Real-time Configuration
• Compliant to IEEE 802.3z Gigabit Ethernet
• Class 1 FDA Laser Safety and RoHS Compliant
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Technical Specifications:

HPE ProCurve Compatible: J4859C
Vendor Name: FS
Form Factor: SFP
Max. Data Rate: 1.25Gbps
Wavelength: 1310nm
Max. Cable Distance: 10km @ SMF
Connector: Duplex LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5 ~ -3dBm
Receiver Sensitivity: < -20dBm
Power Consumption: ≤ 1W
Receiver Overload: -3dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: > 9dB
EMC (Electro Magnetic Compatibility): Supported
MTBF (LX): 4,761,904 Hours
Protocols: IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty: 5 Years
