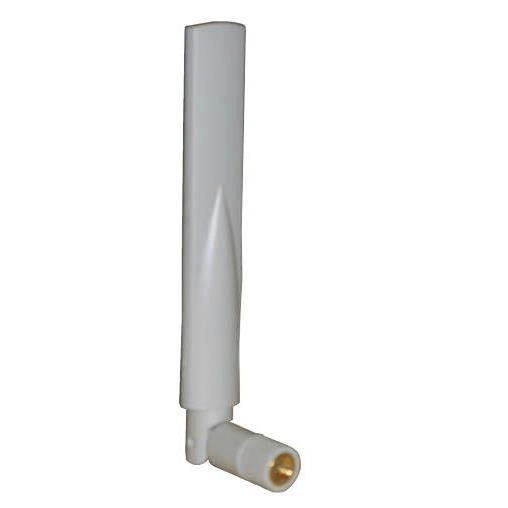

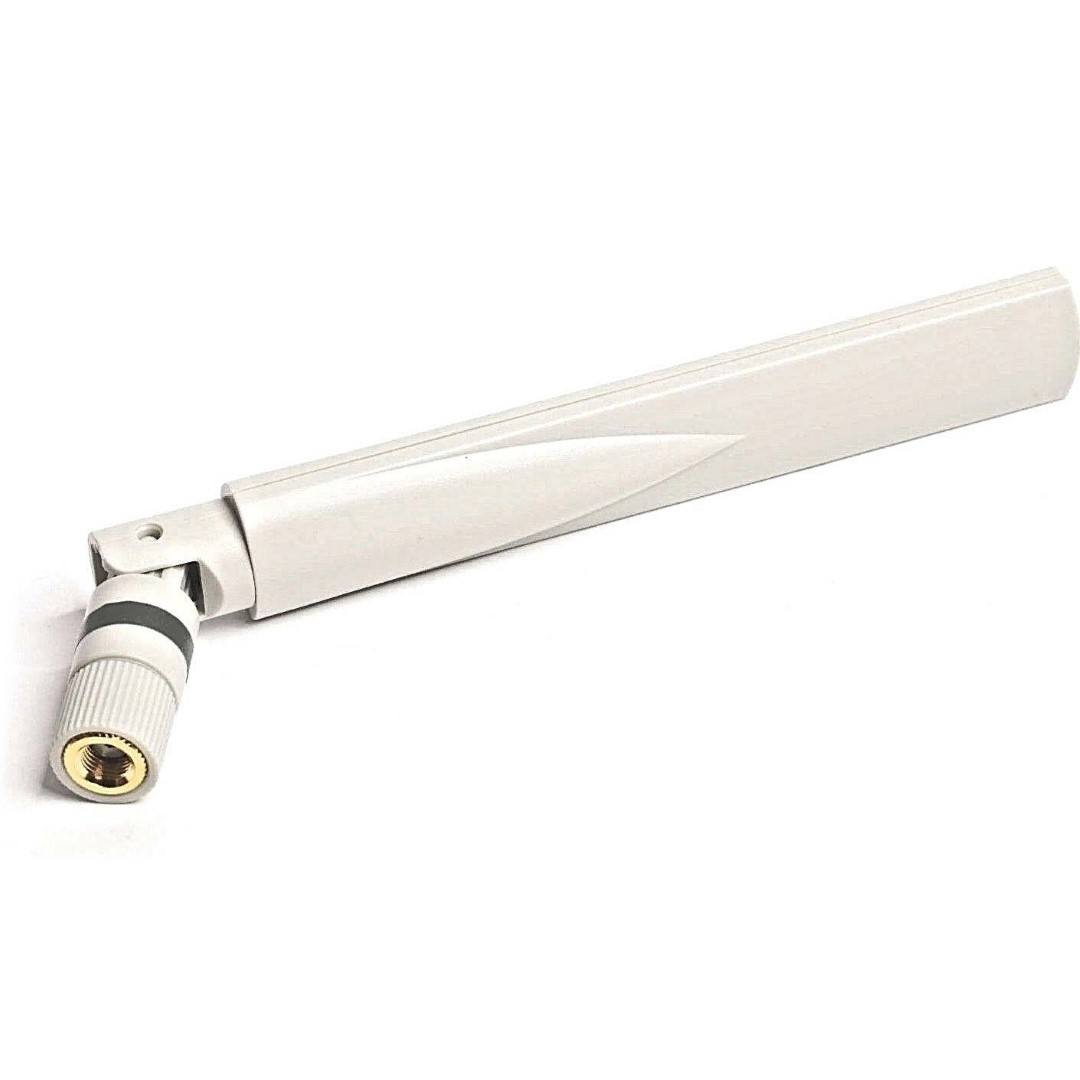

HPE AP-ANT-1W Network Antenna 5.8 DBi Omni-directional Antenna RP-SMA JW009A

Hewlett Packard Enterprise AP-ANT-1W. Antenna gain level (max): 5.8 dBi, Frequency band: 2.4-2.5/4.9-5.875 GHz, Antenna gain (2.4 GHz): 3.8 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Linear polarization. Power consumption (max): 2 W. Width: 19 mm, Depth: 39 mm, Height: 127 mm

The AP-ANT-1 is a high-performance, tri-band, omnidirectional, indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern for WLAN service delivery or air monitoring on both the 2.4 GHz and 5 GHz bands. AP-ANT-1 has an articulating mount, providing flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1 is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP). It is offered in two colors to match the colors of Aruba indoor access points: the AP-ANT-1B antenna in off-white, and the AP-ANT-1W antenna in white.
