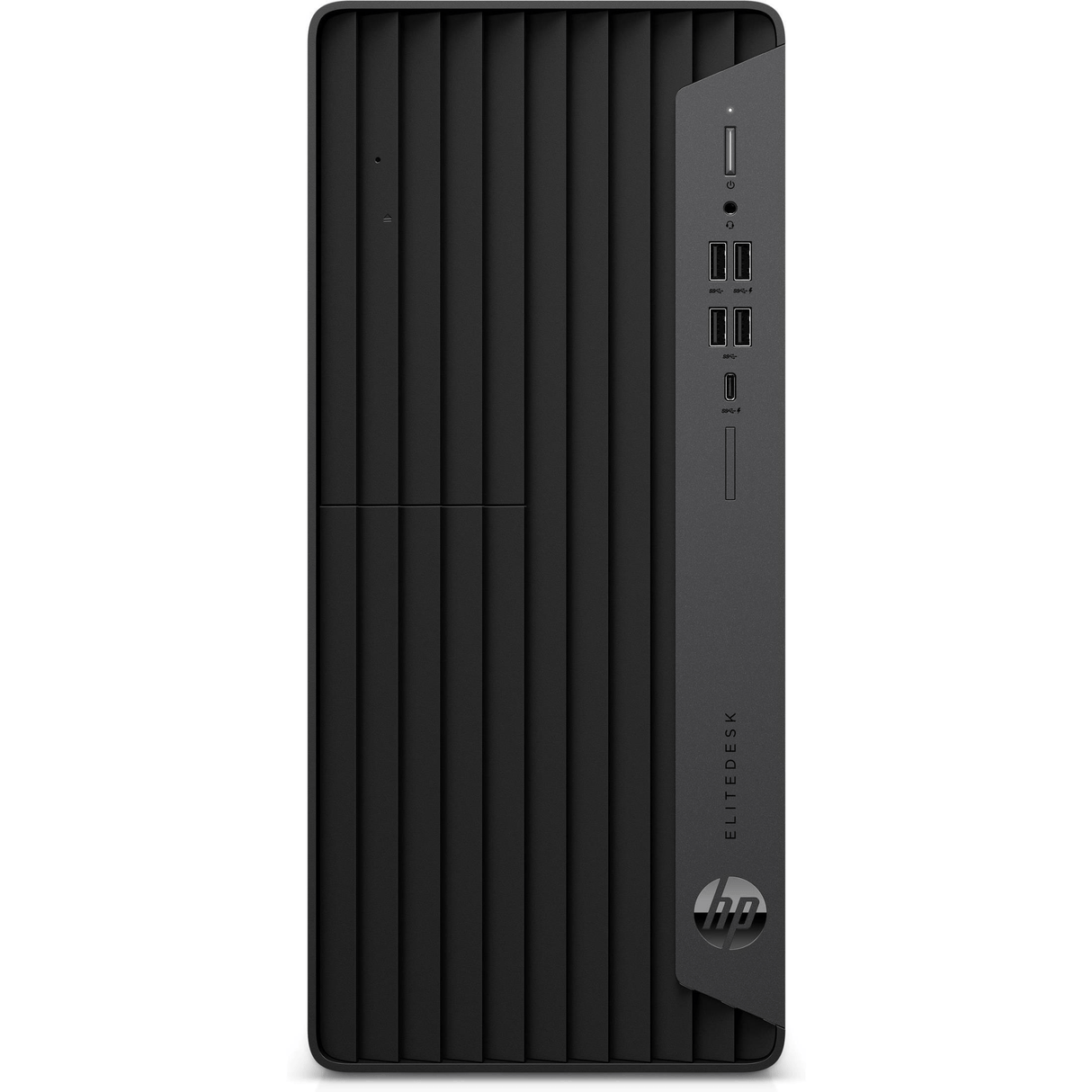

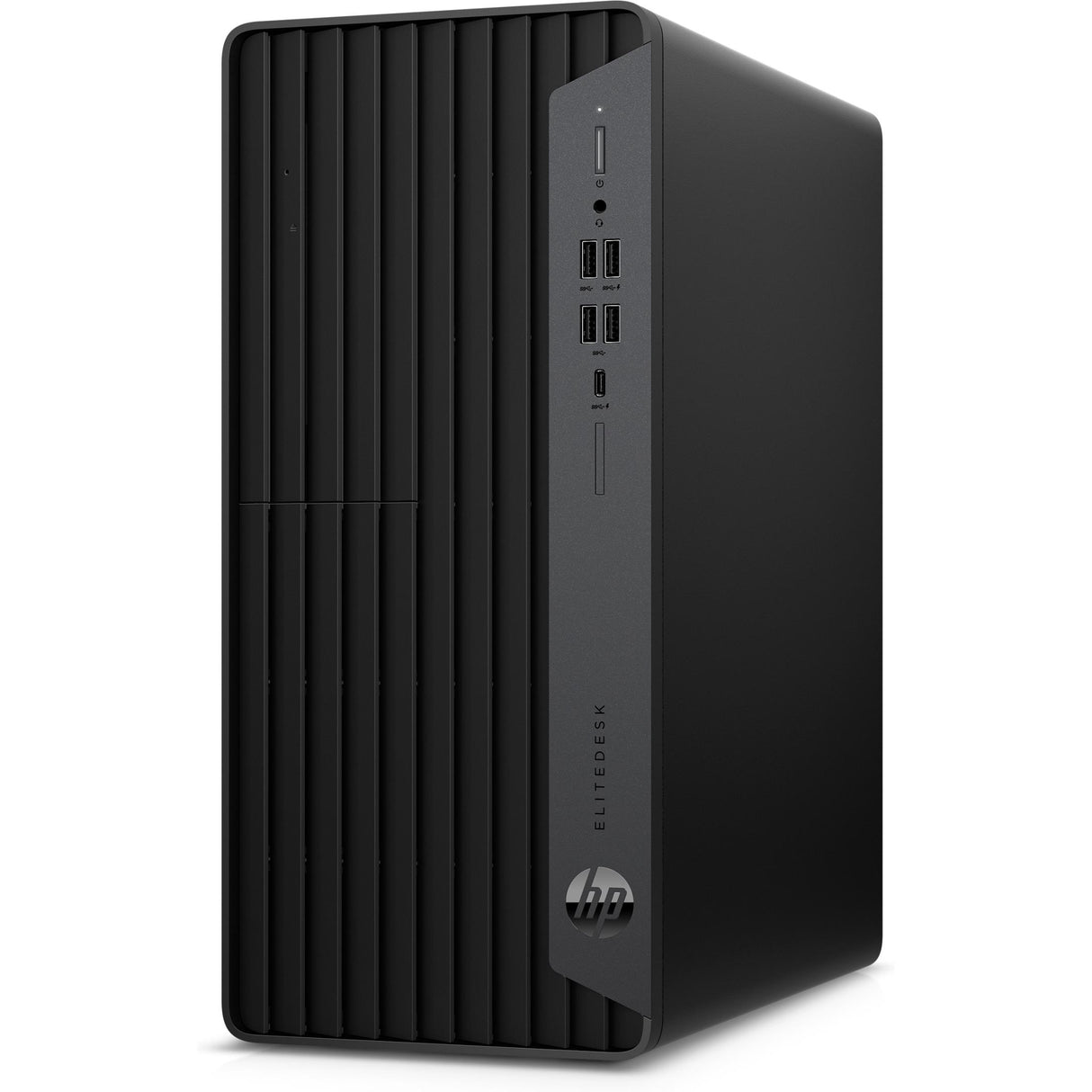

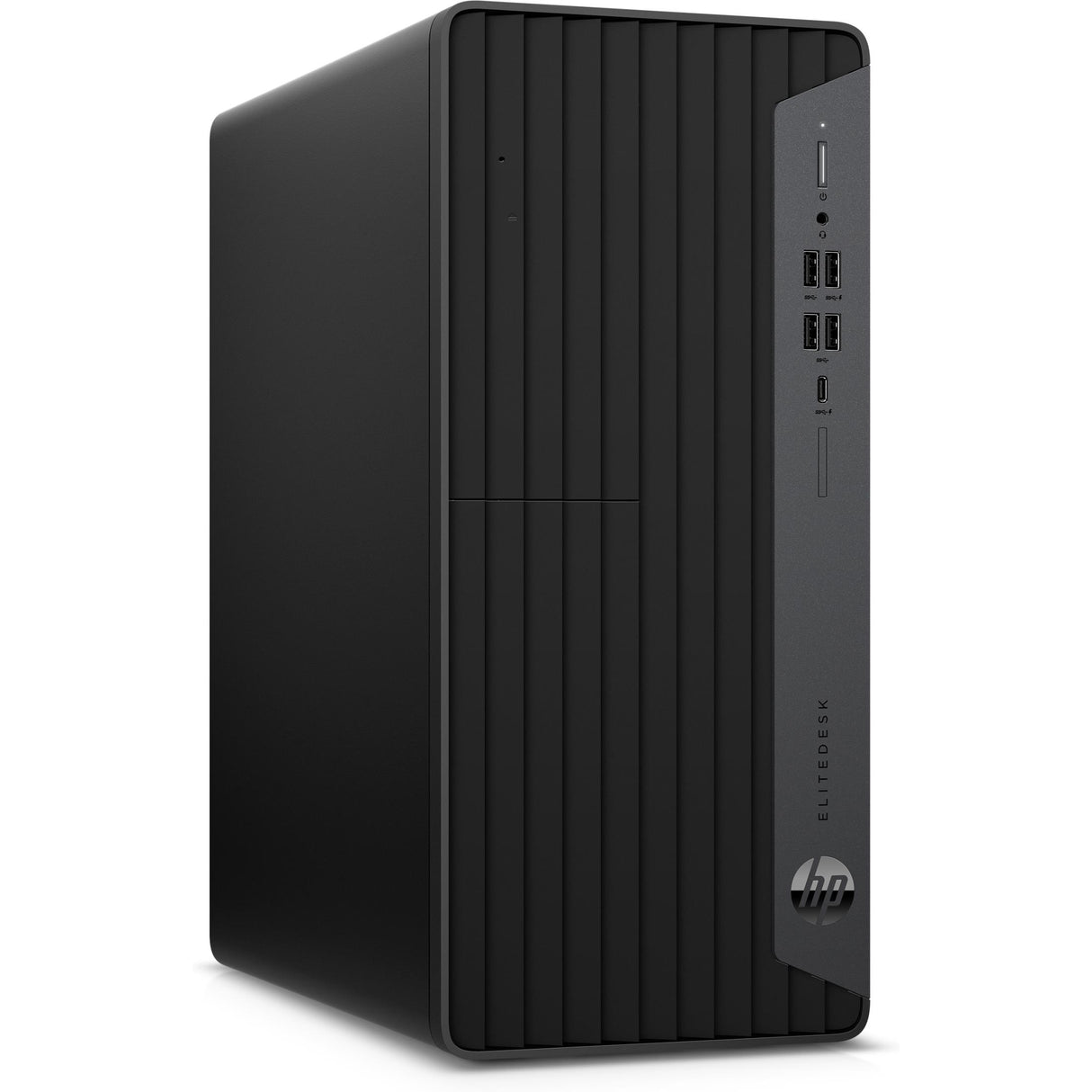

HP EliteDesk 800 G6 Desktop PC - Intel Core i5-10500 1TB HDD 8GB RAM Windows 10 Pro

Take on your most demanding projects

The redesigned HP EliteDesk 800 Tower is the new definition of performance and expandability in a business-class tower PC. Featuring powerful components, enormous expansion, and strong security, this PC handles your biggest enterprise workloads.

Built for the changing workplace

The new chassis of the redesigned HP Elite 800 TWR is 9.6-percent smaller than the previous model and is whisper quiet for today’s smaller workspaces.

Expansion that extends your investment

The HP EliteDesk 800 TWR has enormous expandability with five bays and four full-height slots. Plus, there are three additional M.2 slots, and 11 USB ports.

Lead with power and performance

High-performance users will enjoy highly responsive performance with 10th Gen Intel® Core™ processors.2

Work with peace of mind

Security features from HP work together to create an always-on, always-acting, resilient defense. From the BIOS to the browser, above and below the OS, these constantly evolving solutions help protect your PC from threats.



Specifications

Operating system

Windows 10 Pro11

Processor family

10th Generation Intel® Core™ i5 processor

Processor

Intel® Core™ i5-10500 (3.1 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)6,71

Processor technology

Intel® Core™ i5 with vPro™ Technology

Chipset

Intel® Q470 (vPro®)

Form factor

Tower

Management features

HP BIOS Config Utility (download); HP Client Catalog (download); HP System Software Manager (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4; HP Driver Packs; HP Image Assistant Gen 5 (download)

Sustainable impact specifications

Low halogen

Security management

Power-on password (via BIOS); SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Serial enable/disable (via BIOS); HP Secure Erase; HP Sure Click; HP Sure Sense; HP DriveLock and Automatic DriveLock; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10. (Common Criteria EAL4+ Certified); HP Client Manager Gen 6; HP Sure Recover Gen3; HP Sure Run Gen3; HP Sure Start Gen6; HP BIOsphere Gen6

Memory

8 GB DDR4-2666 MHz RAM (1 x 8 GB)

Memory layout (slots & size)

1 x 8 GB

Memory Slots

4 DIMM

Internal drive bays

One 2.5" HDD; Two 3.5" HDD

External drive bays

1 slim ODD; One 5.25" ODD

Internal Storage

1 TB 7200 rpm SATA

Graphics

Integrated

Graphics (integrated)

Intel® UHD Graphics 630

I/O Port location - Front

Ports

2 SuperSpeed USB Type-A 10Gbps signaling rate; 2 SuperSpeed USB Type-A 5Gbps signaling rate

I/O Port location - Rear

Ports

1 audio-out; 1 power connector; 1 RJ-45; 2 SuperSpeed USB Type-A 10Gbps signaling rate; 2 SuperSpeed USB Type-A 5Gbps signaling rate; 2 USB Type-A 480Mbps signaling rate; 2 DisplayPort™ 1.4; 1 SuperSpeed USB Type-C® 10Gbps signaling rate (15W output, DisplayPort™ 1.2)

Expansion slots

1 M.2 2230; 1 PCIe 3.0 x16; 1 PCIe 3.0 x16 (wired as x4); 2 PCIe 3.0 x1; 2 M.2 2230/2242

Audio

Realtek ALC3867 codec, universal audio jack with CTIA headset support, audio line-out rear ports (3.5 mm), multi-streaming capable

Keyboard

HP PS/2 Business Slim Keyboard

Network interface

Integrated Intel® I219LM GbE LOM

Power

260 W internal power supply, up to 90% efficiency, active PFC

Ecolabels

EPEAT® registered

Energy star certified

ENERGY STAR® certified

Operating temperature range

10 to 35°C

Minimum dimensions (W x D x H)

37 x 30.8 x 16.8 cm

Weight

9.86 kg

Package dimensions (W x D x H)

29.9 x 47.8 x 51.7 cm

Package weight

11.34 kg

Software included

HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP JumpStarts; HP Privacy Settings; HP Desktop Support Utilities

Manufacturer Warranty

3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
