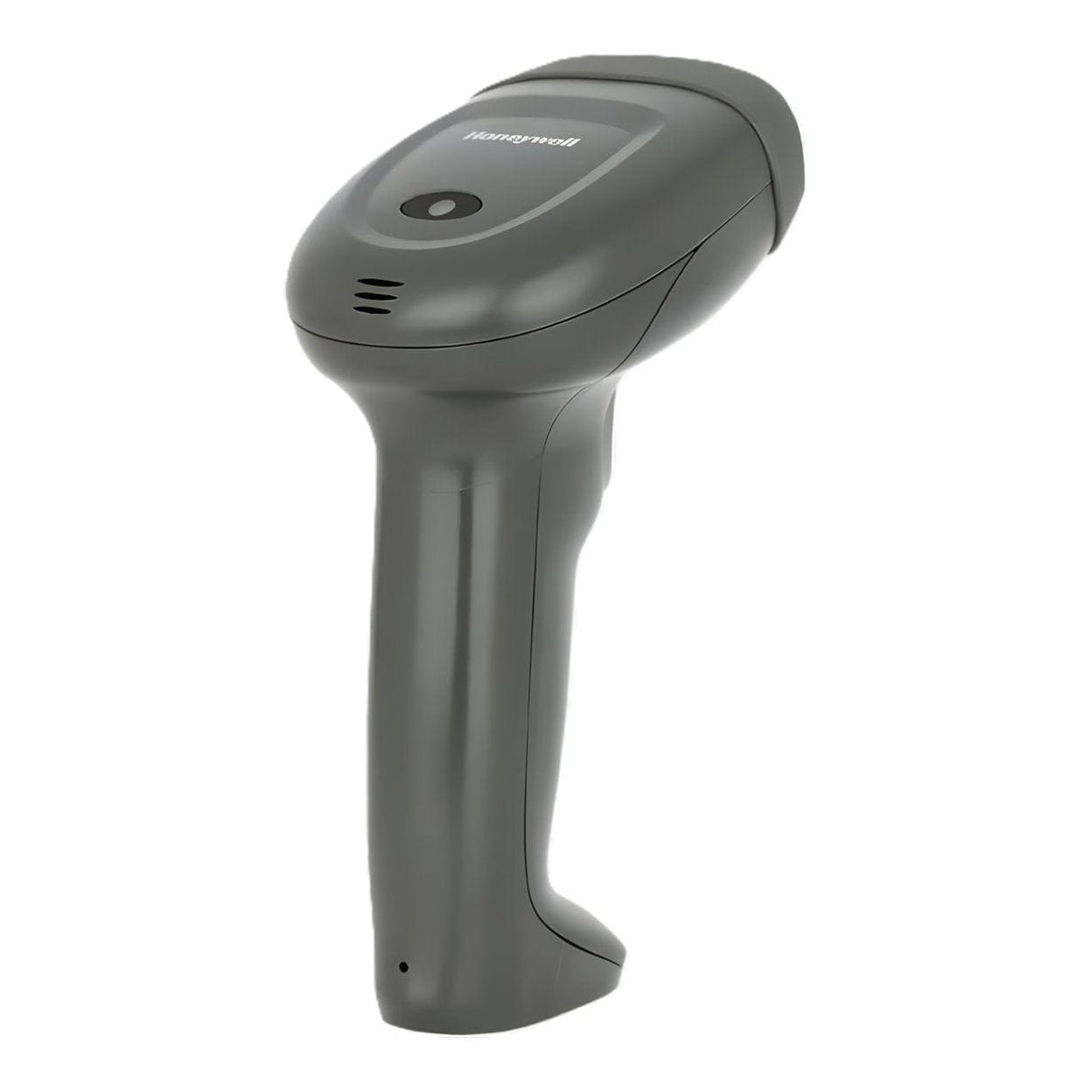

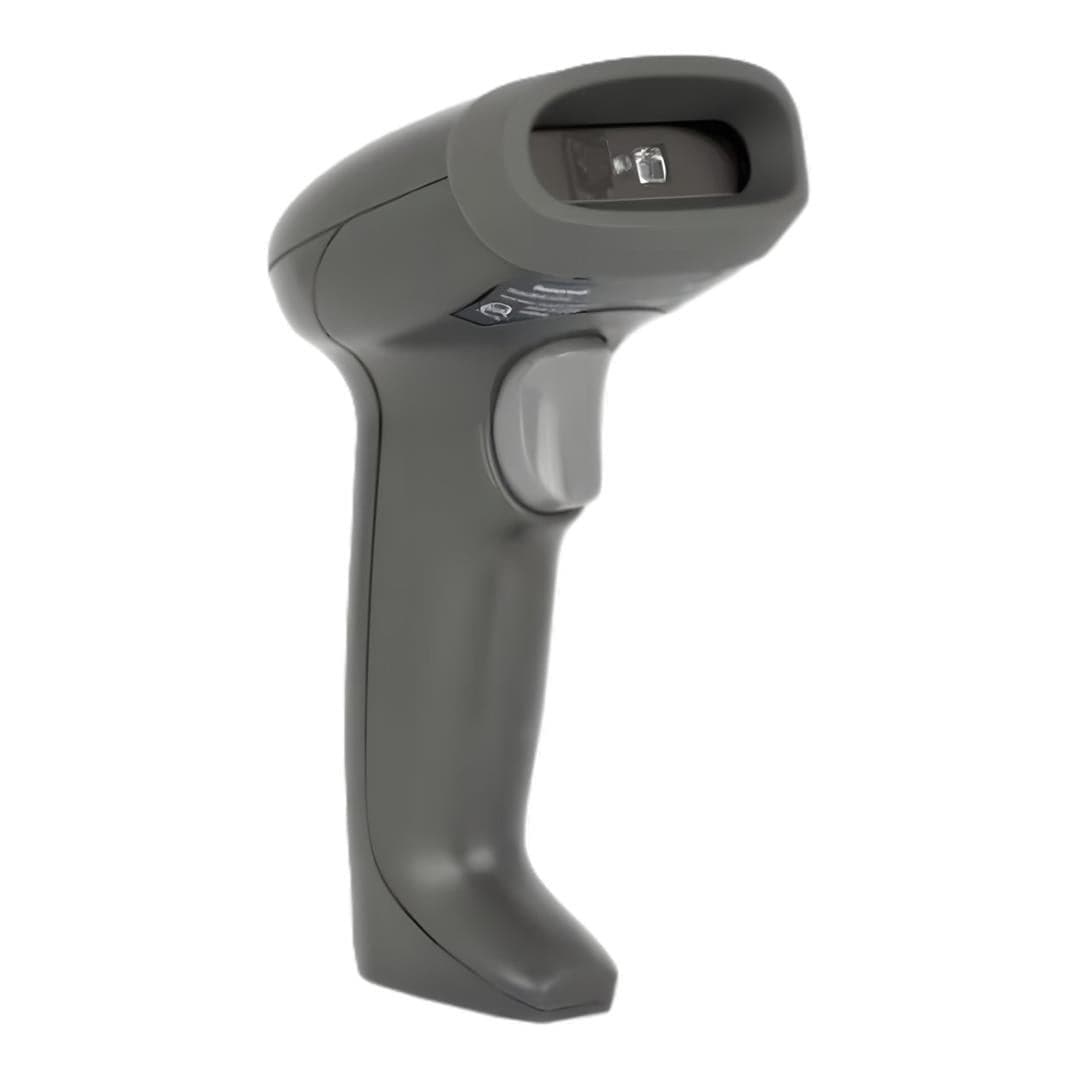

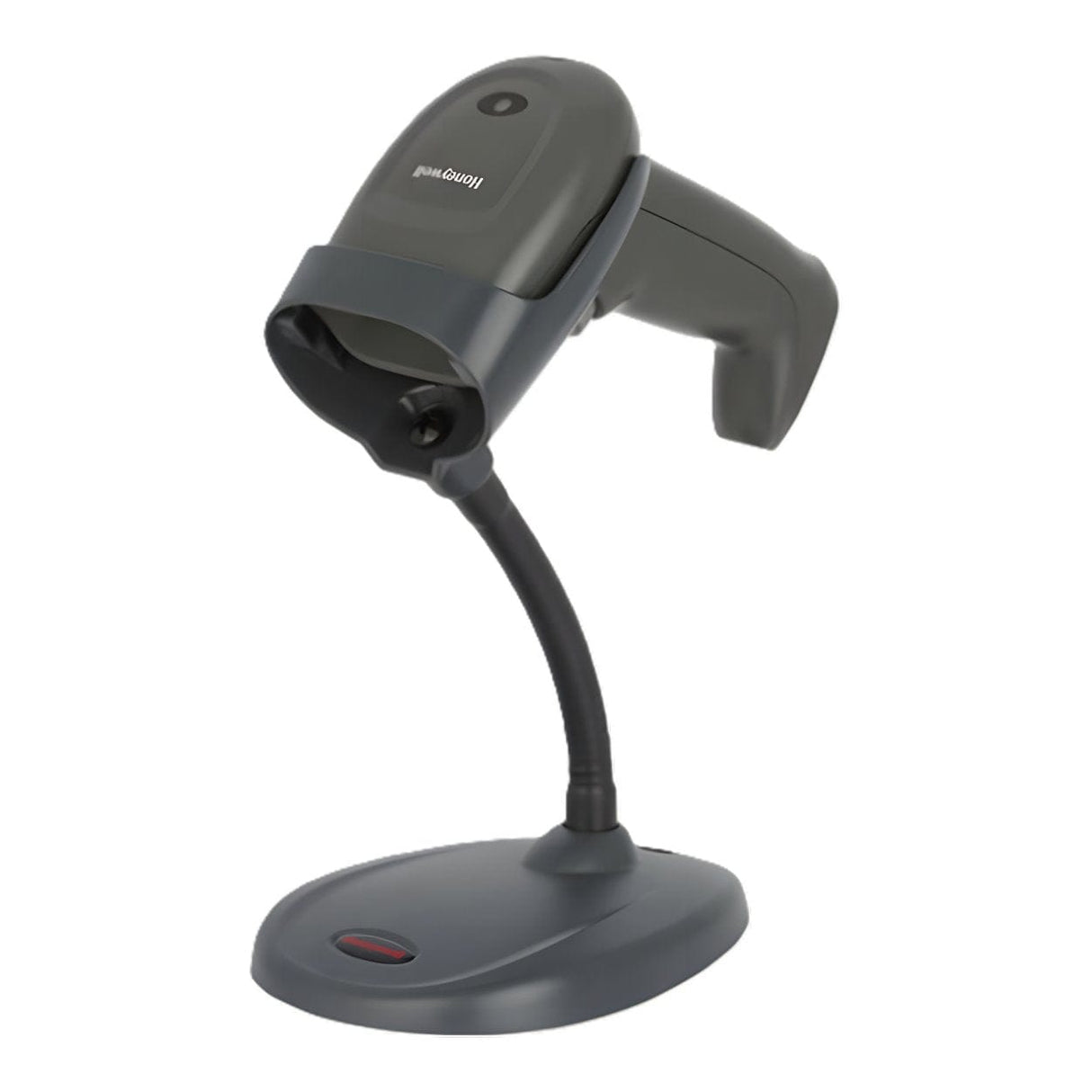

Honeywell HH490 Versatile Omni-directional Barcode Scanner HH490-R1-1USB-1-R

Honeywell HH490 Versatile Omni-directional Barcode Scanner HH490-R1-1USB-1-R

The HH490 is a new generation of handheld 2D area-imaging scanner, designed to fulfill a wide variety of customers’ scanning needs in various applications and scenarios. Examples include membership identification, payment at shopping malls and supermarkets, hotel registration, applications at hospitals and schools, or any place where data needs to be read and identified quickly. HH490 offers excellent 1D and 2D barcode scanning performance at an affordable price. It provides fast scanning for a variety of scanning needs, helps customers quickly obtain data, simplifies operational procedures, and greatly improves the management efficiency of your business. Put simply, the HH490 makes scanning easier and faster! To handle today’s commercial deployment challenges and large-scale infrastructures, the HH490 is equipped with Honeywell’s advanced EZ Config and POS drivers, which greatly simplify the configuration process and saves time. HH490 is fully backward-compatible with existing HH400 accessories, it helps original customers greatly reduce cost and protect original investment.

Technical Specifications:

Scanning Range: 35 mm – 430 mm (13 mil UPC-A)
Scan Pattern: Array
Scan Distance: Standard Range (0–1 m)
Motion Tolerance: 75 cm/s
Depth of Field: 35 mm – 430 mm (13 mil UPC-A)
Decode Capability: 1D / 2D
Brightness: 0 – 100,000 lux

Hardware
Aimer Type: Area Image

Wireless
Connectivity: Corded

Power Connector Type: USB
Host System Interface: USB, RS-232
Engine Type: 2D

Electrical
Smart Battery: N/A
Operating Power: 2 W
Input Voltage: 4 – 5.5 V DC

Environmental
Storage Temperature Range: -40°C to 60°C (-40°F to 140°F)
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Operating Humidity: 0% – 95% relative humidity

Standards & Approvals
Tumble Specifications: 250 tumbles at 0.5 m (1.6 ft)
Drop Specifications: 1.2 m
Protection Ratings / IP Rating: IP40

Service Terms
Warranty Duration: 3 years

Others
Industry: Retail
