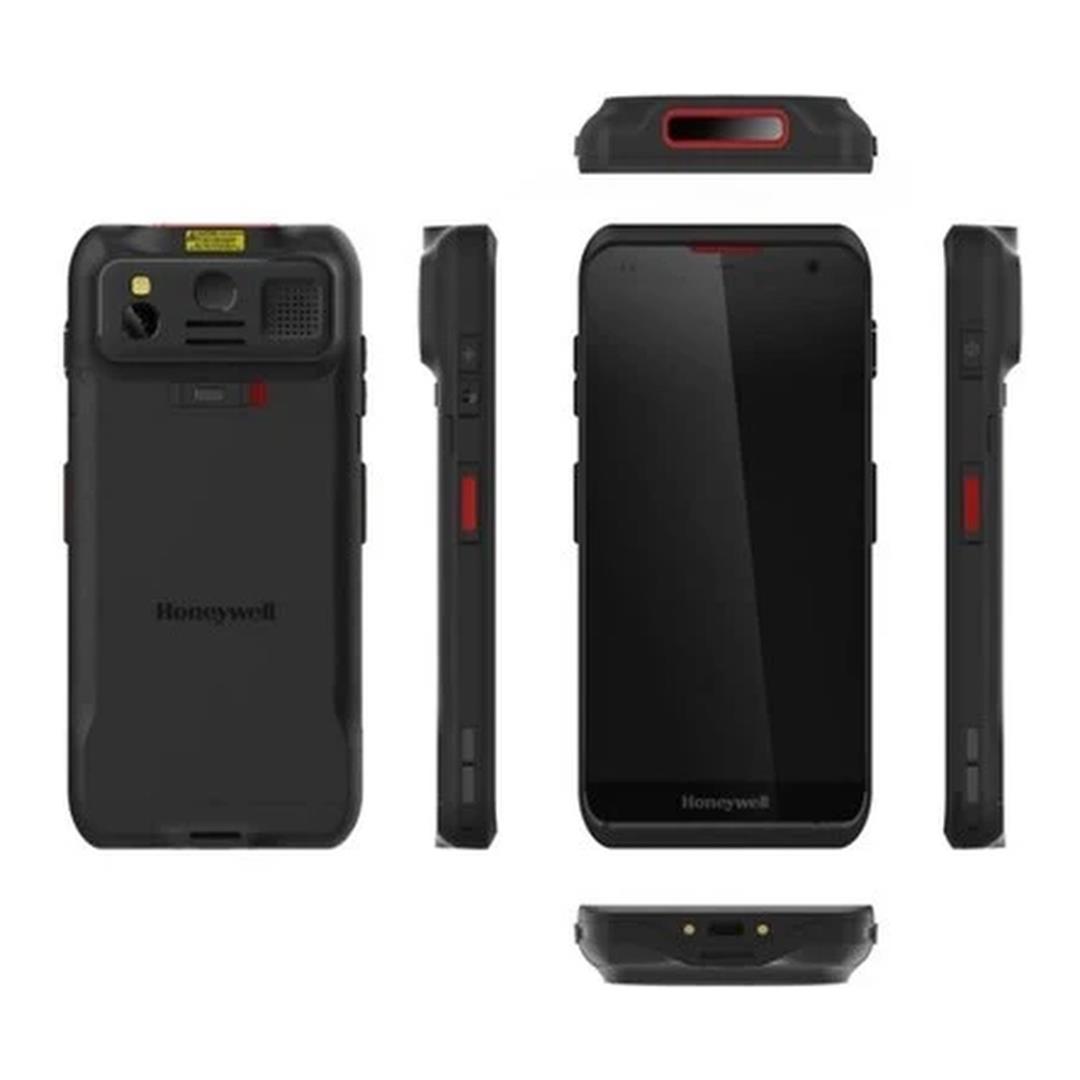

Honeywell EDA52 5.5-inch Rugged Handheld Computer - Qualcomm 128GB ROM 6GB RAM Wi-Fi 4G Android 11

Honeywell EDA52 5.5-inch Rugged Handheld Computer - Qualcomm 128GB ROM 6GB RAM Wi-Fi 4G Android 11

The Honeywell ScanPal EDA52 is an enterprise-class rugged handheld computer designed for retail, transportation and logistics, manufacturing, field service and other mobile workforce applications. This EDA52-11AE84N21RK configuration combines a Qualcomm Snapdragon octa-core processor with 6GB RAM, 128GB flash storage, Wi-Fi 5, 4G LTE, Bluetooth 5.1 and NFC connectivity. A 5.5-inch HD Gorilla Glass 5 touchscreen, integrated Honeywell S0703 1D/2D barcode imager, front and rear cameras and a removable 4500mAh battery provide the tools required for mobile data capture and everyday enterprise operations.

Key Features:

• 5.5-inch HD capacitive touchscreen with durable Corning Gorilla Glass 5.
• Qualcomm Snapdragon SM6115 octa-core processor with performance cores running at up to 2.0GHz.
• 6GB RAM and 128GB internal flash storage for enterprise applications and data.
• MicroSD expansion supports memory cards with capacities of up to 128GB.
• Honeywell S0703 standard-range imager reads compatible 1D and 2D barcodes.
• Wi-Fi 5, 4G LTE, Bluetooth 5.1 and NFC provide versatile wireless connectivity.
• WWAN configuration supports one Nano SIM and one eSIM.
• 13MP rear camera supports image documentation and data capture.
• 5MP front camera supports video communication and compatible applications.
• Runs Android 11 with Google Mobile Services.
• IP67-rated housing provides protection against dust and water ingress.
• Designed to withstand multiple 1.3 m drops to concrete at room temperature.
• Removable 4500mAh lithium-ion battery supports extended mobile working sessions.
• USB Type-C and 2-pin accessory interfaces provide charging and peripheral connectivity options.
• Integrated GPS, GLONASS and BeiDou support is available on the WWAN configuration.

Enterprise Mobile Computing

The ScanPal EDA52 is designed to connect frontline workers with enterprise applications and backend systems while maintaining a familiar smartphone-style operating experience. Its slim handheld form factor makes it suitable for stock management, order processing, proof-of-delivery, asset tracking, field service, manufacturing and other mobile data collection tasks.

The EDA52-11AE84N21RK configuration provides 6GB of RAM together with 128GB of built-in flash storage, offering additional resources for demanding business applications, locally stored data and multitasking.

Qualcomm Snapdragon Octa-Core Performance

The EDA52 is powered by the Qualcomm Snapdragon SM6115 platform. Its octa-core processor combines four high-performance Kryo CPU cores running at up to 2.0GHz with four power-efficient Kryo cores running at up to 1.8GHz, providing a balance between application performance and mobile power efficiency.

5.5-inch Gorilla Glass Touchscreen

A 5.5-inch capacitive touchscreen provides a resolution of 1440 × 720 pixels and uses Corning Gorilla Glass 5 for additional durability. The full-touch interface provides a familiar experience for Android applications while maintaining a compact form factor suitable for one-handed mobile use.

Honeywell S0703 1D and 2D Barcode Imager

The integrated Honeywell S0703 slim imager provides standard-range scanning for compatible 1D and 2D barcode symbologies. Honeywell designed the scan engine to provide fast data capture, including improved reading of damaged or incomplete barcodes that may be encountered in retail, logistics and warehouse environments.

The manufacturer's standard-range specification is up to approximately 1 m, although practical scanning distance varies according to the barcode type, size, quality, lighting and other operating conditions.

Wi-Fi 5 and 4G LTE Connectivity

The EDA52-11AE84N21RK provides both WLAN and WWAN connectivity. Wi-Fi 5 support covers IEEE 802.11a/b/g/n/ac networks, while integrated 4G LTE allows compatible mobile network connectivity when workers are away from a corporate wireless network.

The WWAN version supports a physical Nano SIM together with an eSIM, making it easier for organisations to manage mobile network connectivity and supported carrier subscriptions.

Bluetooth 5.1, NFC and GNSS

Bluetooth 5.1 supports connection to compatible wireless peripherals such as printers, headsets and other enterprise accessories. Integrated NFC provides short-range contactless communication for supported applications.

The WWAN version also supports simultaneous reception of GPS, GLONASS and BeiDou satellite navigation systems, providing location information for compatible navigation, field-service and tracking applications.

13MP Rear and 5MP Front Cameras

A 13-megapixel colour rear camera allows employees to capture photographs for documentation, inspection, proof-of-condition and other workflow requirements. A 5-megapixel front-facing camera supports compatible video communication and image-based applications.

Android 11 with Google Mobile Services

This configuration is supplied with Android 11 and Google Mobile Services, providing access to a familiar Android application environment for enterprise deployments. Honeywell also positions the EDA52 within its Android enterprise mobility platform for managed business deployments.

Rugged IP67 Construction

The EDA52 is designed for demanding everyday enterprise use and carries an IP67 ingress-protection rating. Honeywell specifies resistance to multiple 1.3 m drops to concrete at room temperature in accordance with MIL-STD-810G test conditions. With a compatible protective rubber boot installed, the specified drop height increases to 1.5 m.

The device is also rated to withstand 550 tumbles from a height of 0.5 m, helping it cope with repeated impacts encountered during everyday mobile working environments.

4500mAh Removable Battery

A removable 3.8 V, 4500mAh lithium-ion battery supplies power for extended mobile working sessions. The removable design allows the battery to be replaced when required and supports organisations that need to maintain devices over longer service periods.

Honeywell also lists Qualcomm Quick Charge 3.0 support for compatible charging configurations.

USB-C and 2-Pin Interface

The EDA52-11AE84N21RK is the 2-pin interface version of the EDA52 and also provides a USB Type-C connection. The USB-C interface can be used with compatible cables and accessories, while the 2-pin interface supports compatible Honeywell charging and docking solutions.

Technical Specifications:

Specification	Details
Brand	Honeywell
Product Family	ScanPal EDA52
Model	EDA52
Manufacturer Part Number / SKU	EDA52-11AE84N21RK
Product Type	Rugged handheld mobile computer with integrated barcode imager
Colour	Black
Operating System	Android 11 with Google Mobile Services
Processor	Qualcomm Snapdragon SM6115 octa-core
CPU Configuration	4 × high-performance Kryo cores up to 2.0GHz + 4 × low-power Kryo cores up to 1.8GHz
RAM	6GB
Internal Storage	128GB flash
Memory Card Support	MicroSD, up to 128GB
Display Size	5.5-inch
Display Resolution	1440 × 720 pixels HD
Display Protection	Corning Gorilla Glass 5
Touchscreen	Capacitive multi-touch, full touchscreen interface
Scan Engine	Honeywell S0703 Slim Imager
Barcode Capability	Compatible 1D and 2D barcode symbologies
Scan Range	Standard range, up to approximately 1 m depending on barcode and conditions
Rear Camera	13MP colour camera
Front Camera	5MP colour camera
WLAN	Wi-Fi 5, IEEE 802.11a/b/g/n/ac
Additional WLAN Features	802.11d/e/h/i/k/r/u/w, 1×1 MU-MIMO
Wi-Fi Security	OPEN, WEP, WPA/WPA2 and WPA3 support
Cellular Connectivity	4G LTE / UMTS / HSPA+ / GSM / EDGE
FDD-LTE Bands	1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 17, 19, 20, 25, 26, 28, 30 and 66
TDD-LTE Bands	38, 39, 40 and 41
SIM Support	1 × Nano SIM + 1 × eSIM
Bluetooth	Bluetooth 5.1
NFC	Yes, integrated
GNSS	GPS, GLONASS and BeiDou on WWAN model
Physical Connections	USB Type-C and 2-pin interface
Battery Type	Removable lithium-ion battery
Battery Capacity	4500mAh
Battery Voltage	3.8 V
Quick Charging	Qualcomm Quick Charge 3.0 support with compatible charging equipment
Ingress Protection	IP67
Drop Specification	Multiple 1.3 m drops to concrete at room temperature per MIL-STD-810G test conditions
Drop Specification with Rubber Boot	Multiple 1.5 m drops to concrete at room temperature per MIL-STD-810G test conditions
Tumble Specification	550 tumbles at 0.5 m
Electrostatic Discharge	±8 kV direct; ±15 kV air
Operating Temperature	-20°C to +50°C
Operating Humidity	5% to 90%, non-condensing
Dimensions	159 × 75 × 14.4 mm
Weight	Approximately 258 g
Recommended Applications	Retail, transportation and logistics, manufacturing, field service, healthcare and public service

What’s in the Box?

• 1 × Honeywell ScanPal EDA52 handheld computer - EDA52-11AE84N21RK
• 1 × 4500mAh removable battery
• 1 × hand strap
• 1 × USB Type-C cable

Please note that a mains power adapter is not listed as part of the standard current package and may need to be purchased separately depending on the deployment and charging solution required.

Equip mobile teams with reliable barcode capture, enterprise Android performance and rugged wireless connectivity using the Honeywell ScanPal EDA52 handheld computer.
