Hollyland Pyro 5 Wireless Transceiver Monitor HOLPYRO5

Hollyland Pyro 5 Wireless Transceiver Monitor HOLPYRO5

The Hollyland Pyro 5 combines a 5.5-inch field monitor, wireless video transmitter and wireless receiver in one compact production tool. Its bright Full HD touchscreen, dual-band wireless transmission and flexible monitoring functions help camera operators and production teams view, distribute and manage video more efficiently on set.

Key Features

• Integrated monitor, transmitter and receiver functions reduce the number of separate devices needed on set.
• 5.5-inch, 1920 × 1080 touchscreen with 1,500-nit brightness supports clear outdoor monitoring.
• Dual-band 2.4 GHz and 5 GHz transmission provides a line-of-sight range of up to 400 m under Hollyland laboratory test conditions.
• Broadcast Mode allows one transmitter to send video to as many as four compatible receivers.
• HD Mode supports a video bitrate of up to 12 Mbps, while Smooth Mode prioritises a minimum latency of approximately 60 ms.
• Proxy recording, RTMP streaming and compatible camera control support more efficient production workflows.
• Professional monitoring tools include waveform, vectorscope, histogram, zebra pattern, focus assist, false colour and 3D LUT support.

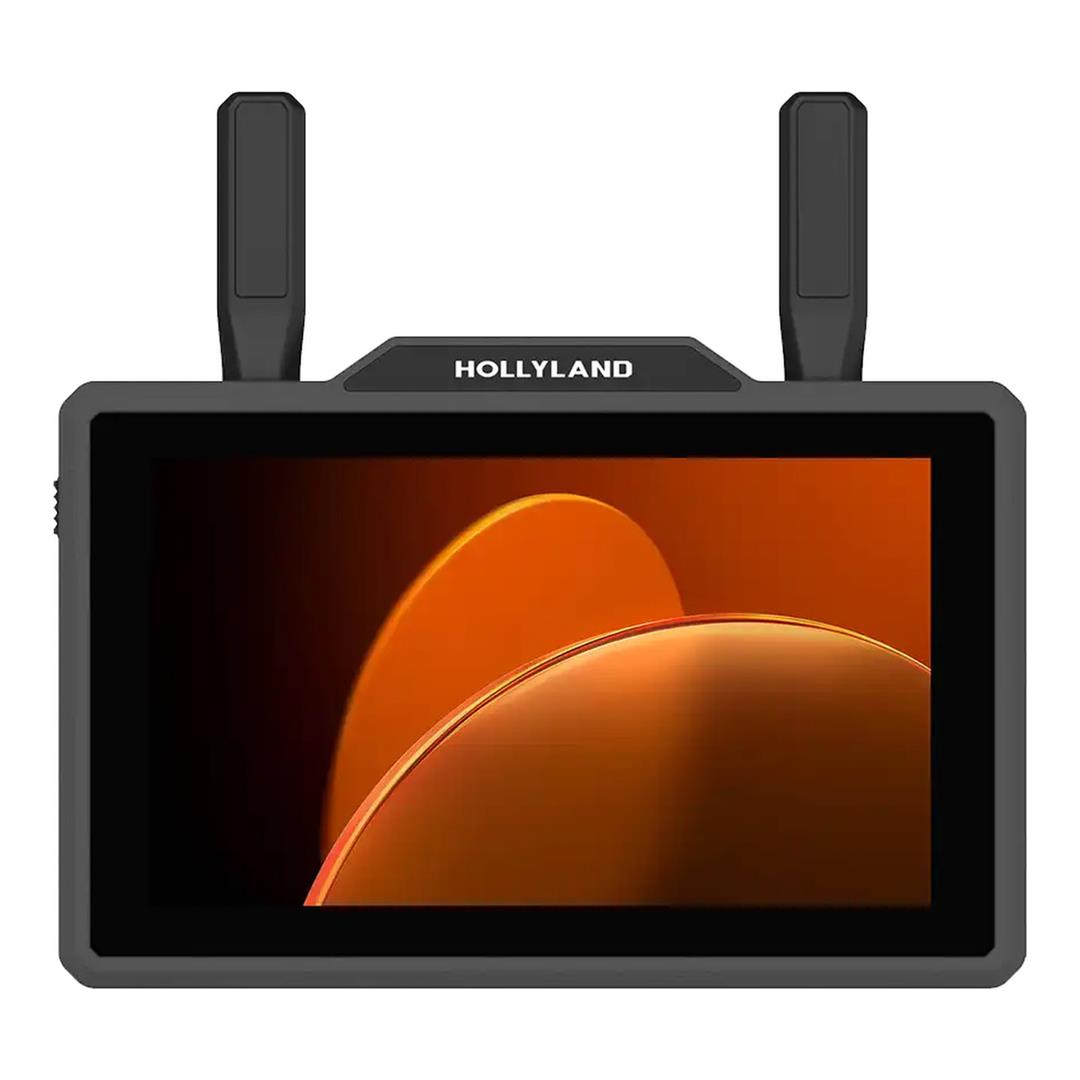

Bright 5.5-Inch Full HD Touchscreen

The 1920 × 1080 touchscreen reaches a brightness of 1,500 nits, helping operators assess shots in bright outdoor environments as well as controlled studio conditions. Its Rec.709 colour gamut, 1000:1 contrast ratio and built-in image-analysis tools provide practical assistance when checking exposure, focus, framing and colour.

Flexible Wireless Monitoring

The Pyro 5 operates across the 2.4 GHz and 5 GHz bands and uses automatic frequency hopping to locate a suitable wireless channel. Smart Channel Selection also allows the operator to scan available channels and review their signal strength when configuring the system.

In Broadcast Mode, a single Pyro 5 transmitter can feed up to four compatible receivers. This helps directors, camera crews and other production personnel monitor the same camera signal without relying on additional cabling. Transmission distance and latency depend on the selected mode, connected devices, interference and operating environment.

HD and Smooth Transmission Modes

HD Mode provides a bitrate of up to 12 Mbps with a minimum latency of approximately 75 ms, making it suitable when image fidelity is the priority. Smooth Mode dynamically adjusts the bitrate to deliver latency as low as approximately 60 ms for responsive monitoring over longer distances. These figures are based on Hollyland laboratory testing and may vary in real-world use.

Camera Control and Proxy Recording

When used with a supported camera, the touchscreen can provide direct access to settings such as shutter speed, aperture, ISO, white balance, focus and focus mode. Proxy video can also be recorded to an SD card while monitoring, with timecode support helping to align proxy files with the camera footage during review and editing. Camera-control functions depend on the connected camera and installed firmware.

Practical Video Connections

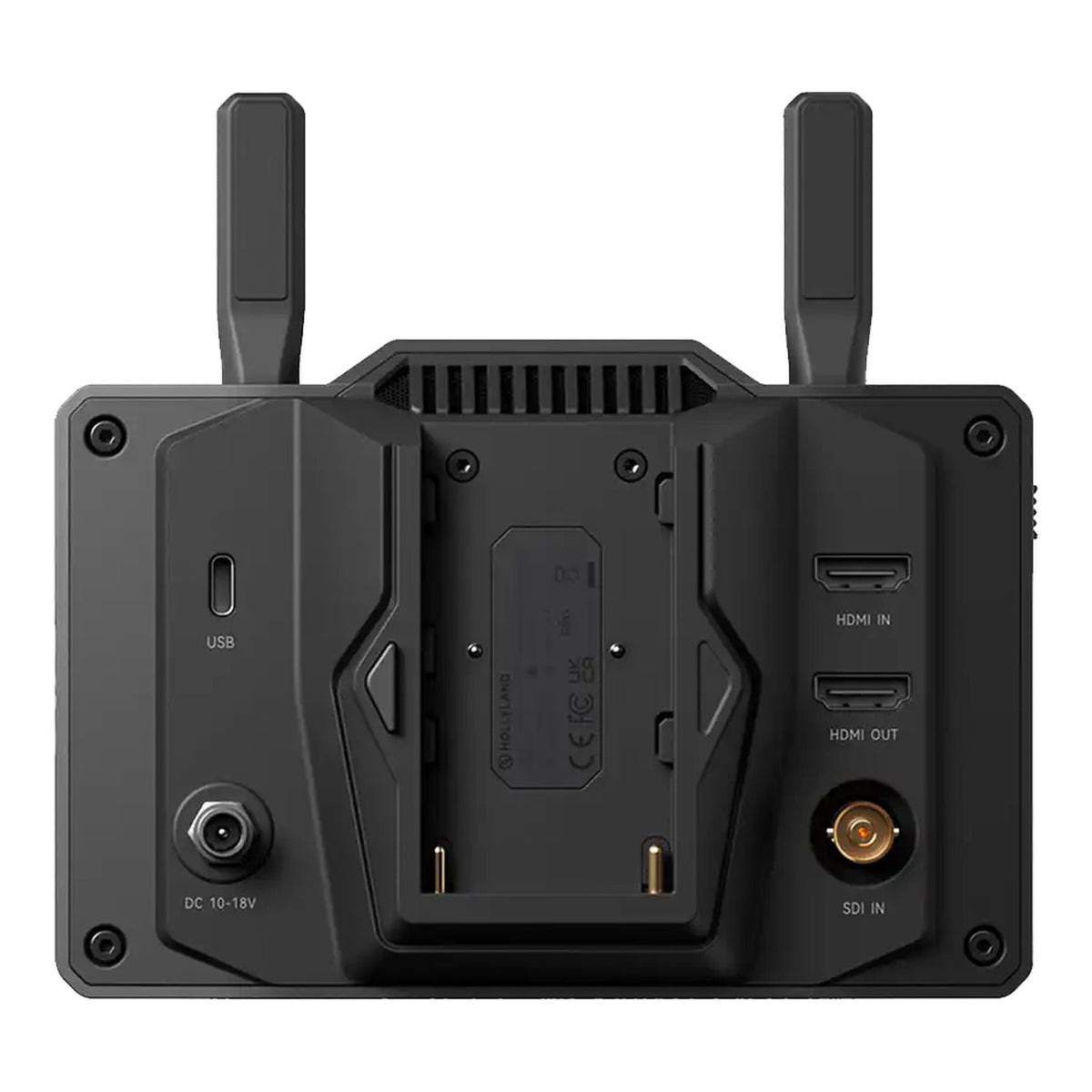

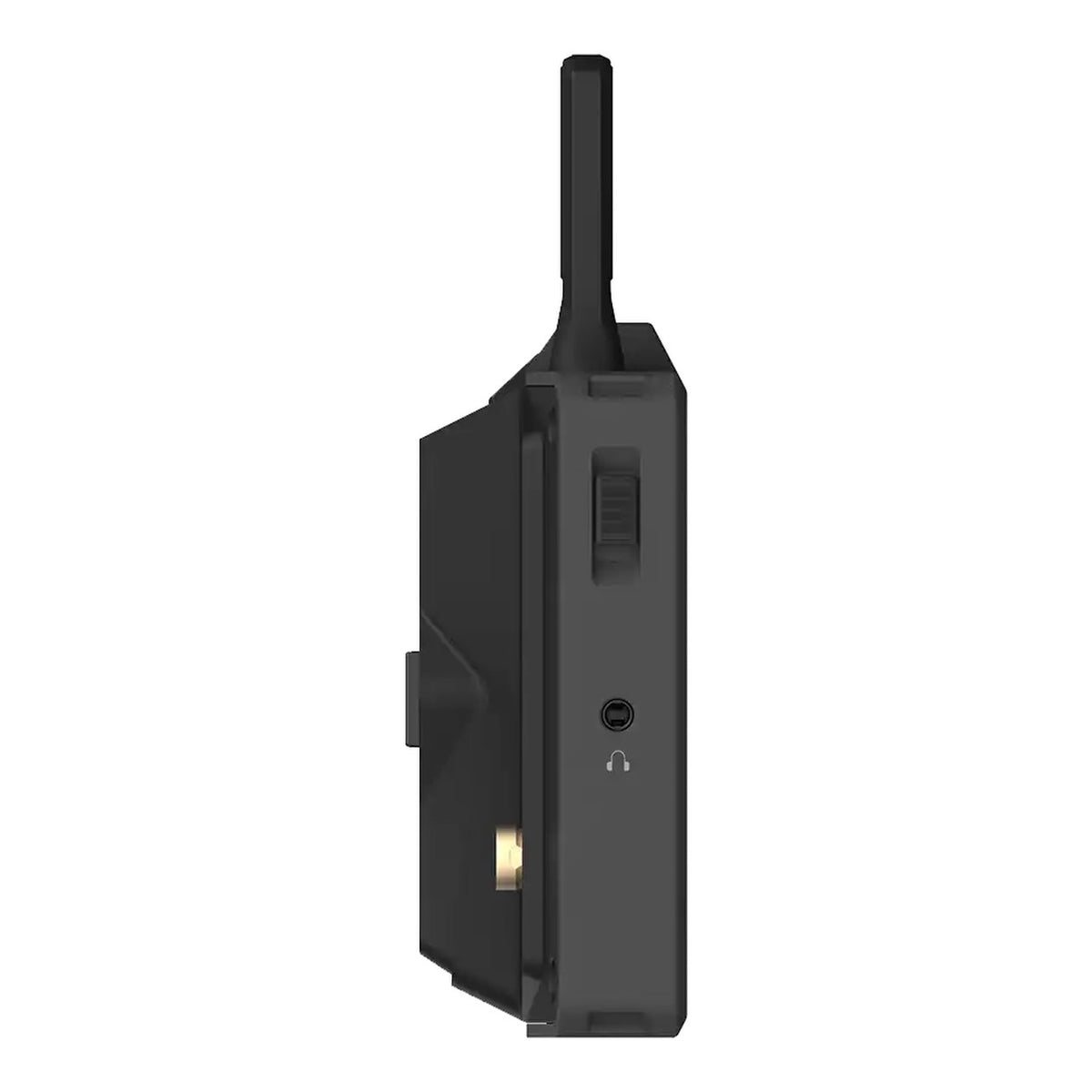

In transmitter mode, the Pyro 5 accepts HDMI 1.4b and 3G-SDI video and provides an HDMI loop output. In receiver mode, it provides an HDMI 1.4b output. A 3.5 mm headphone connection, USB-C OTG support and an SD card slot provide additional monitoring, update, recording and media-management options.

RTMP Live Streaming

RTMP support enables live video delivery through the HollyView app when the Pyro 5 is connected to a suitable 4G LTE Wi-Fi modem. This provides a convenient route to compatible live-streaming platforms without requiring a separate streaming encoder for supported workflows.

What’s in the Box:

• 1 × Hollyland Pyro 5 wireless transceiving monitor
• 2 × Easy-install short antennas
• 1 × USB-C OTG adapter
• 1 × Tempered-glass screen protector
• 1 × Quick guide
• 1 × Warranty card
• 1 × Packing list card

Technical Specifications:

Streamline wireless monitoring and on-set collaboration with the Hollyland Pyro 5, and add it to your production setup today.
