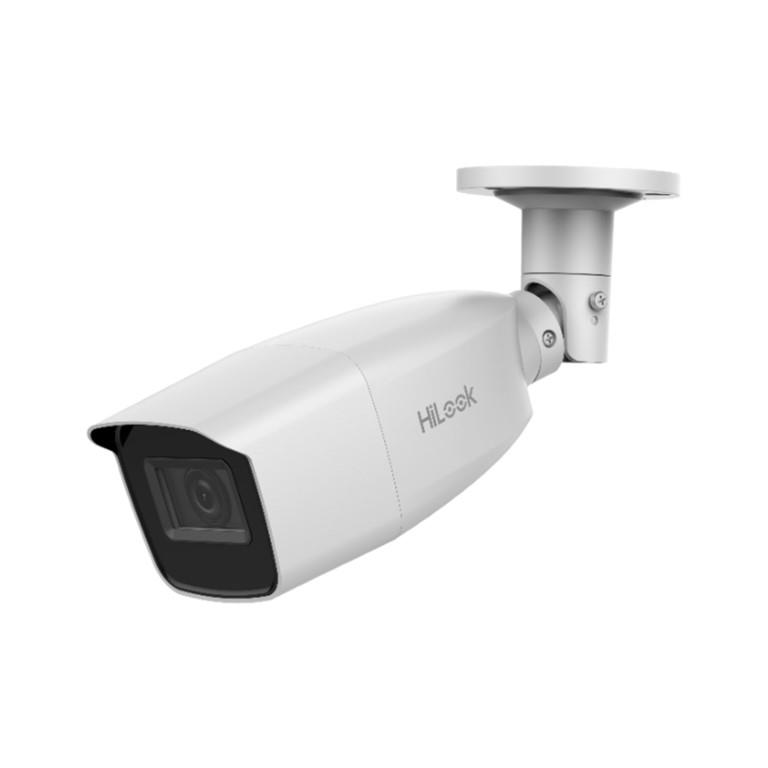

HiLook 2MP 2.8-12mm Manual Vari-Focal Bullet Camera THC-B320-VF

HiLook 2MP 2.8-12mm Manual Vari-Focal Bullet Camera THC-B320-VF

Features

• 1080p 2.8-12mm vari-focal bullet camera
• EXIR 2.0: advanced infrared technology with 40 m IR distance
• Water and dust resistant (IP66)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: 1/25 s to 1/50,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System: PAL/NTSC

Lens
Lens Type: 2.8 mm to 12 mm
Focal Length & FOV: 111.5° to 33.4°
Lens Mount: Φ14

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes

Image Settings: Brightness; Sharpness; Mirror; AGC
Frame Rate:

• PAL: 1080p @ 25fps
• NTSC: 1080p @ 30fps

Day/Night Mode: Auto / Color / BW (Black and White)
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: BLC
Noise Reduction: 2D DNR

Interface
Video Output: Switchable TVI / AHD / CVI / CVBS; 1 HD analog output

General
Power: 12 VDC ± 15%, max. 5 W
Material: Front cover: Metal, Main body: Plastic
Dimension: 256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
Approx. Weight: 605 g (1.33 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Language: English

Approval
Protection: IP66
