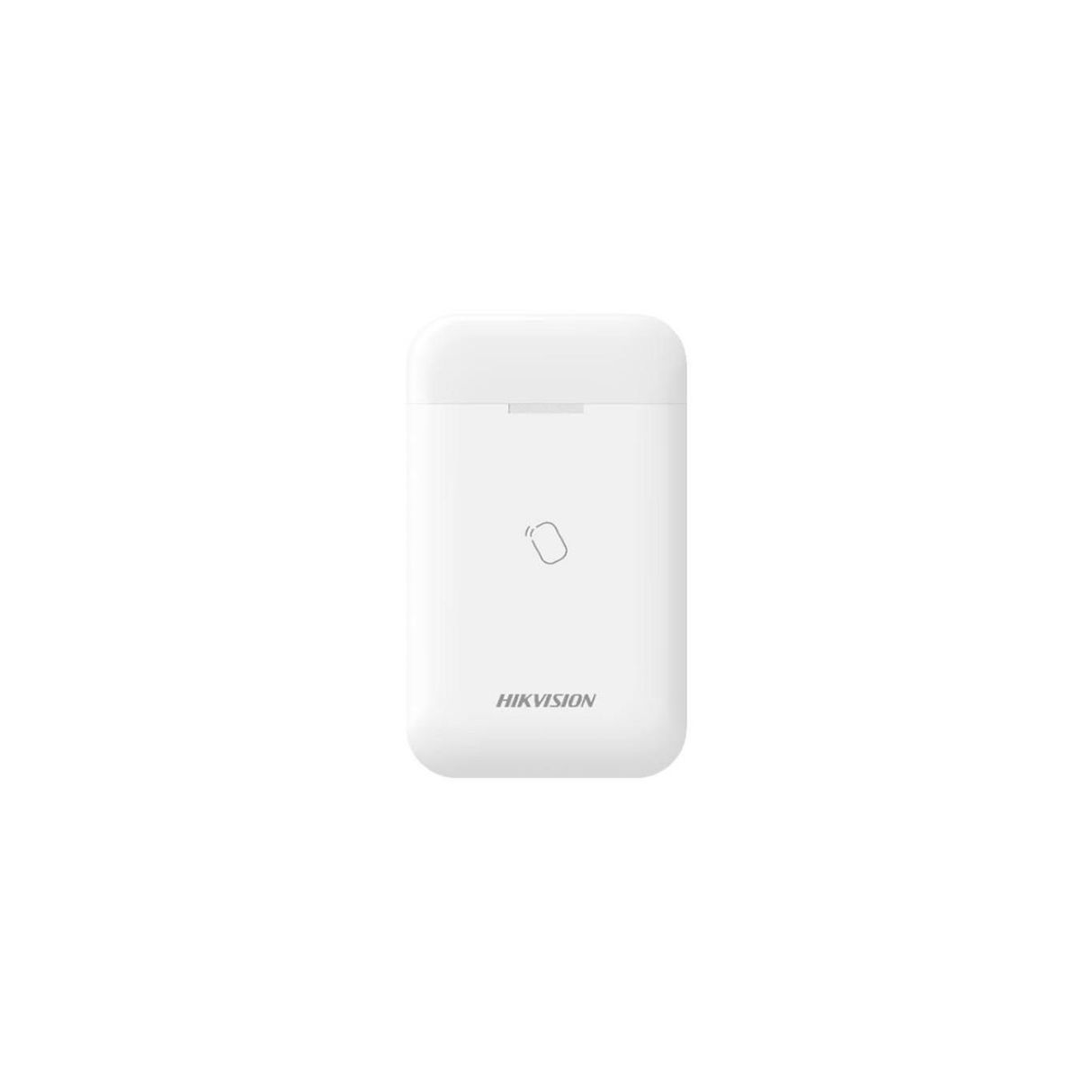

Hikvision Wireless Tag Reader DS-PT1-WE

Hikvision Wireless Tag Reader

• 868MHz two-way wireless communication
• AES-128 encryption
• LED display, show the differernt feedbacks with easy understanding
• Operation: Stay arm/away arm/disarm by areas
• Arming process with fault confirm, more secure
• Patrol tag check in
• Front and rear panel tamper-proof

Hardware Features

Switch: Power on/off

Indicator: 5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)

RF Transmission

RF Modulation: 2GFSK

RF Frequency: 868 MHz

RF Range: 1200m(open area)

Electrical Characteristics

Battery Type: Three AA batteries

Battery Life Span: 2 years (swipe tag 10 times per day )

Power Consumption

Quiescent current: 110 uA

Max current: 292mA

Voltage: 1.5 VDC

General

Operation Temperature: -10°C to +55°C (-4°F to +122°F)

Operation Humidity: 10% to 90% (no condensing)

Dimension(WxHxD):

• 75*124*21 mm
• 176g (with battery)

Color: White

Installation Method: Wall mounting
