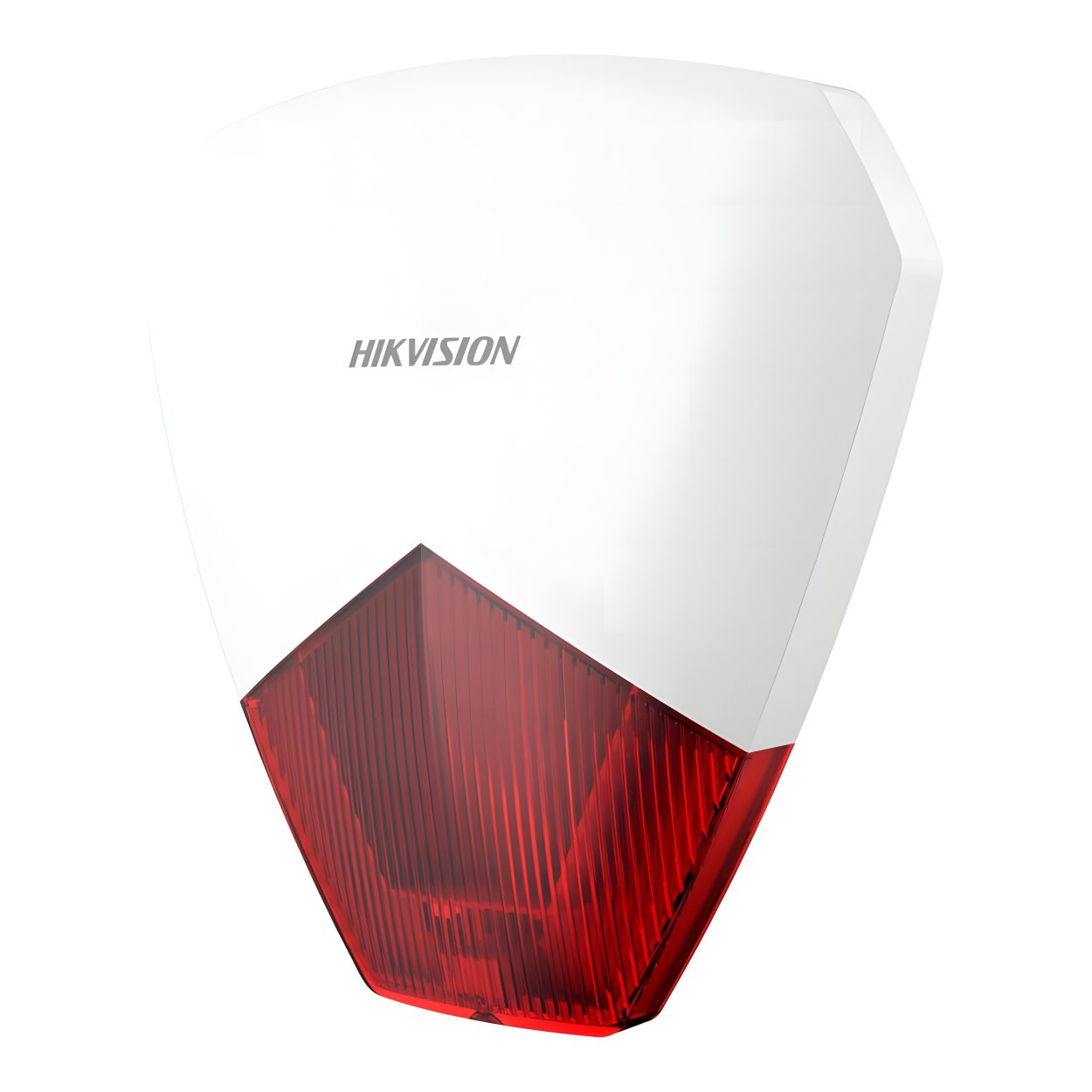

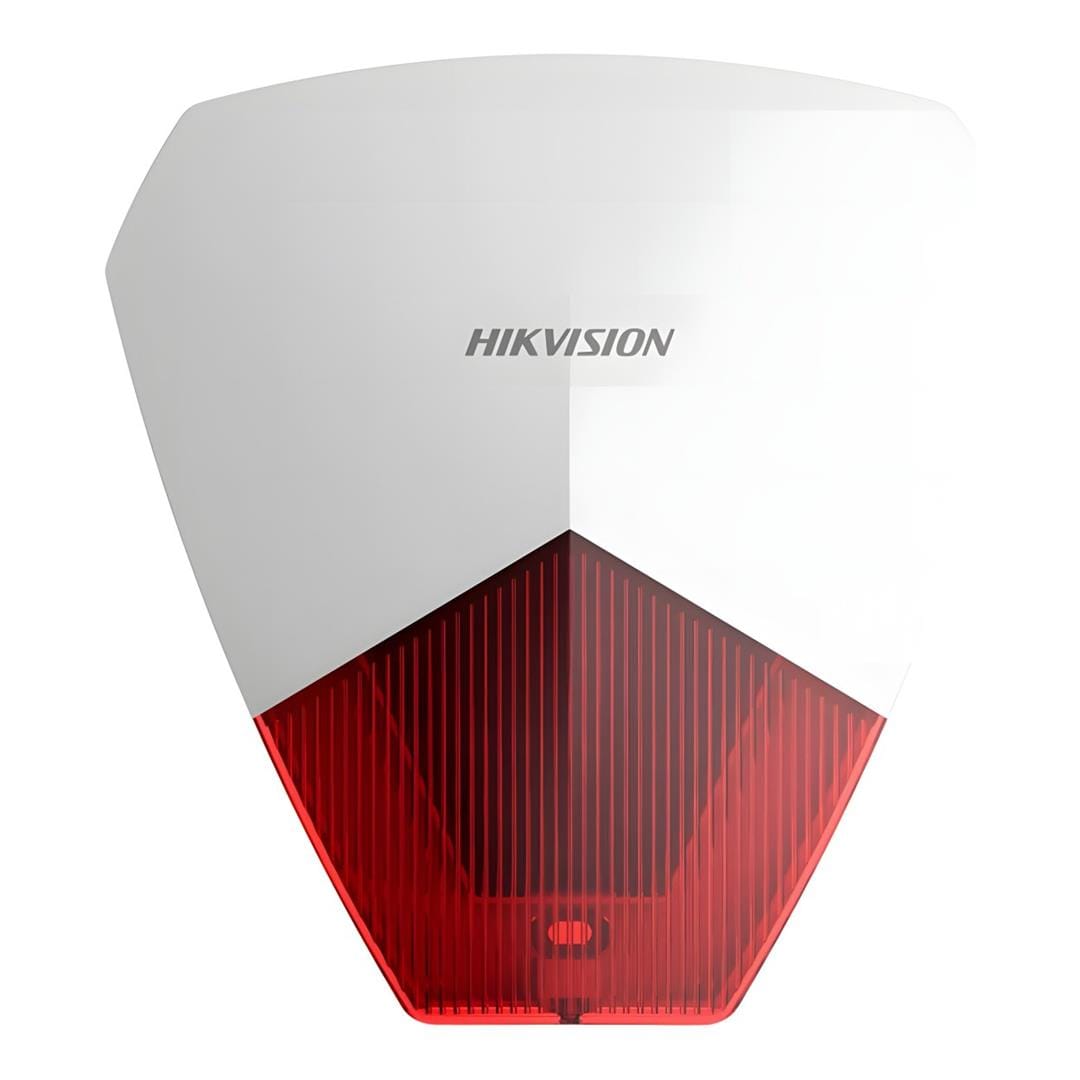

Hikvision Wired Alarm Sounder DS-PS1-R
The Hikvision DS-PS1-R is a compact wired alarm sounder designed for use with compatible wired intrusion alarm control panels. Delivering a powerful 105 dB audible alert together with a red LED flashing indicator, it provides clear alarm notification for residential, commercial and industrial security installations.
Key Features
- Wired alarm sounder for intrusion alarm systems.
- Powerful 105 dB sound output measured at 30 cm.
- Integrated red LED flashing indicator.
- Sound and LED indications can be controlled separately.
- Supports an 8–16 V DC power input.
- IP54-rated enclosure.
- Suitable for indoor and sheltered outdoor installations.
- Compact, installation-friendly housing.
Clear Audible Alarm Notification
The DS-PS1-R produces an alarm output of up to 105 dB at 30 cm, providing a strong and clearly audible warning when triggered by a compatible wired intrusion alarm system.
Integrated LED Indication
A built-in red LED provides a visible flashing alarm indication. The audible sounder and LED flash can be configured or controlled separately to suit the requirements of the installation.
Flexible Wired Installation
Supporting an operating voltage range of 8–16 V DC, the sounder connects directly to the suitable output of a compatible wired alarm control panel, with 12 V DC as its typical operating voltage.
Durable IP54 Construction
The PC+ABS enclosure carries an IP54 protection rating, helping protect the unit against dust and water splashes for dependable use in indoor and appropriately sheltered outdoor locations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Manufacturer Part Number | DS-PS1-R |
| Product Type | Wired Alarm Sounder |
| Alarm System Type | Wired Intrusion Alarm |
| Sound Pressure Level | 105 dB at 30 cm |
| Visual Indicator | Integrated Red LED Flash |
| Sound and LED Control | Sound and LED Flash Indications Can Be Controlled Separately |
| Power Supply | 8–16 V DC |
| Typical Operating Voltage | 12 V DC |
| Maximum Current | 70 mA at 12 V DC |
| Quiescent Current | 45 mA at 12 V DC |
| Ingress Protection | IP54 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 90% |
| Housing Material | PC+ABS |
| Installation Environment | Indoor or Sheltered Outdoor Use |
| Dimensions | 140 × 134 × 33 mm |
| Weight | 185 g |
| Colour | Red |
| Compatibility | Compatible Wired Intrusion Alarm Control Panels with a Suitable 8–16 V DC Sounder Output |
| What's in the Box | 1 × Hikvision DS-PS1-R Wired Sounder |
| Applications | Residential Alarm Systems, Offices, Retail Stores, Warehouses, Schools, Commercial Buildings and Wired Intrusion Alarm Installations |
The Hikvision DS-PS1-R delivers powerful audible and visual alarm notification in a compact IP54-rated wired sounder, making it a dependable choice for compatible residential and commercial intrusion alarm systems.
