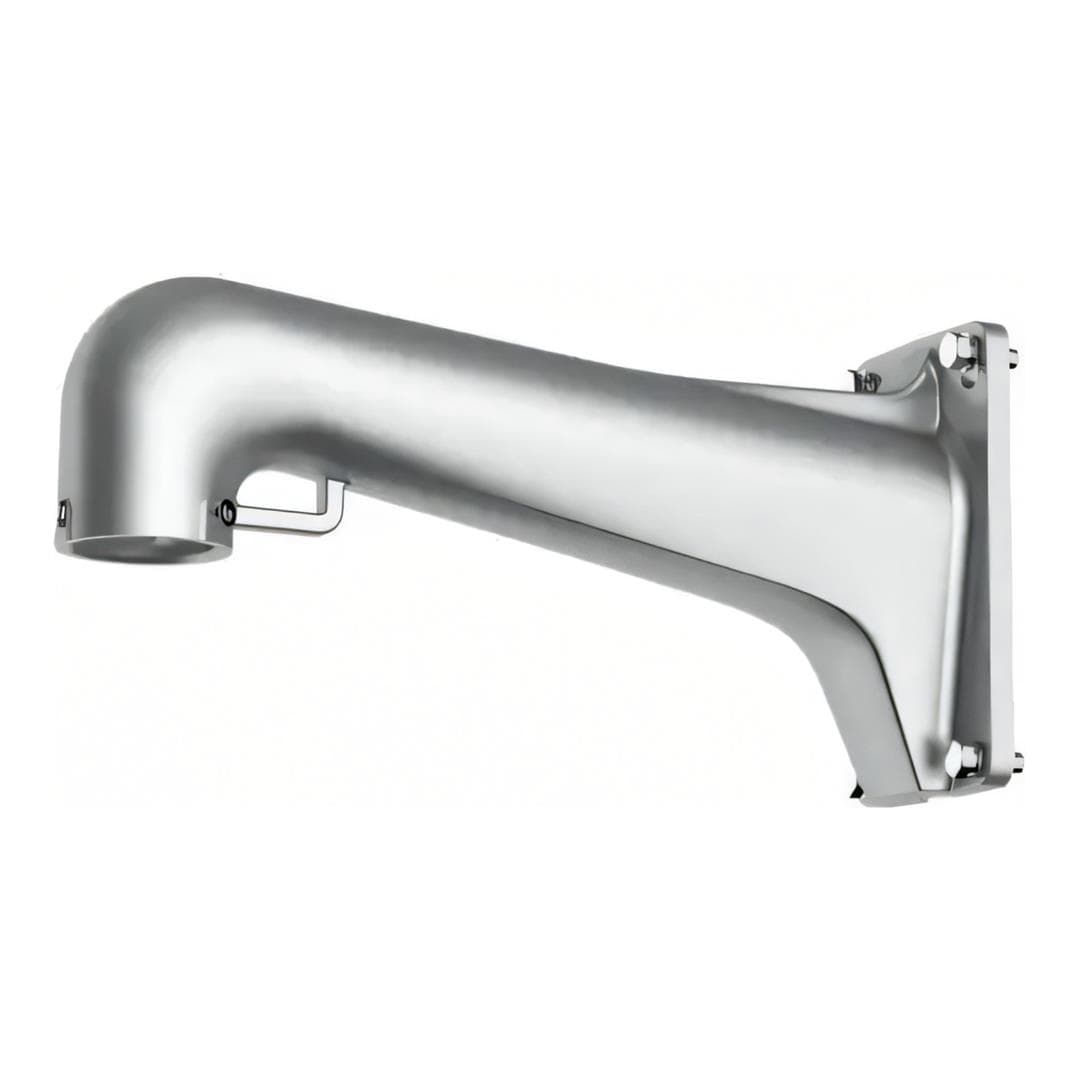

Hikvision Wall Mount DS-1603ZJ-P

Hikvision Wall Mount DS-1603ZJ-P

The Hikvision DS-1603ZJ-P is a heavy-duty wall mounting bracket designed for compatible Hikvision PanoVu surveillance cameras. Manufactured from aluminium alloy with a Platinum Gray surface finish, it provides a robust mounting platform with a maximum load capacity of 20kg. A built-in safety-rope hook helps simplify camera installation, while its waterproof-oriented design makes it suitable for properly prepared outdoor surveillance installations.

Key Features

• Wall mounting bracket for compatible Hikvision PanoVu cameras.
• Durable aluminium alloy construction.
• Surface spray treatment.
• Platinum Gray finish.
• Maximum load capacity of 20kg.
• Integrated hook for a camera safety rope.
• Waterproof-oriented mounting design.
• Suitable for outdoor applications when installed with the required waterproof rubber.
• 364.1 × 182.0mm primary dimensions.
• 1.4kg bracket weight.
• Designed for professional CCTV and video surveillance installations.

Wall Mount for PanoVu Cameras

The DS-1603ZJ-P is designed as a wall mounting solution for compatible Hikvision PanoVu surveillance cameras. It provides the structural support required to position supported cameras away from the mounting surface for an appropriate surveillance field of view.

Aluminium Alloy Construction

The mount is manufactured from aluminium alloy with a surface spray treatment. This construction provides a strong mounting platform while maintaining a manageable bracket weight of approximately 1.4kg.

20kg Maximum Load Capacity

Hikvision specifies a maximum load capacity of 20kg for the DS-1603ZJ-P. The supporting wall must be capable of carrying at least three times the combined total weight of the camera and mounting assembly.

Safety-Rope Hook

An integrated hook is provided for the camera's safety rope. This feature helps facilitate camera installation and provides an appropriate attachment point while supported equipment is being mounted.

Outdoor Installation

The DS-1603ZJ-P features a waterproof-oriented design and can be used for suitable outdoor installations. Hikvision specifies that waterproof rubber must be used for outdoor applications to help maintain appropriate weather protection around the mounting interface.

Professional Installation Requirements

The bracket should be installed on a flat mounting surface. Installers should verify both the structural capacity of the wall and compatibility of the selected camera before installation, particularly because of the size and weight of professional PanoVu surveillance equipment.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-1603ZJ-P Wall Mount

The Hikvision DS-1603ZJ-P provides a robust wall mounting solution for compatible PanoVu surveillance cameras. Its aluminium alloy construction, 20kg maximum load capacity, integrated safety-rope hook and outdoor-oriented design make it suitable for professional surveillance installations requiring a strong and purpose-built camera mounting platform.
