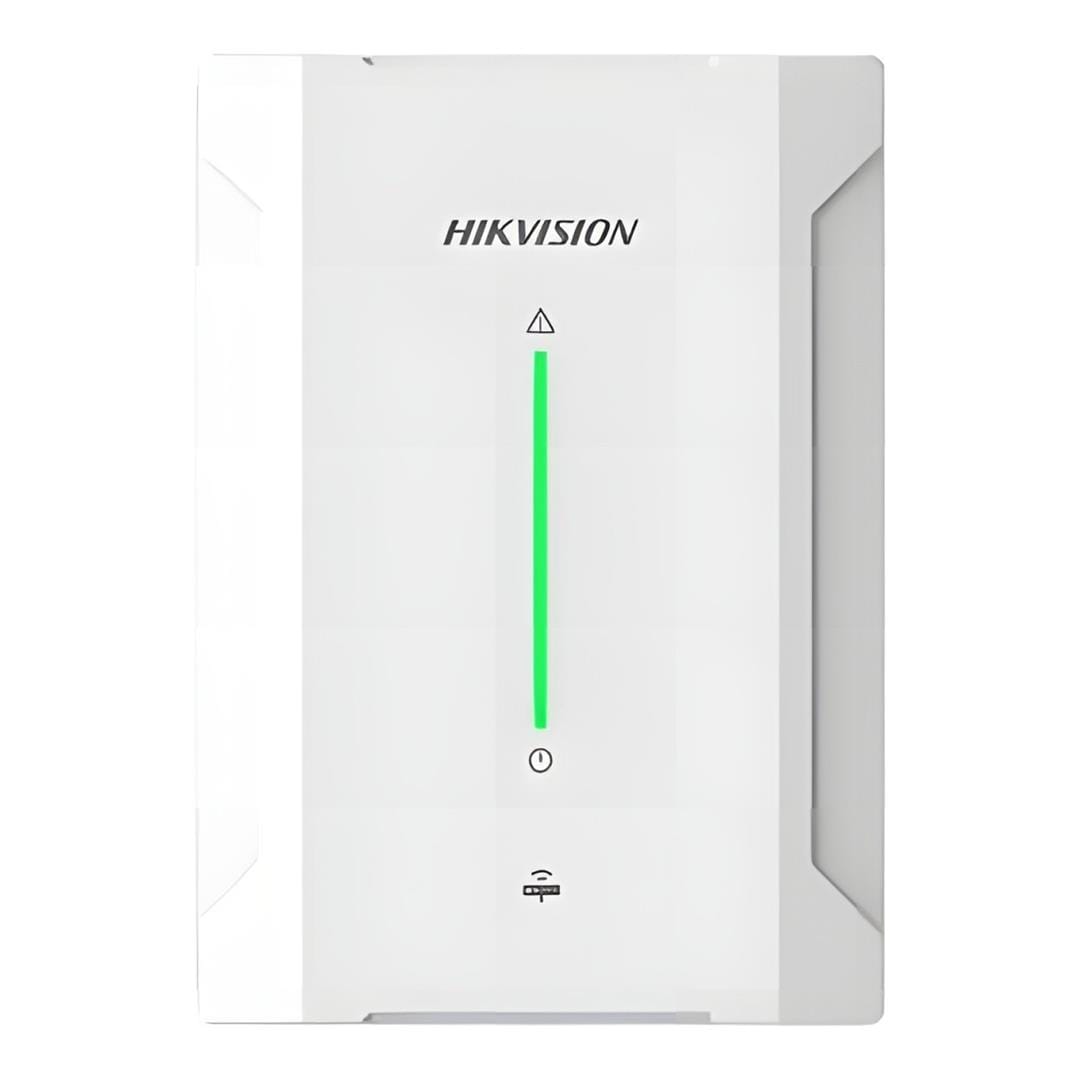

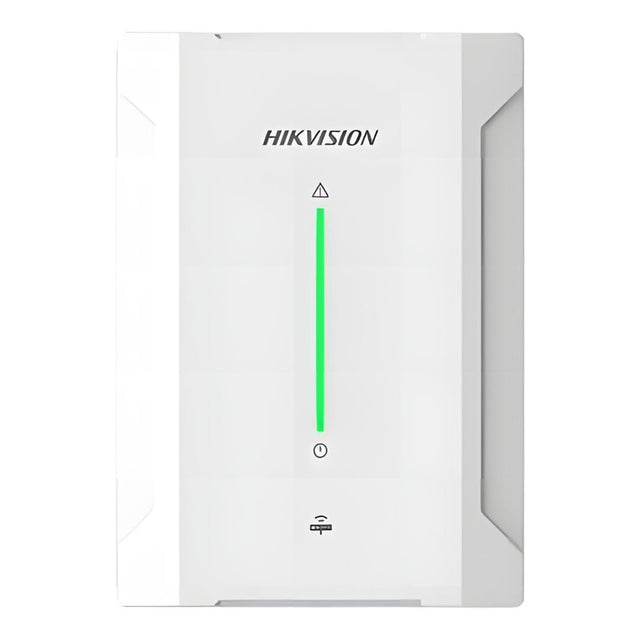

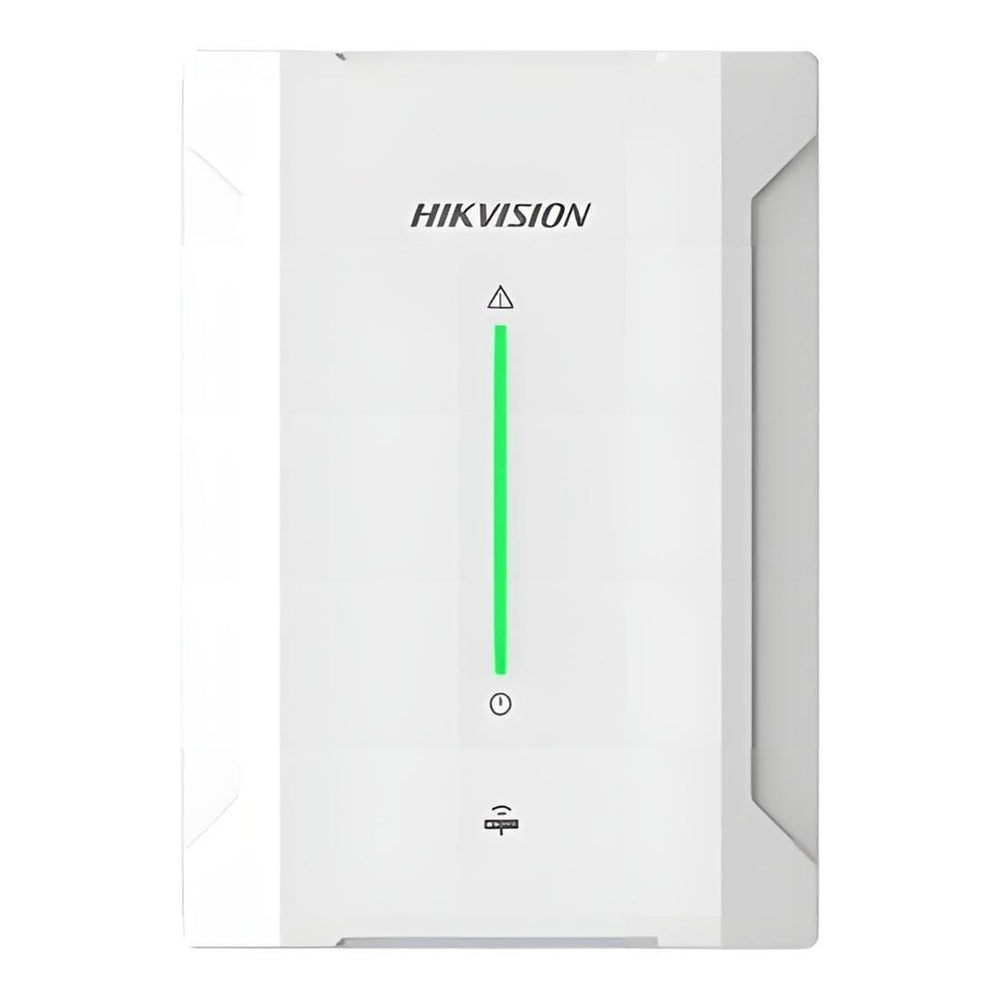

Hikvision Tri-X Wireless Receiver DS-PM1-RT-HWE

Hikvision Tri-X Wireless Receiver DS-PM1-RT-HWE

Features:

• 868MHz wireless receiver
• Wireless transmission distance up to 1700m
• Supports 32 wireless detectors, 8 wireless indoor sounders and 4 wireless outdoor sounders

Technical Specifications:

Software Features
Compatibility List:

• DS-PS1-I-WE
• DS-PS1-E-WE
• DS-PM1-O1L-WE
• DS-PM1-O1H-WE
• DS-PDP15P-EG2-WE
• DS-PDC15-EG2-WE
• DS-PDD12P-EG2-WE
• DS-PDMC-EG2-WE
• DS-PDMCS-EG2-WE
• DS-PDEB1-EG2-WE
• DS-PDEBP1-EG2-WE
• DS-PDWL-E-WE
• DS-PDPG12P-EG2-WE
• DS-PDMCK-EG2-WE
• DS-PDTPH-E-WE
• DS-PDCL12-EG2-WE
• DS-PDC10AM-EG2-WE
• DS-PDC10DM-EG2-WE

Hardware Features
Bus: 1 Speed-X Bus

Display
LED Indicators:

• Green: Power/Find Me
• Orange: Alarm/Fault

Electrical Characteristics
Power Supply: 9 To 24 VDC
Typical Voltage: 12 VDC

Power Consumption:

• Maximum Current: 100 MA @ 12 VDC
• Quiescent Current: 40 MA @ 12 VDC

Wireless Transmission
RF Frequency: 868 MHz
Wireless Security: Frequency Hopping AES-128 Encryption

Device Management
Alarm Input: Supports Up To 32 Wireless Detectors (Portable Emergency Button Not Included)

Wireless Sounder Support:

• Up To 8 Wireless Indoor Sounders
• Up To 4 Wireless Outdoor Sounders

General
Dimensions: 110 × 155 × 32 Mm
Material: Plastic
Weight: 225 G
Operating Temperature: -10°C To 40°C
Operating Humidity: 10% To 90%
