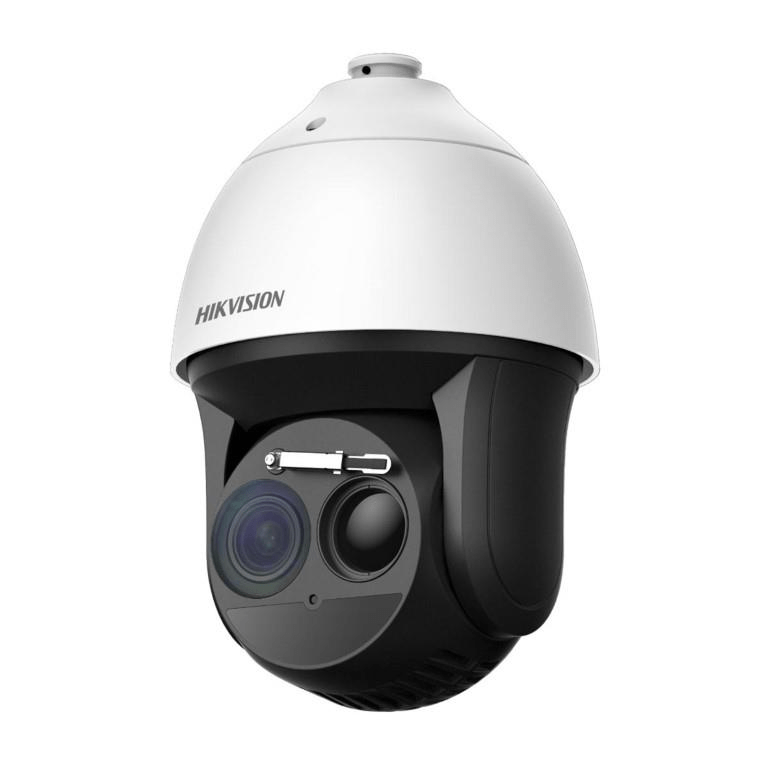

Hikvision Thermal and Optical Bi-spectrum Security Network Speed Dome DS-2TD4137-50/W

Hikvision Thermal and Optical Bi-spectrum Security Network Speed Dome DS-2TD4137-50/W

Hikvision DS-2TD4137-50/W Thermal and Optical Bi-spectrum Network Speed Dome equipped with built-in GPU which sup ports intelligent perimeter protection algorithm, can realize high-precision VCA detection and real-time alarm. It is applied for perimeter protection and fire-prevention in critical infrastructures such as community, villa, construction site, factory, 4S stores, and so on . The pre-alarm system helps you discover unexpected events immediately and protects your property.

Features

• VOx Uncooled Focal Plane Arrays Image Sensor
• 384 x 288 (the resolution of output image is 384 x 288) resolution
• 17 μm Pixel Interval
• 8 μm to 14 μm Response Waveband
• NETD ≤ 40 mK (25 °C, F# = 1.1)
• 50 mm Thermal focal lens
• Horizontal FOV: 7.5° x Vertical FOV: 5.6°
• 2x, 4x, 8x Digital Zoom
• 1/1.8" Progressive Scan CMOS Optical Image Sensor
• 4 MP, 2688 x 1520 Resolution
• Horizontal FOV: 56.6° x Vertical FOV: 33.7° ~ Horizontal FOV: 1.8° x Vertical FOV: 1.0°
• 6-240 mm, 40x Optical focal lens
• 2x, 4x, 8x, 16x Digital Zoom
• Up to 150m IR
• 350 m VCA Range For Humans
• 1050 m VCA Range For Vehicles
• Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
• Temperature exception alarm for fire prevention
• Fire detection algorithm
• Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee
• Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
• Smart tracking linkage: thermal view and optical view
• Thermal channel supports EIS, conflicted with intelligent function
• Smoke detection for fire prevention
• IP66 Standard
• TVS 6000V Lightning Protection
• Surge Protection and Voltage Transient Protection
• Alarm 7-ch inputs (0-5 VDC)
• Alarm 2-ch relay outputs, alarm response actions configurable
• Audio 1x, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• 1x RJ45 10/100MB Self-adaptive Ethernet interface
• 1x RS-485 interface
• 24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%
• *Power supply is not included
