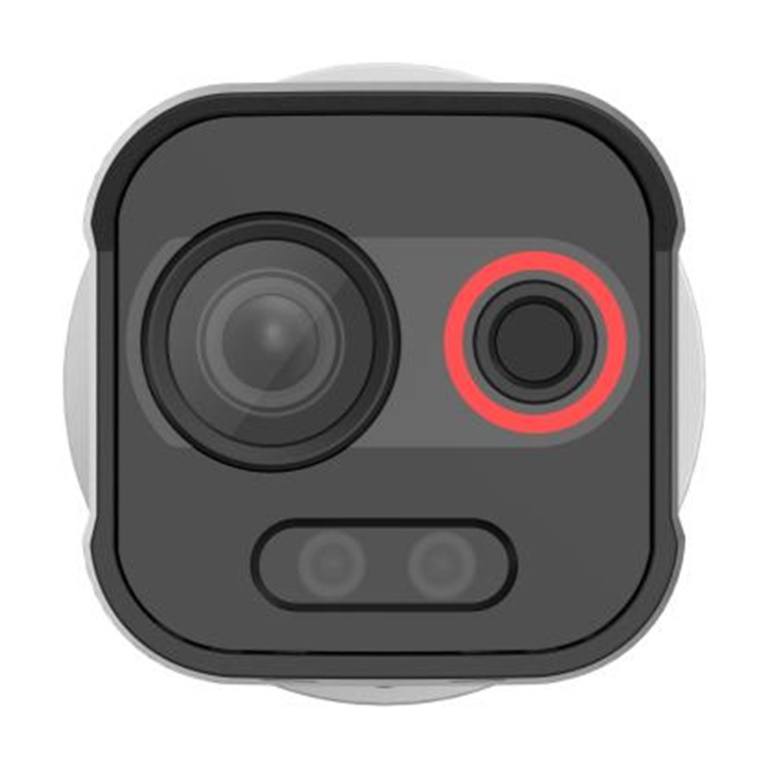

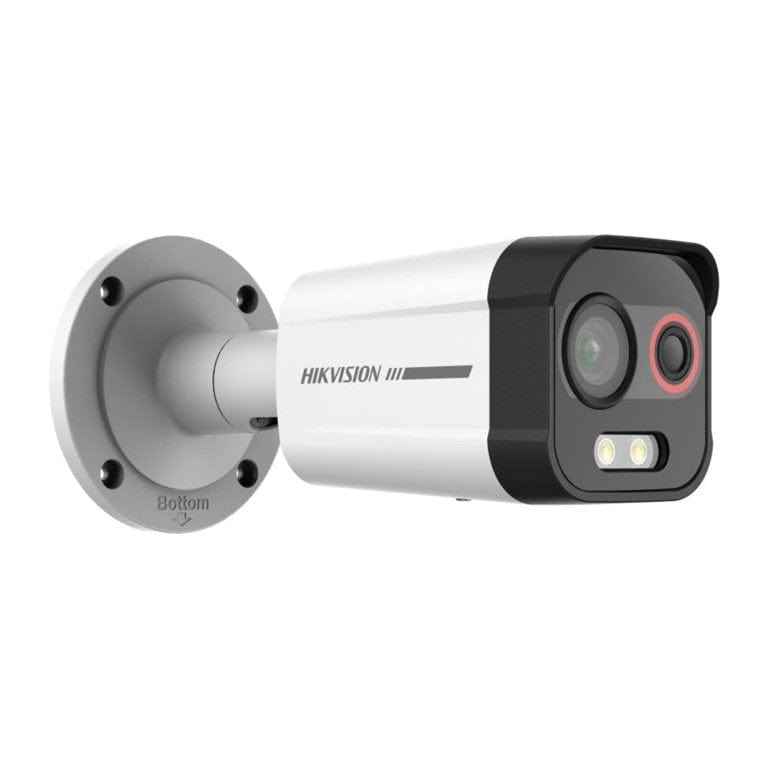

Hikvision Thermal and Optical Bi-spectrum Network Bullet Camera DS-2TD2608-2/QA/FP

Hikvision Thermal and Optical Bi-spectrum Network Bullet Camera DS-2TD2608-2/QA/FP

Hikvision DS-2TD2608-2/QA/FP Thermal & Optical Bi-spectrum Network Bullet Camera supports temperature exception alarm for fire prevention and built-in strobe light and audio warning. The camera also combines ColorVu technology to provide 24/7 vivid colorful images. These camera series can be widely applied to villas, communities, parks, parking lots, warehouses, construction sites, manufacturing workshops, etc.

Features

Thermal Module

• 96 x 72 resolution, 12 μm, VOx UFPA, NETD < 55 mK (25°C, F1.0)
• Vanadium Oxide Uncooled Focal Plane Arrays Image Sensor
• 8 μm to 14 μm Spectral Range
• 2.6 mm Focal Length
• 4.62mrad IFOV
• 25.0° x 18.75° (H x V) Field of View
• x2, x4 Digital Zoom

Optical Module

• 1/1.8" Progressive Scan CMOS Image Sensor
• 2688 x 1520 Resolution
• 6mm Focal Length
• 56.0° x 30° (H x V) Field of View

Other

• Warm Light Supplement Illuminator
• Up to 30m White Light Range
• Temperature exception alarm for fire prevention, -20°C to 300°C (-4°F to 572°F)
• Support fire detection algorithm
• Support smoking detection algorithm
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee
• IP67 Standard
• TVS 4000V lightning protection, surge protection, voltage transient protection
• IK10-rated housing
• 2x Alarm inputs (0-5 VDC)
• 2x Alarm output (alarm response actions configurable)
• 1x RJ45 10 M/100 M Self-adaptive Ethernet interface.
• 12 VDC ± 25%, φ 5.5 mm coaxial power plug or PoE (802.3af, class 3)
• *Power supply is not included
