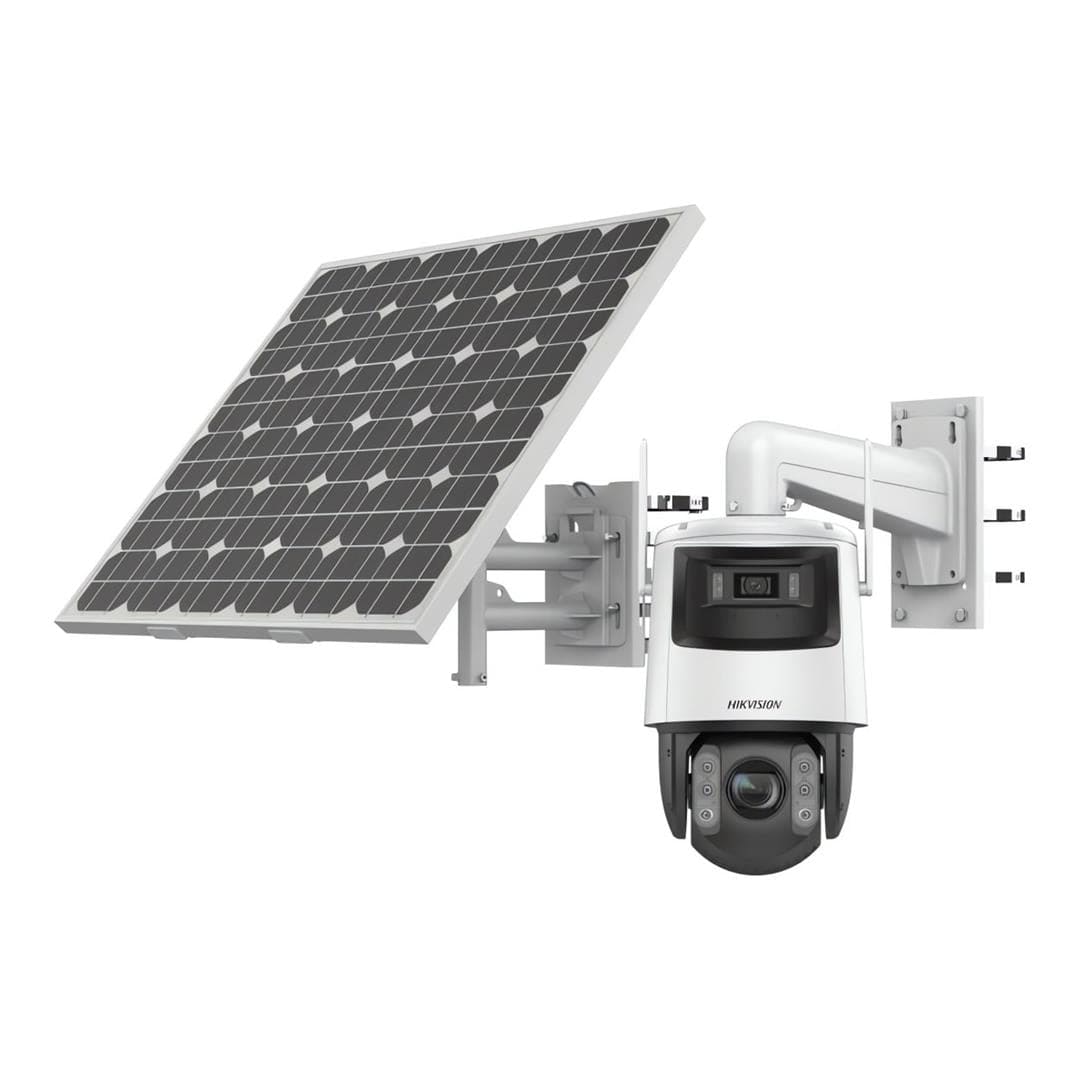

Hikvision TandemVu 7-inch 4MP 32X Solar-powered Security Network Speed Dome Kit DS-2SE7C432IWG-K/4G/14

Hikvision TandemVu 7-inch 4MP 32X Solar-powered Security Network Speed Dome Kit DS-2SE7C432IWG-K/4G/14

Hikvision DS-2SE7C432IWG-4G/14(F0) 4 MP 32 × IR Network Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 32 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.

Features

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with ColorVu technology in bullet channel
• Secures an expansive area with 32 × optical zoom and 16 × digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
• Expansive night view with up to 30 m IR distance in bullet channel, and 200 m IR distance in PTZ channel
• Supports 12 VDC output
• Supports scheduled sleep mode and low power sleep mode. The consumption reaches 0.5 W in sleep mode.
• IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000 V lightning protection, surge protection and voltage transient protection

Technical Specification

Image Sensor

• [Bullet channel]: 1/1.8" Progressive Scan CMOS
• [PTZ channel]: 1/1.8" Progressive Scan CMOS

Max. Resolution

• [Bullet channel]: 2560 × 1440
• [PTZ channel]: 2560 × 1440

Zoom

• [PTZ channel]: 32 × optical, 16 × digital

Focal Length

• [Bullet channel]: 2.8 mm
• [PTZ channel]: 5.9 to 188.8 mm mm

FOV

• [Bullet channel]: Horizontal field of view: 108°, Vertical field of view: 56°, Diagonal field of view: 134°
• [PTZ channel]: Horizontal field of view: 60.2° to 2.3°, Vertical field of view: 35.2° to 1.3°, Diagonal field of view: 67.4° to 2.6°

Focus: Auto, Semi-auto, Manual

Movement Range (Pan): 360°

Movement Range (Tilt): -15° to 90°

Supplement Light Type: [Bullet channel] IR , [PTZ channel] IR

Supplement Light Range: [Bullet channel] IR: up to 30 m , [PTZ channel] IR: up to 200 m

Smart Supplement Light: Yes

Audio

• 1x input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
• 1x output (line out), line level, output impedance: 600 Ω

Alarm: 2x input(s), 1x output(s)

Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

Wireless (Mobile Communication)

Mobile Communication Type: 4G

Frequency

• LTE-TDD: B38/B40/B41
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28
• WCDMA: B1/B5/B8
• GSM: B3/B5/B8

Power

Power supply: 12 VDC ± 25%, max. 28 W,Typical power scenarios: 8.7 W (4G working); Standby scenarios: 7.7W (4G working); Sleep mode: 100 mW

Power Output: 12 VDC, max. 1000 mA

Battery

Battery Type: Lithium

Battery Voltage: 9 to 12.6 V

Capacity: 360 WH (90 WH for each battery)

Max. Charging Voltage: 12.6 V

Cycle Lifetime: Performance mode: 1.5 days. Proactive mode: 2 days. Standby mode: 80 days *in cloudy/rainy days (25 °C)

Battery Life: More than 500 cycles
