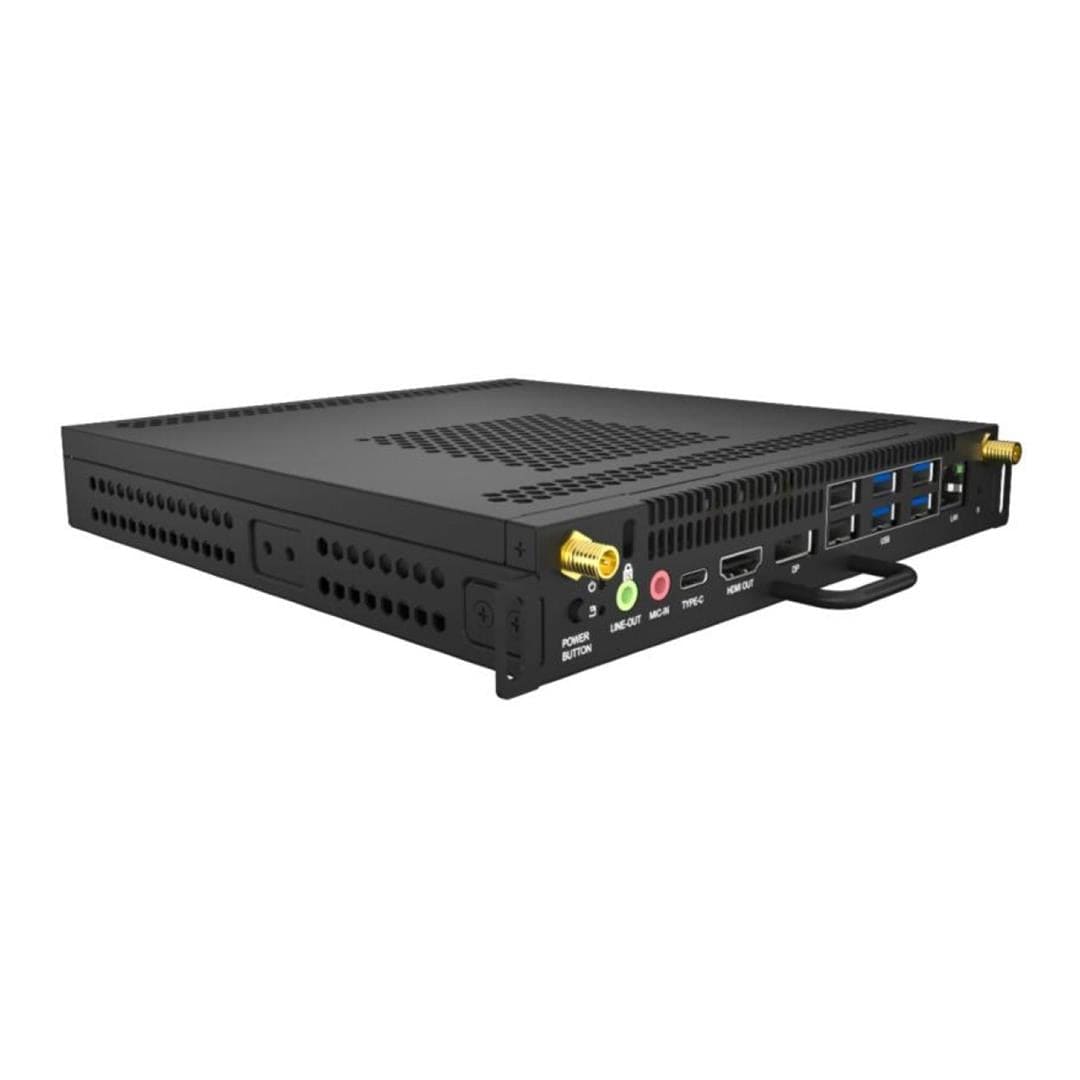

Hikvision OPS Module DS-D5AC12T5-8S2

Hikvision OPS Module DS-D5AC12T5-8S2

An OPS (Open Pluggable Specification) module tailored for Hikvision interactive displays, enabling 4K content playback and full Windows 11 Enterprise functionality.

Features:

• Intel UHD Graphics for 12th Gen Intel Processors, support 4K resolution
• Support M.2 nvme system disk quick start
• Support 4 USB 3.0 ports, 2 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port
• Support Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
• Support TPM 2.0

Technical Specifications:

Operating System: Windows 11 Enterprise

Processor: Intel® Core™ i5-12450H, 12th Gen, 8 cores, 12 threads, 2.0 GHz base, 4.4 GHz turbo

Graphics: Intel UHD Graphics (12th Gen)

Platform: Intel® Alder Lake H

Cooling: Single brass & single fan

Memory: 8 GB

Storage: 256 GB

Video & Audio Input: 1 × Audio in

Video & Audio Output: 1 × HDMI 1.4, 1 × DP 1.2, 1 × Audio out

Network: 1 × RJ45 (10/100/1000 Mbps), WiFi 6

Data Transmission: Bluetooth 5.2

USB Ports: 4 × USB 3.0, 2 × USB 2.0, 1 × Type-C

Antenna: 2

Power Input: 12V–19V DC

Max. Power Consumption: 95 W

Standby Consumption: 0.5 W

Operating Temperature: 0°C – 40°C

Operating Humidity: 10% – 90%

Storage Temperature: -20°C – 60°C

Storage Humidity: 10% – 90%

Dimensions (W × H × D): 195 × 30 × 180 mm

Package Dimensions: Single unit – 308 × 80 × 278 mm; 5 units – 420 × 298 × 320 mm

Net Weight: 1.22 kg

Gross Weight: Single unit – 1.36 kg; 5 units – 7.50 kg

Color: Black
