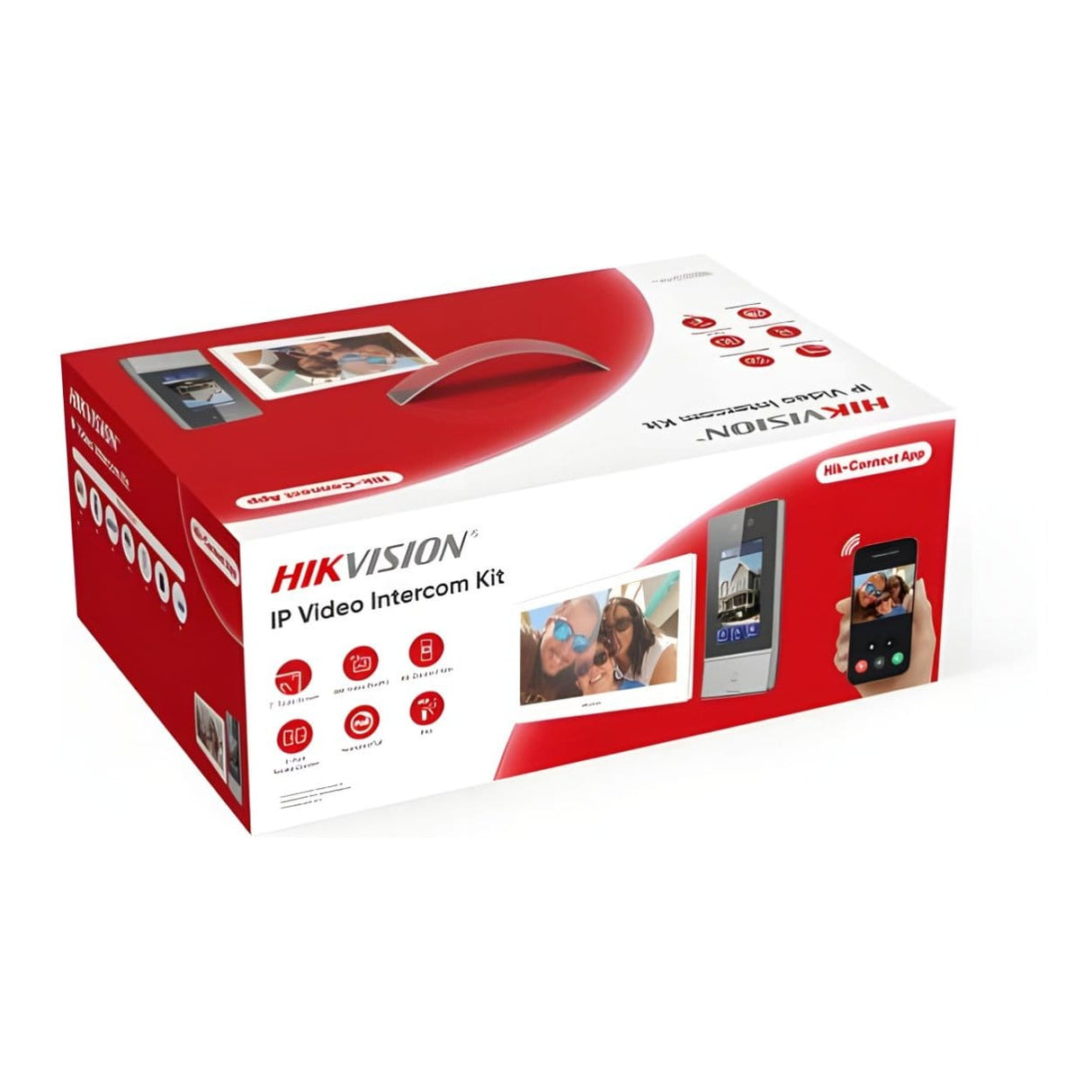

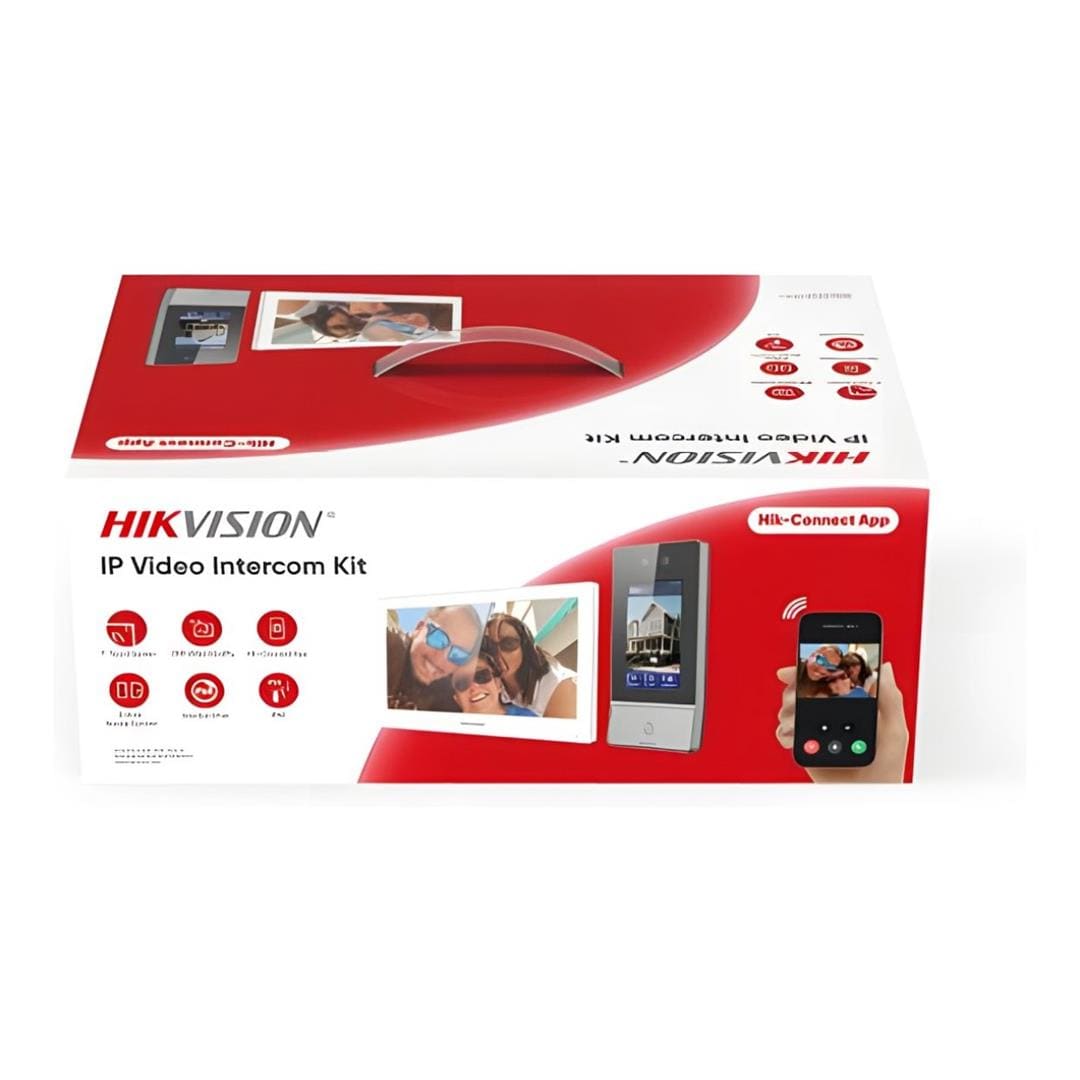

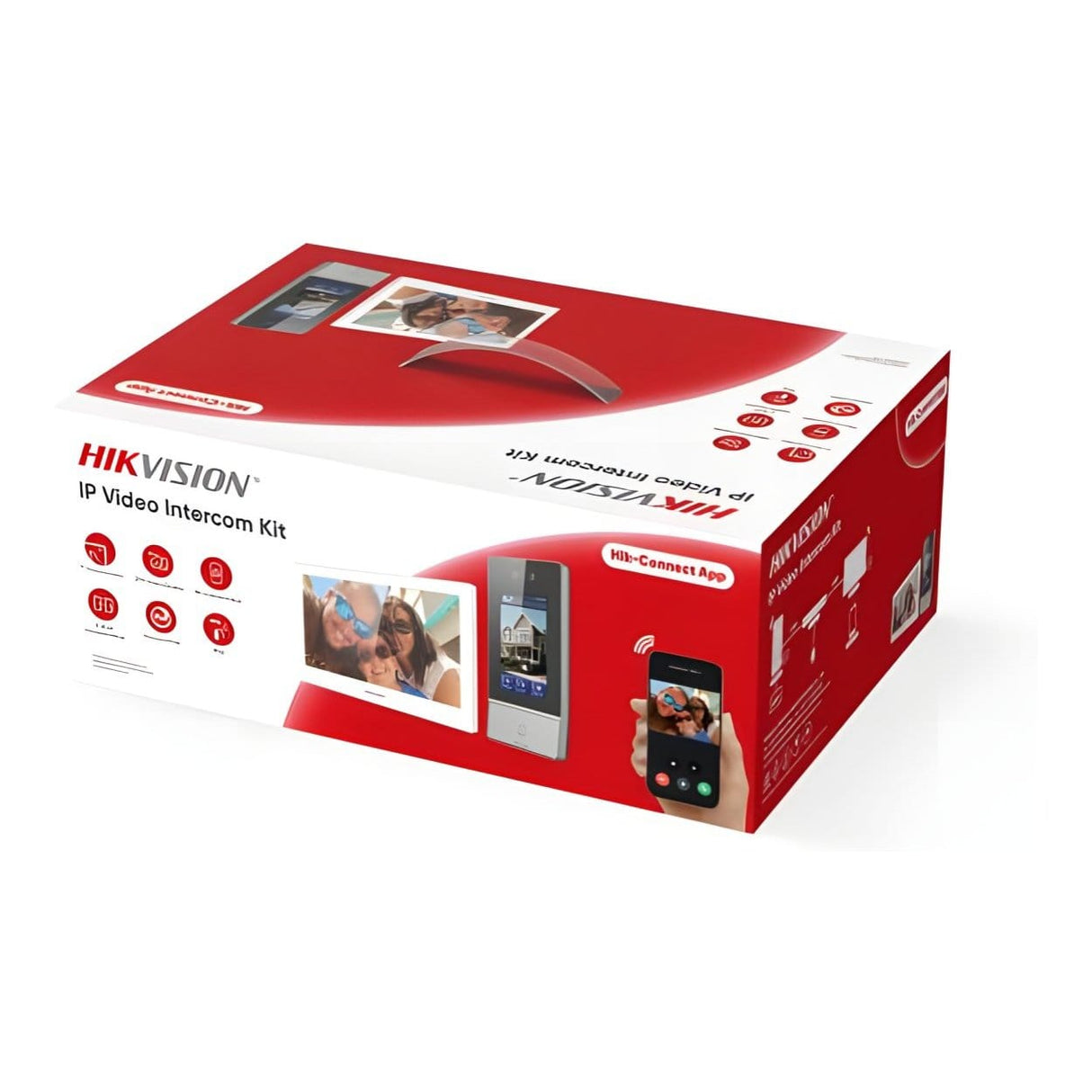

Hikvision IP Video Intercom Kit DS-KIS902-S

Hikvision IP Video Intercom Kit DS-KIS902-S

Features:

• Convenient Hik-Connect APP Mobile Control
• Multiple authentication methods: Face, Pin Code, Card, QR Code, Blue tooth
• Standard PoE power supply
• Stores messages and captured pictures in the TF card

Technical Specifications:

Door Station / System Parameters
Operation System Embedded Linux operation system
Flash 4 GB
RAM 1 GB

Door Station / Screen Parameters
Screen Size 4.3-inch
Resolution 800 × 480
Type IPS
Operation Method Non-touch screen
Brightness 425 cd/m²

Door Station / Video Parameters
Supplement Light IR light, up to 3 m
Resolution Main stream: 1920 × 1080p, 1280 × 720p
Sub stream: 1280 × 720p, 640 × 480p
Lens 2 × 2 MP
Wide Dynamic Range (WDR) Support 120 dB
FOV Horizontal: 88°, Vertical: 44°
Video Compression Standard H.264, H.265, MJPEG
Motion Detection Support

Door Station / Audio Parameters
Audio Input 1 built-in omnidirectional microphone
Audio Output 1 built-in loudspeaker
Audio Quality Noise suppression and echo cancellation
Volume Adjustment Adjustable
Audio Compression Standard G711U, G711A, G726, AAC_LC, AAC_LD, OPUS, G722.1
Audio Compression Rate 64 Kbps

Door Station / Capacity Parameters
Face Capacity 10000
User Capacity 20000
Card Capacity 100000

Door Station / Network Parameters
Network Protocol TCP/IP, RSTP
Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth Reserved

Door Station / Authentication Parameters
Card Reading Frequency 13.56 MHz
Face Recognition Distance 0.3 to 2 m
Face Recognition Accuracy Rate ≥ 99%
Face Recognition Duration < 0.2 s per person

Door Station / Device Interfaces
Network Interface 1 RJ-45, 10/100 Mbps self-adaptive
RS-485 1
Alarm Input 4 (2 exit buttons and 2 door contacts by default)
Lock Control 2 relays, Max. 30 VDC 2 A
Exit Button 1
TAMPER Switch 1
Door Contact Input 1

Door Station / General
Button 1 physical button(s)
Power Consumption ≤ 6 W
Working Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Working Humidity 10% to 90% (no-condensing)
Dimension 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
Installation Surface mounting
Protection Level IP65, IK08
Indicator /
Application Environment Outdoor
Power Supply IEEE802.3af, standard PoE, 12 VDC, 1.5 A
Net Weight 0.405 kg
Gross Weight 0.752 kg

Indoor Station / System Parameters
Operation System Embedded Linux operation system
Memory 128 MB
Flash 32 MB

Indoor Station / Display Parameters
Display Screen 7-inch colorful TFT screen
Display Resolution 1024 × 600
Operation Method Capacitive touch screen

Indoor Station / Audio Parameters
Audio Input 1 built-in omnidirectional microphone
Audio Output 1 built-in loudspeaker
Audio Quality Noise suppression and echo cancellation
Audio Compression Standard G.711 U, G.711 A
Audio Compression Rate 64 Kbps
Volume Adjustment Adjustable

Indoor Station / Capacity Parameters
Notice Capacity 200
Linked Indoor Extensions Capacity 16

Indoor Station / Network Parameters
Protocol TCP/IP, SIP, RTSP
Wi-Fi 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n

Indoor Station / Device Interfaces
Network Interface 1 RJ-45 10/100 Mbps self-adaptive
RS-485 1
Alarm Input 8-ch alarm inputs
Alarm Output 2
TF Card Max to 128 G

Indoor Station / General
Power Consumption ≤ 5 W
Power Supply 12 VDC, IEEE802.3af, Standard PoE
Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity 10% to 90%
Dimension (L × W × H) 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
Installation Wall mounting, table mounting
Application Environment Indoor
Net Weight 355 g (0.8 lb)
Gross Weight 683 g (1.5 lb)
