Hikvision IP Video Intercom Kit DS-KIS604-P(C)

Hikvision IP Video Intercom Kit DS-KIS604-P(C)

The Hikvision DS-KIS604-P(C) is an IP video intercom kit designed for villas, houses and other single-entrance residential applications. The system combines a one-button outdoor IP door station with a 7-inch touchscreen indoor station, providing video calling, two-way communication and convenient access-control functionality. Ethernet, Wi-Fi and PoE connectivity simplify system integration, while Hik-Connect mobile support allows compatible intercom functions to be accessed remotely from a smartphone.

Key Features

• Complete IP video intercom kit for villas and houses.
• One-button outdoor door station for simple visitor calling.
• 7-inch colour touchscreen indoor station.
• 1920 × 1080 main-stream door-station video.
• Wide 124° horizontal and 75° vertical field of view.
• IR supplemental lighting for low-light operation.
• WDR support for improved imaging in challenging lighting.
• Built-in microphone and loudspeaker for two-way communication.
• Noise suppression and echo cancellation.
• 10/100Mbps Ethernet connectivity.
• Wi-Fi 802.11b/g/n connectivity.
• Hik-Connect app mobile control.
• Door station supports IEEE 802.3af standard PoE or 12V DC power.
• Indoor station supports standard PoE or 12V DC power.
• IP65-rated outdoor door station.
• IK08 impact-resistant door station.
• Stores supported messages and captured pictures on a TF card.
• Includes key fobs for convenient access control.

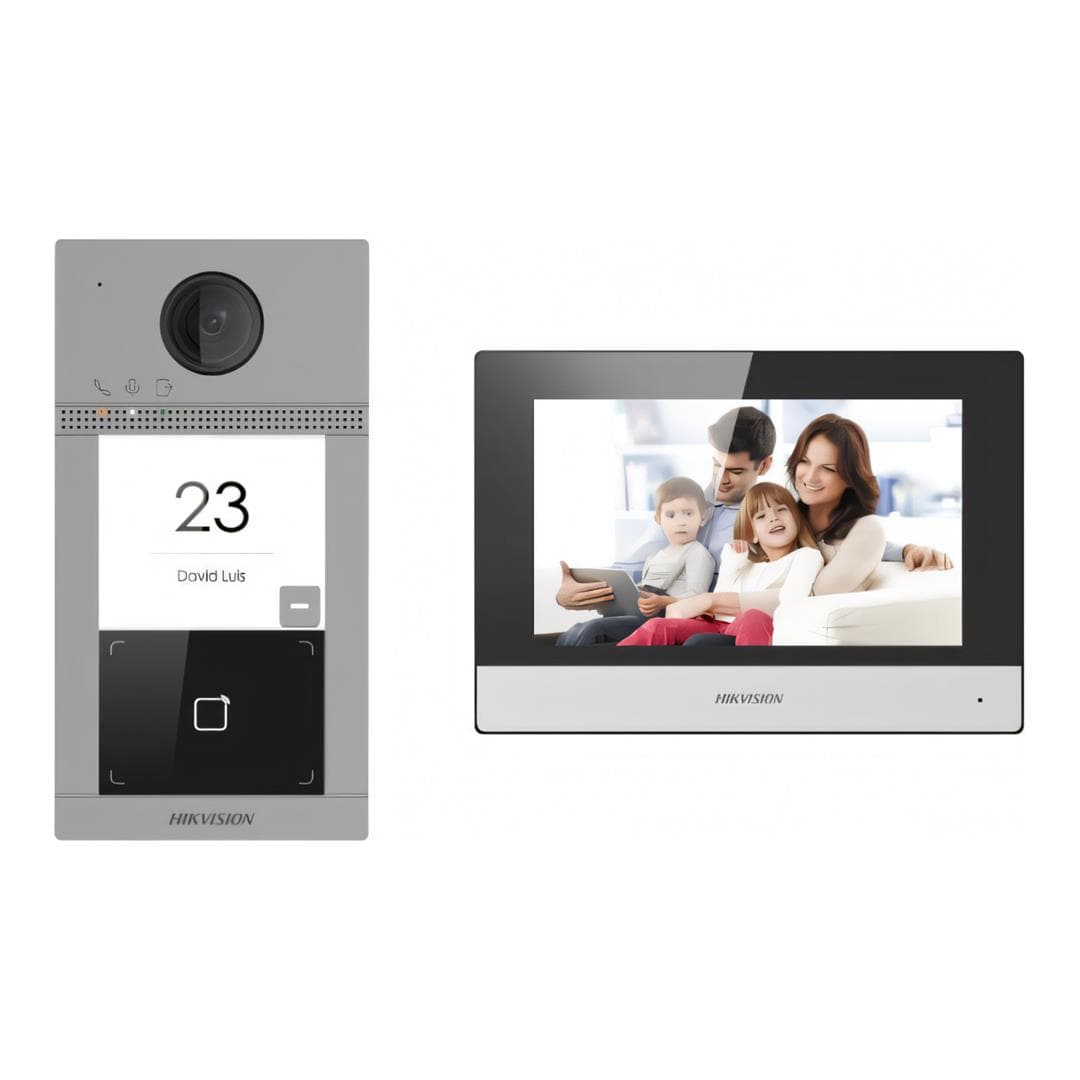

Complete Residential Video Intercom Kit

The DS-KIS604-P(C) combines the key components required for a single-button residential IP video intercom installation. Its outdoor door station allows visitors to initiate calls, while the indoor touchscreen provides residents with a convenient interface for viewing and communicating with visitors.

Full HD Door Station Video

The outdoor door station supports a main video stream of up to 1920 × 1080 resolution. Its wide-angle camera provides a 124° horizontal and 75° vertical field of view, helping capture a broad view of visitors and the surrounding entrance area.

IR and WDR Imaging

Integrated IR supplemental lighting supports video monitoring in low-light conditions, while Wide Dynamic Range functionality helps maintain useful image detail when bright and dark areas appear within the same entrance scene.

7-Inch Touchscreen Indoor Station

The included DS-KH6320-WTE1 indoor station features a 7-inch colour TFT display with 1024 × 600 resolution. Its capacitive touchscreen provides an intuitive interface for handling intercom calls and compatible system functions.

Two-Way Audio Communication

The door station incorporates an omnidirectional microphone and built-in loudspeaker. Noise suppression and echo cancellation help improve voice clarity during conversations between residents and visitors.

Ethernet, Wi-Fi and PoE

Both wired Ethernet and Wi-Fi connectivity provide flexible network deployment options. The door station and indoor station can also be powered using compatible PoE infrastructure or 12V DC, helping simplify cabling according to the installation design.

Hik-Connect Mobile Control

Hik-Connect support extends compatible intercom functionality to mobile devices, allowing users to conveniently manage supported video intercom functions through the Hik-Connect application when the system is correctly configured and connected.

Outdoor-Ready Door Station

The included outdoor door station is designed for surface-mounted exterior installation. An IP65 protection rating provides resistance against dust and water ingress, while IK08 impact resistance adds physical protection for entrance installations.

Access and Alarm Integration

The door station provides two lock-control interfaces, up to two exit-button connections, two door contacts and four alarm inputs. The indoor station adds eight alarm inputs and two relay outputs, providing useful integration options for compatible residential security and access-control equipment.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-KV8113-WME1(C) Door Station
• 1 × Hikvision DS-KH6320-WTE1 Indoor Station
• 1 × Hikvision DS-KABV8113-RS/Surface Rain Shield / Surface-Mount Accessory
• 1 × Administrator Card
• 5 × Key Fobs
• 2 × Power Supply Units
• 1 × 16GB TF Card

The Hikvision DS-KIS604-P(C) provides a complete single-button IP video intercom solution for residential entrance applications. Combining Full HD door-station video, a 7-inch touchscreen indoor monitor, two-way audio, Ethernet, Wi-Fi, PoE and Hik-Connect mobile functionality, it delivers convenient visitor communication and access control in a flexible network-based package.
