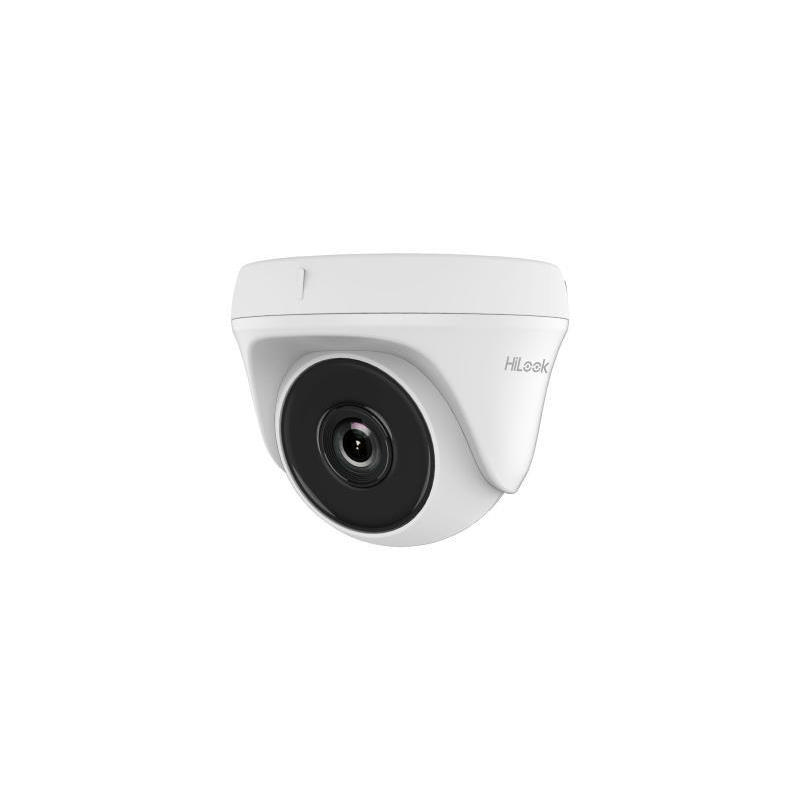

Hikvision HiLook THC-T120-P 2MP 1080P 2.8MM Indoor Fixed Turret Camera

Hikvision HiLook THC-T120-P 2MP 1080P 2.8MM Indoor Fixed Turret Camera

Features:

• 1080p turret camera
• Smart IR: up to 20 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time:

• PAL: 1/25 s to 1/50,000 s
• NTSC: 1/30 s to 1/50,000 s

Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System: PAL / NTSC

Lens
Lens Type: 2.8 mm, 3.6 mm, and 6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 103°
• 3.6 mm: Horizontal FOV 80.7°
• 6 mm: Horizontal FOV 50.1°

Lens Mount: M12

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 20 m

Image Settings: Brightness, Sharpness, Mirror, Smart IR, AGC
Frame Rate:
PAL: 1080p @ 25 fps
NTSC: 1080p @ 30 fps
Day/Night Mode: Auto / Color / BW (Black and White)
Image Enhancement: BLC, DWDR
Noise Reduction: 2D DNR

Interface
Video Output: Switchable TVI / AHD / CVI / CVBS, 1 HD analog output

General
Power
12 VDC ±15%, max. 4 W

Material
Plastic

Dimension
Ø 85.4 mm × 76.12 mm (Ø 3.38" × 2.67")

Approx. 130 g (0.29 lb.)

Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Language
English
