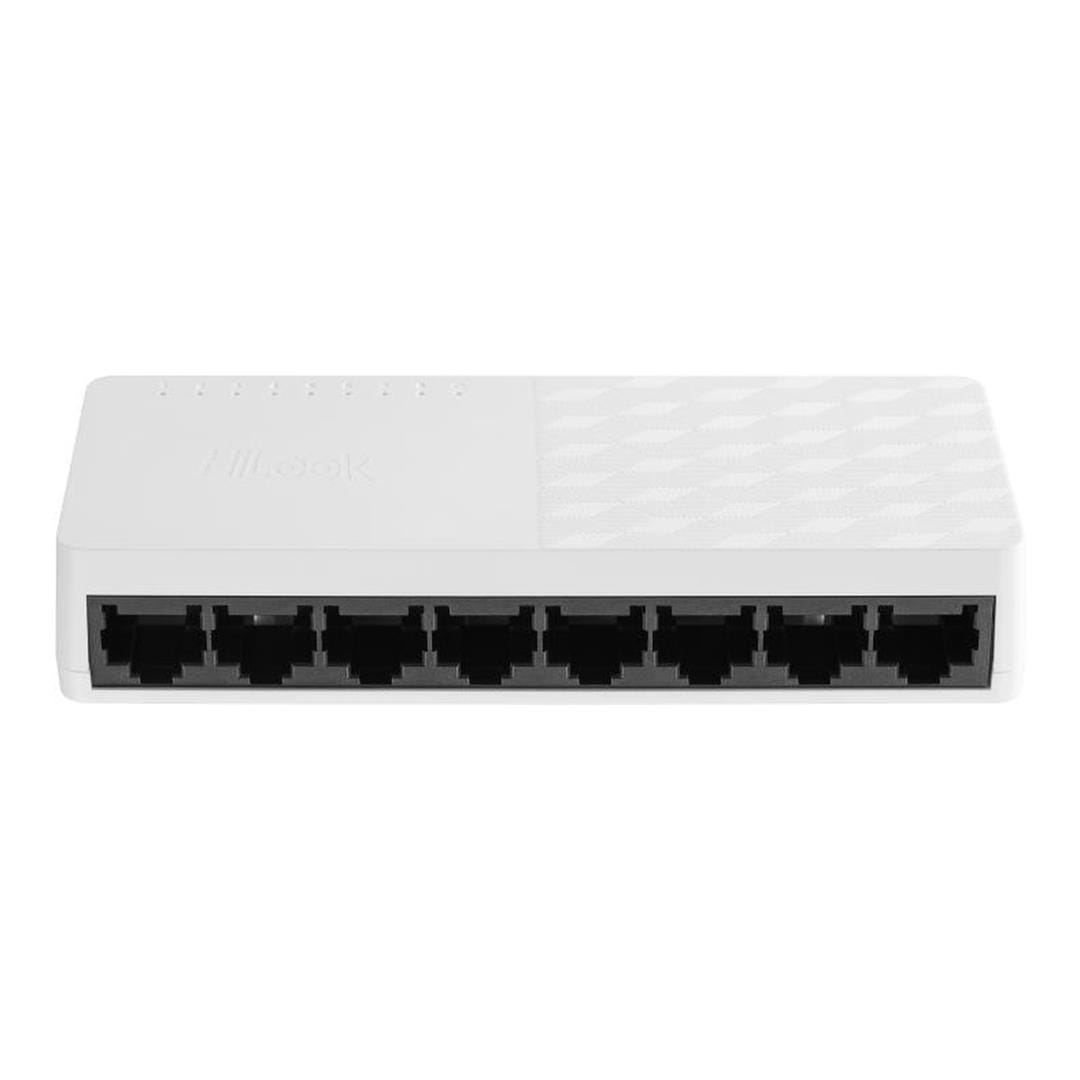

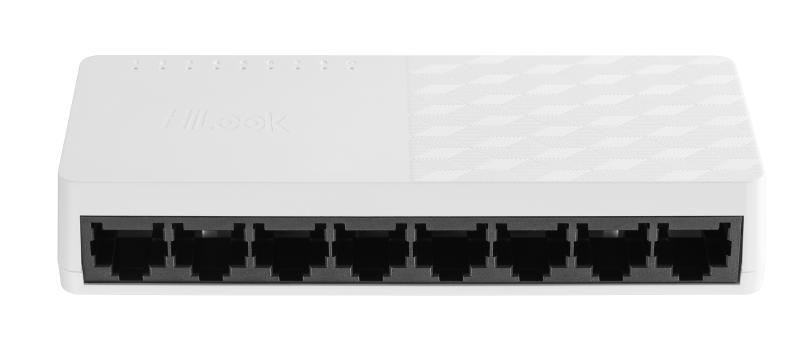

Hikvision HiLook NS-0508D 8-port Gigabit Unmanaged Network Switch

Hikvision HiLook NS-0508D 8-port Gigabit Unmanaged Network Switch

The Hikvision HiLook NS-0508D is a compact unmanaged network switch designed to expand wired connectivity in homes, offices and surveillance installations. Its eight Gigabit Ethernet ports allow compatible computers, network video recorders and other wired equipment to communicate at speeds of up to 1000 Mbps without requiring software configuration.

Eight Gigabit Ethernet Connections

Eight 10/100/1000 Mbps RJ45 ports provide additional wired connections for compatible network equipment. The switch automatically adapts to the supported speed of each connected device, making it suitable for networks containing a mixture of Ethernet equipment.

Simple Plug-and-Play Installation

The unmanaged design requires no software setup or ongoing network configuration. Automatic MDI/MDIX support also removes the need to select a particular Ethernet cable type when connecting compatible devices.

Efficient Network Traffic Handling

A 16 Gbps switching capacity and packet forwarding rate of 11.90 Mpps support data movement across the switch’s eight Gigabit ports. Store-and-forward switching checks incoming data before passing it to the intended destination.

Automatic Address Management

The NS-0508D supports automatic MAC address learning and ageing, helping it maintain an up-to-date record of connected equipment. Its 4K MAC address table and 1.5 Mbit internal cache provide the resources needed for everyday wired network operation.

Compact Placement Options

The lightweight ABS enclosure measures 124 × 25 × 61 mm and weighs only 93 g. Its compact design supports desktop placement, while wall-mounting capability provides an alternative for installations where surface space is limited.

Key Features:

• Eight 10/100/1000 Mbps Gigabit RJ45 ports for compatible wired equipment.
• 16 Gbps switching capacity supports traffic across all eight ports.
• Unmanaged plug-and-play operation requires no software configuration.
• Automatic MDI/MDIX support simplifies Ethernet cable connections.
• Store-and-forward switching supports efficient data transmission.
• Automatic MAC address learning and ageing with a 4K address table.
• Compact ABS enclosure supports desktop and wall-mounted installation.

Technical Specifications:

Expand your wired network with eight straightforward Gigabit connections and add the HiLook NS-0508D to your cart today.
