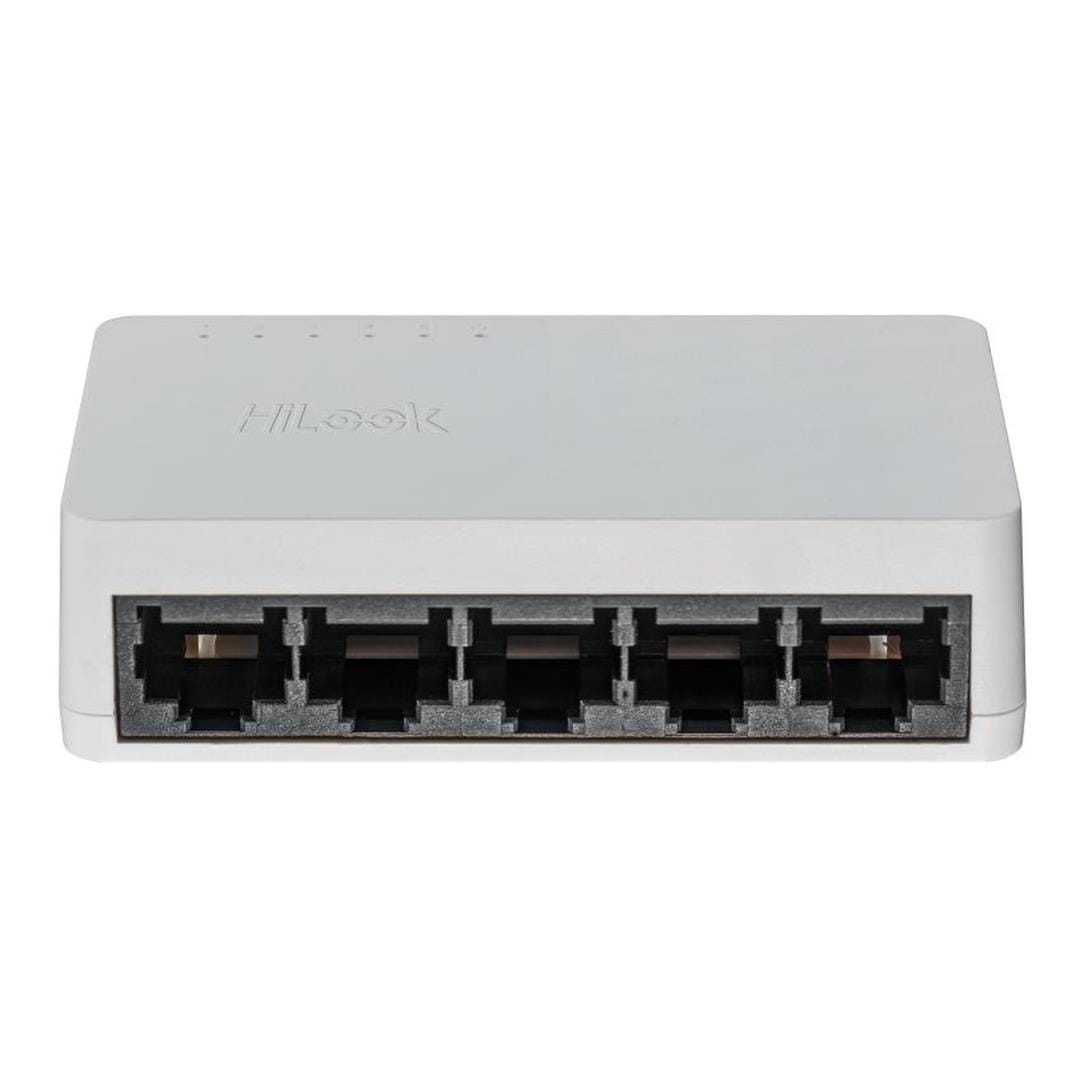

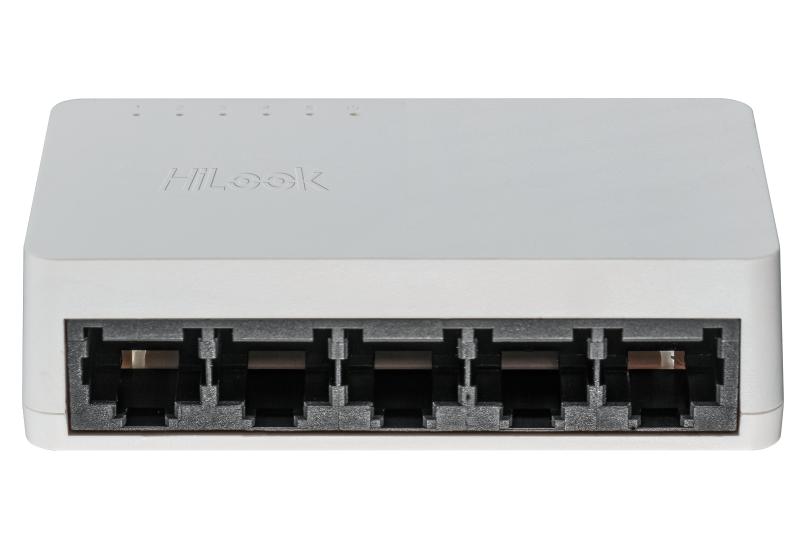

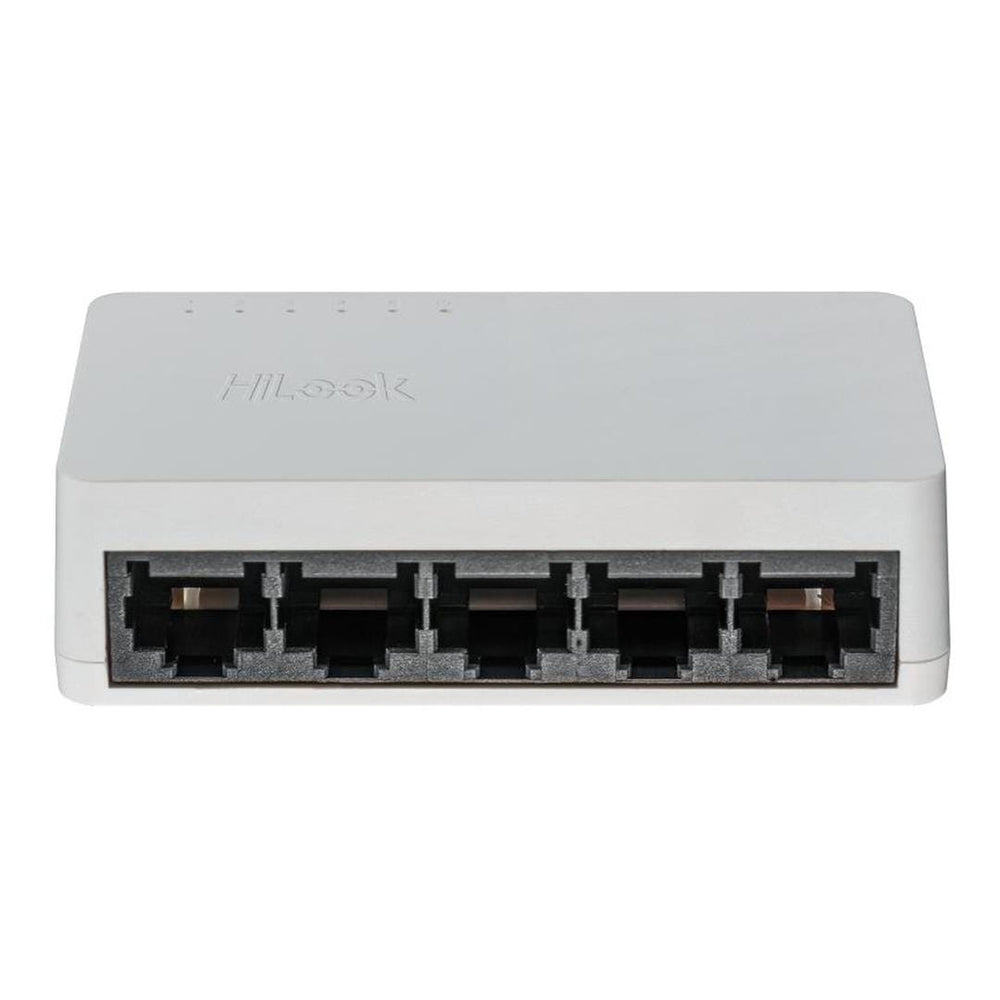

Hikvision HiLook NS-0505D 5-port Gigabit Unmanaged Network Switch

Hikvision HiLook NS-0505D 5-port Gigabit Unmanaged Network Switch

The Hikvision HiLook NS-0505D is a compact unmanaged desktop switch designed to add reliable Gigabit Ethernet connectivity to home, office and surveillance networks. Its five Gigabit RJ45 ports provide a straightforward way to connect compatible computers, recorders, cameras and other wired network devices without requiring software configuration.

Five Gigabit Ethernet Ports

Five 10/100/1000 Mbps RJ45 ports provide wired Gigabit connectivity for compatible network equipment. With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps, the switch is equipped to handle everyday network traffic across all five ports.

Simple Plug-and-Play Operation

The unmanaged design requires no software configuration, helping to simplify installation and everyday use. Automatic MDI/MDIX support removes the need to select a particular Ethernet cable type when connecting compatible equipment.

Efficient Network Traffic Handling

Store-and-forward switching checks incoming data before forwarding it to the appropriate destination. Automatic MAC address learning and ageing help the switch maintain its 2K MAC address table as connected devices change.

Compact and Flexible Placement

The lightweight ABS enclosure measures just 87 × 25 × 51 mm, making the NS-0505D suitable for locations where space is limited. Its compact design supports desktop use, while wall-mounting capability provides an additional installation option.

Key Features:

• Five 10/100/1000 Mbps Gigabit RJ45 ports for compatible wired network devices.
• 10 Gbps switching capacity supports traffic across all five ports.
• Unmanaged plug-and-play operation requires no software configuration.
• Automatic MDI/MDIX support simplifies Ethernet cable connections.
• Store-and-forward switching supports dependable data transmission.
• Automatic MAC address learning and ageing with a 2K address table.
• Compact 59 g design supports desktop and wall-mounted installation.

Technical Specifications:

Expand your wired network with simple Gigabit connectivity and add the HiLook NS-0505D to your cart today.
