Description
Description

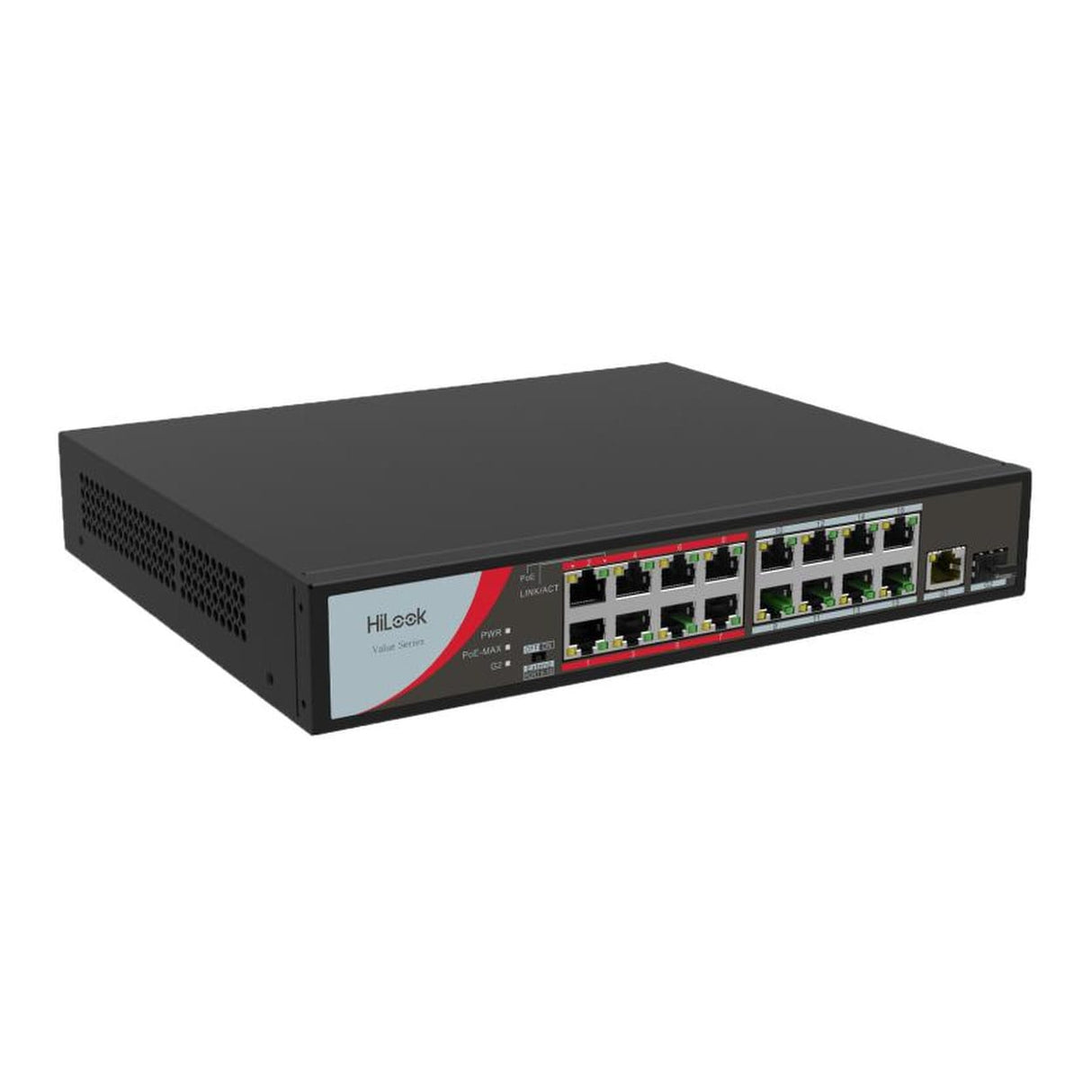

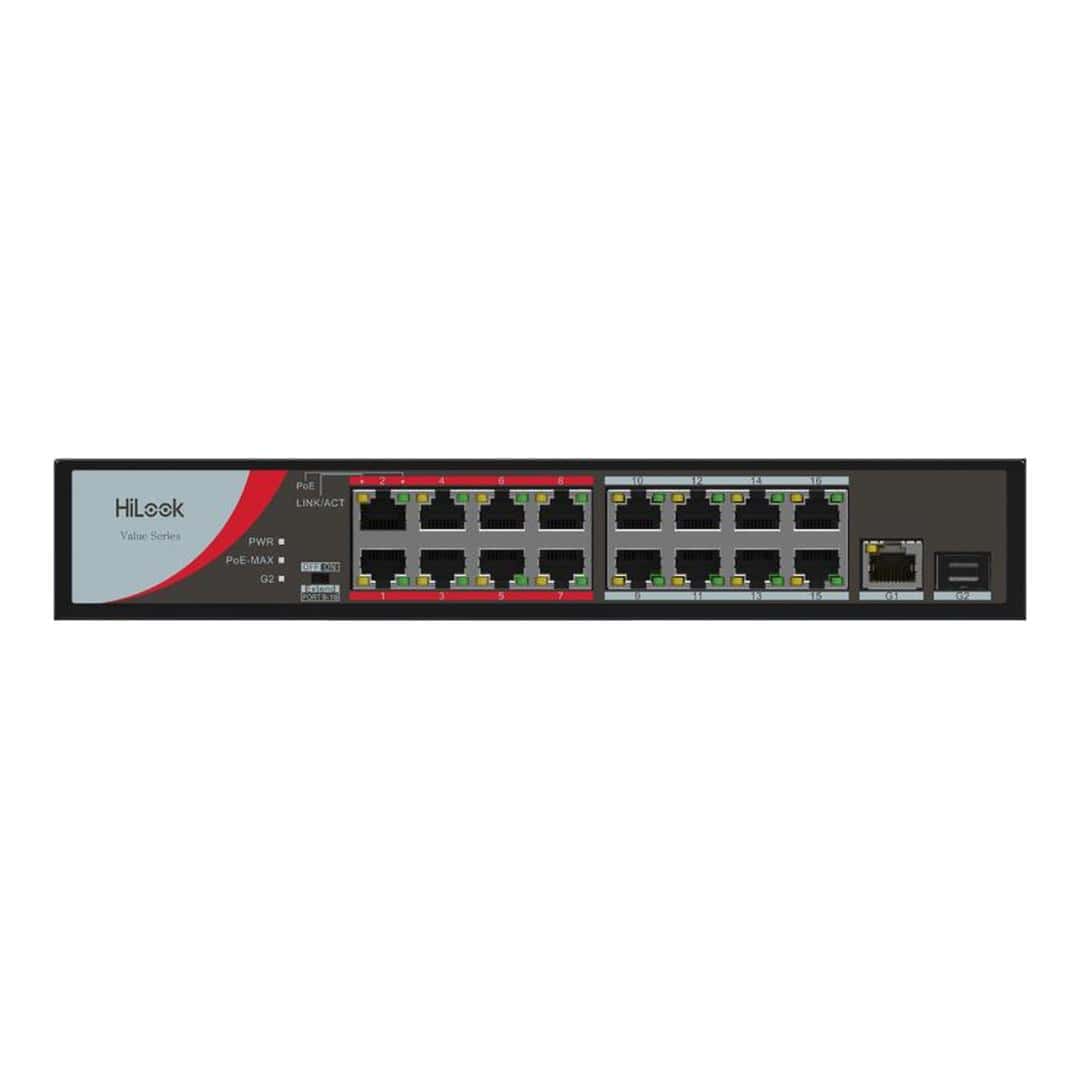

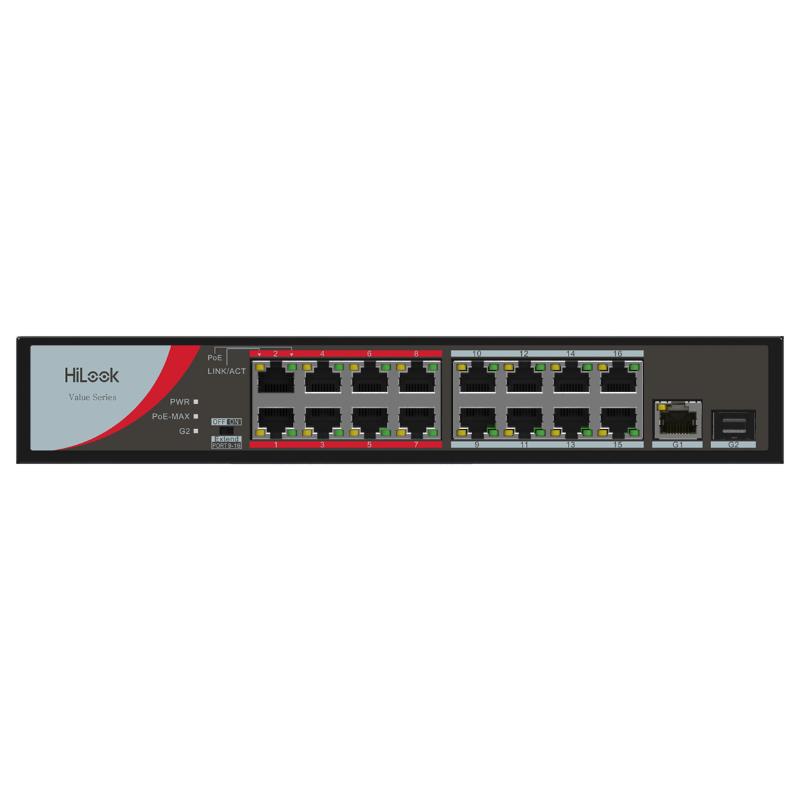

Hikvision HiLook NS-0318P-130(B) 16-port Fast Ethernet Unmanaged POE Switch
The Hikvision HiLook NS-0318P-130(B) is an unmanaged network switch designed to provide data connectivity and PoE power for compatible surveillance equipment and other network devices. It combines 16 Fast Ethernet PoE ports with Gigabit RJ45 and SFP uplink ports, offering a practical foundation for small to medium-sized IP networks.
Power and Connect Up to 16 PoE Devices
Sixteen 100 Mbps PoE ports allow compatible devices to receive data and electrical power through the same Ethernet connection. Support for the IEEE 802.3af and IEEE 802.3at standards provides up to 30 W per port, subject to the switch’s total 130 W PoE power budget.
Flexible Gigabit Uplink Options
A 1000 Mbps RJ45 port and a 1000 Mbps SFP fibre-optic port provide flexible uplink options for connecting the switch to a wider network. The SFP port is useful where a compatible fibre connection is needed for network expansion or longer-distance links.
Extended Transmission for Surveillance Networks
When Extend mode is enabled, ports 9 to 16 support transmission distances of up to 250 metres. This can help simplify the placement of compatible IP cameras and other PoE devices in locations beyond the reach of a conventional Ethernet connection.
Designed for Reliable Everyday Operation
The switch uses store-and-forward switching with automatic MAC address learning and ageing. Its metal housing and 6 kV lightning protection across all ports help support dependable deployment in compatible indoor network installations.
Key Features:
- Sixteen 100 Mbps PoE ports for connecting and powering compatible network devices.
- One Gigabit RJ45 port and one Gigabit SFP port provide flexible uplink connectivity.
- 130 W total PoE power budget with up to 30 W available from an individual port.
- IEEE 802.3af and IEEE 802.3at PoE support.
- Extend mode supports transmission distances of up to 250 metres on ports 9 to 16.
- Ports 1 to 8 are designated as high-priority ports.
- All ports support 6 kV lightning protection.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Hikvision HiLook |
| Model | NS-0318P-130(B) |
| Product Type | Unmanaged PoE network switch |
| PoE Network Ports | 16 × 100 Mbps RJ45 PoE ports |
| Uplink Ports | 1 × 1000 Mbps RJ45 port and 1 × 1000 Mbps SFP fibre-optic port |
| Port Operation | Full duplex with MDI/MDI-X adaptation |
| Network Standards | IEEE 802.3, IEEE 802.3u and IEEE 802.3x |
| PoE Standards | IEEE 802.3af and IEEE 802.3at |
| PoE Ports | Ports 1 to 16 |
| Maximum Power per PoE Port | 30 W |
| PoE Power Budget | 130 W |
| Working Modes | Standard mode and Extend mode |
| Long-Distance Ports | Ports 9 to 16; transmission distance up to 250 metres in Extend mode |
| High-Priority Ports | Ports 1 to 8 |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.356 Mpps |
| MAC Address Table | 4K entries |
| Internal Cache | 2.75 Mbits |
| Forwarding Method | Store-and-forward switching |
| Network Management | Unmanaged |
| Port Protection | 6 kV lightning protection on all ports |
| Housing | Metal |
| Power Supply | 100–240 V AC, 50/60 Hz, maximum 2.5 A |
| Idle Power Consumption | 20 W |
| Maximum Power Consumption | 150 W |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Dimensions | 266 × 44.5 × 220.8 mm |
| Net Weight | 1.8 kg |
| Gross Weight | 2.58 kg |
Build a practical PoE network for compatible cameras and connected devices with the HiLook NS-0318P-130(B), and add it to your cart today.
