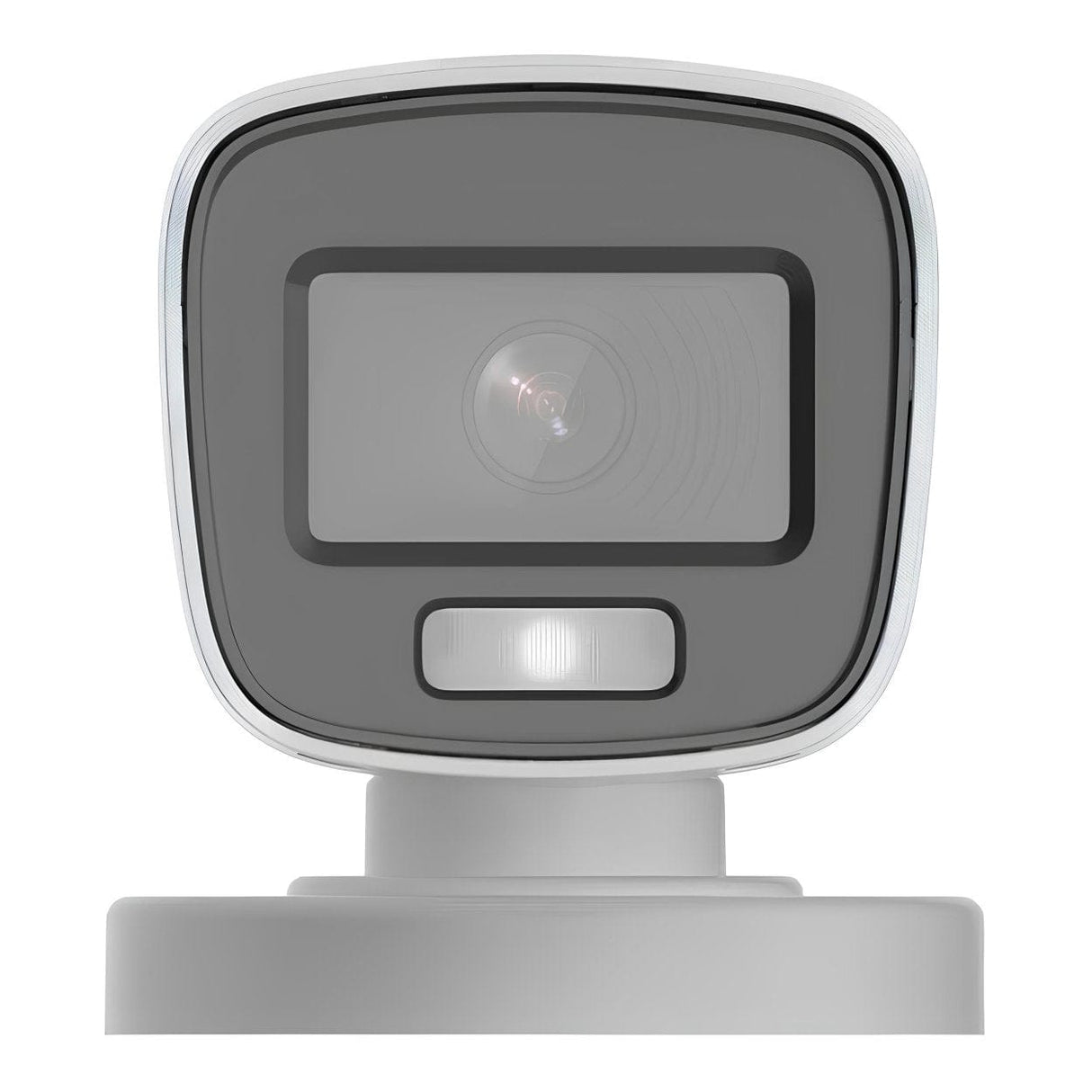

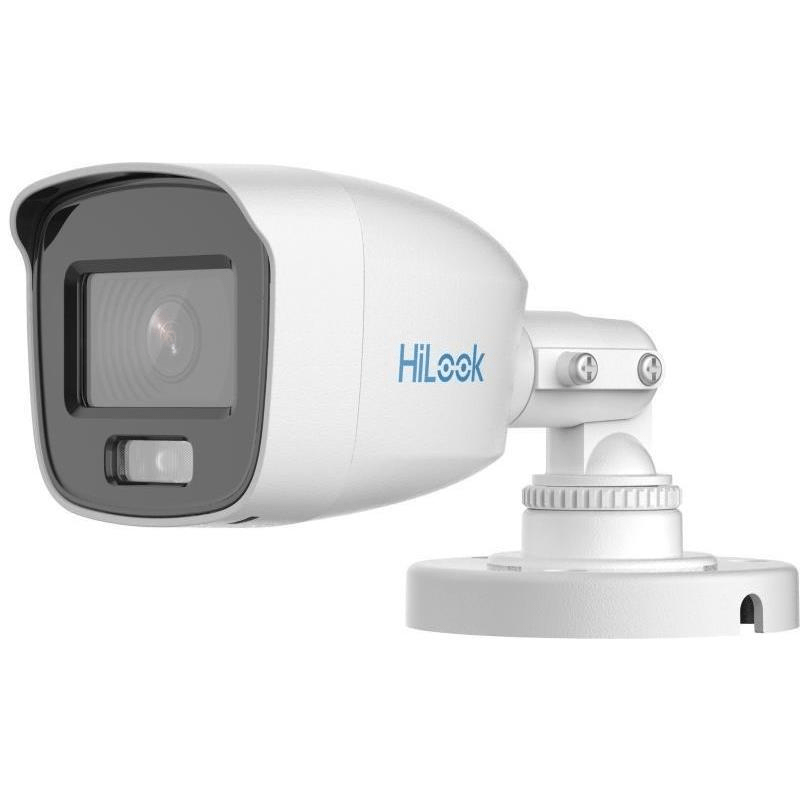

Hikvision HiLook 2MP 2MP 1080p 2.8MM 20M ColorVu Mini Bullet Camera THC-B129-P

Hikvision HiLook 2MP 2MP 1080p 2.8MM 20M ColorVu Mini Bullet Camera THC-B129-P

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP66)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate:

• TVI: 1080p @ 25 fps / 30 fps
• CVI: 1080p @ 25 fps / 30 fps
• AHD: 1080p @ 25 fps / 30 fps
• CVBS: PAL / NTSC

Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens Mount: M12
Light Alarm: Solid Light Alarm (White Light)
Day & Night: 24/7 Color Imaging
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens
Lens Type: 2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 102°, Vertical FOV 54°, Diagonal FOV 121°
• 3.6 mm: Horizontal FOV 80°, Vertical FOV 43°, Diagonal FOV 95°

Illuminator
Supplement Light Type: White Light
White Light Range: Up to 20 m

Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR, BLC, HLC, Global
White Light: Auto / Off
AGC: Yes
Day/Night Mode: Color
White Balance: Auto / Manual
Noise Reduction: 2D DNR / 3D DNR
Language: English

Interface
Video Output: Switchable TVI / AHD / CVI / CVBS

General
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity ≤ 90% (non-condensing)
Power Supply: 12 VDC ±25% (Recommended: one adapter per camera)
Consumption: Max. 2.4 W
Material: Plastic
Dimension: 162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
Weight: Approx. 152.5 g (0.34 lb.)

Approval
Protection: IP66
