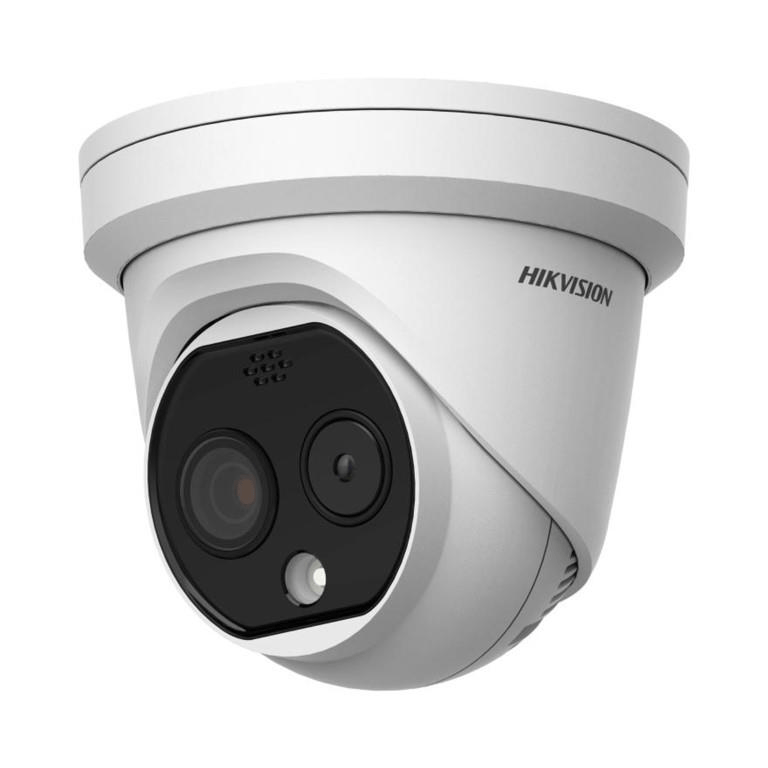

Hikvision HeatPro Thermal and Optical Bi-Spectrum Network Turret Camera DS-2TD1217-3/QA

Hikvision HeatPro Thermal and Optical Bi-Spectrum Network Turret Camera DS-2TD1217-3/QA

Hikvision DS-2TD1217-3/QA Thermal & Optical Bi-spectrum Network Turret Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.

Features

• 160 x 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
• Up to 15 m IR Distance
• Automatically adjusted IR Intensity and Angle
• Up to 30 m White Light Range
• Up to 15 m VCA Range For Humans
• Up to 45 m VCA Range For Vehicles
• White light alarm with adjustable flashing frequencies
• Two types of audible alarm (VCA, Temperature)
• High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• Support smoking detection algorithm
• Support sun-reflection filter
• High quality detector with 10 years guarantee
• IP67 Standard
• TVS 6000V lightning protection, surge protection, voltage transient protection

Technical Specification

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 160 × 120
• Pixel Pitch: 17 μm
• Spectral Range: 8 μm to 14 μm
• NETD: < 40 mK (@ 25 °C, F# = 1.1)
• Focal Length: 3.1 mm
• IFOV: 5.48 mrad
• Field Of View: 50.0° x 37.2° (H x V)
• Min. Focusing Distance: 0.2 m
• Aperture: F1.1
• Digital Zoom: x2, x4

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 2688 x 1520
• Min. Illumination: 0.0089Lux @(F1.6,AGC ON) , 0 Lux with IR
• Shutter Speed: 1 s to 1/100,000 s
• Focal Length: 4 mm
• Field Of View: 84.0° x 44.8° (H x V)
• Aperture (Range): F1.6
• WDR: 120 dB

• Alarm Input: 1x alarm input (0-5 VDC)
• Alarm Output: 1x alarm output (alarm response actions configurable)
• Audio Input: 1x 3.5 mm Mic in/Line in interface
• Communication Interface: 1x RJ45 10/100Mbps Self-adaptive Ethernet interface ; 1x RS-485 interface (half duplex)

• 12 VDC ± 25%, φ 5.5 mm coaxial power plug
• PoE (802.3af, class 3)
