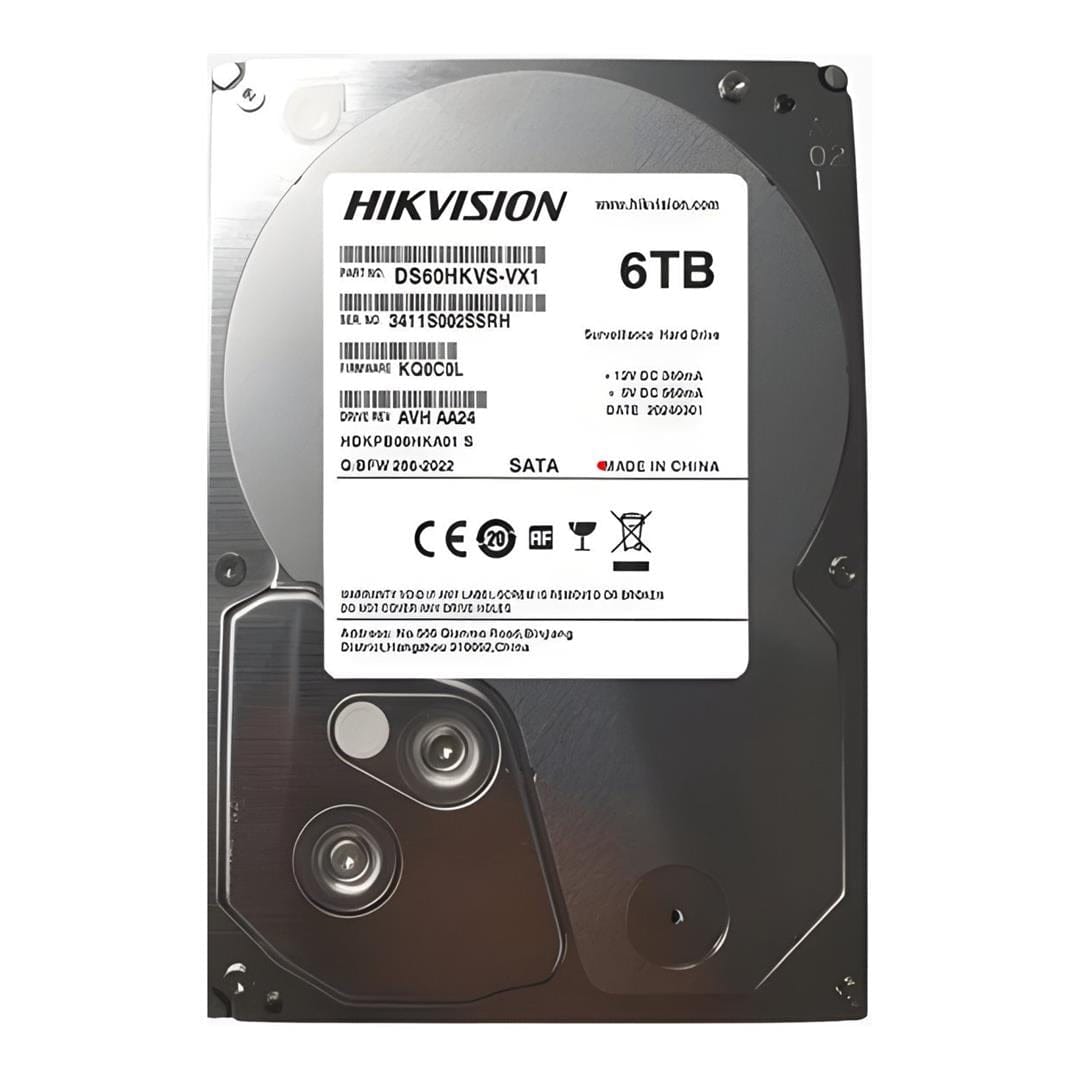

Hikvision DS60HKVS-VX1 3.5-inch 6TB SATA3 Surveillance Internal Hard Drive

Hikvision DS60HKVS-VX1 3.5-inch 6TB SATA3 Surveillance Internal Hard Drive

Features:

• Up to 6 TB capacity
• Supports up to 64 cameras high-definition streams
• 256 MB buffer helps to smooth video recording andguard against frame drops
• Designed for 24×7 operation
• Annual workload rating of 180 TB/year
• MTTF of 1M hours
• Industry-standard 3.5-inch form-factor and SATA 6.0Gb/s interface
• Advanced Format 512e Sector Technology

Technical Specifications:

Item
DS60HKVS-VX1

Interface
SATA

Formatted Capacity
6 TB

Performance

Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s

Rotation Speed
5400 rpm

Buffer Size
256 MB

Maximum Data Transfer Speed (Sustained, Typ.)
176.4 MB/s

Logical Data Block Length
HOST: 512 B, DISK: 4096 B

Supply Voltage
Allowable Voltage: 12 V ± 10 % / 5 V ± 5 %

Power Consumption
Operating (Typ.): 4.84 W
Active idle (Typ.): 2.81 W
Standby (Typ.): 0.36 W

Acoustics (Sound Power)
Low Power Idle (Typ.): 24 dB

Environmental Limits

Ambient Temperature
Operating: 0 °C to 60 °C (no condensation)
Non-Operating: −40 °C to 70 °C (no condensation)

Enclosure Surface Temperature
Operating: 0 °C to 70 °C (no condensation)

Relative Humidity
Operating: 5 % to 90 % RH (no condensation)
Non-Operating: 5 % to 95 % RH (no condensation)

Altitude
Operating: −305 m to 3048 m
Non-Operating: −305 m to 12192 m

Shock
Operating: 686 m/s² {70 G}, 2 ms duration
Non-Operating:
6 TB: 2940 m/s² {300 G}
4 TB: 3430 m/s² {350 G}
(2 ms duration)

Vibration
Operating:
4.90 m/s² {0.50 G} (5 to 350 Hz)
2.45 m/s² {0.25 G} (350 to 500 Hz)

Non-Operating:
29.4 m/s² {3.0 G} (5 to 500 Hz)

Reliability

MTTF / AFR
1,000,000 hours / 0.88 %

Non-recoverable Error Rate
1 error per 10¹â´ bits read

Load / Unload
600,000 times

Availability
24 hours/day, 7 days/week

Rated Annual Workload
180 TB/year (read/write total per year)

Mechanical Specifications

Width
101.6 mm ± 0.25 mm

Height (Max)
26.1 mm

Length (Max)
147.0 mm

Weight (Max)
680 g
