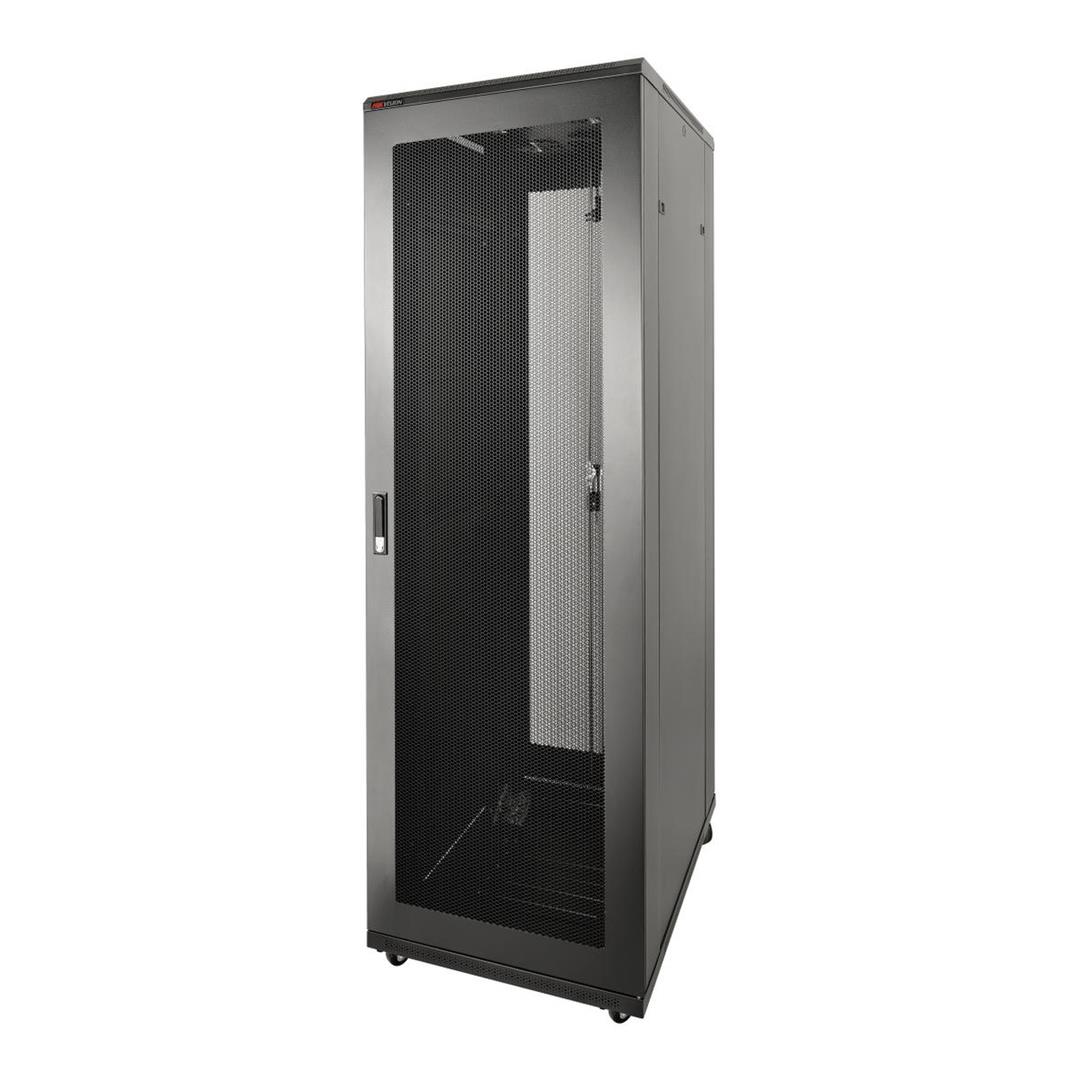

Hikvision DS-XS8842-E/DW 800x800mm 42U Free-standing Cabinet
The Hikvision DS-XS8842-E/DW is a heavy-duty 42U free-standing cabinet designed to house compatible 19-inch networking, surveillance, server and communications equipment. Built from durable SPCC cold-rolled steel, it offers a high 1000kg static load capacity, spacious 800 x 800mm footprint and integrated castors and supporting legs for professional equipment-room and data-centre installations.
Key Features:
- 42U internal rack space
- Designed for compatible 19-inch rack equipment
- Floor-standing installation
- 800 x 800mm cabinet footprint
- 2050mm overall height including castors
- 1000kg static load capacity
- Durable SPCC cold-rolled steel construction
- 78% front door opening area
- 78% rear door opening area
- Heavy-duty 2.0mm vertical mounting rails
- Four castor wheels included
- Four supporting legs included
- Optional shelf, cooling fan and PDU accessories
- Suitable for networking, CCTV and server installations
Features
Spacious 42U Rack Capacity
The DS-XS8842-E/DW provides 42U of internal rack space for compatible 19-inch equipment, making it suitable for network switches, patch panels, NVRs, servers, power distribution equipment and other rack-mounted hardware.
Heavy-Duty 1000kg Capacity
A static load rating of up to 1000kg provides the strength required for densely populated equipment installations. The cabinet uses reinforced SPCC steel components, including 2.0mm vertical rails and 1.5mm structural beams.
Durable SPCC Steel Construction
The front door, front and rear frame, side panels, top cover and bottom panel use 1.2mm SPCC cold-rolled steel. The internal beams use 1.5mm steel, while the vertical mounting rails are constructed from 2.0mm SPCC for added equipment support.
Improved Airflow
The front and rear doors provide a 78% opening percentage to support airflow through installed equipment. An optional Hikvision DS-XSFS08-E fan unit can be added when additional forced ventilation is required.
Mobile & Stable Installation
Four supplied castors allow the cabinet to be repositioned during installation or maintenance, while four supporting legs provide a stable floor-standing platform once the cabinet is positioned.
Expandable with Hikvision Accessories
The cabinet supports the optional DS-XSPB08-E shelf and DS-XSFS08-E cooling fan unit. Compatible Hikvision PDU options include the DS-XPEUR08-Y/KYL and DS-XPUK06-Y/KYL for supported power-distribution requirements.
- Shelf, fan unit and PDU are optional and sold separately.
- Confirm equipment depth and rack-mount compatibility before installation.
- Cabinet dimensions include the supplied castors.
Technical Specifications:
| Specification | Details |
| Brand | Hikvision |
| Model / MPN | DS-XS8842-E/DW |
| EAN / Barcode | 6936422120023 |
| Product Type | Free-standing Rack Cabinet |
| Installation | Floor Standing |
| Rack Capacity | 42U |
| Rack Standard | 19-inch |
| Static Load Capacity | 1000kg |
| Dimensions | 800 x 800 x 2050mm Including Castors |
| Net Weight | 98.85kg |
| Front Door Opening | 78% |
| Rear Door Opening | 78% |
| Front Door | 1.2mm SPCC Steel |
| Front / Rear Frame | 1.2mm SPCC Steel |
| Side Panels | 1.2mm SPCC Steel |
| Structural Beam | 1.5mm SPCC Steel |
| Top Cover | 1.2mm SPCC Steel |
| Bottom Panel | 1.2mm SPCC Steel |
| Vertical Rails | 2.0mm SPCC Steel |
| Castors | 4 |
| Supporting Legs | 4 |
| Optional Shelf | DS-XSPB08-E |
| Optional Fan | DS-XSFS08-E |
| Optional PDU | DS-XPEUR08-Y/KYL / DS-XPUK06-Y/KYL |
| Package Contents | Hikvision DS-XS8842-E/DW 42U Cabinet 4 x Castor Wheels 4 x Supporting Legs |
Choose the Hikvision DS-XS8842-E/DW for a robust 42U equipment housing solution with 1000kg load capacity, durable SPCC steel construction, convenient castors and flexible support for networking, surveillance and server hardware.
