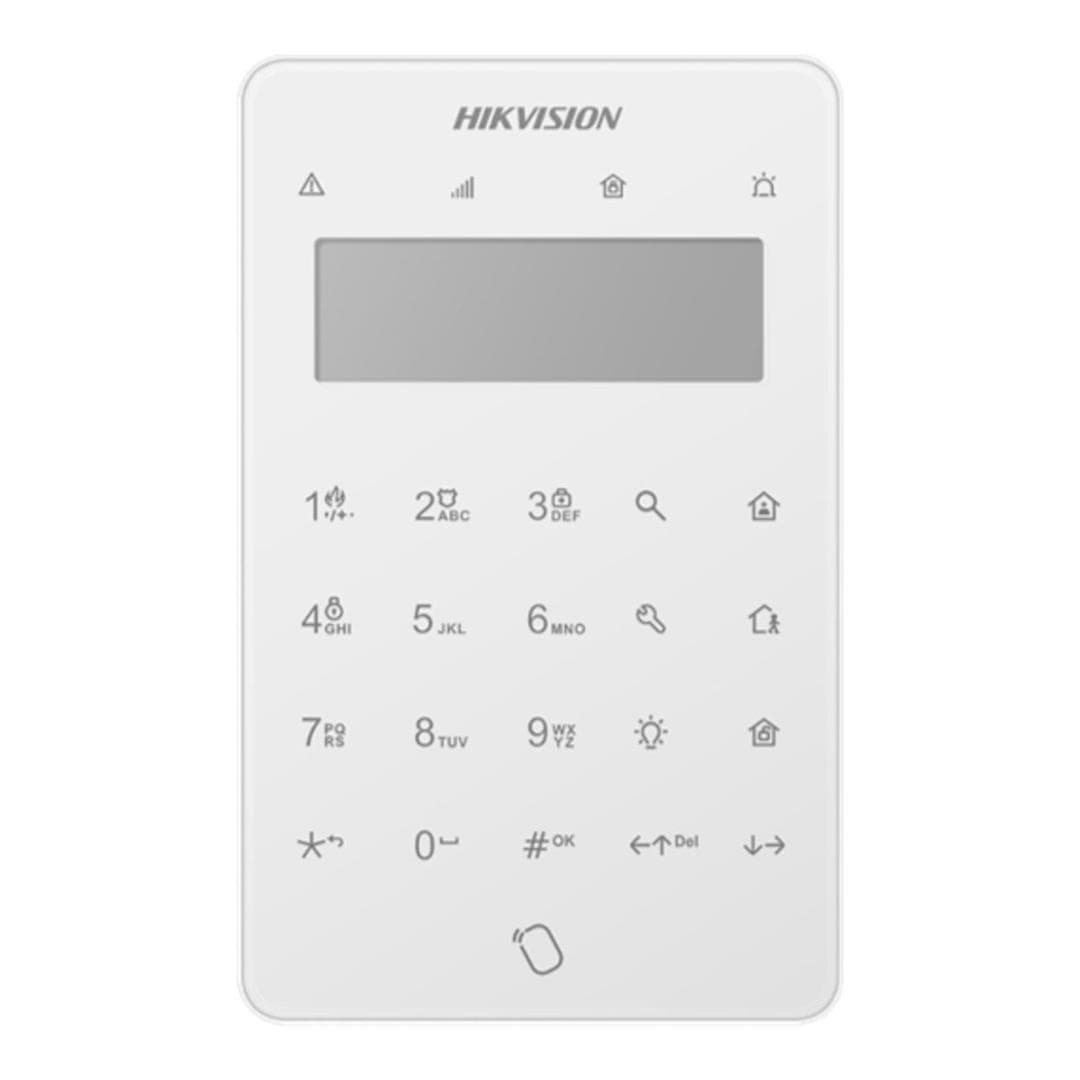

Hikvision DS-PFK501LTM-HWE Wired LCD Keypad

Hikvision DS-PFK501LTM-HWE Wired LCD Keypad

The Hikvision DS-PFK501LTM-HWE Wired LCD Keypad is a professional wired alarm control keypad designed for Hikvision intrusion and perimeter protection systems. It features a monochrome LCD display with modern touch-sensitive controls, providing convenient system management for arming, disarming, alarm monitoring, and electric fence control functions.

• Monochrome LCD screen with intuitive touch-sensing keypad
• Dedicated function keys for Away Arm, Stay Arm, Disarm, Query, and Engineering settings
• Supports electric fence voltage regulation and alarm event enquiry
• Integrated M1 card/tag reader for secure user authentication
• Compatible with Hikvision wireless keyfobs using encrypted Tri-X wireless technology
• RS-485 bus communication for stable wired integration
• Detachable terminals and sliding back cover for simplified installation
• Front and rear tamper protection for enhanced security
• LED indicators for arm/disarm, fault, signal, and alarm status
• Indoor wall-mounted design with compact 175 × 110 × 27 mm housing

The keypad supports up to 16 wireless keyfobs on certain regional variants and operates on 12V DC supplied directly from the alarm control panel. It is suitable for commercial, industrial, and residential security installations requiring centralised alarm and electric fence management.

Specifications:

Display: Monochrome LCD

Communication: RS-485 Half-Duplex

Authentication: PIN, M1 Card/Tag

Wireless Support: Tri-X encrypted keyfob support

Frequency: 433 MHz or 868 MHz variant dependent

Power Input: 9–16 VDC

Current Consumption: 40 mA standby / 200 mA max

Indicators: 4 LED status indicators + buzzer

Installation: Indoor wall mount

Dimensions: 175 × 110 × 27 mm

Tamper Protection: Front and rear tamper switch
