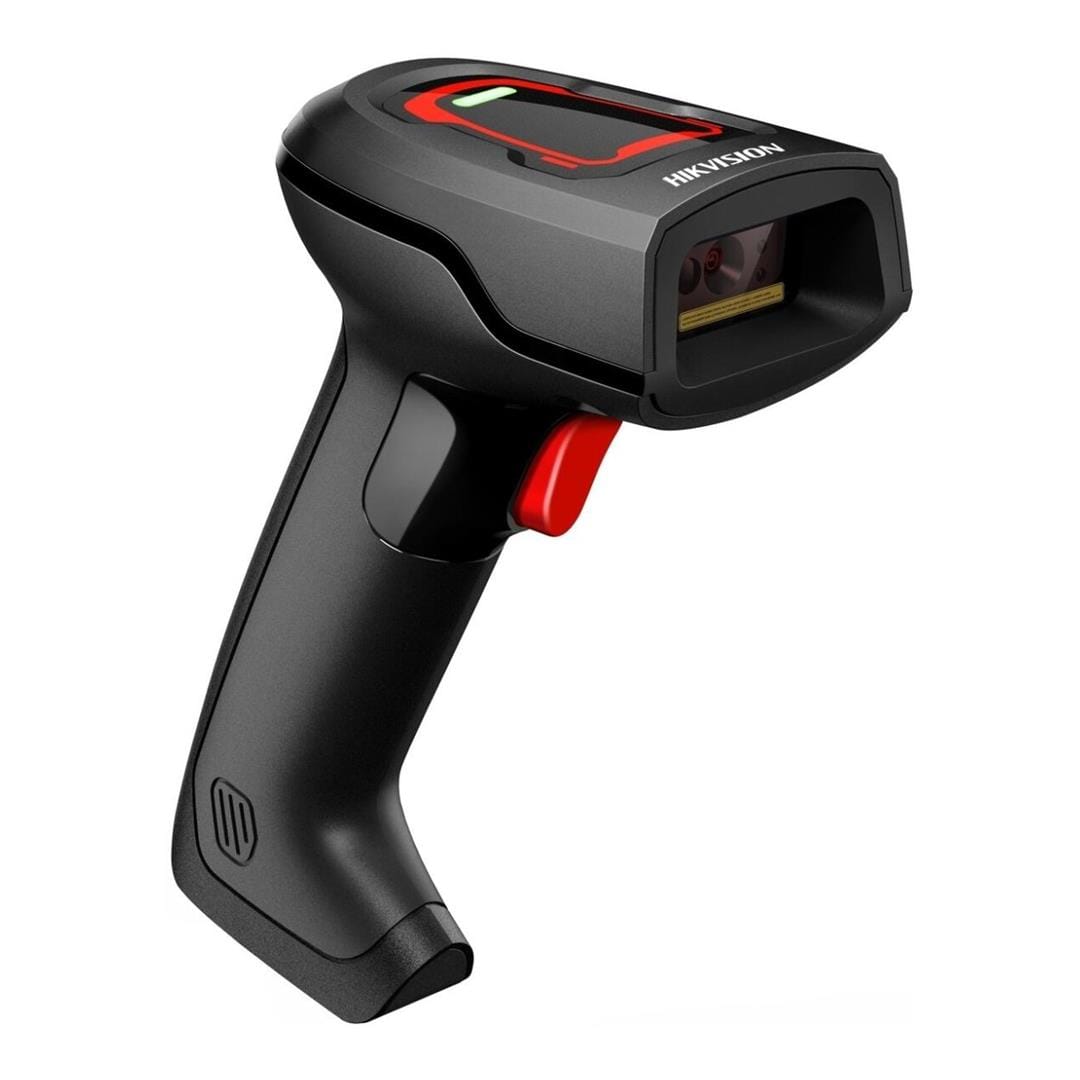

Hikvision DS-MSH100 Industrial USB 2D Barcode Scanner

Hikvision DS-MSH100 Industrial USB 1D and 2D Barcode Scanner – DS-MSH100/03U/03S/W2

The Hikvision DS-MSH100 is a wired industrial handheld barcode scanner designed for retail, warehousing, logistics, manufacturing, healthcare and asset-management workflows. Its 0.3 MP global-shutter imaging sensor, NPU and CPU processing system support the recognition of common 1D, 2D and direct-part-marking codes through USB or serial connectivity.

Intelligent Barcode Recognition

The DS-MSH100 uses deep-learning-assisted decoding to help identify barcodes that are blurry, distorted, dirty or poorly printed. It is suitable for scanning conventional printed labels as well as more demanding codes encountered in warehouse, production and logistics environments.

1D, 2D and DPM Code Support

The area-imaging scanner reads common linear and two-dimensional barcode formats, including Code 39, Code 128, EAN-13, Data Matrix and QR Code. Support for direct-part-marking codes also makes it suitable for compatible manufacturing and component-tracking applications.

Wired System Integration

USB HID and CDC modes support straightforward connection to compatible computers, point-of-sale systems and industrial terminals. Serial RS232 communication and Hikvision SmartSDK support provide additional options for specialised business and industrial applications.

Designed for Repeated Daily Use

The scanner has an IP42-rated enclosure and is designed to withstand repeated drops from a height of up to 1.5 metres under Hikvision’s stated test conditions. Its trigger mechanism is rated for up to five million operations, supporting demanding scanning workflows.

Clear Aiming and User Feedback

An orange LED aiming system helps the operator position the scanner over the required barcode. Indicator lights and an audible buzzer provide feedback when codes are read, helping users work efficiently in active retail, warehouse and production environments.

Key Features

• Wired industrial handheld scanner for 1D, 2D and compatible DPM barcodes.
• 0.3 MP global-shutter imaging sensor with a resolution of 640 × 480 pixels.
• NPU and CPU architecture with deep-learning-assisted barcode recognition.
• Designed to recognise challenging, distorted, dirty and poorly printed codes.
• Minimum stated barcode resolution of 5 mil for the exact wired variant.
• USB HID, USB CDC, RS232 and SmartSDK communication support.
• Orange LED aiming system with indicator-light and buzzer feedback.
• IP42-rated enclosure for protection against applicable solid objects and dripping water.
• Tested for repeated drops from up to 1.5 metres.
• Compact handheld design weighing less than 160 g.

Reading distance varies according to the barcode format, size, print quality, contrast, surface, angle and surrounding lighting conditions.

Technical Specifications

Equip your retail, warehouse or production workflow with a durable wired scanner for common 1D and 2D codes by adding the Hikvision DS-MSH100 to your cart today.
