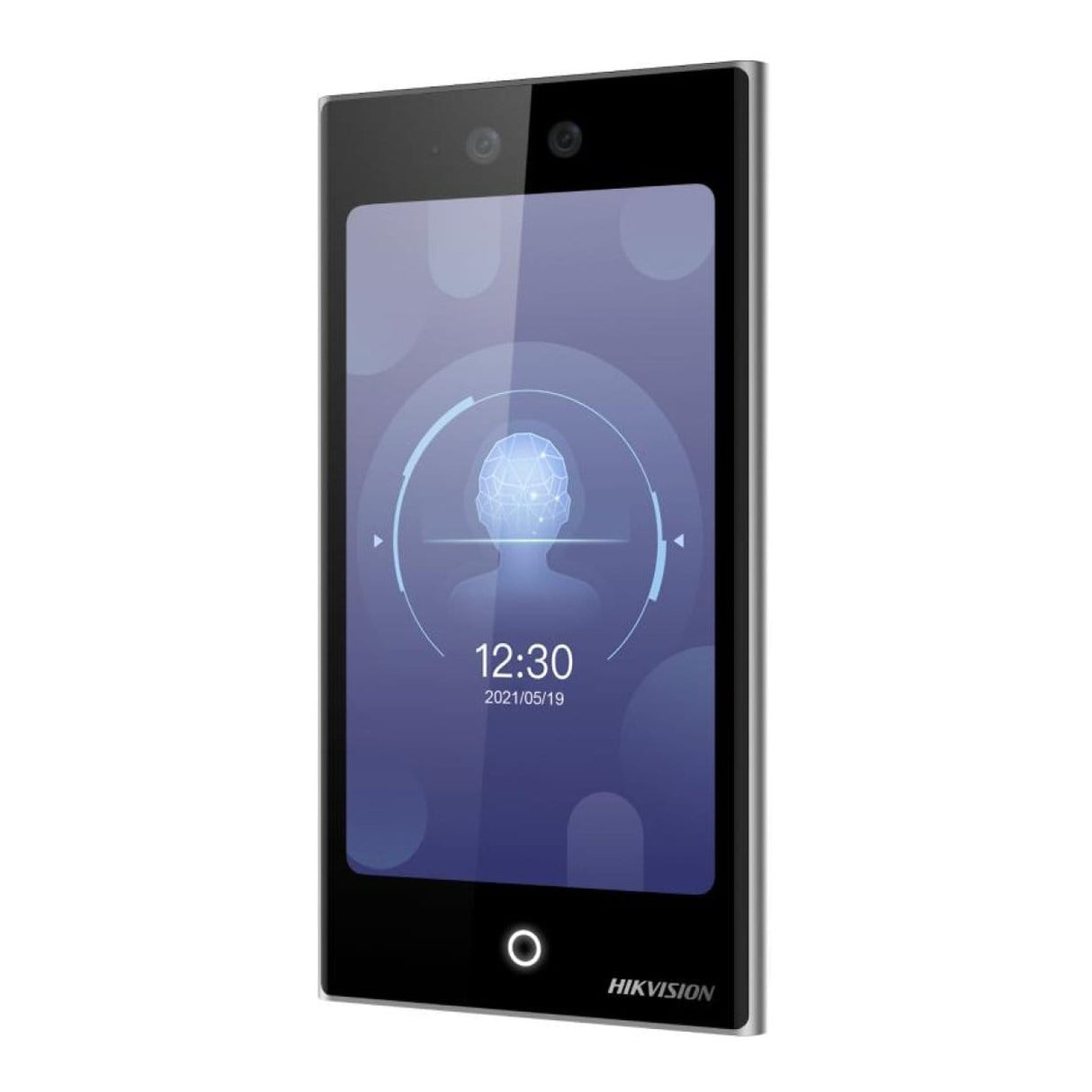

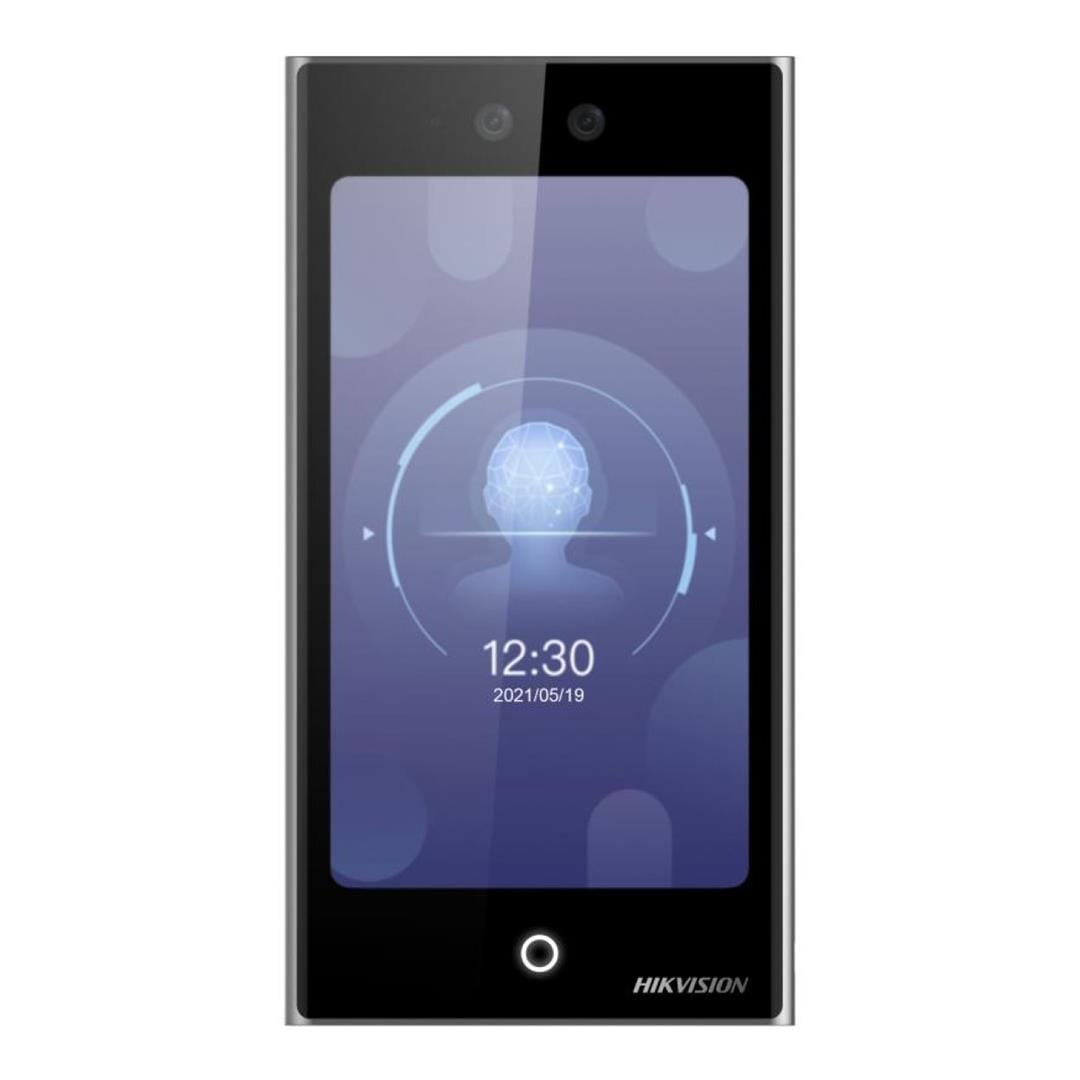

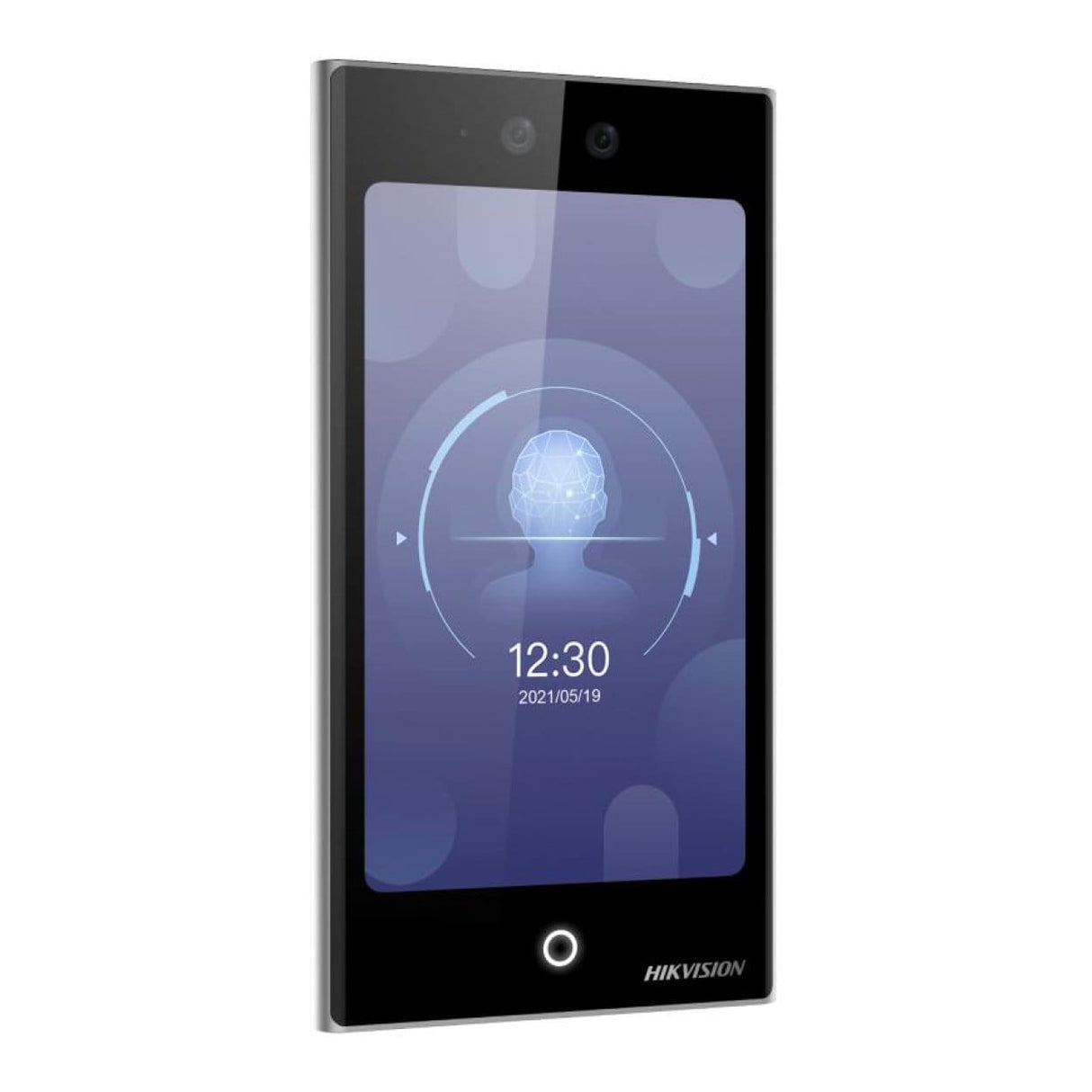

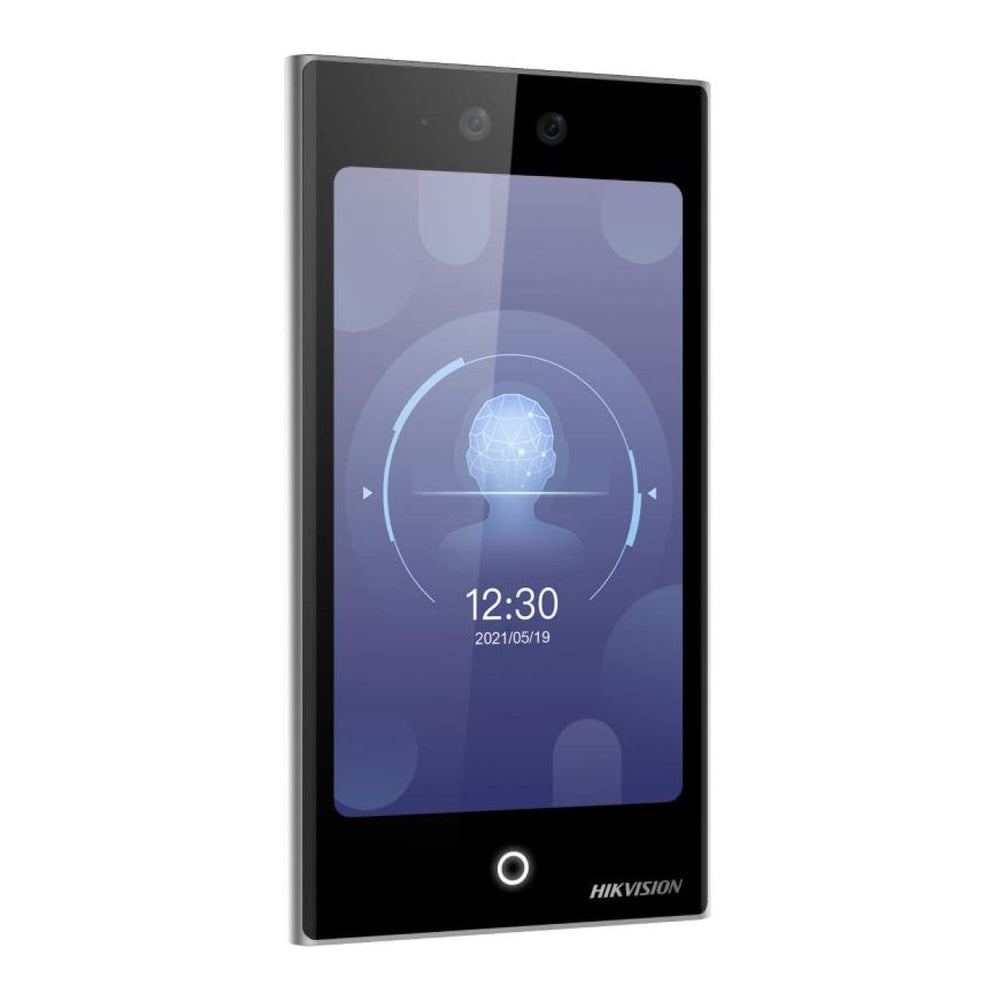

Hikvision DS-K1T673TDWX 7-inch Ultra Series Face Access Terminal

Hikvision DS-K1T673TDWX 7-inch Ultra Series Face Access Terminal

The Hikvision DS-K1T673TDWX is an Ultra Series face-recognition terminal designed for access control and attendance applications in offices, factories, schools, residential developments and other managed premises. It combines a 7-inch capacitive touchscreen, dual 2 MP imaging system, integrated contactless card reader and support for up to 100,000 enrolled faces.

Fast Face Authentication

The terminal provides a stated face-recognition time of less than 0.2 seconds per person and a manufacturer-rated accuracy of at least 99% under suitable operating conditions. Its supported recognition distance of 0.3 to 3 metres allows users to approach the terminal naturally without needing to stand immediately in front of the screen.

High-Capacity Access Management

The DS-K1T673TDWX can store up to 100,000 face profiles, 500,000 card records and 150,000 access events. A compatible optional fingerprint module can expand the system with capacity for up to 10,000 fingerprint templates.

Multiple Authentication Options

Built-in support for M1/Mifare 1, DESFire and FeliCa cards provides an alternative to face authentication. Multi-factor authentication can be configured to combine supported credentials, while face duplicate checking helps prevent the same face from being enrolled for multiple users.

Dual-Lens Imaging and Anti-Spoofing

The terminal uses a dual-lens 2 MP imaging system with wide dynamic range support. Face anti-spoofing is included to help distinguish genuine users from certain attempted presentation attacks, while face-mask detection can be used where required by the access policy.

Flexible Network Integration

Gigabit Ethernet and 2.4 GHz Wi-Fi provide wired and wireless network options. Support for ISAPI, ISUP 5.0, SIP, RTSP and Push SDK helps the terminal integrate with compatible Hikvision platforms and supported third-party systems.

Door and Peripheral Connections

Dedicated connections are provided for a door lock, exit button, door contact, alarm inputs, alarm output and tamper detection. RS485 with OSDP support and a configurable Wiegand interface allow compatible readers, controllers and other access-control equipment to be incorporated into the installation.

Key Features

• 7-inch capacitive LCD touchscreen with a resolution of 600 × 1024.
• Dual-lens 2 MP wide-angle imaging system with WDR support.
• Face-recognition distance of approximately 0.3 to 3 metres.
• Manufacturer-stated recognition time of less than 0.2 seconds per person.
• Manufacturer-stated face-recognition accuracy of at least 99%.
• Stores up to 100,000 face profiles and 500,000 card records.
• Integrated M1/Mifare 1, DESFire and FeliCa card reader.
• Supports single-person and simultaneous recognition of up to five people.
• Face anti-spoofing, duplicate-face checking and mask detection.
• Gigabit Ethernet and 2.4 GHz Wi-Fi connectivity.
• IP65-rated enclosure for suitable indoor or sheltered access installations.

Authentication Capacity

Authentication Performance

Technical Specifications

Manage high-capacity face and card access from a responsive 7-inch terminal by adding the Hikvision DS-K1T673TDWX to your access-control solution today.
