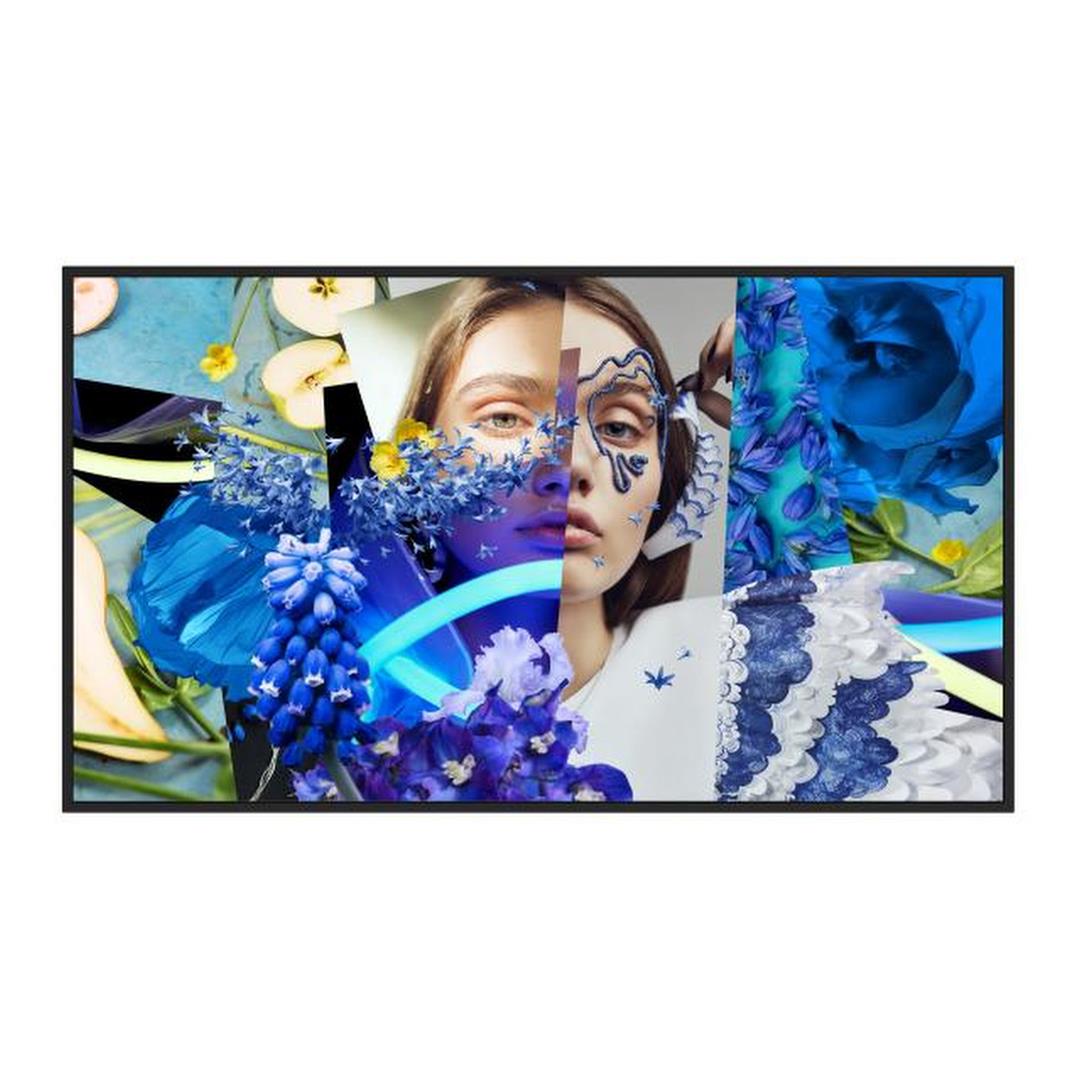

Hikvision DS-D6043UN-DP 43-inch Slim Digital Signage Panel

Hikvision DS-D6043UN-DP 43-inch Slim Digital Signage Panel

The Hikvision DS-D6043UN-DP is a slim 43-inch 4K digital signage display designed for retail, corporate, hospitality and commercial information environments. Its industrial-grade display delivers 500-nit brightness and wide 178-degree viewing angles, while the integrated Android 13 platform enables flexible standalone multimedia playback, scheduling and centralised content management.

Key Features:

• 43-inch commercial digital signage display
• 3840 x 2160 4K UHD resolution
• 500 cd/m² brightness
• 4000:1 contrast ratio
• 178° horizontal and vertical viewing angles
• 10-bit colour depth with 8-bit + FRC
• 85% NTSC colour gamut
• Industrial A+ display panel
• Designed for continuous 24/7 operation
• Android 13 operating system
• Quad-core Cortex-A55 processor
• 4GB RAM and 32GB eMMC storage
• Dual-band Wi-Fi 6 and Bluetooth 5.0
• 3 x HDMI and 1 x DisplayPort inputs
• Built-in dual 10W speakers
• USB 3.0 and USB 2.0 connectivity
• Landscape or portrait wall mounting

Features

Detailed 4K UHD Display

The 43-inch E-LED panel provides a 3840 x 2160 resolution with 500-nit brightness, 4000:1 contrast and wide 178-degree viewing angles. A 60Hz refresh rate, 10-bit colour depth and Hikvision image-enhancement technology help produce clear and engaging commercial content.

Built-In Android Platform

An integrated Android 13 system with a quad-core Cortex-A55 processor, 4GB memory and 32GB eMMC storage allows the display to operate as a standalone digital signage solution without requiring a separate media player for many applications.

Flexible Multimedia Playback

The DS-D6043UN-DP supports a wide range of content including images, audio, video, scrolling subtitles, PDF documents, webpages, live video and pop-up images. Multiple materials can be arranged into different display areas for flexible promotional and informational layouts.

Scheduling & Remote Management

Content can be scheduled by day, week, loop or custom playback plan. Centralised management supports remote program publishing, scheduled startup and shutdown, brightness and volume adjustment, screenshot previews and local USB content updates.

Comprehensive Connectivity

Three HDMI inputs and one DisplayPort input allow external source devices to be connected, while RJ45 Ethernet, dual-band Wi-Fi 6, Bluetooth 5.0, USB 3.0, USB 2.0 and RS232 provide flexible networking, control and media options.

Slim Wall-Mounted Design

The slim all-in-one enclosure measures only 40mm deep without the supplied wall-mounted backboard. The display can be installed horizontally or vertically, allowing it to adapt to menu boards, advertising, information screens and other commercial installations.

• Designed for indoor commercial digital signage applications.
• Supports both landscape and portrait wall mounting.
• Actual signage management functionality may depend on software and system configuration.

Technical Specifications:

Choose the Hikvision DS-D6043UN-DP for sharp 4K commercial content, dependable 24/7 operation, flexible digital signage management and extensive wired and wireless connectivity in a slim 43-inch wall-mounted design.
