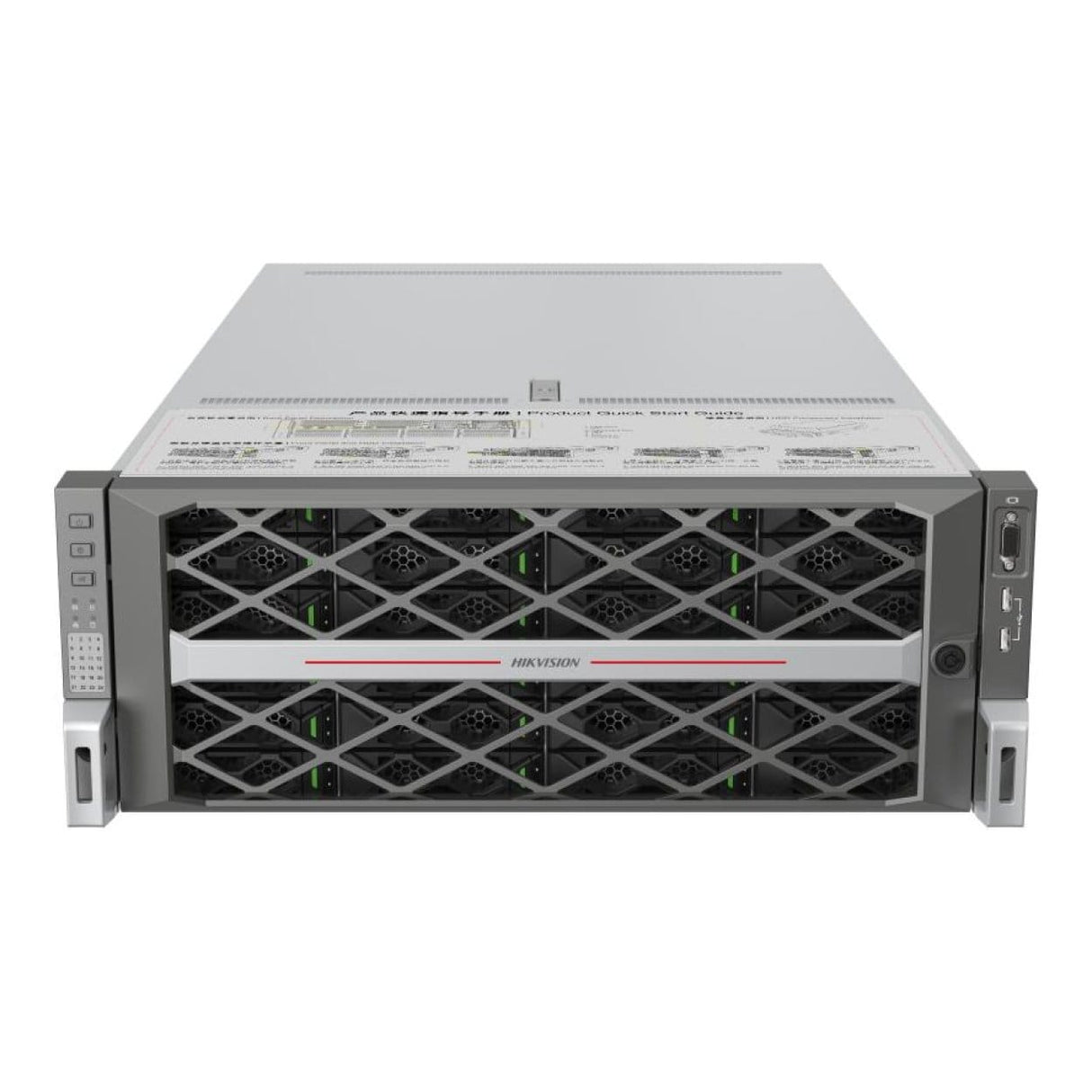

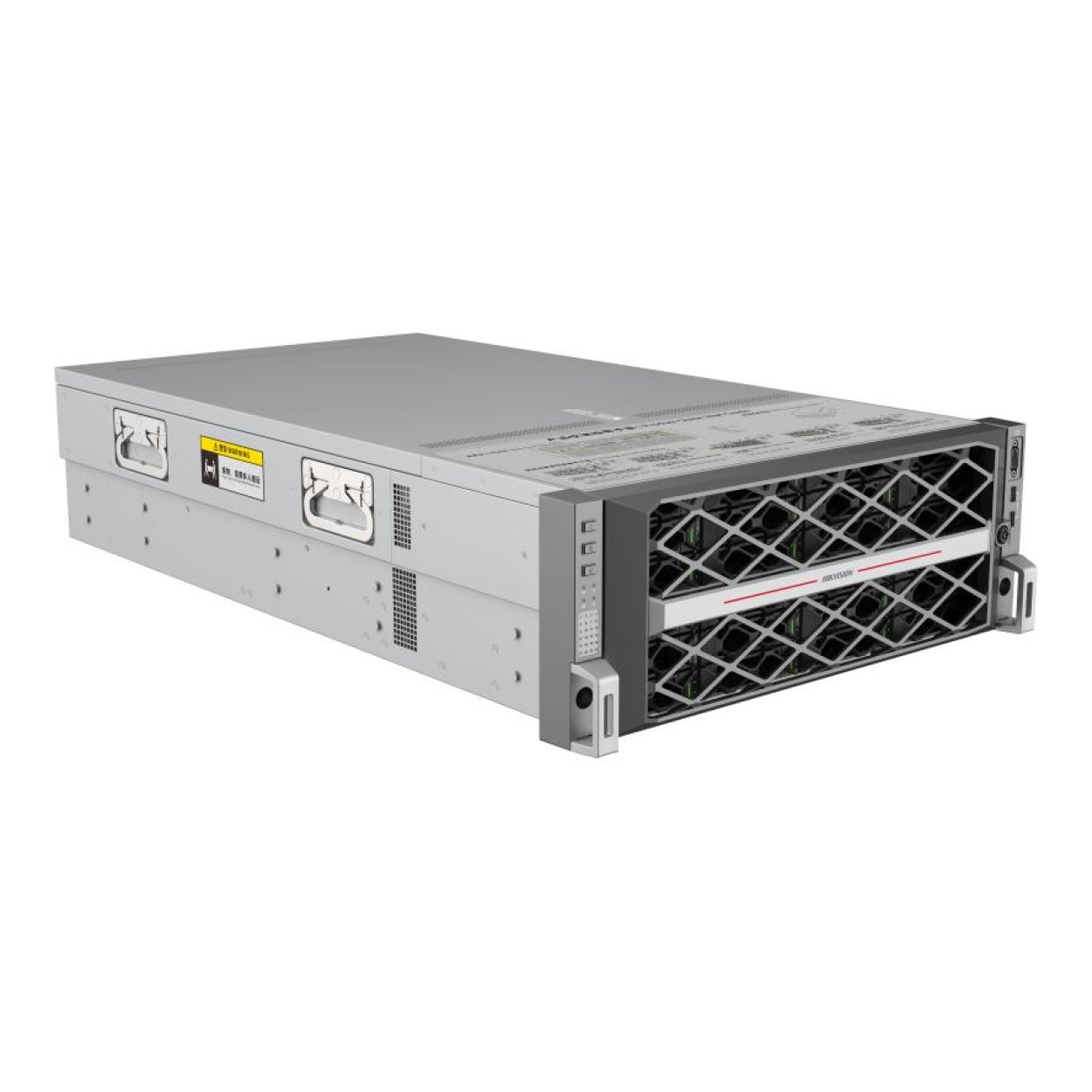

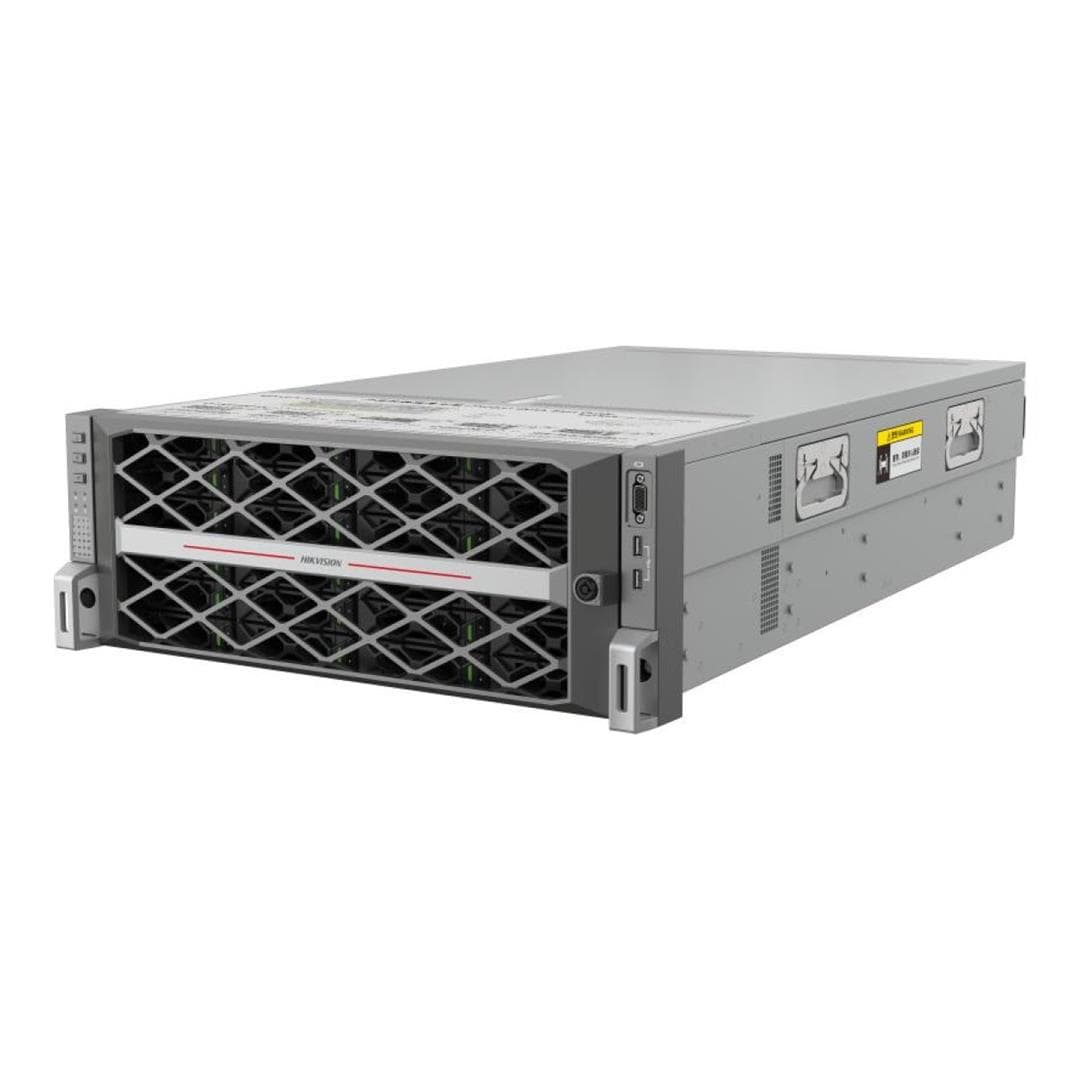

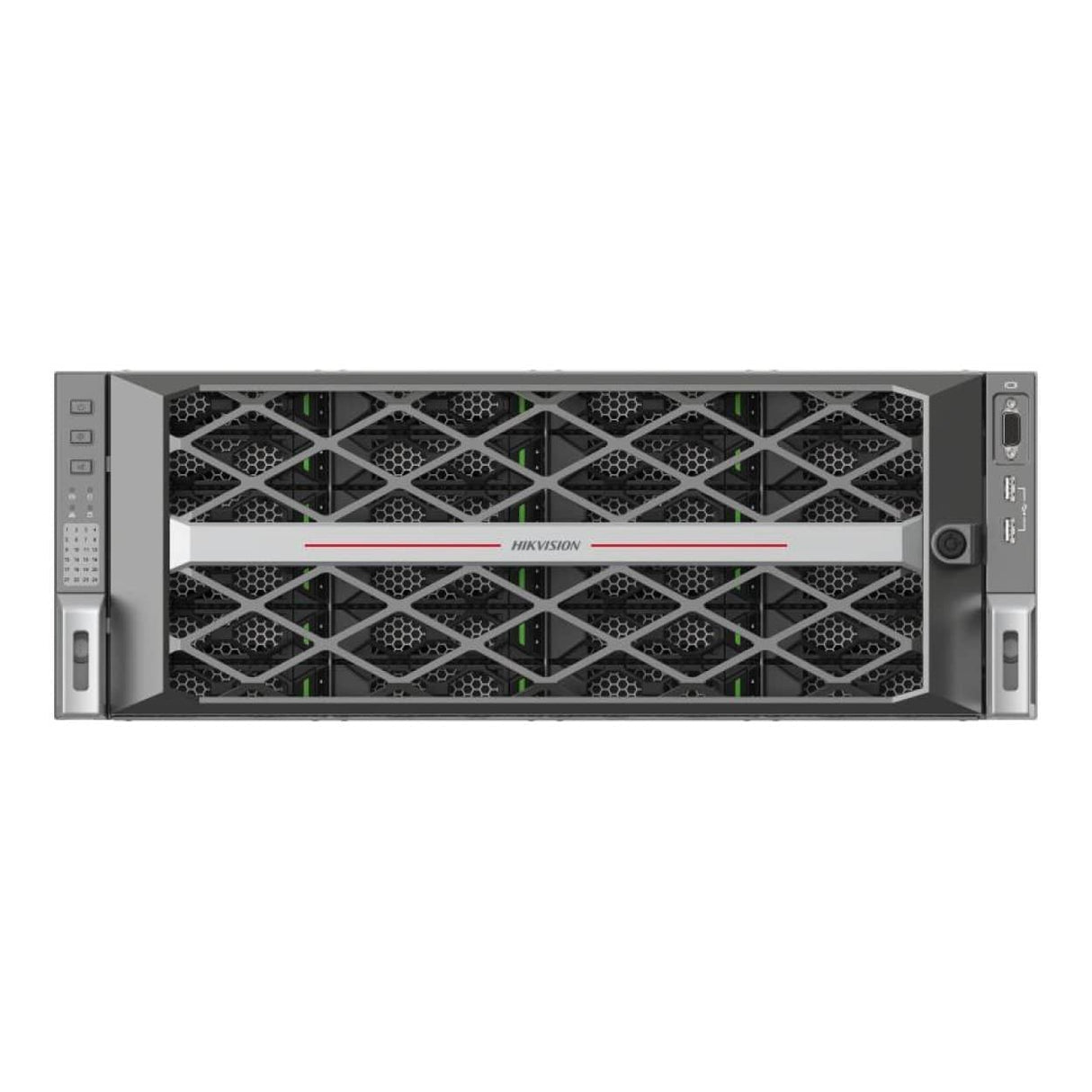

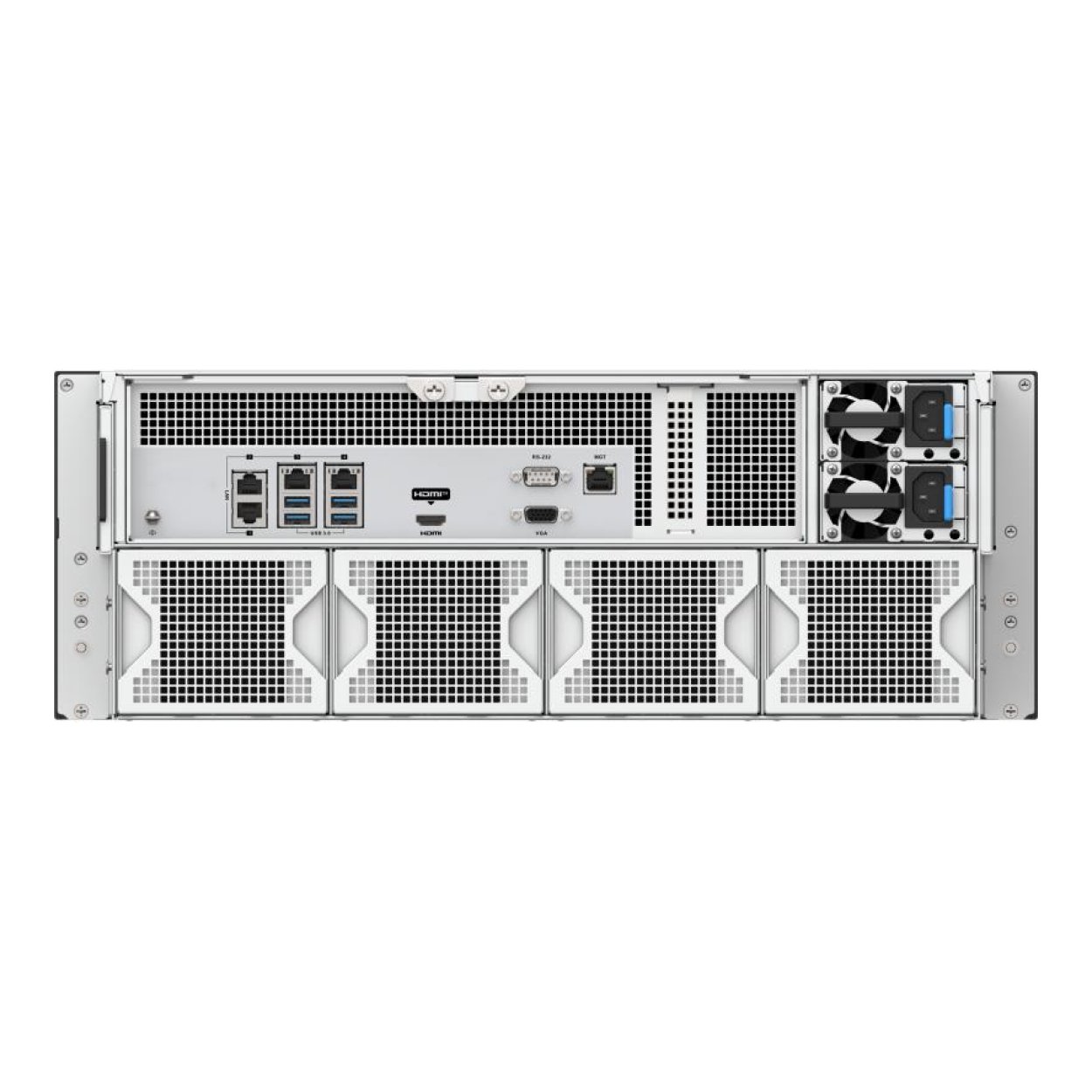

Hikvision DS-A80624SI 24-slot Single Controller Storage

Hikvision DS-A80624SI 24-slot Single Controller Storage

Features:

• High-quality recorder capable of storage and adopts multiple advanced technologies, including direct streaming video and picture technology, VRAID technology etc.
• Modular and no-cable design.
• Support scheduled backup function, allow the configuration of schedule to transfer historical recordings from IPC/NVR/DVR devices to network storage.
• Connectable to encoding devices (IPC/DVR//NVR) using standard stream media protocol such as RTSP, ONVIF etc
• Support multiple recording types, including continuous recording, manual recording, main ,sub and third stream recording; motion recording, sensor alarm recording etc.
• Support one-touch quick setting with user friendly B/S interface.
• Adopt ANR technology to ensure data integrity when the network disconnected.

Technical Specifications:

General

Chassis Type
4U

Processor
64-Bit Multi-Core Processor

Cache Memory
16 GB (Extendable To 64 GB)

Dimensions (W × H × D)
447 × 175 × 787 mm (17.6 × 6.88 × 30.96 Inches)

Weight (Without HDDs)
≤ 25 kg

Performance

Recording Mode
Video (2 Mbps) + Picture

Recording Capacity
550 Channels (1100 Mbps)

Video Performance
550 Channels (1100 Mbps)

Video Output

HDMI Output

• Rear × 1

Network

Supported Protocols

• RTSP
• ONVIF
• SDK
• ISAPI

Data Network Interfaces

• 4 × 2.5G Ethernet Interfaces
• Expandable To:
  • 4 × GbE
  • 2 × GbE
  • 1 × GbE
  • 2 × 10 GbE

Management Network Interface
1 × 1000 Mbps Ethernet Interface

COM Interface
1 × RS-232 Serial Interface

External Interfaces

USB Ports

• Front: 2 × USB 2.0
• Rear: 4 × USB 3.0

Storage

HDD Slots
24

Supported HDD Capacity

• 4 TB
• 6 TB
• 8 TB
• 10 TB
• 12 TB
• 16 TB
• 20 TB

Hot-Swap Support
Supported

Supported HDD Type
Enterprise Hard Disk

RAID Support

• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• RAID 50
• VRAID 2.0
• Hot-Spare

Storage Management

Disk Management

• Disk Inspection
• Alarm And Repair

Logical Volume Management
Video And Picture Pool Management

Recording Management

Recording Modes

• Timing Recording
• Event Recording

Video Protection

• Lock Key Video
• ANR
• Video Loss Detection And Alarm

Search Modes

• Search By Time
• Search By Event

Download Modes

• Download By Time
• Download By File

Device Maintenance

Management Modes

• Web-Based GUI
• Serial Interface CLI
• Centralized Management Of Multiple Devices (HCP, HCM)

Alarm Modes

• Sound
• Light
• Email
• Web Page

Log Downloading
Download Via Web Page

Power

Power Module
Redundant 550 W

Rated Power Consumption
Working: ≤ 522 W

Environmental

Working Humidity
20% To 80% RH (Non-Condensing)

Storage Humidity
5% To 90% RH (Non-Condensing)
