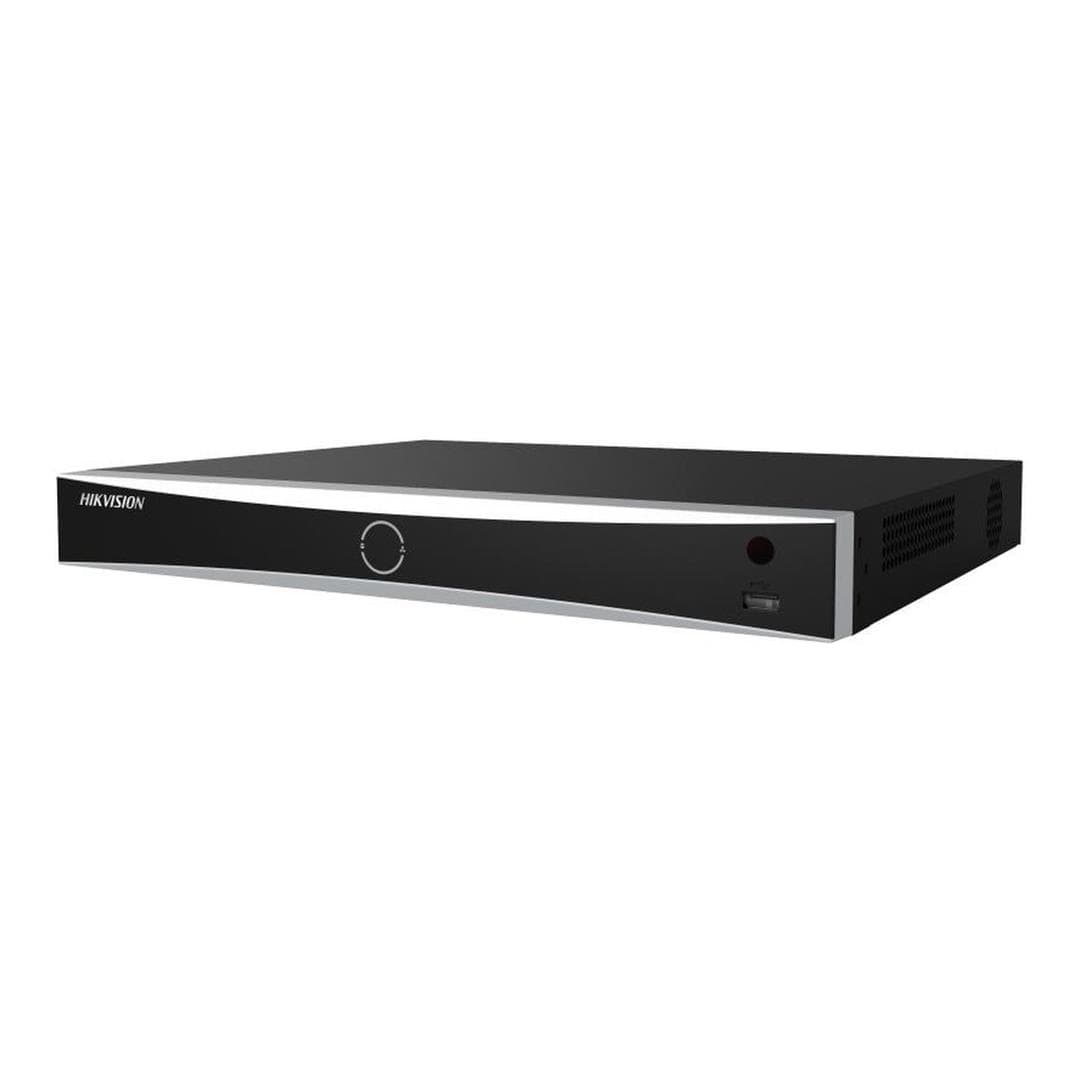

Hikvision DS-7616NXI-K2(STD) K Series 4K 16-channel 1U AcuSense NVR

Hikvision DS-7616NXI-K2(STD) K Series 4K 16-channel 1U AcuSense NVR

The Hikvision DS-7616NXI-K2(STD) is a 16-channel network video recorder designed for professional IP surveillance systems that require intelligent event filtering, high-resolution recording and flexible storage. Hikvision AcuSense technology can distinguish human and vehicle activity during supported events, helping operators focus on relevant footage and reduce unnecessary alarm notifications.

Intelligent Surveillance with AcuSense

AcuSense analytics provide human and vehicle classification for supported motion detection and perimeter protection events. The NVR supports Motion Detection 2.0 across all channels, while two-channel recorder-based perimeter analysis can help filter out events caused by non-target movement.

• Motion Detection 2.0: Human and vehicle classification helps reduce false alarms caused by unrelated movement.
• Perimeter protection: Supports recorder-based video analysis on up to two channels for compatible H.264 or H.265 camera streams.
• Facial analytics: Supports face capture, face picture search and face picture comparison.
• Smart search and playback: Search a selected area of recorded video and review relevant events more efficiently.

16-Channel High-Resolution Recording

Connect up to 16 compatible IP cameras through the recorder's Gigabit Ethernet connection. Incoming and outgoing bandwidth of up to 160 Mbps supports multi-camera installations, while recording resolutions extend up to 12 MP for compatible cameras.

The recorder supports H.265+, H.265, H.264+ and H.264 video formats. Hikvision's H.265+ compression is designed to reduce bandwidth and storage requirements while retaining useful recorded detail.

4K Local Display and Flexible Monitoring

An HDMI output provides local display resolutions up to 4K at 30 Hz. Independent HDMI and VGA outputs allow different content to be displayed on two compatible monitors, providing flexibility for security rooms, reception areas and on-site monitoring stations.

Expandable Surveillance Storage

Two SATA interfaces support up to 10 TB per hard drive, providing a maximum supported storage capacity of up to 20 TB when two compatible drives are installed. The recorder also supports synchronous playback of up to 16 channels for convenient multi-camera incident review.

Key Features:

• Connect and manage up to 16 compatible IP cameras.
• Up to 160 Mbps incoming and 160 Mbps outgoing bandwidth.
• Recording resolution support up to 12 MP.
• H.265+, H.265, H.264+ and H.264 video format support.
• AcuSense human and vehicle classification for supported smart events.
• Independent HDMI and VGA outputs, with HDMI resolution up to 4K.
• Two SATA interfaces supporting up to 10 TB per compatible HDD.

Technical Specifications:

Build a more manageable 16-camera IP surveillance system with intelligent event filtering, flexible local monitoring and expandable recording storage by adding the Hikvision DS-7616NXI-K2(STD) to your cart today.
