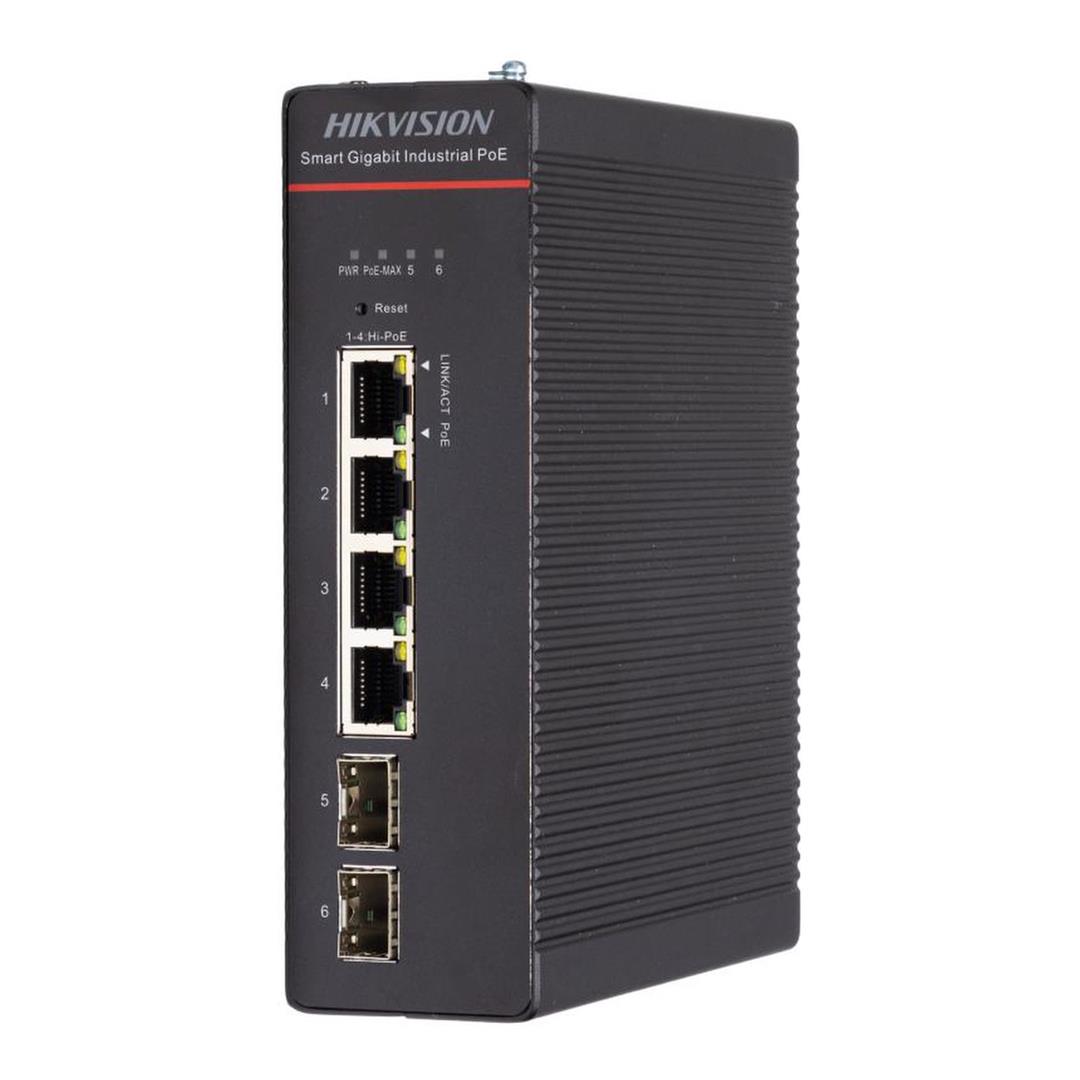

Hikvision DS-3T1506HP-SI-4P2F 4-port Industrial Smart Managed POE Switch

Hikvision DS-3T1506HP-SI-4P2F 4-port Industrial Smart Managed POE Switch

The Hikvision DS-3T1506HP-SI-4P2F is a rugged industrial smart managed PoE switch designed for surveillance and demanding network installations. It provides four Gigabit Hi-PoE RJ45 ports and two Gigabit SFP fibre ports, with a total PoE budget of up to 300W and support for high-power IEEE 802.3bt devices.

Key Features:

• 4 x Gigabit Hi-PoE RJ45 ports
• 2 x Gigabit SFP fibre uplink ports
• IEEE 802.3af/at/bt PoE support
• Up to 90W PoE output per port
• Up to 300W total PoE power budget
• 20Gbps whole-device switching capacity
• 14.88Mpps packet forwarding rate
• Long-range PoE transmission up to 300m
• PoE Watchdog for automatic camera recovery
• 802.1Q VLAN support
• STP, RSTP and ERPS loop prevention
• QoS and DHCP Snooping
• SNMP management support
• Port isolation and storm control
• Cable fault detection
• Static link aggregation
• 6kV surge protection
• IP40 metal enclosure
• -40°C to 75°C operating temperature
• DIN rail or desktop installation

Features

High-Power 4-Port Hi-PoE

All four Gigabit RJ45 ports support Hi-PoE with IEEE 802.3bt, allowing compatible devices to draw up to 90W per port. With a total PoE budget of up to 300W, the switch can support demanding IP cameras and other high-power network devices.

Dual Gigabit SFP Uplinks

Two Gigabit SFP fibre ports provide flexible high-speed uplink connectivity for fibre network installations, helping extend network links between equipment rooms, cabinets and remote surveillance locations.

Up to 300m Long-Range Transmission

Ports 1 to 4 support long-range transmission of up to 300 metres when enabled, helping simplify surveillance installations where cameras are positioned beyond standard Ethernet distances. Actual range depends on cable quality and connected devices.

Smart Network Management

The switch supports 802.1Q VLAN, QoS, DHCP Snooping, SNMP, port isolation, port mirroring and static link aggregation. STP, RSTP and ERPS help prevent network loops, while storm control protects against excessive broadcast, multicast and unknown unicast traffic.

PoE Watchdog & Cable Detection

PoE Watchdog can automatically detect and restart connected cameras that stop responding, helping reduce manual maintenance. Built-in cable detection can identify open circuits, short circuits and approximate network cable length for easier troubleshooting.

Industrial-Grade Construction

The metal IP40 enclosure is designed for industrial environments and operates across a wide -40°C to 75°C temperature range. The switch supports dual DC power inputs with hot backup and provides 6kV surge protection for improved system reliability.

• Industrial DC power supply is not included and must be supplied separately.
• A 52V to 57V DC input is recommended when maximum PoE output is required.
• SFP optical modules are sold separately.

Technical Specifications:

Choose the Hikvision DS-3T1506HP-SI-4P2F for reliable industrial networking with four high-power Gigabit PoE ports, dual SFP fibre uplinks, intelligent network management, long-range camera connectivity and rugged operation in demanding surveillance environments.
